REAR SUSPENSION - ARMS of Ferrari Ferrari 458 Speciale

View All

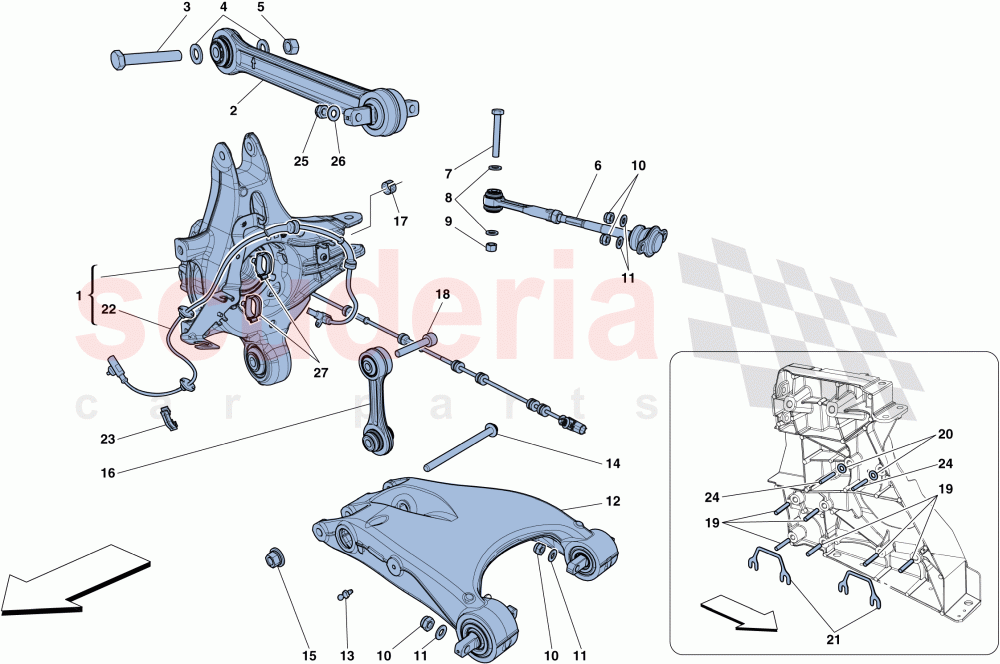

Ferrari 458 Speciale - REAR SUSPENSION - ARMS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	299935	RH REAR HUB CARRIER	Enquire	To Order
	299933	COMPL. LH REAR HUB CARRIER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	295792	REAR UPPER ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15541434	SCREW	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	12643778	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	203666	NUT M12	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	245161	TIE-ROD	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	15541434	SCREW	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	12643778	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	203666	NUT M12	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	12574521	Nyloc Nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	126648	WASHER D.10.5-21 X 2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	810450	LH Rear Lower Arm	Enquire	To Order
	810463	RH Lower Rear Arm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	343376	BALL JOINT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	238656	SPECIAL SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	238063	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	259688	ANTI-ROTATION LINKAGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	222956	COMPENSATOR RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	238258	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	264528	THREADED ROD 10 X 1.25	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13578321	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262542	ADJUSTER SHIM	Enquire	To Order
	262543	ADJUSTER SHIM	Enquire	To Order
	262539	ADJUSTER SHIM	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	269415	ABS SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	251744	TRIPLE CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	302406	THREADED ROD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104030	NYLOC NUT M8 X 1.25 X 9.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14496524	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	316888	CLIP	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	299935	RH REAR HUB CARRIER	299935 RH REAR HUB CARRIER	-	1	Enquire
1	299933	COMPL. LH REAR HUB CARRIER	299933 COMPL. LH REAR HUB CARRIER	-	1	Enquire
2	295792	REAR UPPER ARM	295792 REAR UPPER ARM	-	2	Enquire
3	15541434	SCREW ARRIVING SOON	15541434 SCREW ARRIVING SOON	-	2	Enquire
4	12643778	WASHER	12643778 WASHER	-	4	Enquire
5	203666	NUT M12 ARRIVING SOON	203666 NUT M12 ARRIVING SOON	-	2	Enquire
6	245161	TIE-ROD ARRIVING SOON	245161 TIE-ROD ARRIVING SOON	-	2	Enquire
7	15541434	SCREW ARRIVING SOON	15541434 SCREW ARRIVING SOON	-	2	Enquire
8	12643778	WASHER	12643778 WASHER	-	4	Enquire
9	203666	NUT M12 ARRIVING SOON	203666 NUT M12 ARRIVING SOON	-	2	Enquire
10	12574521	Nyloc Nut	12574521 Nyloc Nut	-	16	Enquire
11	126648	WASHER D.10.5-21 X 2	126648 WASHER D.10.5-21 X 2	-	12	Enquire
12	810450	LH Rear Lower Arm	810450 LH Rear Lower Arm	-	1	Enquire
12	810463	RH Lower Rear Arm	810463 RH Lower Rear Arm	-	1	Enquire
13	343376	BALL JOINT	343376 BALL JOINT	-	2	Enquire
14	238656	SPECIAL SCREW	238656 SPECIAL SCREW	-	2	Enquire
15	238063	NUT	238063 NUT	-	2	Enquire
16	259688	ANTI-ROTATION LINKAGE	259688 ANTI-ROTATION LINKAGE	-	2	Enquire
17	222956	COMPENSATOR RING	222956 COMPENSATOR RING	-	2	Enquire
18	238258	SCREW	238258 SCREW	-	2	Enquire
19	264528	THREADED ROD 10 X 1.25	264528 THREADED ROD 10 X 1.25	-	12	Enquire
20	13578321	WASHER	13578321 WASHER	-	4	Enquire
21	262542	ADJUSTER SHIM	262542 ADJUSTER SHIM Th. 3.5 mm; Installed if necessary	-	4	Enquire
21	262543	ADJUSTER SHIM	262543 ADJUSTER SHIM Th. 4 mm; Installed if necessary	-	4	Enquire
21	262539	ADJUSTER SHIM	262539 ADJUSTER SHIM Th. 2 mm; Installed if necessary	-	4	Enquire
21	262540	ADJUSTER SHIM	262540 ADJUSTER SHIM Th. 2.5 mm; Installed if necessary	-	4	Enquire
21	262541	ADJUSTER SHIM	262541 ADJUSTER SHIM Th. 3 mm; Installed if necessary	-	4	Enquire
21	262544	ADJUSTER SHIM	262544 ADJUSTER SHIM Th. 0.5 mm; Installed if necessary	-	4	Enquire
21	262545	ADJUSTER SHIM	262545 ADJUSTER SHIM Th. 1 mm; Installed if necessary	-	4	Enquire
21	262546	ADJUSTER SHIM	262546 ADJUSTER SHIM Th. 1.5 mm; Installed if necessary	-	4	Enquire
22	269415	ABS SENSOR	269415 ABS SENSOR	-	1	Enquire
23	251744	TRIPLE CLIP	251744 TRIPLE CLIP	-	4	Enquire
24	302406	THREADED ROD	302406 THREADED ROD	-	4	Enquire
25	104030	NYLOC NUT M8 X 1.25 X 9.5	104030 NYLOC NUT M8 X 1.25 X 9.5	-	4	Enquire
26	14496524	WASHER	14496524 WASHER	-	4	Enquire
27	316888	CLIP	316888 CLIP	-	4	Enquire
