Name: EVAPORATIVE EMISSIONS CONTROL SYSTEM
Rating: 4.5 (1 reviews)

View All

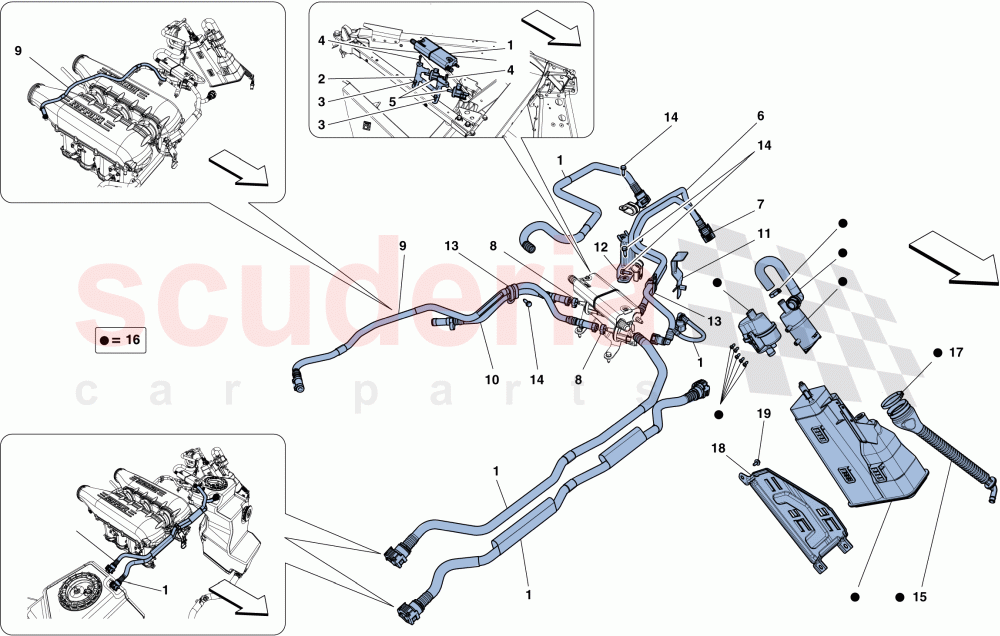

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	275710	VAPOUR SEPARATOR COMPLETE WITH PIPES	$299.98	To Order

Photo	Part No	Description	Price (each)	Stock
	304864	BRACKET	$44.43	To Order

Photo	Part No	Description	Price (each)	Stock
	11585024	SCREW	$0.34	To Order

Photo	Part No	Description	Price (each)	Stock
	14358924	SCREW	$0.44	To Order

Photo	Part No	Description	Price (each)	Stock
	254425	FLUSH VALVE	$51.33	To Order

Photo	Part No	Description	Price (each)	Stock
	277354	PIPE BETWEEN FILTER-LH VALVE	$55.89	To Order

Photo	Part No	Description	Price (each)	Stock
	277355	PIPE BETWEEN FILTER-RH VALVE	$55.89	To Order

Photo	Part No	Description	Price (each)	Stock
	13432070	HOSE COLLAR	$0.57	To Order

Photo	Part No	Description	Price (each)	Stock
	291988	RH FLUSH VALVE PIPE	$70.59	To Order

Photo	Part No	Description	Price (each)	Stock
	291987	LH FLUSH VALVE PIPE	$49.73	To Order

Photo	Part No	Description	Price (each)	Stock
	259435	BRACKET	$186.33	To Order

Photo	Part No	Description	Price (each)	Stock
	277384	BRACKET	$25.79	To Order

Photo	Part No	Description	Price (each)	Stock
	11585024	SCREW	$0.34	To Order

Photo	Part No	Description	Price (each)	Stock
	282519	AIR FILTER BELLOW	$147.61	To Order

Photo	Part No	Description	Price (each)	Stock
	278130	VAPOUR FILTER	$619.84	To Order

Photo	Part No	Description	Price (each)	Stock
	13434170	COLLAR	$26.44	To Order

Photo	Part No	Description	Price (each)	Stock
	82414200	VAPOUR FILTER BRACKET	$41.56	To Order

Photo	Part No	Description	Price (each)	Stock
	880041	Allen Head Bolt M6 X 26	$6.18	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	275710	VAPOUR SEPARATOR COMPLETE WITH PIPES	275710 VAPOUR SEPARATOR COMPLETE WITH PIPES	$299.98	1
2	304864	BRACKET	304864 BRACKET	$44.43	1
3	11585024	SCREW	11585024 SCREW M5 X 14	$0.34	2
4	14358924	SCREW	14358924 SCREW	$0.44	2
5	254425	FLUSH VALVE	254425 FLUSH VALVE	$51.33 MSRP: ~~66.38~~ (22.7% off)	2
6	277354	PIPE BETWEEN FILTER-LH VALVE	277354 PIPE BETWEEN FILTER-LH VALVE	$55.89	1
7	277355	PIPE BETWEEN FILTER-RH VALVE	277355 PIPE BETWEEN FILTER-RH VALVE	$55.89	1
8	13432070	HOSE COLLAR	13432070 HOSE COLLAR D. 15.7	$0.57 MSRP: ~~1.07~~ (46.7% off)	4
9	291988	RH FLUSH VALVE PIPE	291988 RH FLUSH VALVE PIPE RH INTAKE	$70.59	1
10	291987	LH FLUSH VALVE PIPE	291987 LH FLUSH VALVE PIPE LH INTAKE	$49.73	1
11	259435	BRACKET	259435 BRACKET	$186.33	1
12	277384	BRACKET	277384 BRACKET	$25.79	1
13	253512	BRACKET	253512 BRACKET	$8.70	2
13	277527	BRACKET WITH SHEATH	277527 BRACKET WITH SHEATH	$19.24	1
14	11585024	SCREW	11585024 SCREW M5 X 14	$0.34	5
15	282519	AIR FILTER BELLOW	282519 AIR FILTER BELLOW Also supplied with compl. vapour filter, ref. 16	$147.61	1
16	278130	VAPOUR FILTER	278130 VAPOUR FILTER Applicable for breather vent 83862100 Tab. 105 ref. 17	$619.84	1
17	13434170	COLLAR	13434170 COLLAR	$26.44	1
18	82414200	VAPOUR FILTER BRACKET	82414200 VAPOUR FILTER BRACKET	$41.56	1
19	880041	Allen Head Bolt M6 X 26	880041 Allen Head Bolt M6 X 26 M6 X 14	$6.18	3
