COOLING - RADIATORS AND AIR DUCTS

Find Your Part

Ferrari 458 Speciale - COOLING - RADIATORS AND AIR DUCTS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
265668 WATER PIPE $369.04 To Order
Photo Part No Description Price (each) Stock
251271 RUBBER CONNECTOR PIPE TO RH SIDE RADIATORS $93.05 To Order
Photo Part No Description Price (each) Stock
251273 RUBBER CONNECTOR PIPE TO LH SIDE RADIATORS $60.96 ARRIVING SOON
Photo Part No Description Price (each) Stock
262473 HOSE $113.91 To Order
Photo Part No Description Price (each) Stock
262114 HOSE CLAMP $1.20 ARRIVING SOON
Photo Part No Description Price (each) Stock
267276 VENT PIPE $157.66 To Order
Photo Part No Description Price (each) Stock
15699804 SCREW $0.19 To Order
Photo Part No Description Price (each) Stock
265889 WATER DELIVERY PIPE $336.95 To Order
262496 WATER DELIVERY PIPE $258.00 To Order
Photo Part No Description Price (each) Stock
880041 Allen Head Bolt M6 X 26 $6.18 To Order
Photo Part No Description Price (each) Stock
10298460 GASKET $0.15 To Order
Photo Part No Description Price (each) Stock
180137 TEMPERATURE SENSOR $30.23 To Order
Photo Part No Description Price (each) Stock
262497 WATER RETURN PIPE $369.04 To Order
Photo Part No Description Price (each) Stock
880041 Allen Head Bolt M6 X 26 $6.18 To Order
Photo Part No Description Price (each) Stock
10903024 SCREW $0.19 To Order
Photo Part No Description Price (each) Stock
14498801 WASHER $0.11 To Order
Photo Part No Description Price (each) Stock
85684500 GASKET $71.51 To Order
Photo Part No Description Price (each) Stock
85684500 GASKET $71.51 To Order
Photo Part No Description Price (each) Stock
13126970 COLLAR $1.56 To Order
Photo Part No Description Price (each) Stock
85684500 GASKET $71.51 To Order
Photo Part No Description Price (each) Stock
85684500 GASKET $71.51 To Order
Photo Part No Description Price (each) Stock
262836 CONDENSER $904.47 ARRIVING SOON
Photo Part No Description Price (each) Stock
85891400 LOWER RH DUCT $288.81 To Order
Photo Part No Description Price (each) Stock
85891500 LOWER LH DUCT $286.67 To Order
Photo Part No Description Price (each) Stock
11568124 SCREW $0.94 To Order
16285224 SCREW $0.31 To Order
Photo Part No Description Price (each) Stock
85531300 UPPER RH DUCT, LOWER SECTION $1,299.71 To Order
Photo Part No Description Price (each) Stock
85531400 UPPER LH DUCT, LOWER SECTION $1,299.71 To Order
Photo Part No Description Price (each) Stock
263069 LOWER BRACKET FOR RETAINER BLOCK $15.24 To Order
Photo Part No Description Price (each) Stock
263068 UPPER BRACKET FOR RETAINER BLOCK $20.05 To Order
Photo Part No Description Price (each) Stock
237511 HOSE $110.70 ARRIVING SOON
Photo Part No Description Price (each) Stock
85581700 COMPL. CENTRAL LUGGAGE COMPARTMENT RADIATOR DUCT $946.70 To Order
Photo Part No Description Price (each) Stock
258919 CLIP $1.07 To Order
Photo Part No Description Price (each) Stock
270265 RH Water Radiator $1,684.81 ARRIVING SOON
Photo Part No Description Price (each) Stock
262837 LH Water Radiator $1,460.17 ARRIVING SOON
Photo Part No Description Price (each) Stock
270923 RH ELECTRIC FAN $1,010.88 To Order
Photo Part No Description Price (each) Stock
270924 LH ELECTRIC FAN $1,010.88 To Order
Photo Part No Description Price (each) Stock
266603 COOLING COIL $433.23 To Order
Photo Part No Description Price (each) Stock
14497704 WASHER $0.65 To Order
Photo Part No Description Price (each) Stock
262478 PIPE $83.11 To Order
Photo Part No Description Price (each) Stock
14302424 SCREW $0.45 To Order
Photo Part No Description Price (each) Stock
10441290 BRACKET WITH SHEATH $0.57 To Order
Photo Part No Description Price (each) Stock
808986 CLAMP $0.21 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.31 To Order
Photo Part No Description Price (each) Stock
10441290 BRACKET WITH SHEATH $0.57 To Order
Photo Part No Description Price (each) Stock
237478 MOUNTING RADIATOR $23.68 ARRIVING SOON
Photo Part No Description Price (each) Stock
849234 SCREW $2.92 To Order
Photo Part No Description Price (each) Stock
247751 WASHER $6.18 To Order
Photo Part No Description Price (each) Stock
747853 SCREW $0.78 To Order
231620 SCREW $0.32 To Order
Photo Part No Description Price (each) Stock
747853 SCREW $0.78 To Order
Photo Part No Description Price (each) Stock
263070 BUSH $6.56 To Order
Photo Part No Description Price (each) Stock
10903224 SCREW $0.28 To Order
10902424 SCREW $0.15 To Order
Photo Part No Description Price (each) Stock
88831000 GRUB SCREW M5 X 40 $0.57 To Order
Photo Part No Description Price (each) Stock
16286124 SCREW $0.37 To Order
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
263071 UPPER PILLORY BLOCK $20.84 To Order
Photo Part No Description Price (each) Stock
264829 UPPER PILLORY BLOCK $25.79 To Order
Photo Part No Description Price (each) Stock
263072 LOWER PILLORY BLOCK $20.84 To Order
Photo Part No Description Price (each) Stock
265668 WATER PIPE $369.04 To Order
Photo Part No Description Price (each) Stock
293973 INSULATION $107.49 To Order
Photo Part No Description Price (each) Stock
84514800 GASKET $32.32 To Order
View All

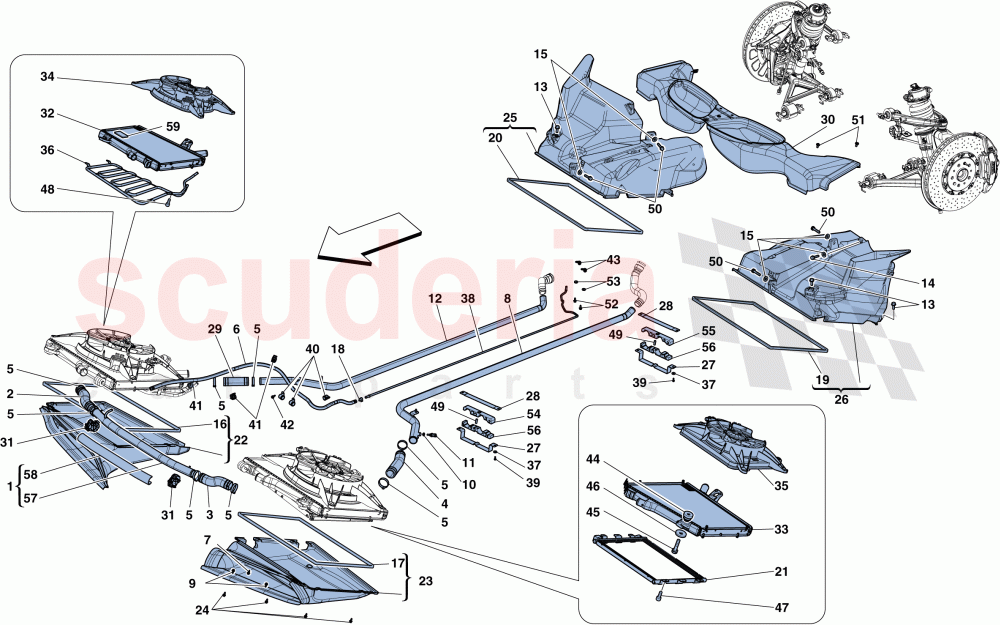

COOLING - RADIATORS AND AIR DUCTS of Ferrari Ferrari 458 Speciale Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 265668
WATER PIPE
After depletion, order loose components; Applicable until depletion 		$369.04 1
2 251271
RUBBER CONNECTOR PIPE TO RH SIDE RADIATORS 		$93.05 (28.5% off) 1
3 251273
RUBBER CONNECTOR PIPE TO LH SIDE RADIATORS
ARRIVING SOON 		$60.96 (8.2% off) 1
4 262473
HOSE 		$113.91 (25.7% off) 1
5 262114
HOSE CLAMP
ARRIVING SOON 		$1.20 8
6 267276
VENT PIPE 		$157.66 1
7 15699804
SCREW 		$0.19 2
8 265889
WATER DELIVERY PIPE
Not for USA, CDN, USA LIGHT 		$336.95 1
8 262496
WATER DELIVERY PIPE
Applicable for USA, CDN, USA LIGHT 		$258.00 1
9 880041
Allen Head Bolt M6 X 26
M6 X 22 		$6.18 4
10 10298460
GASKET 		$0.15 (88% off) 1
11 180137
TEMPERATURE SENSOR 		$30.23 (8.4% off) 1
12 262497
WATER RETURN PIPE 		$369.04 1
13 880041
Allen Head Bolt M6 X 26
M6 X 20 		$6.18 4
14 10903024
SCREW 		$0.19 2
15 14498801
WASHER 		$0.11 (45% off) 6
16 85684500
GASKET
L=1 m 		$71.51 1
17 85684500
GASKET
L=1 m 		$71.51 1
18 13126970
COLLAR 		$1.56 2
19 85684500
GASKET
L=1 m 		$71.51 1
20 85684500
GASKET
L=1 m 		$71.51 1
21 262836
CONDENSER
ARRIVING SOON 		$904.47 (14% off) 1
22 85891400
LOWER RH DUCT 		$288.81 1
23 85891500
LOWER LH DUCT 		$286.67 1
24 11568124
SCREW
M5 X 14; No longer supplied; Replaced by 16285224 		$0.94 8
24 16285224
SCREW
M5 X 14 		$0.31 8
25 85531300
UPPER RH DUCT, LOWER SECTION 		$1,299.71 1
26 85531400
UPPER LH DUCT, LOWER SECTION 		$1,299.71 1
27 263069
LOWER BRACKET FOR RETAINER BLOCK 		$15.24 3
28 263068
UPPER BRACKET FOR RETAINER BLOCK 		$20.05 3
29 237511
HOSE
ARRIVING SOON 		$110.70 (26.9% off) 1
30 85581700
COMPL. CENTRAL LUGGAGE COMPARTMENT RADIATOR DUCT 		$946.70 1
31 258919
CLIP 		$1.07 2
32 270265
RH Water Radiator
ARRIVING SOON 		$1,684.81 (15.1% off) 1
33 262837
LH Water Radiator
ARRIVING SOON 		$1,460.17 (27.9% off) 1
34 270923
RH ELECTRIC FAN 		$1,010.88 1
35 270924
LH ELECTRIC FAN 		$1,010.88 1
36 266603
COOLING COIL 		$433.23 1
37 14497704
WASHER 		$0.65 6
38 262478
PIPE 		$83.11 1
39 14302424
SCREW 		$0.45 6
40 10441290
BRACKET WITH SHEATH 		$0.57 (66.1% off) 3
41 808986
CLAMP 		$0.21 3
42 231619
SCREW
M6 X 18 		$0.31 3
43 10441290
BRACKET WITH SHEATH 		$0.57 (66.1% off) 2
44 237478
MOUNTING RADIATOR
ARRIVING SOON 		$23.68 6
45 849234
SCREW 		$2.92 6
46 247751
WASHER 		$6.18 6
47 747853
SCREW 		$0.78 2
47 231620
SCREW 		$0.32 (8.6% off) 4
48 747853
SCREW 		$0.78 2
49 263070
BUSH 		$6.56 3
50 10903224
SCREW
M6 X 40 		$0.28 (30% off) 2
50 10902424
SCREW
M6 X 20 		$0.15 (78.6% off) 2
51 88831000
GRUB SCREW M5 X 40 		$0.57 7
52 16286124
SCREW 		$0.37 2
53 12643724
WASHER 		$0.06 (88% off) 2
54 263071
UPPER PILLORY BLOCK 		$20.84 1
55 264829
UPPER PILLORY BLOCK 		$25.79 1
56 263072
LOWER PILLORY BLOCK 		$20.84 3
57 265668
WATER PIPE 		$369.04 1
58 293973
INSULATION 		$107.49 1
59 84514800
GASKET 		$32.32 1
