FRONT SUSPENSION - ARMS of Ferrari Ferrari 458 Speciale

View All

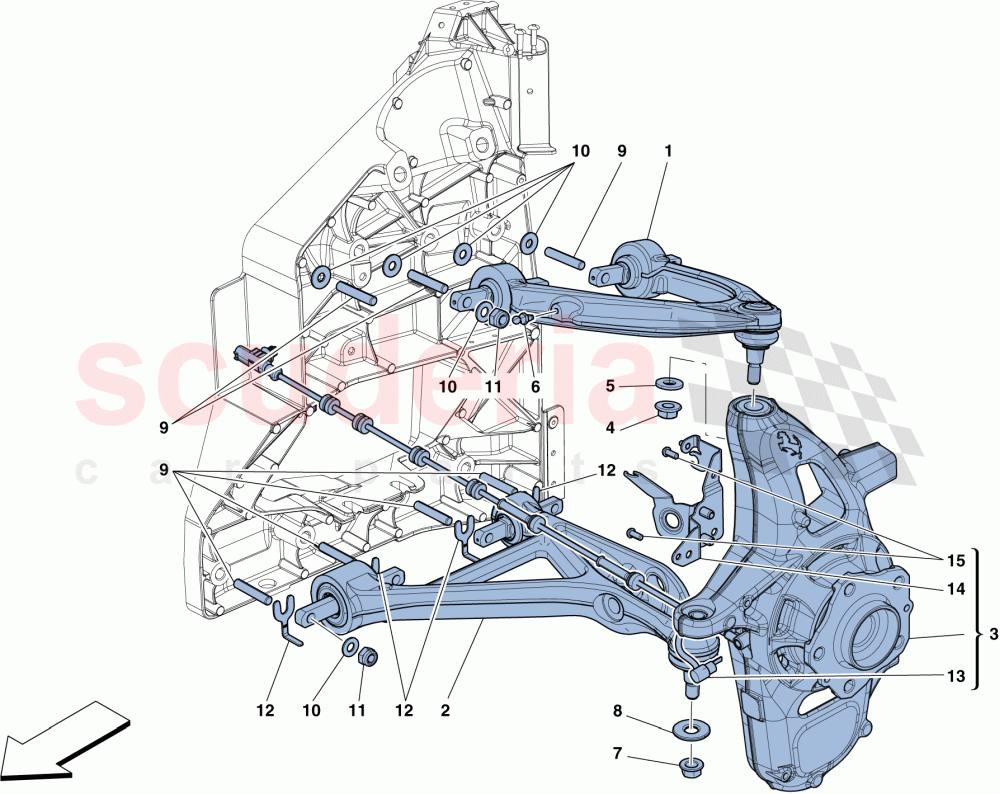

Ferrari 458 Speciale - FRONT SUSPENSION - ARMS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	248760	RH Front Upper Arm	Enquire	To Order
	248758	LH Front Upper Arm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	264524	Lower RH Front Arm	Enquire	To Order
	264523	Lower LH Front Arm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	304732	FRONT RH HUB CARRIER	Enquire	To Order
	304731	FRONT LH HUB CARRIER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	149807	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12646921	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	343376	BALL JOINT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	203795	NUT M14 x 1.5	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	241689	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	264528	THREADED ROD 10 X 1.25	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	126648	WASHER D.10.5-21 X 2	Enquire	To Order
	12646821	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12574521	Nyloc Nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	238881	CAMBER SPACER 1.5MM	Enquire	To Order
	238694	ADJUSTMENT SHIM	Enquire	To Order
	238882	ADJUSTMENT SHIM	Enquire	To Order

...and 4 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	269415	ABS SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	304733	FRONT LH JOINT BRACKET	Enquire	To Order
	304734	FRONT RH JOINT BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	250657	SCREW M6 X 14	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	248760	RH Front Upper Arm	248760 RH Front Upper Arm	-	1	Enquire
1	248758	LH Front Upper Arm	248758 LH Front Upper Arm	-	1	Enquire
2	264524	Lower RH Front Arm	264524 Lower RH Front Arm	-	1	Enquire
2	264523	Lower LH Front Arm	264523 Lower LH Front Arm	-	1	Enquire
3	304732	FRONT RH HUB CARRIER	304732 FRONT RH HUB CARRIER	-	1	Enquire
3	304731	FRONT LH HUB CARRIER	304731 FRONT LH HUB CARRIER	-	1	Enquire
4	149807	NUT	149807 NUT	-	2	Enquire
5	12646921	WASHER	12646921 WASHER	-	2	Enquire
6	343376	BALL JOINT	343376 BALL JOINT	-	2	Enquire
7	203795	NUT M14 x 1.5 ARRIVING SOON	203795 NUT M14 x 1.5 ARRIVING SOON	-	2	Enquire
8	241689	WASHER	241689 WASHER	-	2	Enquire
9	264528	THREADED ROD 10 X 1.25	264528 THREADED ROD 10 X 1.25	-	16	Enquire
10	126648	WASHER D.10.5-21 X 2	126648 WASHER D.10.5-21 X 2	-	16	Enquire
10	12646821	WASHER	12646821 WASHER	-	8	Enquire
11	12574521	Nyloc Nut	12574521 Nyloc Nut	-	16	Enquire
12	238881	CAMBER SPACER 1.5MM	238881 CAMBER SPACER 1.5MM Th. 1.5 mm; Installed if necessary	-	8	Enquire
12	238694	ADJUSTMENT SHIM	238694 ADJUSTMENT SHIM Th. 2 mm; Installed if necessary	-	8	Enquire
12	238882	ADJUSTMENT SHIM	238882 ADJUSTMENT SHIM Th. 2.5 mm; Installed if necessary	-	8	Enquire
12	238883	ADJUSTMENT SHIM	238883 ADJUSTMENT SHIM Th. 3 mm; Installed if necessary	-	8	Enquire
12	238884	ADJUSTMENT SHIM	238884 ADJUSTMENT SHIM Th. 3.5 mm; Installed if necessary	-	8	Enquire
12	238885	CAMBER SPACER 4MM	238885 CAMBER SPACER 4MM Th. 4 mm; Installed if necessary	-	8	Enquire
12	238693	ADJUSTMENT SHIM	238693 ADJUSTMENT SHIM Th. 1 mm; Installed if necessary	-	8	Enquire
13	269415	ABS SENSOR	269415 ABS SENSOR	-	1	Enquire
14	304733	FRONT LH JOINT BRACKET	304733 FRONT LH JOINT BRACKET	-	1	Enquire
14	304734	FRONT RH JOINT BRACKET	304734 FRONT RH JOINT BRACKET	-	1	Enquire
15	250657	SCREW M6 X 14	250657 SCREW M6 X 14	-	4	Enquire
