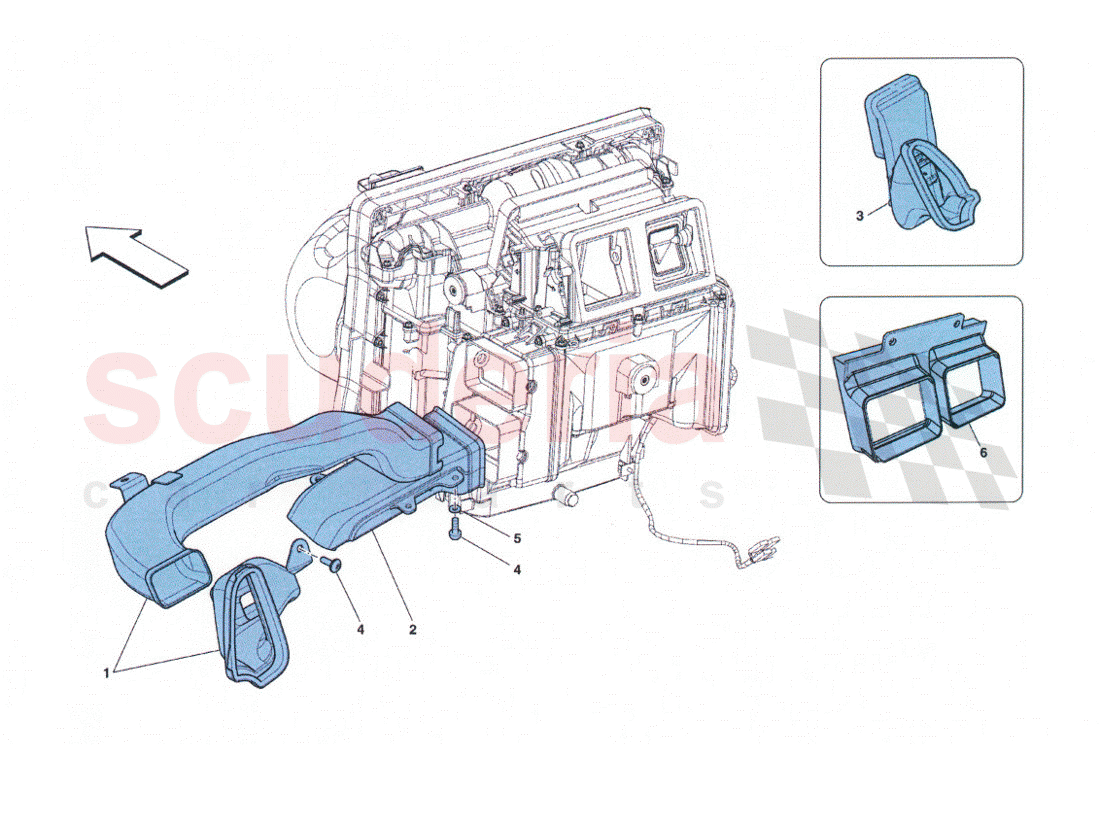

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	83473400	DRIVER SIDE AIR DUCT	$79.21	To Order

Photo	Part No	Description	Price (each)	Stock
	84497100	FOOTWELL DUCT	$65.77	To Order

Photo	Part No	Description	Price (each)	Stock
	83412600	COMPL. CENTRAL VENT DUCT	$157.15	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	14498801	WASHER	$0.11	To Order

Photo	Part No	Description	Price (each)	Stock
	83127400	CENTRE AIR DUCT CONNECTOR	$14.10	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	83473400	DRIVER SIDE AIR DUCT	83473400 DRIVER SIDE AIR DUCT	$79.21	1
2	84497100	FOOTWELL DUCT	84497100 FOOTWELL DUCT	$65.77	2
3	83412600	COMPL. CENTRAL VENT DUCT	83412600 COMPL. CENTRAL VENT DUCT	$157.15	1
4	11197774	WASHER	11197774 WASHER	$0.06 MSRP: ~~0.30~~ (80% off)	9
5	14498801	WASHER	14498801 WASHER	$0.11 MSRP: ~~0.20~~ (45% off)	9
6	83127400	CENTRE AIR DUCT CONNECTOR	83127400 CENTRE AIR DUCT CONNECTOR	$14.10	1
