Name: Radiator Cooling Oil Change
Rating: 4.7 (1 reviews)

View All

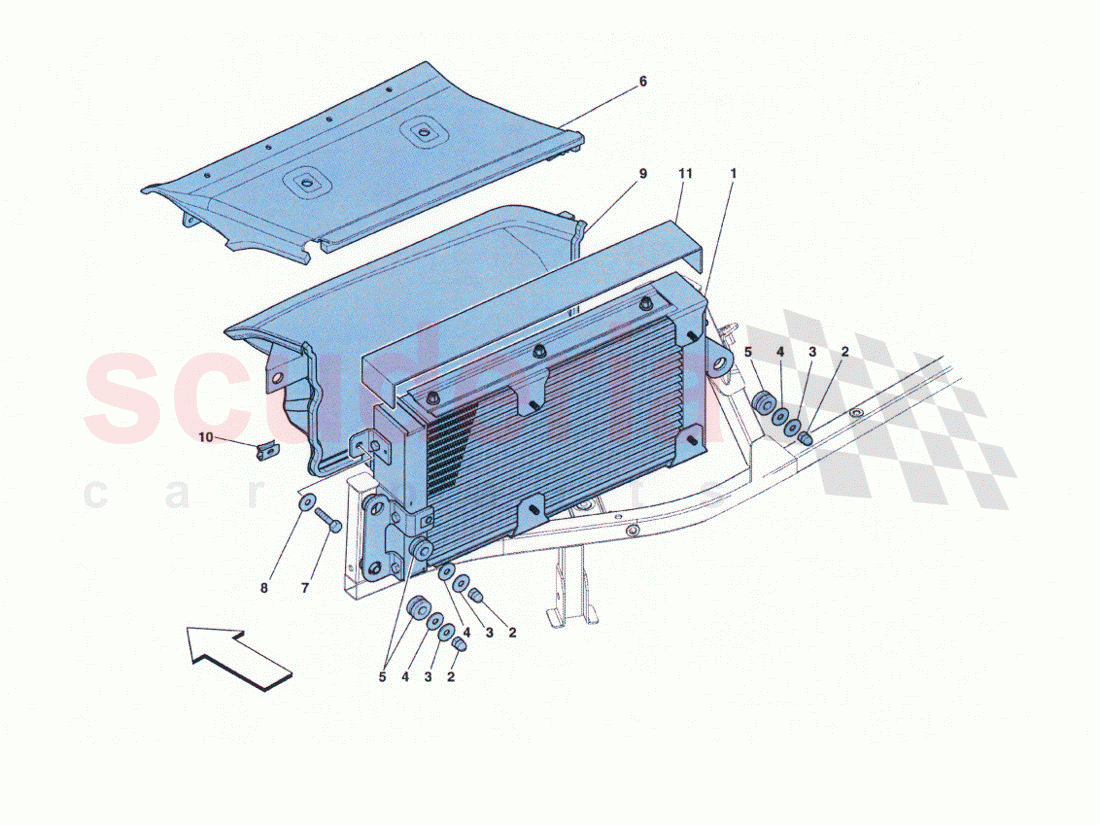

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	14054577	CAP NUT	$0.32	To Order

Photo	Part No	Description	Price (each)	Stock
	12648978	WASHER	$0.55	To Order

Photo	Part No	Description	Price (each)	Stock
	255048	GROMMET SHIM	$2.84	To Order

Photo	Part No	Description	Price (each)	Stock
	255047	CABLE GROMMET	$3.81	To Order

Photo	Part No	Description	Price (each)	Stock
	10977524	SCREW	$0.15	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	264386	PROTECTIVE FOAM FOR OIL RADIATORS	$5.15	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	295369	RH RADIATOR	295369 RH RADIATOR	$1,492.26	1
1	295371	LH RADIATOR	295371 LH RADIATOR	$1,922.29	1
2	14054577	CAP NUT	14054577 CAP NUT	$0.32	6
3	12648978	WASHER	12648978 WASHER	$0.55	12
4	255048	GROMMET SHIM	255048 GROMMET SHIM	$2.84	6
5	255047	CABLE GROMMET	255047 CABLE GROMMET	$3.81	6
6	82953900	RH AIR DUCT ON BODYSHELL	82953900 RH AIR DUCT ON BODYSHELL	$372.69	1
6	82954200	LH AIR DUCT ON BODYSHELL	82954200 LH AIR DUCT ON BODYSHELL	$372.69	1
7	10977524	SCREW	10977524 SCREW	$0.15	4
8	12643724	WASHER	12643724 WASHER	$0.06 MSRP: ~~0.50~~ (88% off)	4
9	263310	RH Air Duct On Oil Radiator	263310 RH Air Duct On Oil Radiator	$64.17	1
9	263312	LH AIR DUCT ON OIL RADIATOR	263312 LH AIR DUCT ON OIL RADIATOR	$64.17	1
10	62766300	SCRE CLIP M6	62766300 SCRE CLIP M6	$0.76	4
10	68700800	CLIP	68700800 CLIP	$1.09	6
11	264386	PROTECTIVE FOAM FOR OIL RADIATORS	264386 PROTECTIVE FOAM FOR OIL RADIATORS	$5.15	2
