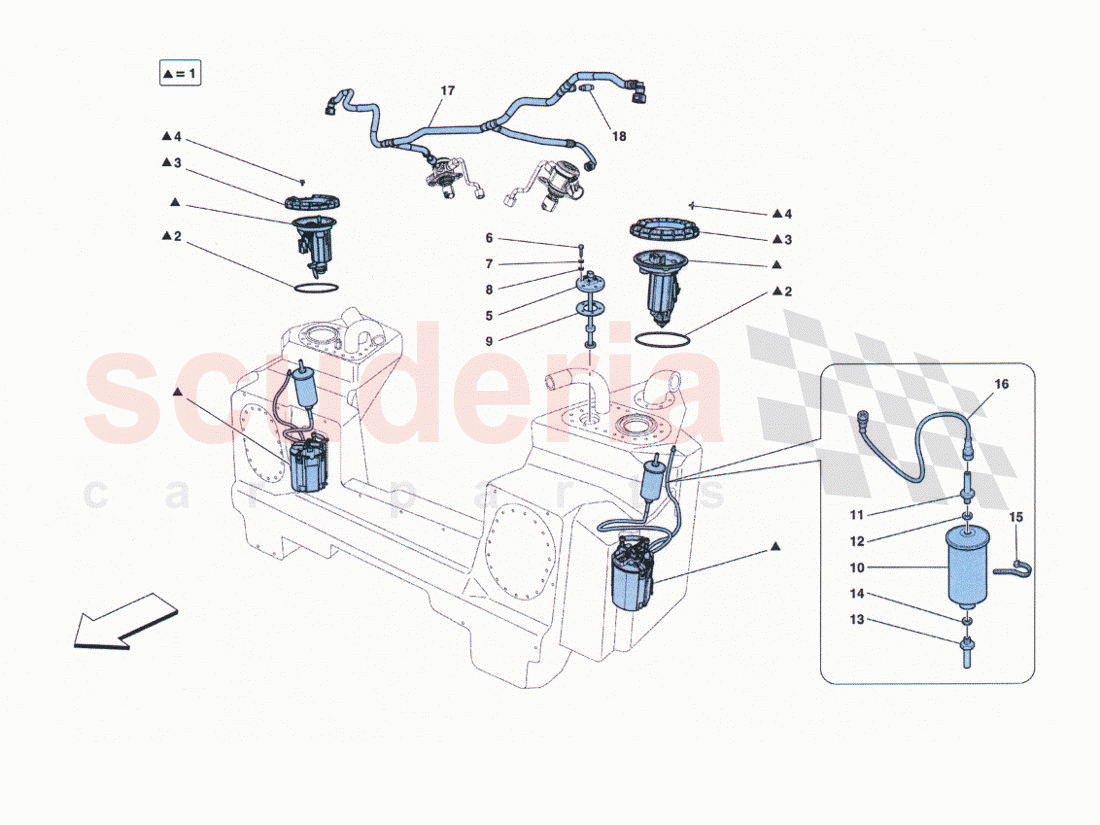

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	268639	FUEL PUMP KIT	$3,445.06	To Order

Photo	Part No	Description	Price (each)	Stock
	275314	O-RING	$6.97	To Order

Photo	Part No	Description	Price (each)	Stock
	239497	FASTENER RING	$35.28	To Order

Photo	Part No	Description	Price (each)	Stock
	239456	SECONDARY LOCK	$37.25	To Order

Photo	Part No	Description	Price (each)	Stock
	269050	FUEL LEVEL SENSOR	$3,116.11	To Order

Photo	Part No	Description	Price (each)	Stock
	10977824	SCREW	$1.94	To Order

Photo	Part No	Description	Price (each)	Stock
	12604178	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12638124	WASHER	$0.05	To Order

Photo	Part No	Description	Price (each)	Stock
	264104	GASKET	$208.58	To Order

Photo	Part No	Description	Price (each)	Stock
	264056	FUEL FILTER	$70.49	To Order

Photo	Part No	Description	Price (each)	Stock
	268635	QUICK CONNECTOR -M14-	$107.77	To Order

Photo	Part No	Description	Price (each)	Stock
	10280060	WASHER COPPER D14. 20 X 1.5	$0.21	To Order

Photo	Part No	Description	Price (each)	Stock
	268636	QUICK CONNECTOR -M12-	$137.15	To Order

Photo	Part No	Description	Price (each)	Stock
	11270160	Washer	$1.70	To Order

Photo	Part No	Description	Price (each)	Stock
	257790	RING CLAMP	$2.06	To Order

Photo	Part No	Description	Price (each)	Stock
	275441	FUEL DELIVERY PIPE	$1,235.52	To Order

Photo	Part No	Description	Price (each)	Stock
	257140	FUEL PRESSURE SENSOR	$717.26	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	268639	FUEL PUMP KIT	268639 FUEL PUMP KIT	$3,445.06	1
2	275314	O-RING	275314 O-RING	$6.97 MSRP: ~~7.65~~ (8.9% off)	2
3	239497	FASTENER RING	239497 FASTENER RING	$35.28 MSRP: ~~51.22~~ (31.1% off)	2
4	239456	SECONDARY LOCK	239456 SECONDARY LOCK	$37.25	2
5	269050	FUEL LEVEL SENSOR	269050 FUEL LEVEL SENSOR	$3,116.11	1
6	10977824	SCREW	10977824 SCREW	$1.94	5
7	12604178	Washer	12604178 Washer	-	5	Enquire
8	12638124	WASHER	12638124 WASHER	$0.05 MSRP: ~~0.70~~ (92.9% off)	5
9	264104	GASKET	264104 GASKET	$208.58	1
10	264056	FUEL FILTER	264056 FUEL FILTER	$70.49	-
11	268635	QUICK CONNECTOR -M14-	268635 QUICK CONNECTOR -M14-	$107.77	2
12	10280060	WASHER COPPER D14. 20 X 1.5	10280060 WASHER COPPER D14. 20 X 1.5	$0.21 MSRP: ~~1.00~~ (79% off)	2
13	268636	QUICK CONNECTOR -M12-	268636 QUICK CONNECTOR -M12-	$137.15	2
14	11270160	Washer	11270160 Washer	$1.70	2
15	257790	RING CLAMP	257790 RING CLAMP	$2.06	4
16	266438	RH PIPE FROM FILTER TO FILTE	266438 RH PIPE FROM FILTER TO FILTE	$70.21	1
16	266439	LH PIPE FROM FILTER TO FILTE	266439 LH PIPE FROM FILTER TO FILTE	$70.21	1
17	275441	FUEL DELIVERY PIPE	275441 FUEL DELIVERY PIPE	$1,235.52	1
18	257140	FUEL PRESSURE SENSOR	257140 FUEL PRESSURE SENSOR	$717.26	1
