Name: Crankshaft - connecting rods and pistons
Rating: 4.5 (1 reviews)

Crankshaft - connecting rods and pistons of Ferrari Ferrari 458 Challenge

View All

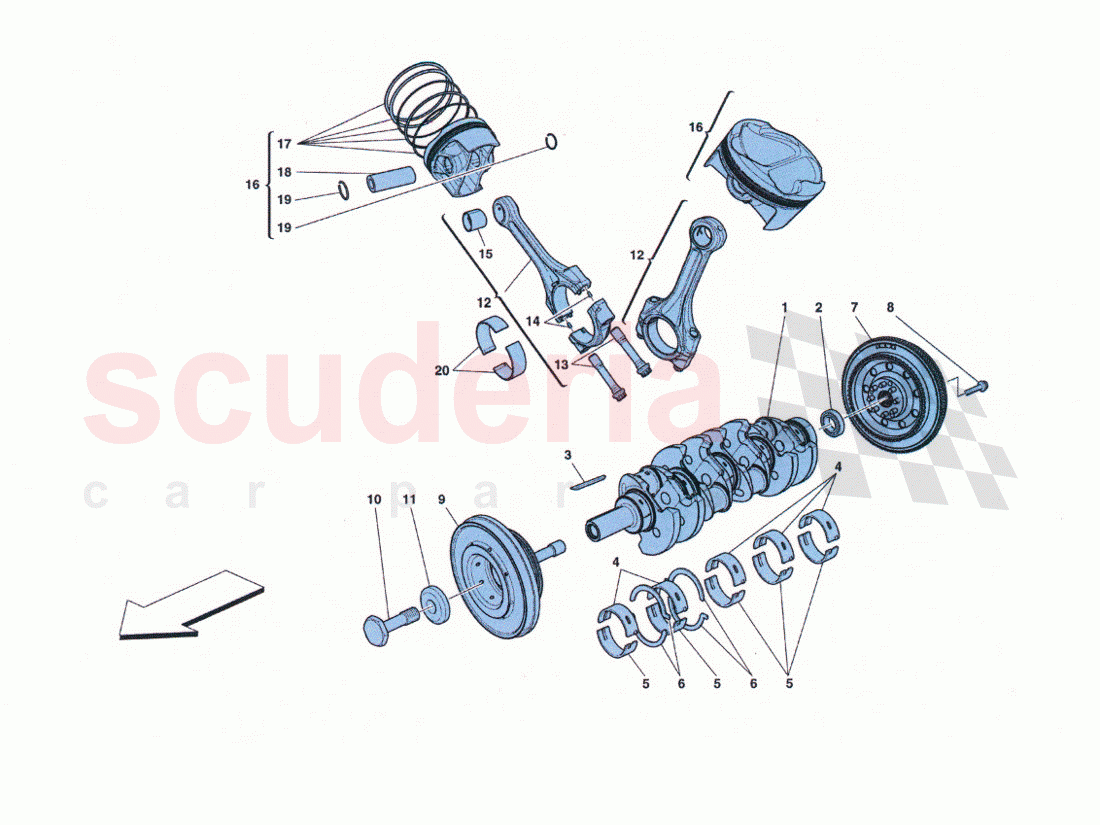

Ferrari 458 Challenge - Crankshaft - connecting rods and pistons

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	275436	CRANKSHAFT	$2,459.61	To Order

Photo	Part No	Description	Price (each)	Stock
	103877	BEARING	$33.28	To Order

Photo	Part No	Description	Price (each)	Stock
	186201	TAB	$1.00	To Order

Photo	Part No	Description	Price (each)	Stock
	286832	UPPER MAIN HALF BEARING BLUE	$25.66	To Order
	286833	UPPER HALF-BEARING	$25.79	To Order
	286834	UPPER HALF-BEARING	$24.05	To Order

Photo	Part No	Description	Price (each)	Stock
	200194	Lower Main Half Bearing Blue	$30.47	To Order
	286837	LOWER HALF-BEARING	$24.05	To Order
	286838	LOWER HALF-BEARING	$22.45	To Order

Photo	Part No	Description	Price (each)	Stock
	222874	SHIM RING	$33.68	To Order

Photo	Part No	Description	Price (each)	Stock
	256341	ENGINE DAMPER FLYWHEEL	$3,351.99	To Order

Photo	Part No	Description	Price (each)	Stock
	229907	SCREW	$9.21	To Order

Photo	Part No	Description	Price (each)	Stock
	266912	TORSION DAMPER	$2,276.91	To Order

Photo	Part No	Description	Price (each)	Stock
	196216	SCREW	$75.92	To Order

Photo	Part No	Description	Price (each)	Stock
	263683	WASHER	$52.89	To Order

Photo	Part No	Description	Price (each)	Stock
	308488	COMPL. CONNECTING ROD AND CAP	$2,464.18	To Order

Photo	Part No	Description	Price (each)	Stock
	254807	SCREW	$48.64	To Order

Photo	Part No	Description	Price (each)	Stock
	224608	ALIGNMENT PIN	$3.70	To Order

Photo	Part No	Description	Price (each)	Stock
	234871	BUSHING	$19.24	To Order

Photo	Part No	Description	Price (each)	Stock
	260683	PISTON COMPL. WITH RINGS, RH CYLINDER BANK	$1,315.75	To Order
	260684	PISTON COMPL. WITH RINGS, LH CYLINDER BANK	$1,315.75	To Order

Photo	Part No	Description	Price (each)	Stock
	263328	PISTON RING SET	$240.67	To Order

Photo	Part No	Description	Price (each)	Stock
	198260	GUDGEON PIN	$65.48	To Order

Photo	Part No	Description	Price (each)	Stock
	257919	STOP RING	$6.06	To Order

Photo	Part No	Description	Price (each)	Stock
	244417	CONNECTING ROD HALF-BEARING	$27.21	To Order
	244418	CONNECTING ROD HALF-BEARING	$25.79	To Order
	244416	CONNECTING ROD HALF-BEARING	$25.79	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	275436	CRANKSHAFT	275436 CRANKSHAFT	$2,459.61	1
2	103877	BEARING	103877 BEARING	$33.28	1
3	186201	TAB	186201 TAB	$1.00	1
4	286832	UPPER MAIN HALF BEARING BLUE	286832 UPPER MAIN HALF BEARING BLUE	$25.66	5
4	286833	UPPER HALF-BEARING	286833 UPPER HALF-BEARING	$25.79	5
4	286834	UPPER HALF-BEARING	286834 UPPER HALF-BEARING	$24.05	5
5	200194	Lower Main Half Bearing Blue	200194 Lower Main Half Bearing Blue	$30.47	5
5	286837	LOWER HALF-BEARING	286837 LOWER HALF-BEARING	$24.05	5
5	286838	LOWER HALF-BEARING	286838 LOWER HALF-BEARING	$22.45	5
6	222874	SHIM RING	222874 SHIM RING	$33.68	4
7	256341	ENGINE DAMPER FLYWHEEL	256341 ENGINE DAMPER FLYWHEEL	$3,351.99	1
8	229907	SCREW	229907 SCREW	$9.21	8
9	266912	TORSION DAMPER	266912 TORSION DAMPER	$2,276.91	1
10	196216	SCREW	196216 SCREW	$75.92	1
11	263683	WASHER	263683 WASHER	$52.89	1
12	308488	COMPL. CONNECTING ROD AND CAP	308488 COMPL. CONNECTING ROD AND CAP	$2,464.18	8
13	254807	SCREW	254807 SCREW	$48.64	16
14	224608	ALIGNMENT PIN	224608 ALIGNMENT PIN	$3.70	16
15	234871	BUSHING	234871 BUSHING	$19.24	8
16	260683	PISTON COMPL. WITH RINGS, RH CYLINDER BANK	260683 PISTON COMPL. WITH RINGS, RH CYLINDER BANK	$1,315.75	4
16	260684	PISTON COMPL. WITH RINGS, LH CYLINDER BANK	260684 PISTON COMPL. WITH RINGS, LH CYLINDER BANK	$1,315.75	4
17	263328	PISTON RING SET	263328 PISTON RING SET	$240.67	8
18	198260	GUDGEON PIN	198260 GUDGEON PIN	$65.48	8
19	257919	STOP RING	257919 STOP RING	$6.06	16
20	244417	CONNECTING ROD HALF-BEARING	244417 CONNECTING ROD HALF-BEARING	$27.21	16
20	244418	CONNECTING ROD HALF-BEARING	244418 CONNECTING ROD HALF-BEARING	$25.79	16
20	244416	CONNECTING ROD HALF-BEARING	244416 CONNECTING ROD HALF-BEARING	$25.79	16
