Rear suspension - Shock And Brake Disk of Ferrari Ferrari 458 Challenge

View All

Ferrari 458 Challenge - Rear suspension - Shock And Brake Disk

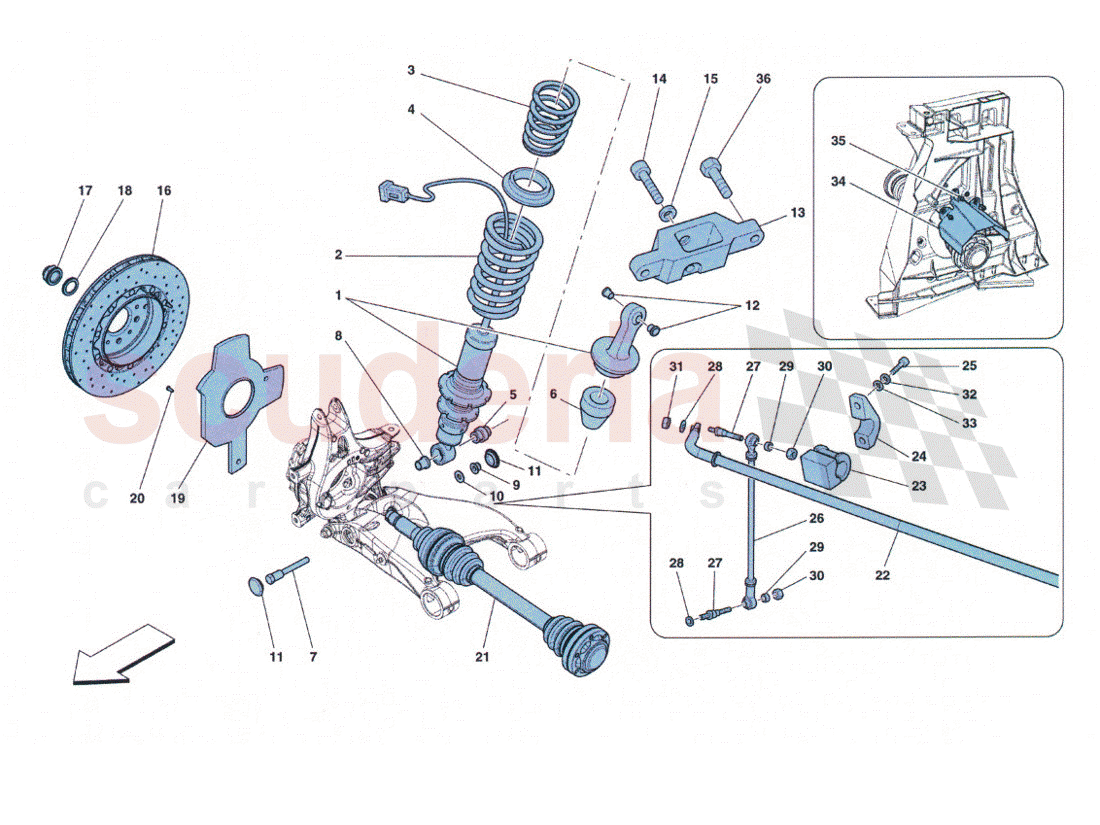

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	274240	REAR SHOCK ABSORBER	Enquire	To Order
	265647	REAR SHOCK ABSORBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	265664	SUSPENSION SPRING	Enquire	To Order
	274236	SHOCK ABSORBER SPRING -K= 24	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	258419	SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	259021	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	157630	BALL JOINT	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	271012	SHOCK ABSORBER PAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	246962	SPECIAL SCREW M12 X 1.25	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	237821	BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	255271	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12646921	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14507987	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	256873	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	265658	SHOCK ABSORBER SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14307821	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	103167	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	271703	REAR BRAKE DISC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	266664	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	266686	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	267553	RH BRAKE VENTILATOR RING	Enquire	To Order
	267554	LH BRAKE VENTILATOR RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	250657	SCREW M6 X 14	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	825203	REAR AXLE SHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	269419	STABILISER BAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	265698	BAR BUFFER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	265689	FRONT ROD SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11343821	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	265789	COMPLETE FRONT TIE ROD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	265788	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12626024	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	129383	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT M8 FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	133216	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12604574	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12626024	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	250811	SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16286121	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16289934	SCREW	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	274240	REAR SHOCK ABSORBER	274240 REAR SHOCK ABSORBER	-	2	Enquire
1	265647	REAR SHOCK ABSORBER	265647 REAR SHOCK ABSORBER	-	2	Enquire
2	265664	SUSPENSION SPRING	265664 SUSPENSION SPRING	-	2	Enquire
2	274236	SHOCK ABSORBER SPRING -K= 24	274236 SHOCK ABSORBER SPRING -K= 24	-	2	Enquire
3	258419	SPRING	258419 SPRING	-	2	Enquire
4	259021	SPACER	259021 SPACER	-	2	Enquire
5	157630	BALL JOINT ARRIVING SOON	157630 BALL JOINT ARRIVING SOON	-	2	Enquire
6	271012	SHOCK ABSORBER PAD	271012 SHOCK ABSORBER PAD	-	2	Enquire
7	246962	SPECIAL SCREW M12 X 1.25	246962 SPECIAL SCREW M12 X 1.25	-	2	Enquire
8	237821	BUSH	237821 BUSH	-	2	Enquire
9	255271	NUT	255271 NUT	-	2	Enquire
10	12646921	WASHER	12646921 WASHER	-	2	Enquire
11	14507987	PLUG	14507987 PLUG	-	6	Enquire
12	256873	SPACER	256873 SPACER	-	4	Enquire
13	265658	SHOCK ABSORBER SUPPORT	265658 SHOCK ABSORBER SUPPORT	-	2	Enquire
14	14307821	SCREW	14307821 SCREW	-	2	Enquire
15	103167	WASHER	103167 WASHER	-	2	Enquire
16	271703	REAR BRAKE DISC	271703 REAR BRAKE DISC	-	2	Enquire
17	266664	NUT	266664 NUT	-	2	Enquire
18	266686	WASHER	266686 WASHER	-	2	Enquire
19	267553	RH BRAKE VENTILATOR RING	267553 RH BRAKE VENTILATOR RING	-	1	Enquire
19	267554	LH BRAKE VENTILATOR RING	267554 LH BRAKE VENTILATOR RING	-	1	Enquire
20	250657	SCREW M6 X 14	250657 SCREW M6 X 14	-	6	Enquire
21	825203	REAR AXLE SHAFT	825203 REAR AXLE SHAFT	-	2	Enquire
22	269419	STABILISER BAR	269419 STABILISER BAR	-	1	Enquire
23	265698	BAR BUFFER	265698 BAR BUFFER	-	2	Enquire
24	265689	FRONT ROD SUPPORT	265689 FRONT ROD SUPPORT	-	2	Enquire
25	11343821	SCREW	11343821 SCREW	-	4	Enquire
26	265789	COMPLETE FRONT TIE ROD	265789 COMPLETE FRONT TIE ROD	-	2	Enquire
27	265788	SCREW	265788 SCREW	-	4	Enquire
28	12626024	WASHER	12626024 WASHER	-	4	Enquire
29	129383	SPACER	129383 SPACER	-	4	Enquire
30	14040711	NUT M8 FLANGED	14040711 NUT M8 FLANGED	-	4	Enquire
31	133216	NUT	133216 NUT	-	2	Enquire
32	12604574	WASHER	12604574 WASHER	-	4	Enquire
33	12626024	WASHER	12626024 WASHER	-	4	Enquire
34	250811	SHIELD	250811 SHIELD	-	2	Enquire
35	16286121	SCREW	16286121 SCREW	-	6	Enquire
36	16289934	SCREW	16289934 SCREW	-	4	Enquire
