Ferrari 456 M GT/GTA - BATTERY

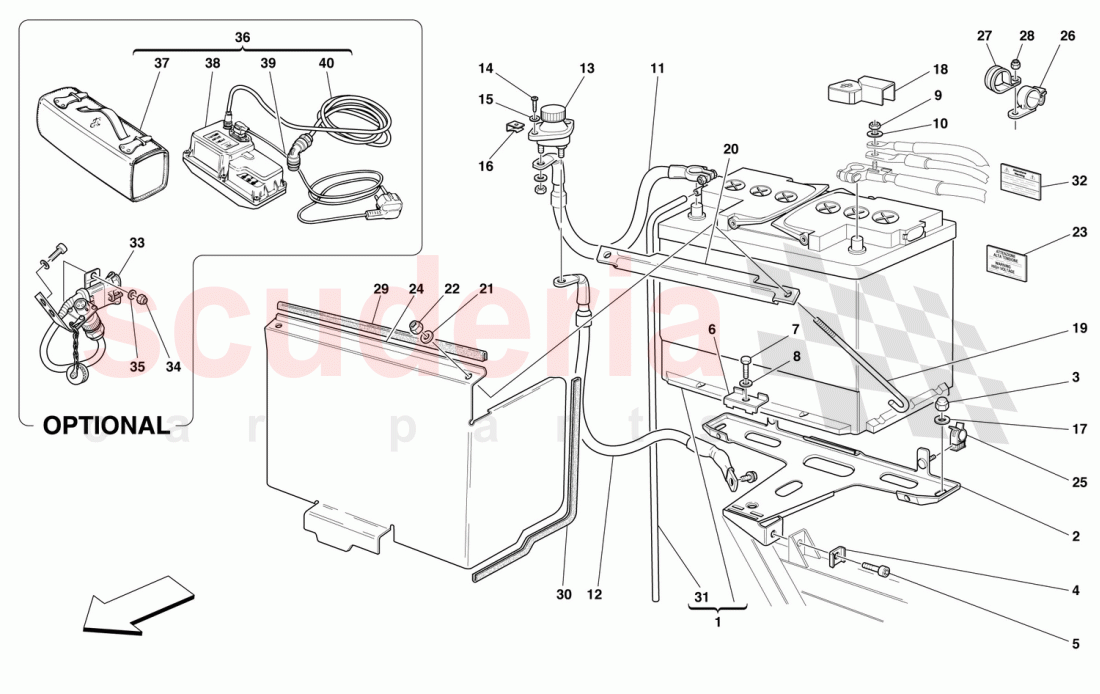

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	180055	BATTERY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	178388	PLATE FOR BATTERY SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	150595	CAP NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	155599	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86768100	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	154324	MOBILE BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66535800	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14499421	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	147985	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12638524	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	153117	COPPER PLAIT FROM BATTERY TO SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	153128	CUT OUT SWITCH-MASS CONNECTING PLAIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	383000322	Battery disconnecting switch	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15688275	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61067800	FIXING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	144727	CABLES PROTECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	189130	TIE ROD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171903	ANGLE PIECE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	113404	HIGH VOLTAGE WARNING LABEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	178884	BATTERY HEAT PROTECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	175710	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	160888	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	291225	P clip Bracket With Sheath	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	179906	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	179906	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180056	BATTERY ACID EXHAUST TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184205	BATTERY EXCLUSION PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	178566	BATTERY CHARGING CONNECTION CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	70002820	BATTERY CHARGER KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65699200	BATTERY CHARGER CASE CONTAINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177791	BATTERY CHARGER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177794	POWER CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	178676	CABLE COMPLETE WITH CONNECTOR	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	177795	POWER CABLE	177795 POWER CABLE Valid for USA, CDN and J / Optional	-	1	Enquire
-	178294	POWER CABLE	178294 POWER CABLE Valid for GB and Hong Kong / Optional	-	1	Enquire
-	177796	POWER CABLE	177796 POWER CABLE Valid for AUS / Optional	-	1	Enquire
-	803880	BATTERY CHARGER KIT	803880 BATTERY CHARGER KIT Valid for USA, CDN and J / Optional	-	1	Enquire
-	178685	BATTERY CHARGER KIT	178685 BATTERY CHARGER KIT Valid for GB and Hong Kong / Optional	-	1	Enquire
-	178684	BATTERY CHARGER KIT	178684 BATTERY CHARGER KIT Valid for AUS / Optional	-	1	Enquire
-	177792	BATTERY CHARGER	177792 BATTERY CHARGER 110V / Not for USA, CDN and J / Optional	-	1	Enquire
-	178885	BATTERY HEAT SHIELD	178885 BATTERY HEAT SHIELD Valid for GD	-	1	Enquire
-	144727	CABLES PROTECTION	144727 CABLES PROTECTION	-	1	Enquire
-	180055	BATTERY	180055 BATTERY Not for GD	-	1	Enquire
-	190000	BATTERY 12V-70AH 420A	190000 BATTERY 12V-70AH 420A Valid for GD	-	1	Enquire
-	178864	PLATE FOR BATTERY SUPPORT	178864 PLATE FOR BATTERY SUPPORT Valid for GD	-	1	Enquire
1	180055	BATTERY	180055 BATTERY Not for GD / Not as spare part now / Replaced by 180087 / See also position 31	-	1	Enquire
2	178388	PLATE FOR BATTERY SUPPORT	178388 PLATE FOR BATTERY SUPPORT Not for GD	-	1	Enquire
3	150595	CAP NUT	150595 CAP NUT	-	2	Enquire
4	155599	BRACKET	155599 BRACKET	-	1	Enquire
5	86768100	SCREW	86768100 SCREW	-	1	Enquire
6	154324	MOBILE BRACKET	154324 MOBILE BRACKET	-	1	Enquire
7	66535800	SCREW	66535800 SCREW	-	1	Enquire
8	14499421	WASHER	14499421 WASHER	-	1	Enquire
9	147985	NUT	147985 NUT	-	1	Enquire
10	12638524	WASHER	12638524 WASHER	-	1	Enquire
11	153117	COPPER PLAIT FROM BATTERY TO SWITCH	153117 COPPER PLAIT FROM BATTERY TO SWITCH TO SWITCH	-	1	Enquire
12	153128	CUT OUT SWITCH-MASS CONNECTING PLAIT	153128 CUT OUT SWITCH-MASS CONNECTING PLAIT TO EARTH	-	1	Enquire
13	383000322	Battery disconnecting switch	383000322 Battery disconnecting switch	-	1	Enquire
14	15688275	SCREW	15688275 SCREW	-	2	Enquire
15	62769800	WASHER	62769800 WASHER	-	2	Enquire
16	61067800	FIXING BRACKET	61067800 FIXING BRACKET	-	2	Enquire
17	84653800	WASHER	84653800 WASHER	-	2	Enquire
18	144727	CABLES PROTECTION	144727 CABLES PROTECTION Not as spare part now / Replaced by 177449	-	1	Enquire
19	189130	TIE ROD	189130 TIE ROD	-	2	Enquire
20	171903	ANGLE PIECE	171903 ANGLE PIECE	-	1	Enquire
21	10519424	WASHER	10519424 WASHER	-	2	Enquire
22	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
23	113404	HIGH VOLTAGE WARNING LABEL	113404 HIGH VOLTAGE WARNING LABEL	-	1	Enquire
24	178884	BATTERY HEAT PROTECTION	178884 BATTERY HEAT PROTECTION Not for GD	-	1	Enquire
25	175710	CLIP	175710 CLIP	-	2	Enquire
26	160888	CLIP	160888 CLIP	-	1	Enquire
27	291225	P clip Bracket With Sheath	291225 P clip Bracket With Sheath	-	1	Enquire
28	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	1	Enquire
29	179906	GASKET	179906 GASKET	-	1	Enquire
30	179906	GASKET	179906 GASKET	-	1	Enquire
31	180056	BATTERY ACID EXHAUST TUBE	180056 BATTERY ACID EXHAUST TUBE Not for GD	-	1	Enquire
32	184205	BATTERY EXCLUSION PLATE	184205 BATTERY EXCLUSION PLATE PLATE / Valid for USA M.Y. 2000, USA M.Y. 2001, / CDN M.Y. 2000 and CDN M.Y. 2001	-	2	Enquire
33	178566	BATTERY CHARGING CONNECTION CABLE	178566 BATTERY CHARGING CONNECTION CABLE CABLE / Optional	-	1	Enquire
34	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6 Optional	-	1	Enquire
35	10519424	WASHER	10519424 WASHER Optional	-	1	Enquire
36	70002820	BATTERY CHARGER KIT	70002820 BATTERY CHARGER KIT Not for USA, CDN, J, GB, Hong Kong and / AUS / Optional	-	1	Enquire
37	65699200	BATTERY CHARGER CASE CONTAINER	65699200 BATTERY CHARGER CASE CONTAINER Optional	-	1	Enquire
38	177791	BATTERY CHARGER	177791 BATTERY CHARGER 230V / Not for USA, CDN and J / Optional	-	1	Enquire
39	177794	POWER CABLE	177794 POWER CABLE Not for USA, CDN, J, GB, Hong Kong and / AUS / Optional	-	1	Enquire
40	178676	CABLE COMPLETE WITH CONNECTOR	178676 CABLE COMPLETE WITH CONNECTOR Optional	-	1	Enquire
