WINDSHIELD WIPER, WASHER AND HORNS of Ferrari Ferrari 456 M GT/GTA

View All

Ferrari 456 M GT/GTA - WINDSHIELD WIPER, WASHER AND HORNS

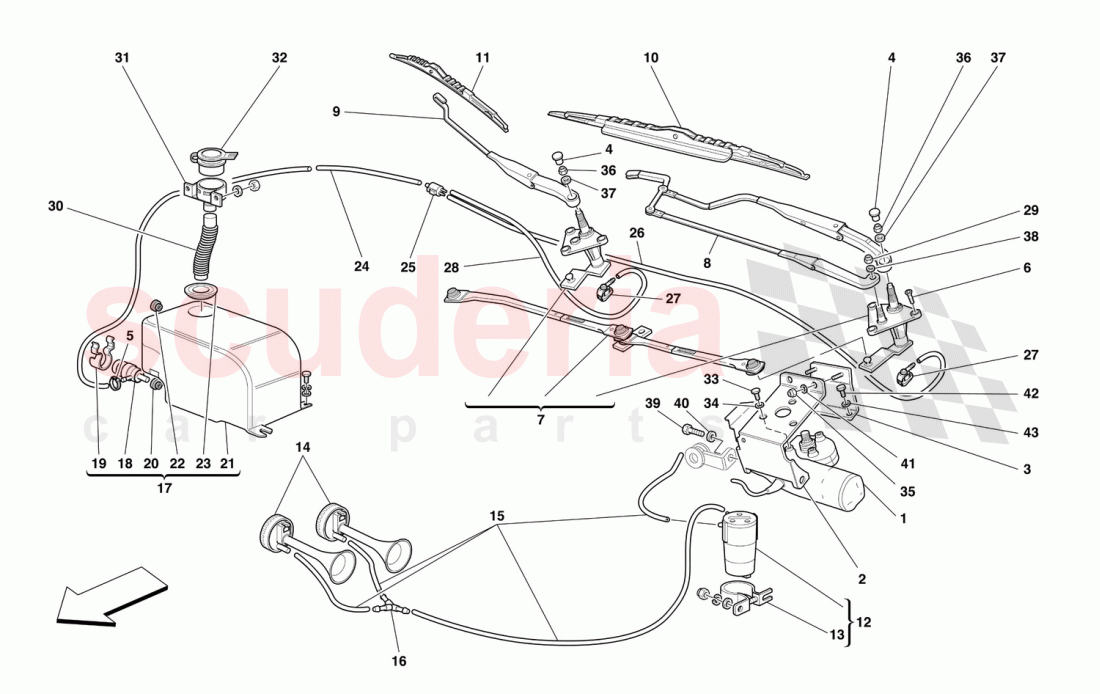

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	63780200	WINDSCREEN WIPER MOTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65750400	WINDSHIELD WIPER MOTOR FRONT BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63878800	WINDSHIELD WIPER MOTOR REAR BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15811787	PROTECTIVE CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	173710	COLLAR FOR SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62797600	Allen Bolt Countersunk M6 x 20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65081300	COMPLETE WINDSHIELD WIPER LEVERAGE AND PINS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65645700	L.H. WINDSHIELD WIPER ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65081400	R.H. WINDSHIELD WIPER ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65206400	R.H. WIPER BRUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63756100	PASSENGER WIPER BRUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	225757	COMPLETE HORN COMPRESSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	60741200	BRACKET FOR ELECTRO-COMPRESSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	189428	ELECTRO PNEUMATIC HORN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	155904	PIPE FOR COMPRESSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	60741100	3 WAYS UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63970100	COMPLETE WINDSHIELD WIPER CONTAINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65358700	WINDSCREEN WASHER PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63290800	PUMP FASTENING SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63290900	RUBBER BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63970200	WINDSHIELD WIPER CONTAINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63291000	CAP FOR GLASS WASHER BAG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63954700	TUBE TIGHTENING RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65559600	PIPE FROM PUMP TO VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81061000	COMPLETE WINDSCREEN WASHER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65559700	PIPE FROM VALVE TO PILOT ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65191000	SPRAY NOZZLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65559800	PIPE FROM VALVE TO PASSENGER ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15896472	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63969500	PLASTIC HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63449500	FULLFILLING UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63118500	Plug with filter	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10902224	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	147985	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT M8 FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12604178	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16043324	SCREW M8 X 18	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127496	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14499421	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10902224	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	65848500	L.H. WINDSHIELD WIPER ARM	65848500 L.H. WINDSHIELD WIPER ARM Valid for GD	-	1	Enquire
-	65645800	R.H. WINDSHIELD WIPER ARM	65645800 R.H. WINDSHIELD WIPER ARM Valid for GD	-	1	Enquire
-	65202600	COMPLETE WINDSHIELD WIPER LEVERAGE AND PINS	65202600 COMPLETE WINDSHIELD WIPER LEVERAGE AND PINS LEVERAGE AND PINS / Valid for GD	-	1	Enquire
-	65081700	SMALL COVER	65081700 SMALL COVER Valid for GD	-	2	Enquire
-	64275500	WINDSHIELD WIPER MOTOR	64275500 WINDSHIELD WIPER MOTOR Valid for GD	-	1	Enquire
-	65514300	WINDSHIELD WIPER MOTOR FRONT BRACKET	65514300 WINDSHIELD WIPER MOTOR FRONT BRACKET FRONT BRACKET / Valid for GD	-	1	Enquire
1	63780200	WINDSCREEN WIPER MOTOR	63780200 WINDSCREEN WIPER MOTOR Not for GD	-	1	Enquire
2	65750400	WINDSHIELD WIPER MOTOR FRONT BRACKET	65750400 WINDSHIELD WIPER MOTOR FRONT BRACKET FRONT BRACKET / Not for GD	-	1	Enquire
3	63878800	WINDSHIELD WIPER MOTOR REAR BRACKET	63878800 WINDSHIELD WIPER MOTOR REAR BRACKET REAR BRACKET / Not for GD	-	1	Enquire
4	15811787	PROTECTIVE CAP	15811787 PROTECTIVE CAP Not for GD	-	2	Enquire
5	173710	COLLAR FOR SLEEVE	173710 COLLAR FOR SLEEVE	-	1	Enquire
6	62797600	Allen Bolt Countersunk M6 x 20	62797600 Allen Bolt Countersunk M6 x 20	-	6	Enquire
7	65081300	COMPLETE WINDSHIELD WIPER LEVERAGE AND PINS	65081300 COMPLETE WINDSHIELD WIPER LEVERAGE AND PINS LEVERAGE AND PINS / Not for GD	-	1	Enquire
8	65645700	L.H. WINDSHIELD WIPER ARM	65645700 L.H. WINDSHIELD WIPER ARM Not for GD	-	1	Enquire
9	65081400	R.H. WINDSHIELD WIPER ARM	65081400 R.H. WINDSHIELD WIPER ARM Not for GD	-	1	Enquire
10	65206400	R.H. WIPER BRUSH	65206400 R.H. WIPER BRUSH BRUSH	-	1	Enquire
11	63756100	PASSENGER WIPER BRUSH	63756100 PASSENGER WIPER BRUSH	-	1	Enquire
12	225757	COMPLETE HORN COMPRESSOR	225757 COMPLETE HORN COMPRESSOR	-	1	Enquire
13	60741200	BRACKET FOR ELECTRO-COMPRESSOR	60741200 BRACKET FOR ELECTRO-COMPRESSOR ELECTRO-COMPRESSOR	-	1	Enquire
14	189428	ELECTRO PNEUMATIC HORN	189428 ELECTRO PNEUMATIC HORN	-	1	Enquire
15	155904	PIPE FOR COMPRESSOR	155904 PIPE FOR COMPRESSOR	-	1	Enquire
16	60741100	3 WAYS UNION	60741100 3 WAYS UNION	-	1	Enquire
17	63970100	COMPLETE WINDSHIELD WIPER CONTAINER	63970100 COMPLETE WINDSHIELD WIPER CONTAINER WIPER CONTAINER	-	1	Enquire
18	65358700	WINDSCREEN WASHER PUMP	65358700 WINDSCREEN WASHER PUMP	-	1	Enquire
19	63290800	PUMP FASTENING SPRING	63290800 PUMP FASTENING SPRING	-	1	Enquire
20	63290900	RUBBER BUSHING	63290900 RUBBER BUSHING	-	1	Enquire
21	63970200	WINDSHIELD WIPER CONTAINER	63970200 WINDSHIELD WIPER CONTAINER CONTAINER	-	1	Enquire
22	63291000	CAP FOR GLASS WASHER BAG	63291000 CAP FOR GLASS WASHER BAG	-	1	Enquire
23	63954700	TUBE TIGHTENING RING	63954700 TUBE TIGHTENING RING	-	1	Enquire
24	65559600	PIPE FROM PUMP TO VALVE	65559600 PIPE FROM PUMP TO VALVE	-	1	Enquire
25	81061000	COMPLETE WINDSCREEN WASHER PIPE	81061000 COMPLETE WINDSCREEN WASHER PIPE	-	1	Enquire
26	65559700	PIPE FROM VALVE TO PILOT ARM	65559700 PIPE FROM VALVE TO PILOT ARM	-	1	Enquire
27	65191000	SPRAY NOZZLE	65191000 SPRAY NOZZLE	-	2	Enquire
28	65559800	PIPE FROM VALVE TO PASSENGER ARM	65559800 PIPE FROM VALVE TO PASSENGER ARM ARM	-	1	Enquire
29	15896472	NUT	15896472 NUT	-	1	Enquire
30	63969500	PLASTIC HOSE	63969500 PLASTIC HOSE	-	1	Enquire
31	63449500	FULLFILLING UNION	63449500 FULLFILLING UNION	-	1	Enquire
32	63118500	Plug with filter	63118500 Plug with filter	-	1	Enquire
33	10902224	SCREW	10902224 SCREW	-	3	Enquire
34	127494	WASHER	127494 WASHER	-	3	Enquire
35	147985	NUT	147985 NUT	-	2	Enquire
36	14040711	NUT M8 FLANGED	14040711 NUT M8 FLANGED	-	2	Enquire
37	12601374	WASHER	12601374 WASHER	-	2	Enquire
38	12604178	Washer	12604178 Washer	-	1	Enquire
39	16043324	SCREW M8 X 18	16043324 SCREW M8 X 18	-	2	Enquire
40	127496	WASHER	127496 WASHER	-	2	Enquire
41	14499421	WASHER	14499421 WASHER	-	2	Enquire
42	10902224	SCREW	10902224 SCREW	-	2	Enquire
43	127494	WASHER	127494 WASHER	-	2	Enquire
