Ferrari 456 M GT/GTA - AIR CONDITIONING SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
165563 AC CONDENSER Enquire To Order
Photo Part No Description Price (each) Stock
14778814 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
10519424 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
127494 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
64827500 PIPE FROM CONDENSER TO FILTER Enquire To Order
Photo Part No Description Price (each) Stock
64827400 PIPE FROM COMPRESSOR TO CONDENSER Enquire To Order
Photo Part No Description Price (each) Stock
64799500 DEHYDRATOR FILTER WITH PRESSURE SWITCH Enquire To Order
Photo Part No Description Price (each) Stock
285553 VIBRATION DAMPER Enquire To Order
Photo Part No Description Price (each) Stock
63994900 BRACKET FOR PUMP -Not as spare part- -Replaced by 69966100- Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
10519424 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
65460300 COMPLETE WATER PUMP Enquire To Order
Photo Part No Description Price (each) Stock
65419600 PIPE FROM HOSE TO COMPRESSOR Enquire To Order
Photo Part No Description Price (each) Stock
64791200 HOSE FROM EVAPORATOR TO PIPE Enquire To Order
Photo Part No Description Price (each) Stock
61712500 BRACKET WITH SHEATH Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
64827600 PIPE FROM DEHYDRATOR FILTER TO HOSE Enquire To Order
Photo Part No Description Price (each) Stock
64791300 HOSE FROM PIPE TO EVAPORATOR Enquire To Order
Photo Part No Description Price (each) Stock
65674900 DELIVERY TUBE FROM WATER PUMP Enquire To Order
Photo Part No Description Price (each) Stock
65674500 RETURN TUBE FROM VALVE TO NOURICE Enquire To Order
Photo Part No Description Price (each) Stock
168068 L.H. LOWER BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
165561 L.H. UPPER BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
156989 SMALL PLATE Enquire To Order
Photo Part No Description Price (each) Stock
12646604 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
127494 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
64281500 UPPER FLANGE Enquire To Order
Photo Part No Description Price (each) Stock
63961800 RUBBER PIPE-HOLDER Enquire To Order
Photo Part No Description Price (each) Stock
65419500 DELIVERY TUBE FROM ENGINE TO PUMP Enquire To Order
Photo Part No Description Price (each) Stock
61712600 BRACKET WITH SHEATH Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
10902424 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
127494 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
12643724 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
65618200 PIPE FROM HOSE TO COMPRESSOR Enquire To Order
Photo Part No Description Price (each) Stock
65655400 PIPE FROM DEHYDRATOR FILTER TO HOSE Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
63961900 FRAME FOR PIPE BUSHING Enquire To Order
Photo Part No Description Price (each) Stock
319201 FUEL FILLER PIPE ASSEMBLY Enquire To Order
Photo Part No Description Price (each) Stock
12638124 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
10459087 CABLE GROMMET Enquire To Order
Photo Part No Description Price (each) Stock
66374400 PRESSURE SWITCH Enquire To Order
Photo Part No Description Price (each) Stock
165562 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
165136 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
165560 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
165137 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
65990400 PIPE FROM HOSE TO COMPRESSOR Enquire To Order
Photo Part No Description Price (each) Stock
65990500 PIPE FROM DEHYDRATOR FILTER TO HOSE Enquire To Order
View All

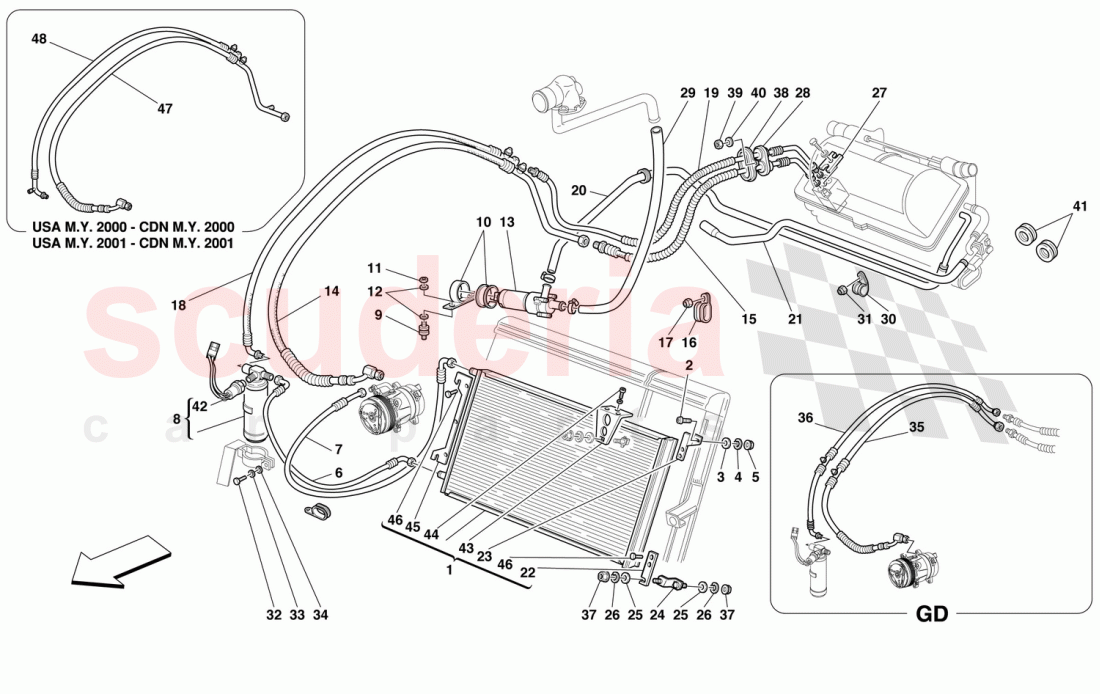

AIR CONDITIONING SYSTEM of Ferrari Ferrari 456 M GT/GTA Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 66374400
PRESSURE SWITCH 		- 1 Enquire
- 65846100
DELIVERY TUBE FROM WATER PUMP
WATER PUMP / Valid for GD 		- 1 Enquire
- 65618300
RETURN TUBE FROM VALVE TO NOURICE
TO NOURICE / Valid for GD 		- 1 Enquire
1 165563
AC CONDENSER 		- 1 Enquire
2 14778814
SCREW 		- 1 Enquire
3 10519424
WASHER 		- 2 Enquire
4 127494
WASHER 		- 2 Enquire
5 14059290
FLANGED NUT M6 		- 2 Enquire
6 64827500
PIPE FROM CONDENSER TO FILTER
TO DEHYDRATOR FILTER 		- 1 Enquire
7 64827400
PIPE FROM COMPRESSOR TO CONDENSER
TO CONDENSER 		- 1 Enquire
8 64799500
DEHYDRATOR FILTER WITH PRESSURE SWITCH
PRESSURE SWITCH 		- 1 Enquire
9 285553
VIBRATION DAMPER 		- 2 Enquire
10 63994900
BRACKET FOR PUMP -Not as spare part- -Replaced by 69966100- 		- 1 Enquire
11 14059290
FLANGED NUT M6 		- 2 Enquire
12 10519424
WASHER 		- 2 Enquire
13 65460300
COMPLETE WATER PUMP 		- 1 Enquire
14 65419600
PIPE FROM HOSE TO COMPRESSOR
COMPRESSOR / Not for GD / Not for USA M.Y. 2000, USA M.Y. 2001, / CDN M.Y. 2000 and CDN M.Y. 2001 		- 1 Enquire
15 64791200
HOSE FROM EVAPORATOR TO PIPE
PIPE 		- 1 Enquire
16 61712500
BRACKET WITH SHEATH 		- 1 Enquire
17 14059290
FLANGED NUT M6 		- 1 Enquire
18 64827600
PIPE FROM DEHYDRATOR FILTER TO HOSE
FILTER TO HOSE / Not for GD / Not for USA M.Y. 2000, USA M.Y. 2001, / CDN M.Y. 2000 and CDN M.Y. 2001 		- 1 Enquire
19 64791300
HOSE FROM PIPE TO EVAPORATOR
EVAPORETOR 		- 1 Enquire
20 65674900
DELIVERY TUBE FROM WATER PUMP
WATER PUMP / Not for GD 		- 1 Enquire
21 65674500
RETURN TUBE FROM VALVE TO NOURICE
TO NOURICE / Not for GD 		- 1 Enquire
22 168068
L.H. LOWER BRACKET 		- 1 Enquire
23 165561
L.H. UPPER BRACKET 		- 1 Enquire
24 156989
SMALL PLATE 		- 1 Enquire
25 12646604
WASHER 		- 2 Enquire
26 127494
WASHER 		- 2 Enquire
27 64281500
UPPER FLANGE 		- 1 Enquire
28 63961800
RUBBER PIPE-HOLDER 		- 1 Enquire
29 65419500
DELIVERY TUBE FROM ENGINE TO PUMP
TO PUMP 		- 1 Enquire
30 61712600
BRACKET WITH SHEATH 		- 1 Enquire
31 14059290
FLANGED NUT M6 		- 1 Enquire
32 10902424
SCREW 		- 1 Enquire
33 127494
WASHER 		- 1 Enquire
34 12643724
WASHER 		- 1 Enquire
35 65618200
PIPE FROM HOSE TO COMPRESSOR
COMPRESSOR -Valid for GD 		- 1 Enquire
36 65655400
PIPE FROM DEHYDRATOR FILTER TO HOSE
FILTER TO HOSE -Valid for GD 		- 1 Enquire
37 14059290
FLANGED NUT M6 		- 2 Enquire
38 63961900
FRAME FOR PIPE BUSHING 		- 1 Enquire
39 319201
FUEL FILLER PIPE ASSEMBLY 		- 2 Enquire
40 12638124
WASHER 		- 2 Enquire
41 10459087
CABLE GROMMET 		- 2 Enquire
42 66374400
PRESSURE SWITCH
Not as spare part now / Replaced by 66374400 		- 1 Enquire
43 165562
BRACKET 		- 1 Enquire
44 165136
SCREW 		- 3 Enquire
45 165560
BRACKET 		- 1 Enquire
46 165137
SCREW 		- 7 Enquire
47 65990400
PIPE FROM HOSE TO COMPRESSOR
COMPRESSOR / Valid for USA M.Y. 2000, USA M.Y. 2001, / CDN M.Y. 2000 and CDN M.Y. 2001 		- 1 Enquire
48 65990500
PIPE FROM DEHYDRATOR FILTER TO HOSE
FILTER TO HOSE / Valid for USA M.Y. 2000, USA M.Y. 2001, / CDN M.Y. 2000 and CDN M.Y. 2001 		- 1 Enquire
