ELECTRICAL BOARDS of Ferrari Ferrari 456 M GT/GTA

View All

Ferrari 456 M GT/GTA - ELECTRICAL BOARDS

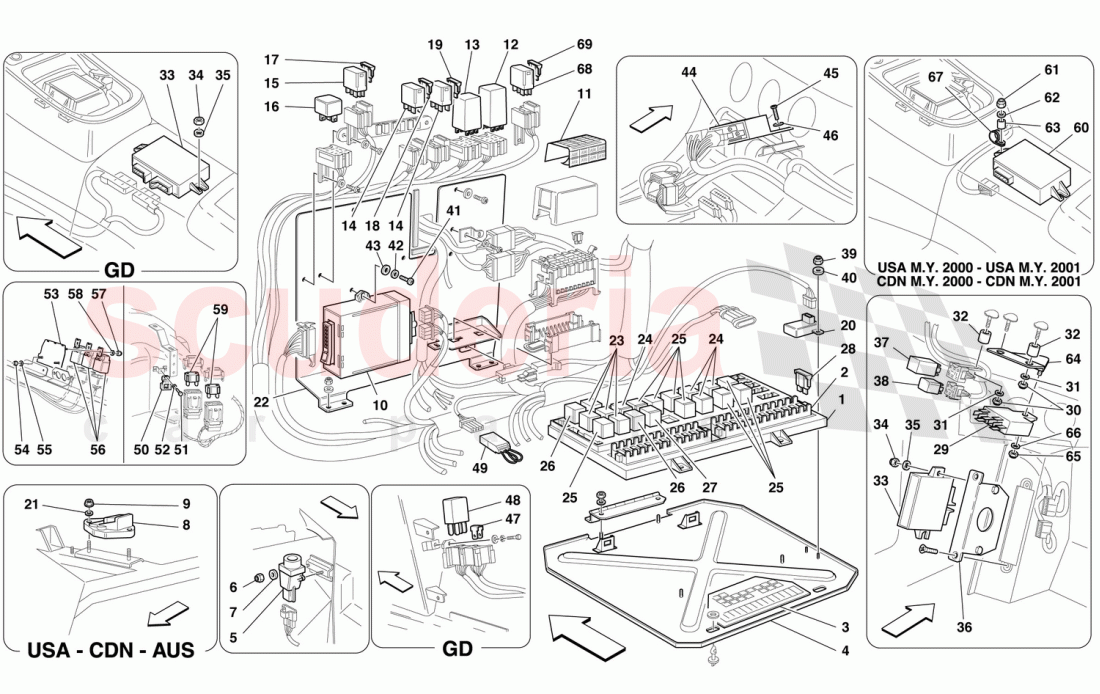

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	147000	CONTROL UNIT PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61352100	FUSES BOX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	179930	RELAYS AND FUSES NAMEPLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	174919	PASSENGER FOOT-REST PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	179087	INERTIAL SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	319201	FUEL FILLER PIPE ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12637824	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	166784	ACCELERATION SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	179080	GLASS LIFTING CONTROL ELECTRIC UNIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	174794	FUSES NAMEPLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	174763	HYDRAULIC STEERING CONTRO ELECTRIC UNIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171596	REAR FOG LIGHT CONTROL ELECTRIC UNIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	161590	20 A MICRO RELAY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	227285	20/10 A MICRO RELAY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	157802	DOUBLE SWITCH RELAY 2x15 A.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	125242	15 AMP. FUSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	125240	7,5 AMP. FUSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	126031	25 AMP. FUSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	179418	ASR EXCLUSION CONTROL STATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	175620	ELECTRIC UNITS FIXING PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	175318	INJECTION DEVICE RELAY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	157992	DEVIATOR RELAY 30/20 A.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	157991	A.C. ELECTRO FAN CONDENSER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	157802	DOUBLE SWITCH RELAY 2x15 A.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	157802	DOUBLE SWITCH RELAY 2x15 A.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	155459	FUSE 5 A.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	153095	WINDSHIELD WIPER MOTOR INTERMITTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	172613	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	174764	SHOCK ABSORBERS ELECTRONIC CONTROL STATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	319201	FUEL FILLER PIPE ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12637824	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	175684	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	170762	DIRECTION-EMERGENCY LIGHTS RELAY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	157991	A.C. ELECTRO FAN CONDENSER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62790300	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12642877	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62797600	Allen Bolt Countersunk M6 x 20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127493	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12637824	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184391	DOORS LOCKING/UNLOCKING MODULE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13272011	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10519224	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	178433	JUMPER FOR CIGAR LIGHTER RELAY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	161590	20 A MICRO RELAY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	175664	JUMPER FOR DIURNAL LIGHTS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	178295	FUSECASE SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10977624	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14496324	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180086	BLOWER RELAY PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180026	DEVIATOR RELAY 30/40 A.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	170093	30 A MAXI FUSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180628	ELECTRONIC CONTROL STATION FOR FUEL COOLING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63186100	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	181583	BRACKET FOR INTERMITTER FIXING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10442190	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184103	MICRO-RELAY 10/20 A.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	125240	7,5 AMP. FUSE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	182977	BLOWER RELAY PLATE	182977 BLOWER RELAY PLATE Valid from car Ass. Nr. 35219	-	1	Enquire
-	175663	JUMPER FOR DIURNAL LIGHTS	175663 JUMPER FOR DIURNAL LIGHTS Valid for CDN	-	1	Enquire
-	184391	DOORS LOCKING/UNLOCKING MODULE	184391 DOORS LOCKING/UNLOCKING MODULE	-	1	Enquire
-	171375	DIRECTION-EMERGENCY LIGHTS RELAY	171375 DIRECTION-EMERGENCY LIGHTS RELAY RELAY / Valid for USA and CDN	-	1	Enquire
-	175747	SHOCK ABSORBERS ELECTRONIC CONTROL STATION	175747 SHOCK ABSORBERS ELECTRONIC CONTROL STATION ELECTRONIC CONTROL STATION / Valid for 456M GTA	-	1	Enquire
-	253060	INTERMITTENT WINDSCREEN WIPER	253060 INTERMITTENT WINDSCREEN WIPER Not for GD valid from car / Ass. Nr. 34992 / For GD valid from car Ass. Nr. 37347 / For USA and CDN valid from car Ass. Nr. 39778	-	1	Enquire
-	125243	20 AMP. FUSE	125243 20 AMP. FUSE	-	1	Enquire
-	126031	25 AMP. FUSE	126031 25 AMP. FUSE	-	3	Enquire
-	131941	30 A MAXI FUSE	131941 30 A MAXI FUSE For cars valid till car / Ass. Nr. 32532 GS and till car / Ass. Nr. 32851 GD q.ty 2	-	1	Enquire
-	125240	7,5 AMP. FUSE	125240 7,5 AMP. FUSE	-	2	Enquire
-	125241	10 A FUSE	125241 10 A FUSE	-	9	Enquire
-	125242	15 AMP. FUSE	125242 15 AMP. FUSE	-	4	Enquire
-	157991	A.C. ELECTRO FAN CONDENSER	157991 A.C. ELECTRO FAN CONDENSER Valid for USA	-	1	Enquire
-	179418	ASR EXCLUSION CONTROL STATION	179418 ASR EXCLUSION CONTROL STATION STATION	-	1	Enquire
-	177179	ELECTRIC UNITS FIXING PLATE	177179 ELECTRIC UNITS FIXING PLATE Valid for GD	-	1	Enquire
-	184103	MICRO-RELAY 10/20 A.	184103 MICRO-RELAY 10/20 A. Valid after stock exhaustion of 161591	-	1	Enquire
-	180091	FUSES NAMEPLATE	180091 FUSES NAMEPLATE Valid from car Ass. Nr. 32533 GS / and from car Ass. Nr. 32852 GD /	-	1	Enquire
-	179080	GLASS LIFTING CONTROL ELECTRIC UNIT	179080 GLASS LIFTING CONTROL ELECTRIC UNIT UNIT / Valid for USA, CDN and AUS	-	1	Enquire
-	176912	PASSENGER FOOT-REST PLATE	176912 PASSENGER FOOT-REST PLATE PLATE / Valid for GD	-	1	Enquire
-	180025	RELAYS AND FUSES NAMEPLATE	180025 RELAYS AND FUSES NAMEPLATE Valid from car Ass. Nr. 32533 GS / and from car Ass. Nr. 32852 GD /	-	1	Enquire
-	180024	COMPLETE ELECTRIC BOARD	180024 COMPLETE ELECTRIC BOARD BOARD / Valid for USA / Valid from car Ass. Nr. 32533 GS / and from car Ass. Nr. 32852 GD	-	1	Enquire
-	174790	COMPLETE ELECTRIC BOARD	174790 COMPLETE ELECTRIC BOARD BOARD / Not for USA / Valid till car Ass. Nr. 32532 GS / and till car Ass. Nr. 32851 GD	-	1	Enquire
-	180023	COMPLETE ELECTRIC BOARD	180023 COMPLETE ELECTRIC BOARD BOARD / Not for USA / Valid from car Ass. Nr. 32533 GS / and from car Ass. Nr. 32852 GD	-	1	Enquire
-	175754	COMPLETE ELECTRIC BOARD	175754 COMPLETE ELECTRIC BOARD BOARD / Valid for USA / Valid till car Ass. Nr. 32532 GS / and till car Ass. Nr. 32851 GD	-	1	Enquire
1	147000	CONTROL UNIT PLATE	147000 CONTROL UNIT PLATE	-	1	Enquire
2	61352100	FUSES BOX	61352100 FUSES BOX	-	2	Enquire
3	179930	RELAYS AND FUSES NAMEPLATE	179930 RELAYS AND FUSES NAMEPLATE Valid till car Ass. Nr. 32532 GS / and till car Ass. Nr. 32851 GD /	-	1	Enquire
4	174919	PASSENGER FOOT-REST PLATE	174919 PASSENGER FOOT-REST PLATE PLATE / Not for GD	-	1	Enquire
5	179087	INERTIAL SWITCH	179087 INERTIAL SWITCH	-	1	Enquire
6	319201	FUEL FILLER PIPE ASSEMBLY	319201 FUEL FILLER PIPE ASSEMBLY	-	2	Enquire
7	12637824	WASHER	12637824 WASHER	-	2	Enquire
8	166784	ACCELERATION SENSOR	166784 ACCELERATION SENSOR Valid for USA, CDN and AUS	-	1	Enquire
9	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6 Valid for USA, CDN and AUS	-	2	Enquire
10	179080	GLASS LIFTING CONTROL ELECTRIC UNIT	179080 GLASS LIFTING CONTROL ELECTRIC UNIT UNIT / Not for USA, CDN and AUS	-	1	Enquire
11	174794	FUSES NAMEPLATE	174794 FUSES NAMEPLATE Valid till car Ass. Nr. 32532 GS / and till car Ass. Nr. 32851 GD /	-	1	Enquire
12	174763	HYDRAULIC STEERING CONTRO ELECTRIC UNIT	174763 HYDRAULIC STEERING CONTRO ELECTRIC UNIT ELECTRIC UNIT	-	1	Enquire
13	171596	REAR FOG LIGHT CONTROL ELECTRIC UNIT	171596 REAR FOG LIGHT CONTROL ELECTRIC UNIT UNIT / Not for USA and CDN	-	1	Enquire
14	161590	20 A MICRO RELAY	161590 20 A MICRO RELAY	-	2	Enquire
15	227285	20/10 A MICRO RELAY	227285 20/10 A MICRO RELAY	-	1	Enquire
16	157802	DOUBLE SWITCH RELAY 2x15 A.	157802 DOUBLE SWITCH RELAY 2x15 A.	-	1	Enquire
17	125242	15 AMP. FUSE	125242 15 AMP. FUSE	-	1	Enquire
18	125240	7,5 AMP. FUSE	125240 7,5 AMP. FUSE	-	1	Enquire
19	126031	25 AMP. FUSE	126031 25 AMP. FUSE Valid for 456M GTA	-	1	Enquire
20	179418	ASR EXCLUSION CONTROL STATION	179418 ASR EXCLUSION CONTROL STATION STATION / Not as spare part now / Replaced by 179418	-	1	Enquire
21	10519424	WASHER	10519424 WASHER Valid for USA, CDN and AUS	-	2	Enquire
22	175620	ELECTRIC UNITS FIXING PLATE	175620 ELECTRIC UNITS FIXING PLATE Not for GD	-	1	Enquire
23	175318	INJECTION DEVICE RELAY	175318 INJECTION DEVICE RELAY	-	4	Enquire
24	157992	DEVIATOR RELAY 30/20 A.	157992 DEVIATOR RELAY 30/20 A.	-	4	Enquire
25	157991	A.C. ELECTRO FAN CONDENSER	157991 A.C. ELECTRO FAN CONDENSER For car till car Ass. Nr. 32532 GS / and till car Ass. Nr. 32851 GD q.ty 9	-	8	Enquire
26	157802	DOUBLE SWITCH RELAY 2x15 A.	157802 DOUBLE SWITCH RELAY 2x15 A.	-	2	Enquire
27	157802	DOUBLE SWITCH RELAY 2x15 A.	157802 DOUBLE SWITCH RELAY 2x15 A. Not for USA	-	1	Enquire
28	155459	FUSE 5 A.	155459 FUSE 5 A. For cars valid till car / Ass. Nr. 32532 GS and till car / Ass. Nr. 32851 GD q.ty 3	-	4	Enquire
29	153095	WINDSHIELD WIPER MOTOR INTERMITTER	153095 WINDSHIELD WIPER MOTOR INTERMITTER Not for GD valid till car / Ass. Nr. 34991 / For GD valid till car Ass. Nr. 37346 / For USA and CDN valid till car Ass. Nr. 39777	-	1	Enquire
30	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	3	Enquire
31	10519424	WASHER	10519424 WASHER	-	3	Enquire
32	172613	SPACER	172613 SPACER	-	3	Enquire
33	174764	SHOCK ABSORBERS ELECTRONIC CONTROL STATION	174764 SHOCK ABSORBERS ELECTRONIC CONTROL STATION ELECTRONIC CONTROL STATION / Not for 456M GTA	-	1	Enquire
34	319201	FUEL FILLER PIPE ASSEMBLY	319201 FUEL FILLER PIPE ASSEMBLY	-	2	Enquire
35	12637824	WASHER	12637824 WASHER	-	2	Enquire
36	175684	BRACKET	175684 BRACKET Not for GD	-	1	Enquire
37	170762	DIRECTION-EMERGENCY LIGHTS RELAY	170762 DIRECTION-EMERGENCY LIGHTS RELAY RELAY / Not for USA and CDN	-	1	Enquire
38	157991	A.C. ELECTRO FAN CONDENSER	157991 A.C. ELECTRO FAN CONDENSER	-	1	Enquire
39	62790300	NUT	62790300 NUT	-	2	Enquire
40	12642877	WASHER	12642877 WASHER	-	2	Enquire
41	62797600	Allen Bolt Countersunk M6 x 20	62797600 Allen Bolt Countersunk M6 x 20	-	2	Enquire
42	127493	WASHER	127493 WASHER	-	2	Enquire
43	12637824	WASHER	12637824 WASHER	-	2	Enquire
44	184391	DOORS LOCKING/UNLOCKING MODULE	184391 DOORS LOCKING/UNLOCKING MODULE Not as spare part now / Replaced by 184391	-	1	Enquire
45	13272011	SCREW	13272011 SCREW	-	1	Enquire
46	10519224	WASHER	10519224 WASHER	-	1	Enquire
47	178433	JUMPER FOR CIGAR LIGHTER RELAY	178433 JUMPER FOR CIGAR LIGHTER RELAY RELAY / Valid for GD / Not for AUS	-	2	Enquire
48	161590	20 A MICRO RELAY	161590 20 A MICRO RELAY FOR CIGAR LIGHTER / Valid for AUS / Valid till stock exhaustion	-	2	Enquire
49	175664	JUMPER FOR DIURNAL LIGHTS	175664 JUMPER FOR DIURNAL LIGHTS Valid for USA and J	-	1	Enquire
50	178295	FUSECASE SUPPORT	178295 FUSECASE SUPPORT Valid from car Ass. Nr. 32533 GS / and from car Ass. Nr. 32852 GD	-	1	Enquire
51	10977624	SCREW	10977624 SCREW Valid from car Ass. Nr. 32533 GS / and from car Ass. Nr. 32852 GD	-	1	Enquire
52	14496324	WASHER	14496324 WASHER Valid from car Ass. Nr. 32533 GS / and from car Ass. Nr. 32852 GD	-	1	Enquire
53	180086	BLOWER RELAY PLATE	180086 BLOWER RELAY PLATE Valid from car Ass. Nr. 32533 GS / and from car Ass. Nr. 32852 GD / Valid till car Ass. Nr. 35218	-	1	Enquire
54	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6 Valid from car Ass. Nr. 32533 GS / and from car Ass. Nr. 32852 GD	-	2	Enquire
55	10519424	WASHER	10519424 WASHER Valid from car Ass. Nr. 32533 GS / and from car Ass. Nr. 32852 GD	-	2	Enquire
56	180026	DEVIATOR RELAY 30/40 A.	180026 DEVIATOR RELAY 30/40 A. Valid from car Ass. Nr. 32533 GS / and from car Ass. Nr. 32852 GD	-	3	Enquire
57	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6 Valid from car Ass. Nr. 32533 GS / and from car Ass. Nr. 32852 GD	-	3	Enquire
58	10519424	WASHER	10519424 WASHER Valid from car Ass. Nr. 32533 GS / and from car Ass. Nr. 32852 GD	-	3	Enquire
59	170093	30 A MAXI FUSE	170093 30 A MAXI FUSE Valid from car Ass. Nr. 32533 GS / and from car Ass. Nr. 32852 GD	-	2	Enquire
60	180628	ELECTRONIC CONTROL STATION FOR FUEL COOLING	180628 ELECTRONIC CONTROL STATION FOR FUEL COOLING STATION FOR FUEL COOLING / Valid for USA M.Y. 2000, USA M.Y. 2001, / CDN M.Y. 2000 and CDN M.Y. 2001	-	1	Enquire
61	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6 Valid for USA M.Y. 2000, USA M.Y. 2001, / CDN M.Y. 2000 and CDN M.Y. 2001	-	2	Enquire
62	10519424	WASHER	10519424 WASHER Valid for USA M.Y. 2000, USA M.Y. 2001, / CDN M.Y. 2000 and CDN M.Y. 2001	-	2	Enquire
63	63186100	SPACER	63186100 SPACER Valid for USA M.Y. 2000, USA M.Y. 2001, / CDN M.Y. 2000 and CDN M.Y. 2001	-	2	Enquire
64	181583	BRACKET FOR INTERMITTER FIXING	181583 BRACKET FOR INTERMITTER FIXING Not for GD valid from car / Ass. Nr. 34992 / For GD valid from car Ass. Nr. 37347	-	1	Enquire
65	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6 Not for GD valid from car / Ass. Nr. 34992 / For GD valid from car Ass. Nr. 37347	-	1	Enquire
66	10519424	WASHER	10519424 WASHER Not for GD valid from car / Ass. Nr. 34992 / For GD valid from car Ass. Nr. 37347	-	1	Enquire
67	10442190	BRACKET WITH SHEATH	10442190 BRACKET WITH SHEATH Valid for USA M.Y. 2000, USA M.Y. 2001, / CDN M.Y. 2000 and CDN M.Y. 2001	-	1	Enquire
68	184103	MICRO-RELAY 10/20 A.	184103 MICRO-RELAY 10/20 A.	-	1	Enquire
69	125240	7,5 AMP. FUSE	125240 7,5 AMP. FUSE	-	1	Enquire
