DOORS - POWER WINDOW AND REARVIEW MIRROR of Ferrari Ferrari 456 M GT/GTA

View All

Ferrari 456 M GT/GTA - DOORS - POWER WINDOW AND REARVIEW MIRROR

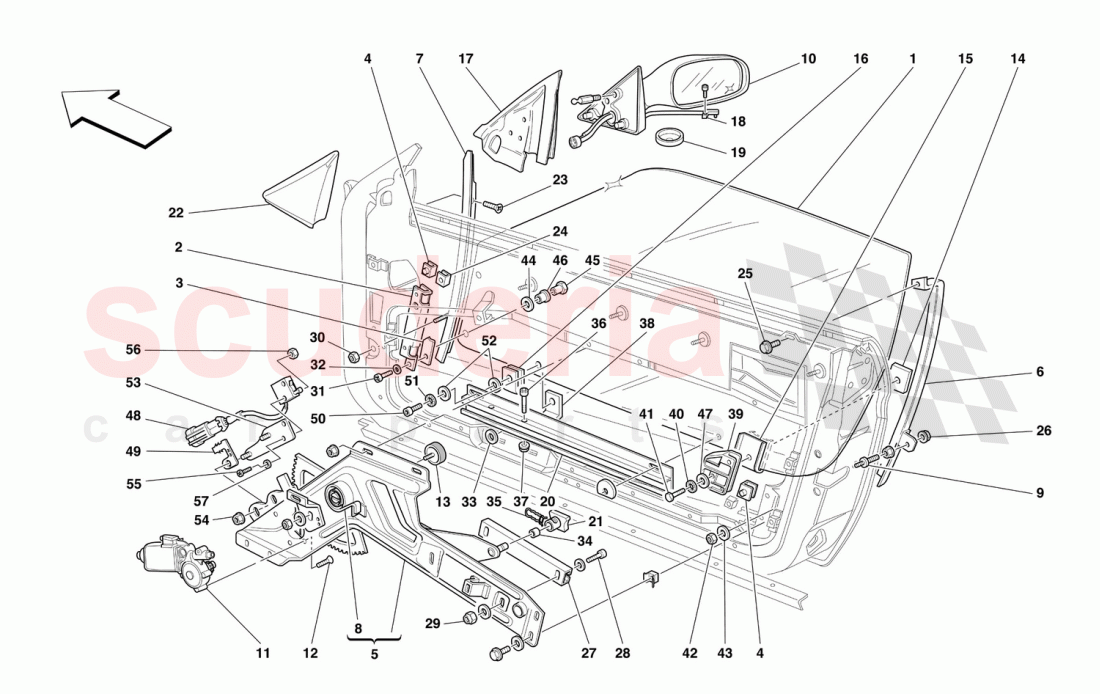

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	65434300	R.H. DOOR GLASS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63768100	RH SLIPPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63486900	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63767900	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65267600	R.H. GLASS LIFT DEVICE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63786500	R.H. REAR GLASS GUIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65438400	R.H. FRONT GLASS GUIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63896300	HELICOIDAL SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65224500	DOUBLE THREADED SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65434710	R.H. EXTERNAL REAR MIRROR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63211800	R.H. GLASS LIFTING MOTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15917904	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63896400	STOP BUFFER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63768000	FIXING PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63168800	PRE-LOAD REGULATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63120100	PLATE GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65675800	R.H. OUTER MIRROR GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64783900	OUTER TEMPERATURE SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63715100	L.H. PLUG (with sensor hole)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65778000	R.H. GUIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64081100	SMALL BLOCK FOR GLASS GUIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65435300	R.H. MIRROR INNER MOLDING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64222200	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63890100	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13836324	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14039714	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65836400	R.H. INNER SLIDING GUIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14303724	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62790300	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14039714	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13271814	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10519278	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63896600	RUBBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64091900	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64081100	SMALL BLOCK FOR GLASS GUIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14303724	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62790300	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65654300	GLASS FIXING PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63853600	RH MOVING GUIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10903024	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12648925	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62798000	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62932800	SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62932900	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13550277	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	168617	MICROSWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	162606	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65894800	R.H. MICROSWITCH BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	808769	CAP NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13270811	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16101714	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14496101	WASHER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	65895000	L.H. MICROSWITCH BRACKET	65895000 L.H. MICROSWITCH BRACKET	-	1	Enquire
-	63853700	LH MOBILE GUIDE	63853700 LH MOBILE GUIDE	-	1	Enquire
-	65851500	L.H. MIRROR INNER MOLDING	65851500 L.H. MIRROR INNER MOLDING	-	1	Enquire
-	65435400	L.H. MIRROR INNER MOLDING	65435400 L.H. MIRROR INNER MOLDING	-	1	Enquire
-	63715000	R.H. PLUG (without sensor hole)	63715000 R.H. PLUG (without sensor hole)	-	1	Enquire
-	65778100	L.H. GUIDE	65778100 L.H. GUIDE	-	1	Enquire
-	65675900	L.H. OUTER MIRROR GASKET	65675900 L.H. OUTER MIRROR GASKET	-	1	Enquire
-	63211900	L.H. GLASS LIFTING MOTOR	63211900 L.H. GLASS LIFTING MOTOR	-	1	Enquire
-	65617410	R.H. EXTERNAL REAR MIRROR	65617410 R.H. EXTERNAL REAR MIRROR Valid for GD	-	1	Enquire
-	65434810	L.H. EXTERNAL REAR MIRROR	65434810 L.H. EXTERNAL REAR MIRROR Not for GD	-	1	Enquire
-	65617510	L.H. EXTERNAL REAR MIRROR	65617510 L.H. EXTERNAL REAR MIRROR Valid for GD	-	1	Enquire
-	65438500	L.H. FRONT GLASS GUIDE	65438500 L.H. FRONT GLASS GUIDE	-	1	Enquire
-	65434910	R.H. EXTERNAL REAR MIRROR	65434910 R.H. EXTERNAL REAR MIRROR Valid for USA and CDN	-	1	Enquire
-	65267700	L.H. GLASS LIFT DEVICE	65267700 L.H. GLASS LIFT DEVICE	-	1	Enquire
-	63786600	L.H. REAR GLASS GUIDE	63786600 L.H. REAR GLASS GUIDE	-	1	Enquire
-	65434400	L.H. DOOR GLASS	65434400 L.H. DOOR GLASS	-	1	Enquire
-	63768200	LH SLIPPER	63768200 LH SLIPPER	-	1	Enquire
1	65434300	R.H. DOOR GLASS	65434300 R.H. DOOR GLASS	-	1	Enquire
2	63768100	RH SLIPPER	63768100 RH SLIPPER	-	1	Enquire
3	63486900	GASKET	63486900 GASKET	-	2	Enquire
4	63767900	CLIP	63767900 CLIP	-	8	Enquire
5	65267600	R.H. GLASS LIFT DEVICE	65267600 R.H. GLASS LIFT DEVICE	-	1	Enquire
6	63786500	R.H. REAR GLASS GUIDE	63786500 R.H. REAR GLASS GUIDE	-	1	Enquire
7	65438400	R.H. FRONT GLASS GUIDE	65438400 R.H. FRONT GLASS GUIDE	-	1	Enquire
8	63896300	HELICOIDAL SPRING	63896300 HELICOIDAL SPRING	-	2	Enquire
9	65224500	DOUBLE THREADED SCREW	65224500 DOUBLE THREADED SCREW	-	2	Enquire
10	65434710	R.H. EXTERNAL REAR MIRROR	65434710 R.H. EXTERNAL REAR MIRROR Not for USA, CDN and GD	-	1	Enquire
11	63211800	R.H. GLASS LIFTING MOTOR	63211800 R.H. GLASS LIFTING MOTOR	-	1	Enquire
12	15917904	SCREW	15917904 SCREW	-	8	Enquire
13	63896400	STOP BUFFER	63896400 STOP BUFFER	-	2	Enquire
14	63768000	FIXING PLATE	63768000 FIXING PLATE	-	2	Enquire
15	63168800	PRE-LOAD REGULATOR	63168800 PRE-LOAD REGULATOR	-	2	Enquire
16	63120100	PLATE GASKET	63120100 PLATE GASKET	-	4	Enquire
17	65675800	R.H. OUTER MIRROR GASKET	65675800 R.H. OUTER MIRROR GASKET	-	1	Enquire
18	64783900	OUTER TEMPERATURE SENSOR	64783900 OUTER TEMPERATURE SENSOR	-	1	Enquire
19	63715100	L.H. PLUG (with sensor hole)	63715100 L.H. PLUG (with sensor hole)	-	1	Enquire
20	65778000	R.H. GUIDE	65778000 R.H. GUIDE	-	1	Enquire
21	64081100	SMALL BLOCK FOR GLASS GUIDE	64081100 SMALL BLOCK FOR GLASS GUIDE	-	6	Enquire
22	65435300	R.H. MIRROR INNER MOLDING	65435300 R.H. MIRROR INNER MOLDING	-	1	Enquire
23	64222200	SCREW	64222200 SCREW	-	4	Enquire
24	63890100	GASKET	63890100 GASKET	-	8	Enquire
25	13836324	SCREW	13836324 SCREW	-	2	Enquire
26	14039714	NUT	14039714 NUT	-	2	Enquire
27	65836400	R.H. INNER SLIDING GUIDE	65836400 R.H. INNER SLIDING GUIDE	-	1	Enquire
28	14303724	SCREW	14303724 SCREW	-	4	Enquire
29	62790300	NUT	62790300 NUT	-	4	Enquire
30	14039714	NUT	14039714 NUT	-	4	Enquire
31	13271814	SCREW	13271814 SCREW	-	4	Enquire
32	10519278	WASHER	10519278 WASHER	-	4	Enquire
33	63896600	RUBBER	63896600 RUBBER	-	2	Enquire
34	64091900	BUSHING	64091900 BUSHING	-	2	Enquire
35	64081100	SMALL BLOCK FOR GLASS GUIDE	64081100 SMALL BLOCK FOR GLASS GUIDE	-	6	Enquire
36	14303724	SCREW	14303724 SCREW	-	4	Enquire
37	62790300	NUT	62790300 NUT	-	4	Enquire
38	65654300	GLASS FIXING PLATE	65654300 GLASS FIXING PLATE	-	4	Enquire
39	63853600	RH MOVING GUIDE	63853600 RH MOVING GUIDE	-	1	Enquire
40	127494	WASHER	127494 WASHER	-	2	Enquire
41	10903024	SCREW	10903024 SCREW	-	2	Enquire
42	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
43	12648925	WASHER	12648925 WASHER	-	2	Enquire
44	62798000	WASHER	62798000 WASHER	-	4	Enquire
45	62932800	SHIM	62932800 SHIM	-	4	Enquire
46	62932900	BUSHING	62932900 BUSHING	-	4	Enquire
47	13550277	WASHER	13550277 WASHER	-	2	Enquire
48	168617	MICROSWITCH	168617 MICROSWITCH	-	2	Enquire
49	162606	CLIP	162606 CLIP	-	2	Enquire
50	231620	SCREW	231620 SCREW	-	2	Enquire
51	127494	WASHER	127494 WASHER	-	2	Enquire
52	12643724	WASHER	12643724 WASHER	-	4	Enquire
53	65894800	R.H. MICROSWITCH BRACKET	65894800 R.H. MICROSWITCH BRACKET	-	1	Enquire
54	808769	CAP NUT	808769 CAP NUT	-	2	Enquire
55	13270811	SCREW	13270811 SCREW	-	2	Enquire
56	16101714	NUT	16101714 NUT	-	2	Enquire
57	14496101	WASHER	14496101 WASHER	-	2	Enquire
