RIGHT HAND CYLINDER HEAD

Find Your Part

Ferrari 430 Spider - RIGHT HAND CYLINDER HEAD

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
206796 RH HEAD COMPLETE WITH GUIDES $2,775.18 To Order
219172 RH HEAD COMPLETE WITH GUIDES $6,765.49 To Order
209277 RH HEAD COMPLETE WITH GUIDES Enquire To Order
Photo Part No Description Price (each) Stock
221342 RH CYLINDER HEAD COVER $465.32 To Order
221342 RH CYLINDER HEAD COVER $465.32 To Order
224062 RH CYLINDER HEAD COVER $1,174.61 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock

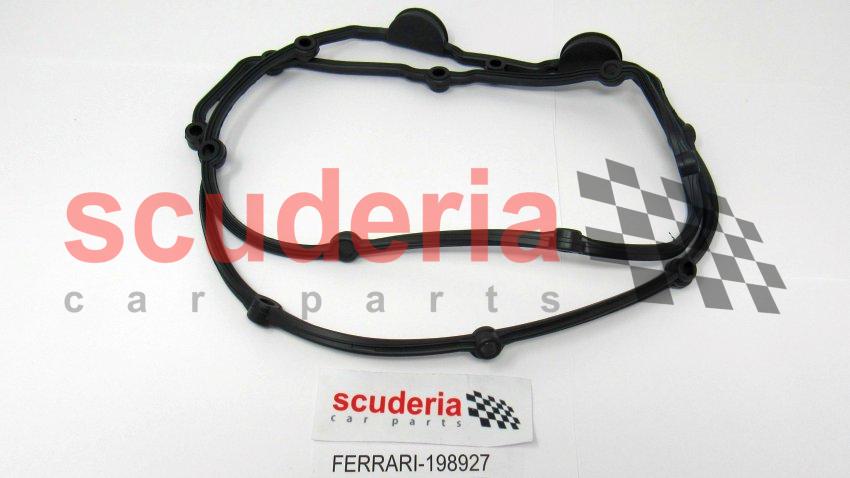

198927 RH Head Cover Gasket $43.31 To Order
Photo Part No Description Price (each) Stock

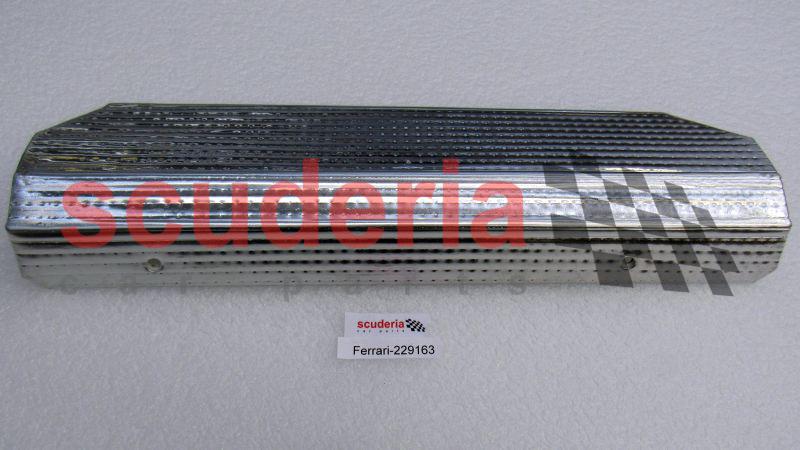

229163 HEAT SHIELD $358.34 To Order
Photo Part No Description Price (each) Stock
212466 STUD BOLT $7.25 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.68 To Order
Photo Part No Description Price (each) Stock
321187 NUT Enquire To Order
Photo Part No Description Price (each) Stock
151117 WASHER $1.20 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
156834 ALLEN SCREW M6 X 30 $3.71 To Order
Photo Part No Description Price (each) Stock
10441590 BRACKET WITH SHEATH $0.55 To Order
10441290 BRACKET WITH SHEATH $0.57 To Order
Photo Part No Description Price (each) Stock
124342 THREADED CONNECTOR $6.56 To Order
Photo Part No Description Price (each) Stock
282755 THREADED PLUG $2.14 To Order
Photo Part No Description Price (each) Stock
140135 THREADED INSERT $3.40 To Order
Photo Part No Description Price (each) Stock
223982 SPARK PLUG TUBE SEAL $2.54 To Order

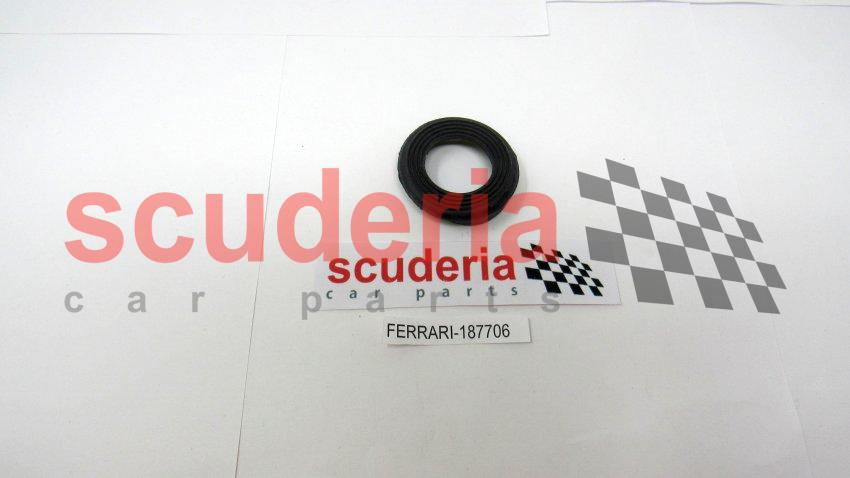

187706 Spark Plug Sleeve Gasket $8.49 To Order
187706 Spark Plug Sleeve Gasket $8.49 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
164400 THREADED PLUG $3.81 To Order
Photo Part No Description Price (each) Stock
13541334 STUD BOLT $0.50 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.68 To Order
Photo Part No Description Price (each) Stock
199760 THREADED PLUG $0.31 To Order
Photo Part No Description Price (each) Stock

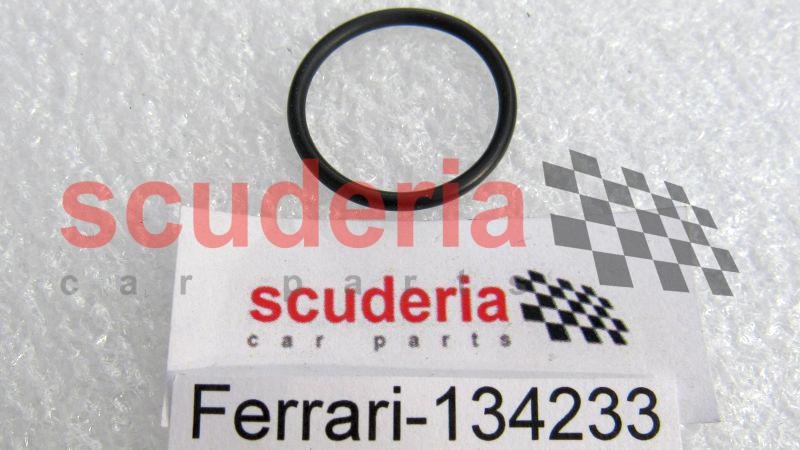

134233 O-RING $0.47 To Order
Photo Part No Description Price (each) Stock

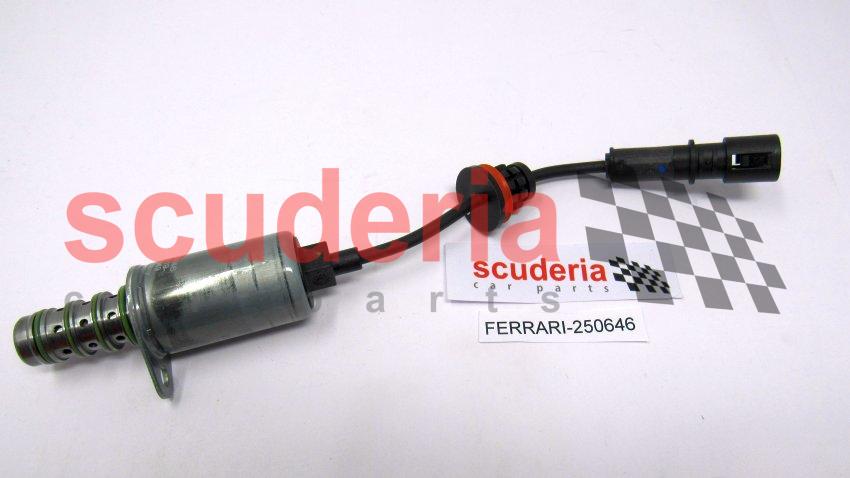

250646 Variable Valve Timing Adjuster Solenoid Valve $978.79 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.31 To Order
Photo Part No Description Price (each) Stock
11087376 3-POINT CIRCLIP D.12 $0.18 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.31 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
219864 RH INTAKE TIMING SENSOR $328.23 To Order
219865 RH Exhaust Camshaft Sensor $351.73 To Order
Photo Part No Description Price (each) Stock
184681 OIL PRESSURE REGULATOR VALVE $465.32 ARRIVING SOON
Photo Part No Description Price (each) Stock
102725 CENTERING DOWEL $1.17 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.51 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
211641 STUD BOLT $1.04 To Order
Photo Part No Description Price (each) Stock
220239 CAP $7.07 To Order
Photo Part No Description Price (each) Stock
220245 GASKET $0.16 To Order
View All

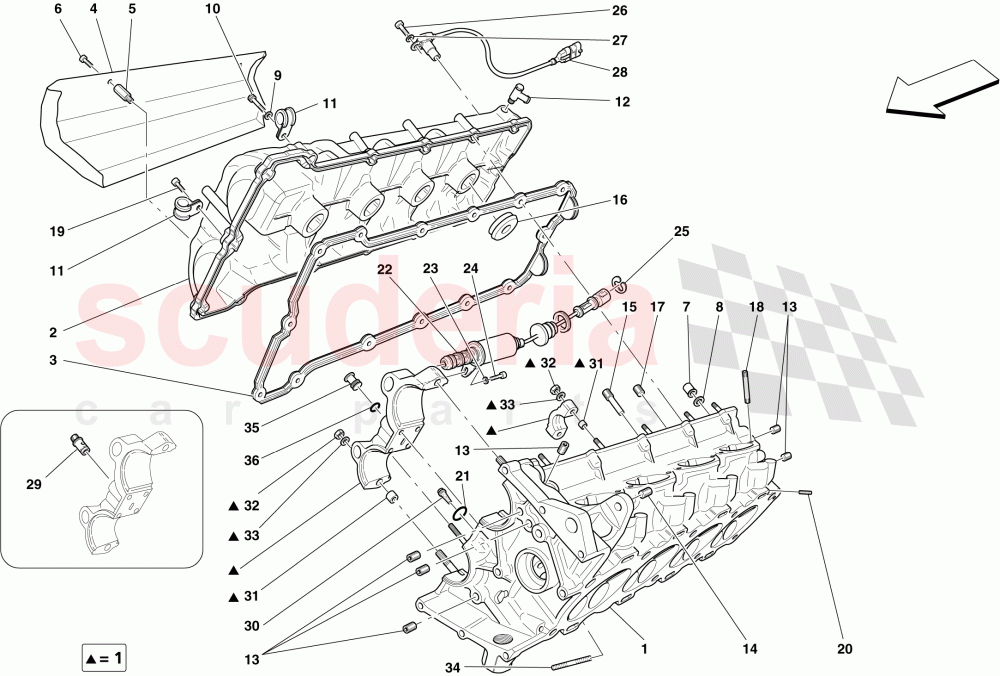

RIGHT HAND CYLINDER HEAD of Ferrari Ferrari 430 Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 206796
RH HEAD COMPLETE WITH GUIDES
Applicable from engine No. 91154 up to engine No. 97780 		$2,775.18 1
1 219172
RH HEAD COMPLETE WITH GUIDES
Applicable up to MY 06; Applicable from engine No. 97781 up to engine No. 99607 		$6,765.49 1
1 209277
RH HEAD COMPLETE WITH GUIDES
Applicable up to engine No. 91153 		- 1 Enquire
2 221342
RH CYLINDER HEAD COVER
Applicable for USA, CDN; Applicable from Ass. No. 67970 		$465.32 1
2 221342
RH CYLINDER HEAD COVER
Not for USA, CDN; Applicable from Ass. No. 69639 		$465.32 1
2 224062
RH CYLINDER HEAD COVER
Applicable for USA, CDN; Applicable up to Ass. No. 67970 		$1,174.61 1
2 224062
RH CYLINDER HEAD COVER
Not for USA, CDN; Applicable up to Ass. No. 69638 		$1,174.61 1
3 198927
RH Head Cover Gasket 		$43.31 (30.1% off) 1
4 229163
HEAT SHIELD 		$358.34 1
5 212466
STUD BOLT 		$7.25 1
6 248334
SCREW 		$0.68 1
7 321187
NUT 		- 10 Enquire
8 151117
WASHER 		$1.20 10
9 11197774
WASHER 		$0.06 (80% off) 14
10 156834
ALLEN SCREW M6 X 30 		$3.71 14
11 10441590
BRACKET WITH SHEATH 		$0.55 1
11 10441290
BRACKET WITH SHEATH 		$0.57 (66.1% off) 1
12 124342
THREADED CONNECTOR 		$6.56 1
13 282755
THREADED PLUG 		$2.14 6
14 140135
THREADED INSERT 		$3.40 1
16 223982
SPARK PLUG TUBE SEAL
Applicable from MY 07; Not for USA, CDN; Applicable from Ass. No. 69639 		$2.54 (36% off) 4
16 187706
Spark Plug Sleeve Gasket
Applicable for USA, CDN; Applicable up to Ass. No. 68459 		$8.49 (31% off) 4
16 187706
Spark Plug Sleeve Gasket
Not for USA, CDN; Applicable from Ass. No. 69638 		$8.49 (31% off) 4
16 223982
SPARK PLUG TUBE SEAL
Applicable from MY 07; Applicable for USA, CDN; Applicable from Ass. No. 68460 		$2.54 (36% off) 4
17 164400
THREADED PLUG 		$3.81 1
18 13541334
STUD BOLT 		$0.50 8
19 248334
SCREW 		$0.68 1
20 199760
THREADED PLUG 		$0.31 4
21 134233
O-RING 		$0.47 (68.7% off) 1
22 250646
Variable Valve Timing Adjuster Solenoid Valve 		$978.79 (28.7% off) 2
23 11197774
WASHER
No longer supplied 		$0.06 (80% off) 1
24 231619
SCREW 		$0.31 1
25 11087376
3-POINT CIRCLIP D.12 		$0.18 (28% off) 1
26 231619
SCREW 		$0.31 1
27 11197774
WASHER 		$0.06 (80% off) 1
28 219864
RH INTAKE TIMING SENSOR 		$328.23 1
28 219865
RH Exhaust Camshaft Sensor 		$351.73 1
29 184681
OIL PRESSURE REGULATOR VALVE
ARRIVING SOON 		$465.32 1
31 102725
CENTERING DOWEL 		$1.17 (48% off) 22
32 14059290
FLANGED NUT M6 		$1.51 22
33 11197774
WASHER 		$0.06 (80% off) 22
34 211641
STUD BOLT 		$1.04 8
35 220239
CAP
No longer supplied 		$7.07 1
36 220245
GASKET
No longer supplied 		$0.16 (84% off) 1
