RACING EXHAUST SYSTEM of Ferrari Ferrari 430 Spider

View All

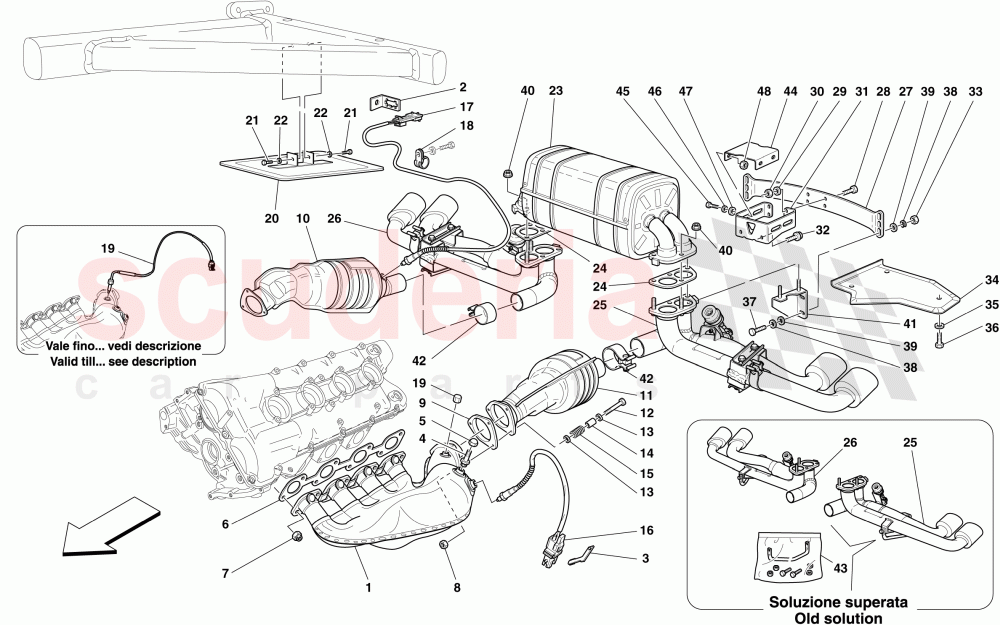

Ferrari 430 Spider - RACING EXHAUST SYSTEM

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	247595	RH EXHAUST MANIFOLD	Enquire	To Order
	247595	RH EXHAUST MANIFOLD	Enquire	To Order
	247595	RH EXHAUST MANIFOLD	Enquire	To Order

...and 7 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	185408	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	175856	CONNECTOR FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	144240	THREADED CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	150595	CAP NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	211404	GASKET EXHAUST MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	307964	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	212191	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	154985	Exhaust Gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	220662	RH CATALYTIC CONVERTER	Enquire	To Order
	223215	RH CATALYTIC CONVERTER	Enquire	To Order
	220662	RH CATALYTIC CONVERTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	220663	LH CATALYTIC CONVERTER	Enquire	To Order
	223216	LH CATALYTIC CONVERTER	Enquire	To Order
	220663	LH CATALYTIC CONVERTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16044524	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	263276	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	114749	Spacer D8. 10 x 23	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	111743	EXHAUST BRACKET SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	182837	Front Lambda Sensor	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180915	Rear Lambda Sensor	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10441390	P clip Bracket With Sheath D.12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	236195	CAP	Enquire	To Order
	236195	CAP	Enquire	To Order
	200934	EXHAUST GAS TEMPERATURE SENSOR	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	16297024	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231541	COMPLETE EXHAUST SILENCER	Enquire	To Order
	247358	COMPLETE EXHAUST SILENCER	Enquire	To Order
	239880	COMPLETE EXHAUST SILENCER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177612	Exhaust Gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	235962	COMPLETE LH OUTLET PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	235961	COMPLETE RH OUTLET PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	195803	EXHAUST SIDE SILENCER MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16043324	SCREW M8 X 18	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127496	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT M8 FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16043434	HEX HEAD SCREW M8 X 20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT M8 FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order
	12625224	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16043324	SCREW M8 X 18	Enquire	To Order
	10902424	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16043534	SCREW M8 X 22	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	263276	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127496	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059311	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	210893	LH BRACKET	Enquire	To Order
	210892	RH BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185307	Exhaust Clamp	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	223771	BRACKET AND FASTENER KIT FOR OUTLET PIPES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	221909	REINFORCEMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT M8 FLANGED	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart

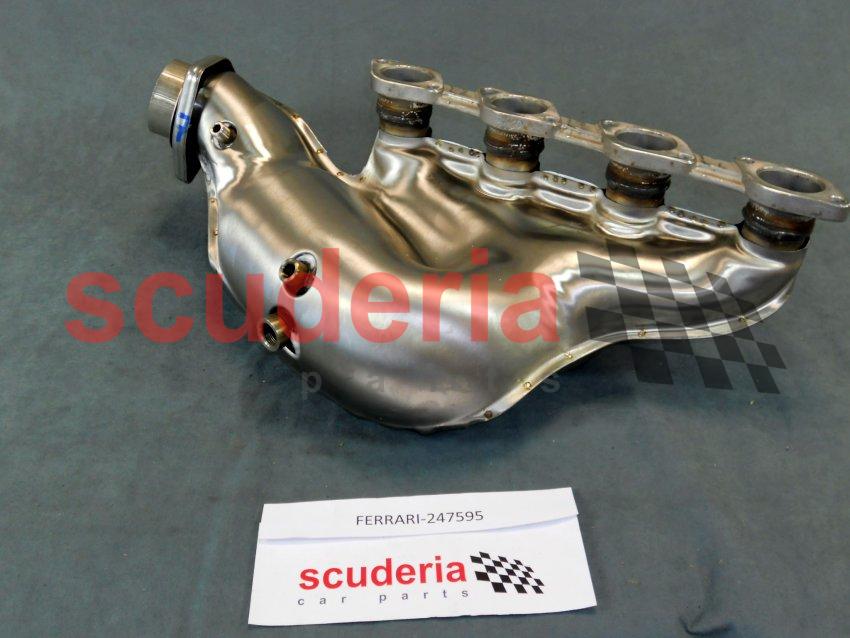

1	247595	RH EXHAUST MANIFOLD	247595 RH EXHAUST MANIFOLD Applicable from MY 08; Not for Taiwan; Replaces 223213; Not for CINA; Applicable from Ass. No. 74557	-	1	Enquire
1	247595	RH EXHAUST MANIFOLD	247595 RH EXHAUST MANIFOLD Applicable from MY 08; Replaces 223213; Applicable for CINA; Applicable from Ass. No. 78361	-	1	Enquire
1	247595	RH EXHAUST MANIFOLD	247595 RH EXHAUST MANIFOLD Applicable up to MY 08; Not for Taiwan; Replaces 212630; Not for CINA; Applicable up to Ass. No. 74556	-	1	Enquire
1	247595	RH EXHAUST MANIFOLD	247595 RH EXHAUST MANIFOLD Applicable up to MY 08; Replaces 212630; Applicable for CINA; Applicable up to Ass. No. 78360	-	1	Enquire
1	247595	RH EXHAUST MANIFOLD	247595 RH EXHAUST MANIFOLD Applicable up to MY 08; Applicable for Taiwan; Replaces 212630	-	1	Enquire

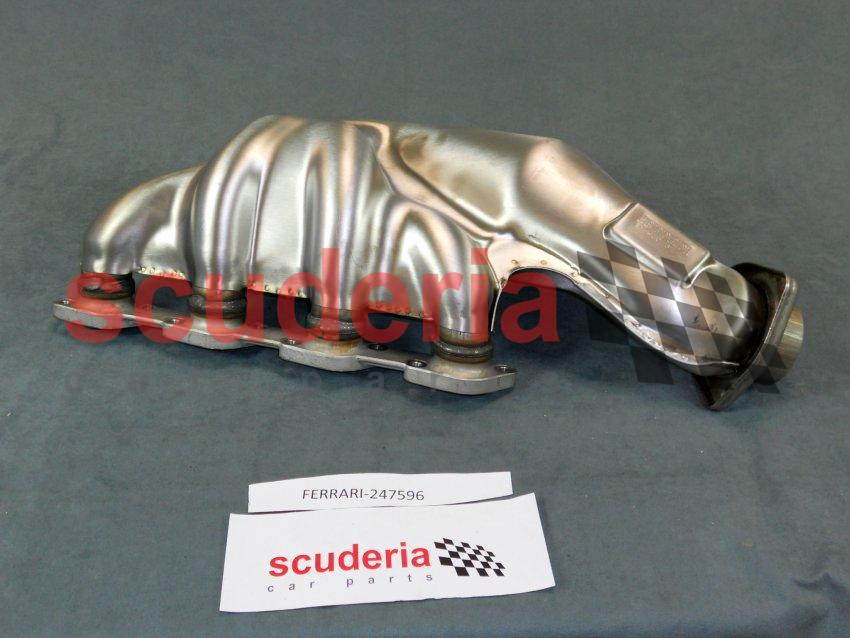

1	247596	LH EXHAUST MANIFOLD	247596 LH EXHAUST MANIFOLD Applicable from MY 08; Replaces 223214; Applicable for CINA; Applicable from Ass. No. 78361	-	1	Enquire
1	247596	LH EXHAUST MANIFOLD	247596 LH EXHAUST MANIFOLD Applicable from MY 08; Not for Taiwan; Replaces 223214; Not for CINA; Applicable from Ass. No. 74557	-	1	Enquire
1	247596	LH EXHAUST MANIFOLD	247596 LH EXHAUST MANIFOLD Applicable up to MY 08; Applicable for Taiwan; Replaces 212631	-	1	Enquire
1	247596	LH EXHAUST MANIFOLD	247596 LH EXHAUST MANIFOLD Applicable up to MY 08; Not for Taiwan; Replaces 212631; Not for CINA; Applicable up to Ass. No. 74556	-	1	Enquire
1	247596	LH EXHAUST MANIFOLD	247596 LH EXHAUST MANIFOLD Applicable up to MY 08; Replaces 212631; Applicable for CINA; Applicable up to Ass. No. 78360	-	1	Enquire
2	185408	BRACKET	185408 BRACKET	-	2	Enquire
3	175856	CONNECTOR FASTENER BRACKET	175856 CONNECTOR FASTENER BRACKET	-	2	Enquire
4	144240	THREADED CONNECTOR	144240 THREADED CONNECTOR	-	2	Enquire
5	150595	CAP NUT	150595 CAP NUT	-	2	Enquire
6	211404	GASKET EXHAUST MANIFOLD	211404 GASKET EXHAUST MANIFOLD	-	2	Enquire
7	307964	NUT	307964 NUT	-	16	Enquire
8	212191	NUT	212191 NUT	-	6	Enquire
9	154985	Exhaust Gasket	154985 Exhaust Gasket	-	2	Enquire
10	220662	RH CATALYTIC CONVERTER	220662 RH CATALYTIC CONVERTER Not for Taiwan; Applicable up to MY 08; Not for CINA; Applicable up to Ass. No. 74556	-	1	Enquire
10	223215	RH CATALYTIC CONVERTER	223215 RH CATALYTIC CONVERTER Applicable from MY 08; Applicable from Ass. No. 74557	-	1	Enquire
10	220662	RH CATALYTIC CONVERTER	220662 RH CATALYTIC CONVERTER Applicable for Taiwan; Applicable for CINA	-	1	Enquire
11	220663	LH CATALYTIC CONVERTER	220663 LH CATALYTIC CONVERTER Not for Taiwan; Applicable up to MY 08; Not for CINA; Applicable up to Ass. No. 74556	-	1	Enquire
11	223216	LH CATALYTIC CONVERTER	223216 LH CATALYTIC CONVERTER Applicable from MY 08; Applicable from Ass. No. 74557	-	1	Enquire
11	220663	LH CATALYTIC CONVERTER	220663 LH CATALYTIC CONVERTER Applicable for Taiwan; Applicable for CINA	-	1	Enquire

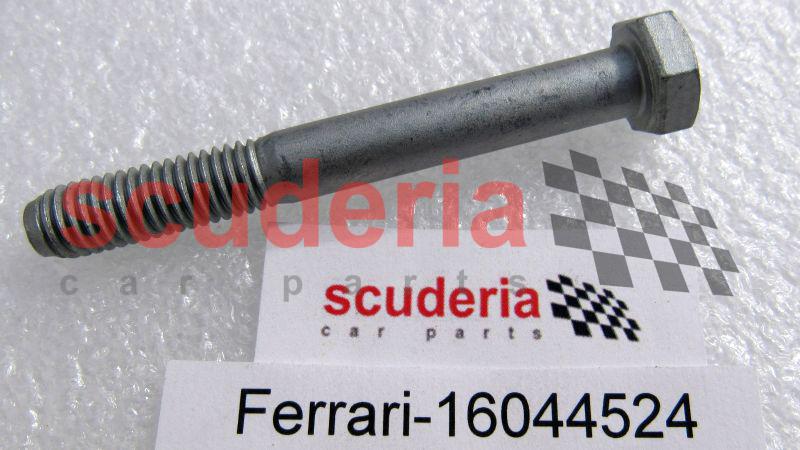

12	16044524	SCREW	16044524 SCREW	-	6	Enquire
13	263276	WASHER	263276 WASHER	-	12	Enquire
14	114749	Spacer D8. 10 x 23	114749 Spacer D8. 10 x 23	-	6	Enquire
15	111743	EXHAUST BRACKET SPRING	111743 EXHAUST BRACKET SPRING	-	6	Enquire
16	182837	Front Lambda Sensor	182837 Front Lambda Sensor	-	2	Enquire
17	180915	Rear Lambda Sensor	180915 Rear Lambda Sensor	-	2	Enquire
18	10441390	P clip Bracket With Sheath D.12	10441390 P clip Bracket With Sheath D.12	-	1	Enquire
19	236195	CAP	236195 CAP Applicable for USA, CDN; Applicable from Ass. No. 68460	-	2	Enquire
19	236195	CAP	236195 CAP Not for USA, CDN; Applicable from Ass. No. 69639	-	2	Enquire
19	200934	EXHAUST GAS TEMPERATURE SENSOR	200934 EXHAUST GAS TEMPERATURE SENSOR Applicable for USA, CDN; Applicable up to Ass. No. 68459	-	2	Enquire
19	200934	EXHAUST GAS TEMPERATURE SENSOR	200934 EXHAUST GAS TEMPERATURE SENSOR Not for USA, CDN; Applicable up to Ass. No. 69638	-	2	Enquire
21	16297024	SCREW	16297024 SCREW	-	4	Enquire
22	12643724	WASHER	12643724 WASHER	-	4	Enquire
23	231541	COMPLETE EXHAUST SILENCER	231541 COMPLETE EXHAUST SILENCER Applicable up to MY 08; Applicable for USA, CDN, J; Applicable from Ass. No. 76378; Applicable after depletion of 214176	-	1	Enquire
23	247358	COMPLETE EXHAUST SILENCER	247358 COMPLETE EXHAUST SILENCER Applicable from MY 08; Applicable for J	-	1	Enquire
23	239880	COMPLETE EXHAUST SILENCER	239880 COMPLETE EXHAUST SILENCER Not for USA, CDN, J; Applicable from Ass. No. 76378	-	1	Enquire
24	177612	Exhaust Gasket	177612 Exhaust Gasket	-	2	Enquire
25	235962	COMPLETE LH OUTLET PIPE	235962 COMPLETE LH OUTLET PIPE Chrome finish; Alternative solution	-	1	Enquire
26	235961	COMPLETE RH OUTLET PIPE	235961 COMPLETE RH OUTLET PIPE Chrome finish; Alternative solution	-	1	Enquire
27	195803	EXHAUST SIDE SILENCER MOUNTING	195803 EXHAUST SIDE SILENCER MOUNTING	-	1	Enquire
28	16043324	SCREW M8 X 18	16043324 SCREW M8 X 18 M8 X 18	-	4	Enquire
29	127496	WASHER	127496 WASHER	-	4	Enquire
30	14040711	NUT M8 FLANGED	14040711 NUT M8 FLANGED	-	4	Enquire
32	16043434	HEX HEAD SCREW M8 X 20	16043434 HEX HEAD SCREW M8 X 20	-	4	Enquire
33	14040711	NUT M8 FLANGED	14040711 NUT M8 FLANGED	-	4	Enquire
35	12643724	WASHER	12643724 WASHER	-	2	Enquire
35	12625224	WASHER	12625224 WASHER	-	4	Enquire
36	16043324	SCREW M8 X 18	16043324 SCREW M8 X 18 M8 X 18	-	4	Enquire
36	10902424	SCREW	10902424 SCREW M6 X 18	-	2	Enquire
37	16043534	SCREW M8 X 22	16043534 SCREW M8 X 22	-	4	Enquire
38	263276	WASHER	263276 WASHER	-	8	Enquire
39	127496	WASHER	127496 WASHER	-	8	Enquire
40	14059311	NUT	14059311 NUT	-	8	Enquire
41	210893	LH BRACKET	210893 LH BRACKET	-	1	Enquire
41	210892	RH BRACKET	210892 RH BRACKET	-	1	Enquire
42	185307	Exhaust Clamp ARRIVING SOON	185307 Exhaust Clamp ARRIVING SOON	-	2	Enquire
43	223771	BRACKET AND FASTENER KIT FOR OUTLET PIPES	223771 BRACKET AND FASTENER KIT FOR OUTLET PIPES No longer supplied	-	-	Enquire
44	221909	REINFORCEMENT	221909 REINFORCEMENT	-	1	Enquire
45	16043324	SCREW M8 X 18	16043324 SCREW M8 X 18 M8 X 18	-	4	Enquire
46	84653800	WASHER	84653800 WASHER	-	4	Enquire
47	12601374	WASHER	12601374 WASHER	-	4	Enquire
48	14040711	NUT M8 FLANGED	14040711 NUT M8 FLANGED	-	4	Enquire
