FUEL TANKS AND FILLER NECK of Ferrari Ferrari 430 Spider

View All

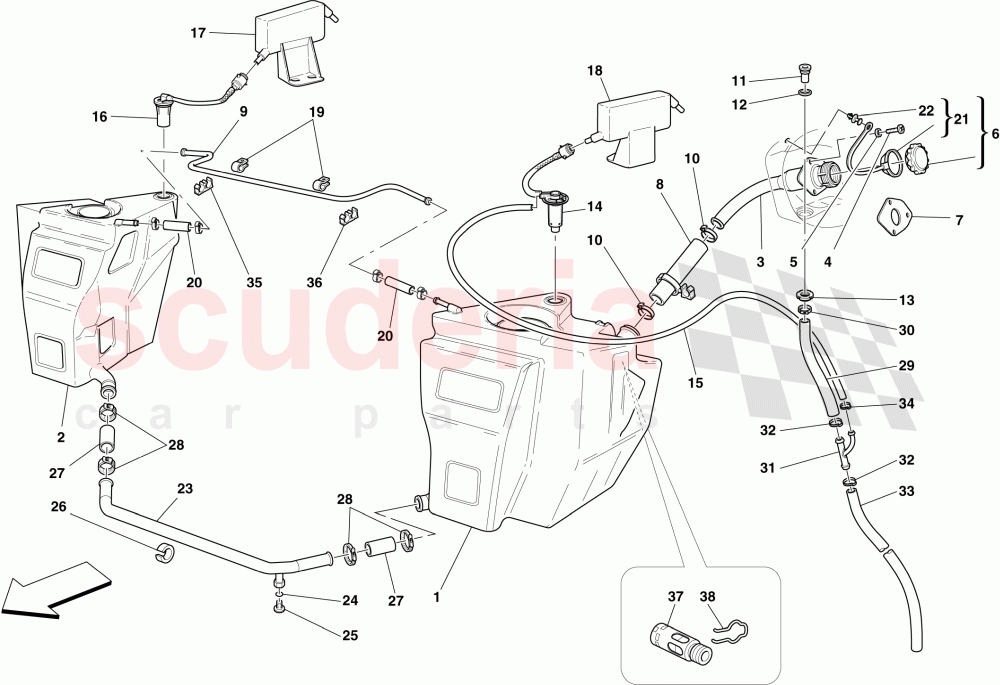

Ferrari 430 Spider - FUEL TANKS AND FILLER NECK

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	194346	RH FUEL TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	203516	PIPE UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64686900	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	190469	TANK CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	235256	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	179474	TANK AIR BUBBLE CONNECTOR PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11449470	COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64872000	PIPE CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65064500	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104919	RING LOCK NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	211283	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

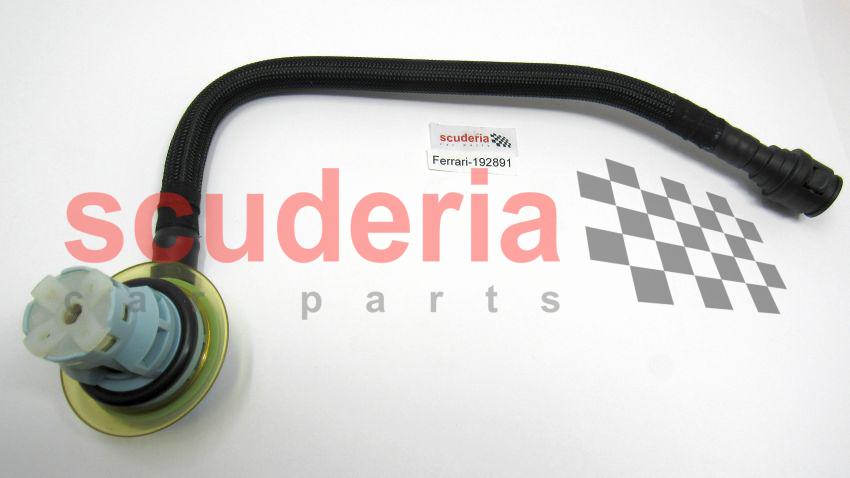

	192891	VALVE WITH RH PIPE	Enquire	To Order
	243915	VALVE WITH RH PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	198450	RH VAPOUR SEPARATOR	Enquire	To Order
	244884	RH VAPOUR SEPARATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	191079	LH VAPOUR SEPARATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	232649	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	181024	SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	196949	RING - FUEL TANK	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	186172	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	123622	O-Ring	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	148045	FUEL DRAIN PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177437	RUBBER SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180957	SCREW COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	213294	TRAY-TO-3-WAY TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177553	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	195439	THREE-WAY UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	213295	3-WAY-TO-REAR TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13432270	HOSE COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180968	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180969	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	181929	SHUT-OFF VALVE	Enquire	To Order
	237407	ANTI SPIT-BACK VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	181930	CLIP	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
2	194346	RH FUEL TANK	194346 RH FUEL TANK	-	1	Enquire
3	203516	PIPE UNION	203516 PIPE UNION	-	1	Enquire
4	64686900	SCREW	64686900 SCREW	-	3	Enquire
5	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	3	Enquire
6	190469	TANK CAP	190469 TANK CAP	-	1	Enquire
7	235256	GASKET	235256 GASKET	-	1	Enquire
9	179474	TANK AIR BUBBLE CONNECTOR PIPE	179474 TANK AIR BUBBLE CONNECTOR PIPE	-	1	Enquire
10	11449470	COLLAR	11449470 COLLAR	-	2	Enquire
11	64872000	PIPE CONNECTOR	64872000 PIPE CONNECTOR	-	1	Enquire
12	65064500	GASKET	65064500 GASKET	-	1	Enquire
13	104919	RING LOCK NUT	104919 RING LOCK NUT	-	1	Enquire
15	211283	RUBBER PIPE	211283 RUBBER PIPE	-	1	Enquire
16	192891	VALVE WITH RH PIPE	192891 VALVE WITH RH PIPE Applicable up to Ass. No. 78239	-	1	Enquire
16	243915	VALVE WITH RH PIPE	243915 VALVE WITH RH PIPE Applicable from Ass. No. 78240	-	1	Enquire
17	198450	RH VAPOUR SEPARATOR	198450 RH VAPOUR SEPARATOR Applicable up to Ass. No. 78239	-	1	Enquire
17	244884	RH VAPOUR SEPARATOR	244884 RH VAPOUR SEPARATOR Applicable from Ass. No. 78240	-	1	Enquire
18	191079	LH VAPOUR SEPARATOR	191079 LH VAPOUR SEPARATOR	-	1	Enquire
19	232649	CLIP	232649 CLIP	-	2	Enquire
20	181024	SLEEVE	181024 SLEEVE	-	2	Enquire
21	196949	RING - FUEL TANK ARRIVING SOON	196949 RING - FUEL TANK ARRIVING SOON	-	1	Enquire
22	186172	CLIP	186172 CLIP	-	1	Enquire
24	123622	O-Ring ARRIVING SOON	123622 O-Ring Applicable for tank connector pipe 203788, ref. 23 ARRIVING SOON	-	1	Enquire
25	148045	FUEL DRAIN PLUG	148045 FUEL DRAIN PLUG Applicable for tank connector pipe 203788, ref. 23	-	1	Enquire
26	177437	RUBBER SHIM	177437 RUBBER SHIM	-	6	Enquire
28	180957	SCREW COLLAR	180957 SCREW COLLAR	-	4	Enquire
29	213294	TRAY-TO-3-WAY TUBE	213294 TRAY-TO-3-WAY TUBE	-	1	Enquire
30	177553	CLAMP	177553 CLAMP	-	1	Enquire
31	195439	THREE-WAY UNION	195439 THREE-WAY UNION	-	1	Enquire
32	262111	JUBILEE CLAMP	262111 JUBILEE CLAMP	-	2	Enquire
33	213295	3-WAY-TO-REAR TUBE	213295 3-WAY-TO-REAR TUBE	-	1	Enquire
34	13432270	HOSE COLLAR	13432270 HOSE COLLAR	-	1	Enquire
35	180968	CLIP	180968 CLIP	-	1	Enquire
36	180969	CLIP	180969 CLIP	-	1	Enquire
37	181929	SHUT-OFF VALVE	181929 SHUT-OFF VALVE Applicable up to Ass. No. 82484; Applicable until depletion	-	1	Enquire
37	237407	ANTI SPIT-BACK VALVE	237407 ANTI SPIT-BACK VALVE Applicable from Ass. No. 82485; Applicable after depletion of 181929	-	1	Enquire
38	181930	CLIP	181930 CLIP Applicable up to Ass. No. 82484; Applicable until depletion	-	1	Enquire
