ENGINE COMPARTMENT LID AND FUEL FILLER FLAP OPENING MECHANISMS of Ferrari Ferrari 430 Spider

View All

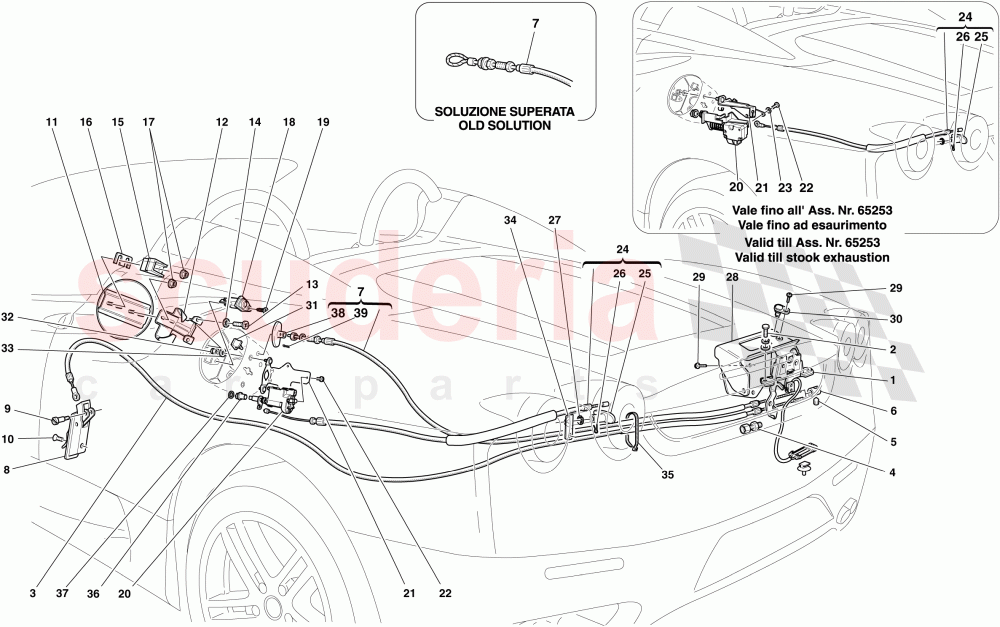

Ferrari 430 Spider - ENGINE COMPARTMENT LID AND FUEL FILLER FLAP OPENING MECHANISMS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	65732500	COMPLETE ENGINE COMPARTMENT LID LOCK	Enquire	To Order
	65732400	COMPLETE ENGINE COMPARTMENT LID LOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81591700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68746100	ENGINE COMPARTMENT LID RELEASE CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62828900	CABLES ADJUSTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	60276805	DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	60276607	TERMINAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80412100	COMPLETE ENGINE COMPARTMENT LID SAFETY CABLE	Enquire	To Order
	69204500	COMPLETE ENGINE COMPARTMENT LID SAFETY CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65852000	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13299477	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68034111	FUEL FILLER FLAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67934900	FUEL FILLER FLAP HINGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62797600	Allen Bolt Countersunk M6 x 20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12604178	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65396000	STRIKER PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65396100	SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14084111	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	153069	SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15688875	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65395900	ROCKWELL ACTUATOR	Enquire	To Order
	69918500	Actuator	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69729700	ACTUATOR MOUNTING BRACKET	Enquire	To Order
	65395800	ACTUATOR MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15689601	SCREW	Enquire	To Order
	88822200	SCREW TORX HEAD M4 X 10MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12638124	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69775300	COMPLETE FUEL FILLER FLAP SAFETY CABLE	Enquire	To Order
	65701000	COMPLETE FUEL FILLER FLAP SAFETY CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	60710900	EMERGENCY HANDLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	60711000	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11087675	SNAP RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65756100	ENGINE COMPARTMENT LID LOCK SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13297477	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62535900	THIRD STOP LIGHT FIXED CONTACT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63879900	RUBBER VIBRATION DAMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14054048	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65506500	REAR PIPE FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	MC43254	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67485800	BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67067600	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	60710900	EMERGENCY HANDLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	60711000	CLIP	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	65732500	COMPLETE ENGINE COMPARTMENT LID LOCK	65732500 COMPLETE ENGINE COMPARTMENT LID LOCK Applicable for GD	-	1	Enquire
1	65732400	COMPLETE ENGINE COMPARTMENT LID LOCK	65732400 COMPLETE ENGINE COMPARTMENT LID LOCK Not for GD	-	1	Enquire
2	81591700	SCREW	81591700 SCREW	-	2	Enquire
3	68746100	ENGINE COMPARTMENT LID RELEASE CABLE	68746100 ENGINE COMPARTMENT LID RELEASE CABLE	-	1	Enquire
4	62828900	CABLES ADJUSTER	62828900 CABLES ADJUSTER	-	1	Enquire
5	60276805	DOWEL	60276805 DOWEL	-	1	Enquire
6	60276607	TERMINAL	60276607 TERMINAL	-	1	Enquire
7	80412100	COMPLETE ENGINE COMPARTMENT LID SAFETY CABLE	80412100 COMPLETE ENGINE COMPARTMENT LID SAFETY CABLE Applicable for GD; Applicable after depletion of 69204500	-	1	Enquire
7	69204500	COMPLETE ENGINE COMPARTMENT LID SAFETY CABLE	69204500 COMPLETE ENGINE COMPARTMENT LID SAFETY CABLE Applicable for GD; Applicable until depletion	-	1	Enquire
9	65852000	PIN	65852000 PIN	-	1	Enquire
10	13299477	SCREW	13299477 SCREW M5 X 16	-	1	Enquire
11	68034111	FUEL FILLER FLAP	68034111 FUEL FILLER FLAP Aluminium cover	-	1	Enquire
12	67934900	FUEL FILLER FLAP HINGE	67934900 FUEL FILLER FLAP HINGE	-	1	Enquire
13	62797600	Allen Bolt Countersunk M6 x 20	62797600 Allen Bolt Countersunk M6 x 20	-	2	Enquire
14	12604178	Washer	12604178 Washer	-	2	Enquire
15	65396000	STRIKER PLATE	65396000 STRIKER PLATE	-	1	Enquire
16	65396100	SHIM	65396100 SHIM	-	2	Enquire
17	14084111	NUT	14084111 NUT	-	2	Enquire
18	153069	SWITCH	153069 SWITCH	-	1	Enquire
19	15688875	SCREW	15688875 SCREW	-	1	Enquire
20	65395900	ROCKWELL ACTUATOR	65395900 ROCKWELL ACTUATOR Applicable up to Ass. No. 65253; Applicable until depletion	-	1	Enquire
20	69918500	Actuator	69918500 Actuator Applicable from Ass. No. 65254; Applicable after depletion of 65395900	-	1	Enquire
21	69729700	ACTUATOR MOUNTING BRACKET	69729700 ACTUATOR MOUNTING BRACKET Applicable from Ass. No. 65254	-	1	Enquire
21	65395800	ACTUATOR MOUNTING BRACKET	65395800 ACTUATOR MOUNTING BRACKET Applicable up to Ass. No. 65253; Applicable until depletion	-	1	Enquire
22	15689601	SCREW	15689601 SCREW Applicable from Ass. No. 65254	-	2	Enquire
22	88822200	SCREW TORX HEAD M4 X 10MM	88822200 SCREW TORX HEAD M4 X 10MM Applicable up to Ass. No. 65253; Applicable until depletion	-	2	Enquire
23	12638124	WASHER	12638124 WASHER Applicable up to Ass. No. 65253; Applicable until depletion	-	2	Enquire
24	69775300	COMPLETE FUEL FILLER FLAP SAFETY CABLE	69775300 COMPLETE FUEL FILLER FLAP SAFETY CABLE Applicable from Ass. No. 65254	-	1	Enquire
24	65701000	COMPLETE FUEL FILLER FLAP SAFETY CABLE	65701000 COMPLETE FUEL FILLER FLAP SAFETY CABLE Applicable up to Ass. No. 65253; Applicable until depletion	-	1	Enquire
25	60710900	EMERGENCY HANDLE	60710900 EMERGENCY HANDLE	-	1	Enquire
26	60711000	CLIP	60711000 CLIP	-	1	Enquire
27	11087675	SNAP RING	11087675 SNAP RING	-	2	Enquire
28	65756100	ENGINE COMPARTMENT LID LOCK SHIELD	65756100 ENGINE COMPARTMENT LID LOCK SHIELD	-	1	Enquire
29	13297477	SCREW	13297477 SCREW	-	1	Enquire
30	62535900	THIRD STOP LIGHT FIXED CONTACT	62535900 THIRD STOP LIGHT FIXED CONTACT	-	1	Enquire
31	63879900	RUBBER VIBRATION DAMPER	63879900 RUBBER VIBRATION DAMPER	-	2	Enquire
32	14054048	NUT	14054048 NUT	-	2	Enquire
33	62769800	WASHER	62769800 WASHER	-	2	Enquire
34	65506500	REAR PIPE FASTENER BRACKET	65506500 REAR PIPE FASTENER BRACKET No longer supplied	-	1	Enquire
35	MC43254	CLAMP	MC43254 CLAMP	-	1	Enquire
36	67485800	BUSH	67485800 BUSH Applicable from Ass. No. 65254	-	1	Enquire
37	67067600	GASKET	67067600 GASKET Applicable from Ass. No. 65254	-	1	Enquire
38	60710900	EMERGENCY HANDLE	60710900 EMERGENCY HANDLE Applicable for cable 80412000 gs. and 80412100 gd., ref. 7	-	1	Enquire
39	60711000	CLIP	60711000 CLIP Applicable for cable 80412000 gs. and 80412100 gd., ref. 7	-	1	Enquire
