LUBRICATION SYSTEM - TANK - HEAT EXCHANGER of Ferrari Ferrari 430 Spider

View All

Ferrari 430 Spider - LUBRICATION SYSTEM - TANK - HEAT EXCHANGER

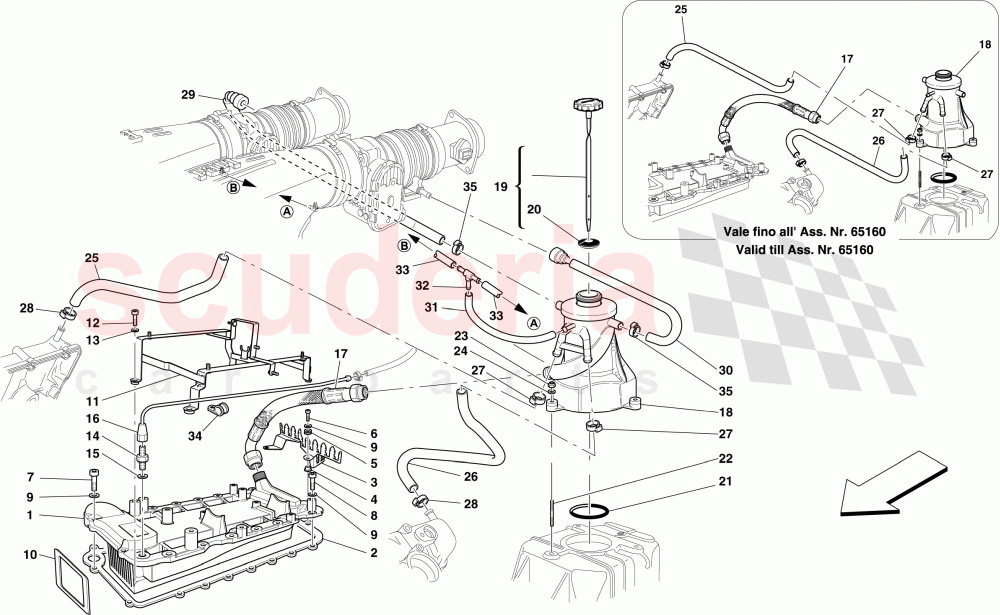

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	197150	HEAT EXCHANGER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	322664	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	210388	CONNECTORS MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	149707	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177576	CABLE GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231622	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	202251	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	192327	CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127497	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	211844	VENT PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	195351	OIL PIPE FROM ENGINE TO SEPARATOR	Enquire	To Order
	225937	OIL PIPE FROM ENGINE TO SEPARATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	226035	WATER-OIL SEPARATOR	Enquire	To Order
	216061	WATER-OIL SEPARATOR	Enquire	To Order
	225960	WATER-OIL SEPARATOR	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	254573	TANK CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	211634	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	176388	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13517124	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	147985	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	223220	RH BREATHER PIPE	Enquire	To Order
	211813	RH BREATHER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	211814	LH BREATHER PIPE	Enquire	To Order
	223221	LH BREATHER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	Enquire	To Order
	177996	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	216063	RH VAPOUR INTAKE PIPE	Enquire	To Order
	216068	RH VAPOUR INTAKE PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	216064	LH VAPOUR INTAKE PIPE	Enquire	To Order
	216069	LH VAPOUR INTAKE PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	195330	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	258855	3-WAY CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	159539	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10440990	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13432070	HOSE COLLAR	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	197150	HEAT EXCHANGER	197150 HEAT EXCHANGER	-	1	Enquire
2	322664	GASKET	322664 GASKET	-	1	Enquire
3	210388	CONNECTORS MOUNTING BRACKET	210388 CONNECTORS MOUNTING BRACKET	-	1	Enquire
4	149707	SPACER	149707 SPACER	-	2	Enquire
5	177576	CABLE GROMMET	177576 CABLE GROMMET	-	2	Enquire
6	231622	SCREW	231622 SCREW M6 X 35	-	2	Enquire
7	231620	SCREW	231620 SCREW M6 X 30	-	2	Enquire
8	231620	SCREW	231620 SCREW M6 X 25	-	15	Enquire
9	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	19	Enquire
11	202251	BRACKET	202251 BRACKET	-	1	Enquire
12	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER	-	4	Enquire
13	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	4	Enquire
14	192327	CONNECTOR	192327 CONNECTOR	-	1	Enquire
15	127497	WASHER	127497 WASHER	-	1	Enquire
16	211844	VENT PIPE	211844 VENT PIPE	-	1	Enquire
17	195351	OIL PIPE FROM ENGINE TO SEPARATOR	195351 OIL PIPE FROM ENGINE TO SEPARATOR Applicable up to Ass. No. 65160	-	1	Enquire
17	225937	OIL PIPE FROM ENGINE TO SEPARATOR	225937 OIL PIPE FROM ENGINE TO SEPARATOR Applicable from Ass. No. 65161	-	1	Enquire
18	226035	WATER-OIL SEPARATOR	226035 WATER-OIL SEPARATOR Applicable for USA, CDN; Applicable from Ass. No. 65161	-	1	Enquire
18	216061	WATER-OIL SEPARATOR	216061 WATER-OIL SEPARATOR Not for USA, CDN; Applicable up to Ass. No. 65160	-	1	Enquire
18	225960	WATER-OIL SEPARATOR	225960 WATER-OIL SEPARATOR Not for USA, CDN; Applicable from Ass. No. 65161	-	1	Enquire
18	216066	WATER-OIL SEPARATOR	216066 WATER-OIL SEPARATOR Applicable for USA, CDN; Applicable up to Ass. No. 65160	-	1	Enquire
19	254573	TANK CAP	254573 TANK CAP	-	1	Enquire
20	211634	GASKET	211634 GASKET	-	1	Enquire
21	176388	O-RING	176388 O-RING	-	1	Enquire
22	13517124	STUD BOLT	13517124 STUD BOLT	-	3	Enquire
23	147985	NUT	147985 NUT	-	3	Enquire
24	12601374	WASHER	12601374 WASHER	-	3	Enquire
25	223220	RH BREATHER PIPE	223220 RH BREATHER PIPE Applicable from Ass. No. 65161	-	1	Enquire
25	211813	RH BREATHER PIPE	211813 RH BREATHER PIPE Applicable up to Ass. No. 65160	-	1	Enquire
26	211814	LH BREATHER PIPE	211814 LH BREATHER PIPE Applicable up to Ass. No. 65160	-	1	Enquire
26	223221	LH BREATHER PIPE	223221 LH BREATHER PIPE Applicable from Ass. No. 65161	-	1	Enquire
27	262111	JUBILEE CLAMP	262111 JUBILEE CLAMP Applicable from Ass. No. 65161	-	2	Enquire
27	177996	CLAMP	177996 CLAMP Applicable up to Ass. No. 65160	-	2	Enquire
28	262111	JUBILEE CLAMP	262111 JUBILEE CLAMP	-	2	Enquire
29	216063	RH VAPOUR INTAKE PIPE	216063 RH VAPOUR INTAKE PIPE Not for USA, CDN	-	1	Enquire
29	216068	RH VAPOUR INTAKE PIPE	216068 RH VAPOUR INTAKE PIPE Applicable for USA, CDN	-	1	Enquire
30	216064	LH VAPOUR INTAKE PIPE	216064 LH VAPOUR INTAKE PIPE Not for USA, CDN	-	1	Enquire
30	216069	LH VAPOUR INTAKE PIPE	216069 LH VAPOUR INTAKE PIPE Applicable for USA, CDN	-	1	Enquire
31	195330	RUBBER PIPE	195330 RUBBER PIPE	-	1	Enquire
32	258855	3-WAY CONNECTOR	258855 3-WAY CONNECTOR	-	1	Enquire
33	159539	RUBBER PIPE	159539 RUBBER PIPE	-	2	Enquire
34	10440990	BRACKET WITH SHEATH	10440990 BRACKET WITH SHEATH	-	1	Enquire
35	13432070	HOSE COLLAR	13432070 HOSE COLLAR	-	2	Enquire
