Name: RACING EXHAUST SYSTEM
Rating: 4.6 (1 reviews)

RACING EXHAUST SYSTEM of Ferrari Ferrari 430 Scuderia Spider 16M

View All

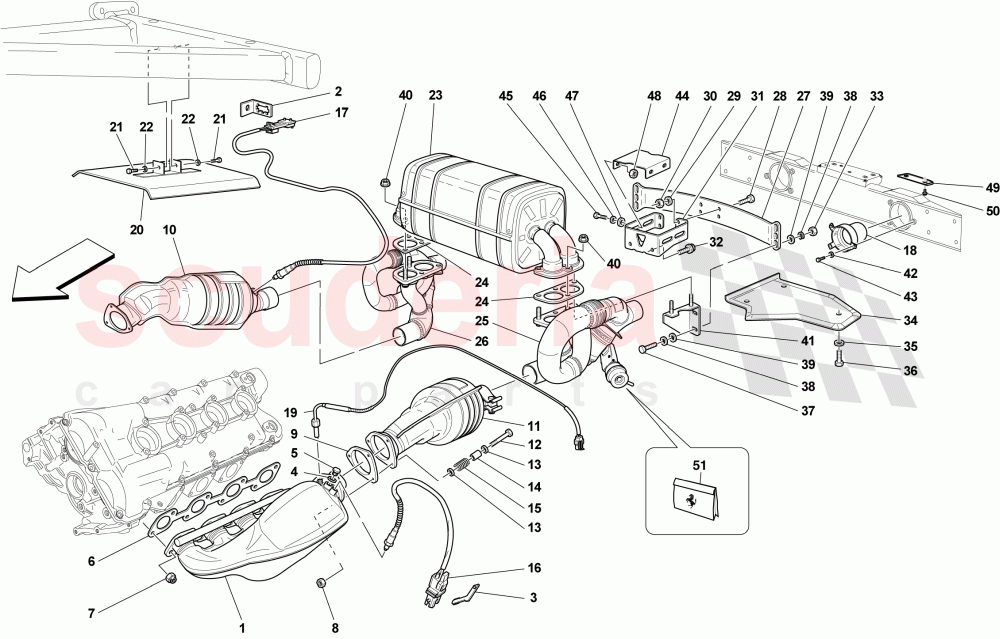

Ferrari 430 Scuderia Spider 16M - RACING EXHAUST SYSTEM

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	238706	LH. EXHAUST MANIFOLD	$5,048.05	To Order
	238705	RH. EXHAUST MANIFOLD	$5,048.05	To Order

Photo	Part No	Description	Price (each)	Stock
	185408	BRACKET	$18.62	To Order

Photo	Part No	Description	Price (each)	Stock
	175856	CONNECTOR FASTENER BRACKET	$2.43	To Order

Photo	Part No	Description	Price (each)	Stock
	10298460	GASKET	$0.15	To Order

Photo	Part No	Description	Price (each)	Stock
	110860	THREADED PLUG	$15.48	To Order

Photo	Part No	Description	Price (each)	Stock
	211404	GASKET EXHAUST MANIFOLD	$25.66	To Order

Photo	Part No	Description	Price (each)	Stock
	307964	COPPER NUT	$3.84	To Order

Photo	Part No	Description	Price (each)	Stock
	212191	NUT	$7.13	To Order

Photo	Part No	Description	Price (each)	Stock
	154985	Exhaust Gasket	$22.59	To Order

Photo	Part No	Description	Price (each)	Stock
	237816	RH. CATALYTIC CONVERTER	$4,931.61	To Order

Photo	Part No	Description	Price (each)	Stock
	237817	LH. CATALYTIC CONVERTER	$6,376.66	To Order

Photo	Part No	Description	Price (each)	Stock
	16044524	SCREW	$0.97	To Order

Photo	Part No	Description	Price (each)	Stock
	263276	WASHER	$0.16	To Order

Photo	Part No	Description	Price (each)	Stock
	114749	Spacer D8. 10 x 23	$3.84	To Order

Photo	Part No	Description	Price (each)	Stock
	111743	EXHAUST BRACKET SPRING	$43.96	To Order

Photo	Part No	Description	Price (each)	Stock
	182837	Front Lambda Sensor	$491.98	To Order

Photo	Part No	Description	Price (each)	Stock
	180915	Rear Lambda Sensor	$227.98	To Order

Photo	Part No	Description	Price (each)	Stock
	236529	TAILPIPE	$372.69	To Order

Photo	Part No	Description	Price (each)	Stock
	200934	EXHAUST GAS TEMPERATURE SENSOR	$202.68	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	80697400	RH. CATALYTIC CONVERTER SHIELD	$641.82	To Order
	80697500	LH. CATALYTIC CONVERTER SHIELD	$641.82	To Order

Photo	Part No	Description	Price (each)	Stock
	16297024	SCREW	$0.52	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	238269	COMPLETE EXHAUST SILENCER	$3,842.87	To Order

Photo	Part No	Description	Price (each)	Stock
	177612	Exhaust Gasket	$105.50	To Order

Photo	Part No	Description	Price (each)	Stock
	240068	EXHAUST SIDE SILENCER MOUNTING	$834.44	To Order

Photo	Part No	Description	Price (each)	Stock
	16043324	SCREW M8 X 18	$0.19	To Order

Photo	Part No	Description	Price (each)	Stock
	127496	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT	$0.41	To Order

Photo	Part No	Description	Price (each)	Stock
	212691	GEARBOX SIDE SILENCER MOUNTING	$291.76	To Order

Photo	Part No	Description	Price (each)	Stock
	16043434	HEX HEAD SCREW M8 X 20	$0.24	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT	$0.41	To Order

Photo	Part No	Description	Price (each)	Stock
	238811	LH. REAR SHIELD	Enquire	To Order
	238760	RH. REAR SHIELD	$106.73	To Order

Photo	Part No	Description	Price (each)	Stock
	12625224	WASHER	$0.06	To Order
	12643724	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	10902424	SCREW	$0.15	To Order
	16043324	SCREW M8 X 18	$0.19	To Order

Photo	Part No	Description	Price (each)	Stock
	16043534	SCREW M8 X 22	$0.37	To Order

Photo	Part No	Description	Price (each)	Stock
	263276	WASHER	$0.16	To Order

Photo	Part No	Description	Price (each)	Stock
	127496	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	14059311	FLANGED NUT M8 X 1.25	$0.28	To Order

Photo	Part No	Description	Price (each)	Stock
	210893	LH BRACKET	$142.26	To Order
	210892	RH BRACKET	$142.26	To Order

Photo	Part No	Description	Price (each)	Stock
	12643778	BLACK WASHER D.6.45-18X1.5	$0.28	To Order

Photo	Part No	Description	Price (each)	Stock
	10977824	SCREW	$1.94	To Order

Photo	Part No	Description	Price (each)	Stock
	221909	REINFORCEMENT	$19.01	To Order

Photo	Part No	Description	Price (each)	Stock
	16043324	SCREW M8 X 18	$0.19	To Order

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	$5.75	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	$0.02	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT	$0.41	To Order

Photo	Part No	Description	Price (each)	Stock
	80425400	RH. HEAT SHIELD	$224.63	To Order
	80503000	LH HEAT SHIELD	$224.63	To Order

Photo	Part No	Description	Price (each)	Stock
	70001588	BYPASS VALVE ACTUATOR KIT	$1,551.78	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	238706	LH. EXHAUST MANIFOLD	238706 LH. EXHAUST MANIFOLD	$5,048.05 MSRP: ~~6,680.16~~ (24.4% off)	1
1	238705	RH. EXHAUST MANIFOLD	238705 RH. EXHAUST MANIFOLD	$5,048.05 MSRP: ~~6,680.16~~ (24.4% off)	1
2	185408	BRACKET	185408 BRACKET	$18.62	2
3	175856	CONNECTOR FASTENER BRACKET	175856 CONNECTOR FASTENER BRACKET	$2.43	2
4	10298460	GASKET	10298460 GASKET	$0.15 MSRP: ~~1.25~~ (88% off)	2
5	110860	THREADED PLUG	110860 THREADED PLUG	$15.48 MSRP: ~~18.00~~ (14% off)	2
6	211404	GASKET EXHAUST MANIFOLD	211404 GASKET EXHAUST MANIFOLD	$25.66 MSRP: ~~32.73~~ (21.6% off)	2
7	307964	COPPER NUT	307964 COPPER NUT	$3.84	16
8	212191	NUT	212191 NUT	$7.13	6
9	154985	Exhaust Gasket	154985 Exhaust Gasket	$22.59	2
10	237816	RH. CATALYTIC CONVERTER	237816 RH. CATALYTIC CONVERTER	$4,931.61	1
11	237817	LH. CATALYTIC CONVERTER	237817 LH. CATALYTIC CONVERTER	$6,376.66	1
12	16044524	SCREW	16044524 SCREW	$0.97	6
13	263276	WASHER	263276 WASHER	$0.16	12
14	114749	Spacer D8. 10 x 23	114749 Spacer D8. 10 x 23	$3.84 MSRP: ~~4.85~~ (20.8% off)	6
15	111743	EXHAUST BRACKET SPRING	111743 EXHAUST BRACKET SPRING	$43.96	6
16	182837	Front Lambda Sensor	182837 Front Lambda Sensor	$491.98	2
17	180915	Rear Lambda Sensor	180915 Rear Lambda Sensor	$227.98	2
18	236529	TAILPIPE	236529 TAILPIPE	$372.69	2
19	200934	EXHAUST GAS TEMPERATURE SENSOR ARRIVING SOON	200934 EXHAUST GAS TEMPERATURE SENSOR ARRIVING SOON	$202.68 MSRP: ~~217.00~~ (6.6% off)	2
20	80697400	RH. CATALYTIC CONVERTER SHIELD	80697400 RH. CATALYTIC CONVERTER SHIELD	$641.82	1
20	80697500	LH. CATALYTIC CONVERTER SHIELD	80697500 LH. CATALYTIC CONVERTER SHIELD	$641.82	1
21	16297024	SCREW	16297024 SCREW	$0.52	4
22	12643724	WASHER	12643724 WASHER	$0.06 MSRP: ~~0.50~~ (88% off)	4
23	238269	COMPLETE EXHAUST SILENCER	238269 COMPLETE EXHAUST SILENCER	$3,842.87	1
24	177612	Exhaust Gasket	177612 Exhaust Gasket	$105.50	2
27	240068	EXHAUST SIDE SILENCER MOUNTING	240068 EXHAUST SIDE SILENCER MOUNTING	$834.44	1
28	16043324	SCREW M8 X 18	16043324 SCREW M8 X 18 M8 X 18	$0.19 MSRP: ~~1.05~~ (81.9% off)	4
29	127496	WASHER	127496 WASHER	$0.06 MSRP: ~~0.30~~ (80% off)	4
30	14040711	NUT	14040711 NUT	$0.41	4
31	212691	GEARBOX SIDE SILENCER MOUNTING	212691 GEARBOX SIDE SILENCER MOUNTING	$291.76 MSRP: ~~347.48~~ (16% off)	1
32	16043434	HEX HEAD SCREW M8 X 20	16043434 HEX HEAD SCREW M8 X 20	$0.24 MSRP: ~~0.50~~ (52% off)	4
33	14040711	NUT	14040711 NUT	$0.41	4
34	238811	LH. REAR SHIELD	238811 LH. REAR SHIELD No longer supplied	-	1	Enquire
34	238760	RH. REAR SHIELD	238760 RH. REAR SHIELD	$106.73	1
35	12625224	WASHER	12625224 WASHER	$0.06 MSRP: ~~0.25~~ (76% off)	4
35	12643724	WASHER	12643724 WASHER	$0.06 MSRP: ~~0.50~~ (88% off)	2
36	10902424	SCREW	10902424 SCREW M6 X 18	$0.15 MSRP: ~~0.70~~ (78.6% off)	2
36	16043324	SCREW M8 X 18	16043324 SCREW M8 X 18 M8 X 18	$0.19 MSRP: ~~1.05~~ (81.9% off)	4
37	16043534	SCREW M8 X 22	16043534 SCREW M8 X 22	$0.37	4
38	263276	WASHER	263276 WASHER	$0.16	8
39	127496	WASHER	127496 WASHER	$0.06 MSRP: ~~0.30~~ (80% off)	8
40	14059311	FLANGED NUT M8 X 1.25	14059311 FLANGED NUT M8 X 1.25	$0.28 MSRP: ~~0.50~~ (44% off)	8
41	210893	LH BRACKET	210893 LH BRACKET	$142.26 MSRP: ~~242.00~~ (41.2% off)	1
41	210892	RH BRACKET	210892 RH BRACKET	$142.26 MSRP: ~~242.00~~ (41.2% off)	1
42	12643778	BLACK WASHER D.6.45-18X1.5	12643778 BLACK WASHER D.6.45-18X1.5	$0.28 MSRP: ~~0.50~~ (44% off)	6
43	10977824	SCREW	10977824 SCREW	$1.94	6
44	221909	REINFORCEMENT	221909 REINFORCEMENT	$19.01 MSRP: ~~19.31~~ (1.6% off)	1
45	16043324	SCREW M8 X 18	16043324 SCREW M8 X 18 M8 X 18	$0.19 MSRP: ~~1.05~~ (81.9% off)	4
46	84653800	WASHER	84653800 WASHER	$5.75	4
47	12601374	WASHER	12601374 WASHER	$0.02 MSRP: ~~0.25~~ (92% off)	4
48	14040711	NUT	14040711 NUT	$0.41	4
49	80425400	RH. HEAT SHIELD	80425400 RH. HEAT SHIELD	$224.63	1
49	80503000	LH HEAT SHIELD	80503000 LH HEAT SHIELD	$224.63	1
50	16082870	SCREW	16082870 SCREW	$7.03	4
51	70001588	BYPASS VALVE ACTUATOR KIT	70001588 BYPASS VALVE ACTUATOR KIT	$1,551.78	1
