Ferrari 430 Scuderia Spider 16M - FUEL TANKS AND FILLER NECK -Applicable for Spider 16M-

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
194346 RH FUEL TANK Enquire To Order
Photo Part No Description Price (each) Stock
203516 PIPE UNION Enquire To Order
Photo Part No Description Price (each) Stock
64686900 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
Photo Part No Description Price (each) Stock
190469 TANK CAP Enquire To Order
Photo Part No Description Price (each) Stock
235256 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
232567 FUEL FILLER NECK CONNECTOR PIPE Enquire To Order
Photo Part No Description Price (each) Stock
179474 TANK AIR BUBBLE CONNECTOR PIPE Enquire To Order
Photo Part No Description Price (each) Stock
11449470 COLLAR Enquire To Order
Photo Part No Description Price (each) Stock
64872000 PIPE CONNECTOR Enquire To Order
Photo Part No Description Price (each) Stock
65064500 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
104919 RING LOCK NUT Enquire To Order
Photo Part No Description Price (each) Stock
243914 VALVE WITH LH PIPE Enquire To Order
Photo Part No Description Price (each) Stock
211283 RUBBER PIPE Enquire To Order
Photo Part No Description Price (each) Stock
243915 VALVE WITH RH PIPE Enquire To Order
Photo Part No Description Price (each) Stock
244884 RH VAPOUR SEPARATOR Enquire To Order
Photo Part No Description Price (each) Stock
191079 LH VAPOUR SEPARATOR Enquire To Order
Photo Part No Description Price (each) Stock
232649 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
181024 SLEEVE Enquire To Order
Photo Part No Description Price (each) Stock
196949 RING - FUEL TANK Enquire ARRIVING SOON
Photo Part No Description Price (each) Stock
186172 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
224755 TANK CONNECTOR PIPE Enquire To Order
Photo Part No Description Price (each) Stock
180968 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
180969 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
177437 RUBBER SHIM Enquire To Order
Photo Part No Description Price (each) Stock
241179 RUBBER PIPE Enquire To Order
Photo Part No Description Price (each) Stock
180957 SCREW COLLAR Enquire To Order
Photo Part No Description Price (each) Stock
213294 TRAY-TO-3-WAY TUBE Enquire To Order
Photo Part No Description Price (each) Stock
177553 CLAMP Enquire To Order
Photo Part No Description Price (each) Stock
195439 THREE-WAY UNION Enquire To Order
Photo Part No Description Price (each) Stock
262111 JUBILEE CLAMP Enquire To Order
Photo Part No Description Price (each) Stock
213295 3-WAY-TO-REAR TUBE Enquire To Order
Photo Part No Description Price (each) Stock
13432070 HOSE COLLAR Enquire To Order
Photo Part No Description Price (each) Stock
180968 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
180969 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
181929 SHUT-OFF VALVE Enquire To Order
237407 ANTI SPIT-BACK VALVE Enquire To Order
Photo Part No Description Price (each) Stock
181930 CLIP Enquire To Order
View All

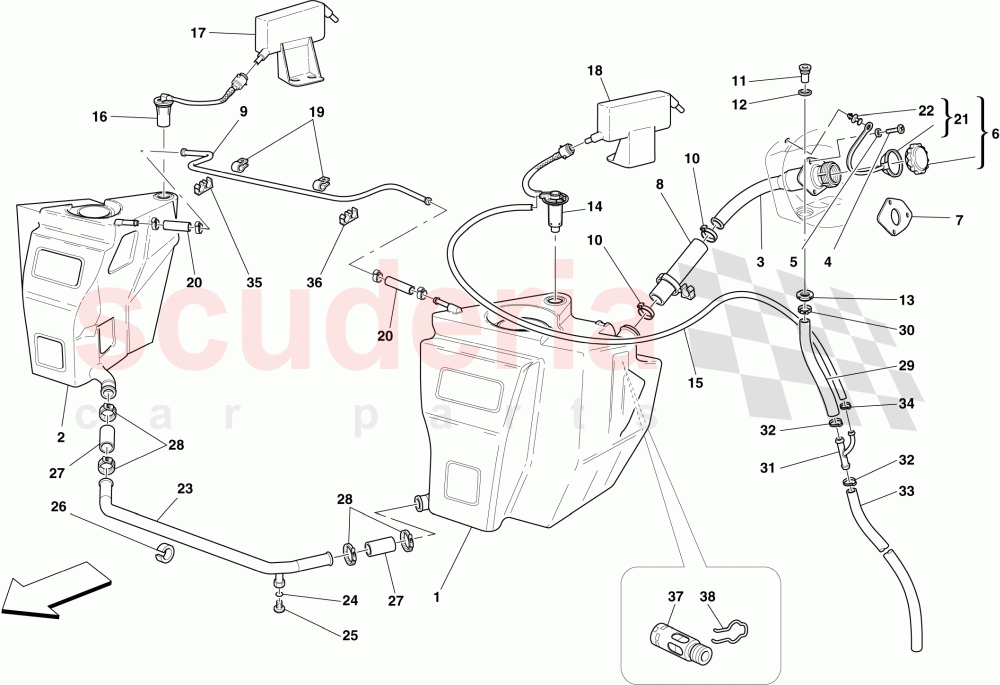

FUEL TANKS AND FILLER NECK -Applicable for Spider 16M- of Ferrari Ferrari 430 Scuderia Spider 16M Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
2 194346
RH FUEL TANK 		- 1 Enquire
3 203516
PIPE UNION 		- 1 Enquire
4 64686900
SCREW 		- 3 Enquire
5 11197774
WAVY WASHER D.6.4 X 12 X 1.2 		- 3 Enquire
6 190469
TANK CAP 		- 1 Enquire
7 235256
GASKET 		- 1 Enquire
8 232567
FUEL FILLER NECK CONNECTOR PIPE 		- 1 Enquire
9 179474
TANK AIR BUBBLE CONNECTOR PIPE 		- 1 Enquire
10 11449470
COLLAR 		- 2 Enquire
11 64872000
PIPE CONNECTOR 		- 1 Enquire
12 65064500
GASKET 		- 1 Enquire
13 104919
RING LOCK NUT 		- 1 Enquire
14 243914
VALVE WITH LH PIPE 		- 1 Enquire
15 211283
RUBBER PIPE 		- 1 Enquire
16 243915
VALVE WITH RH PIPE 		- 1 Enquire
17 244884
RH VAPOUR SEPARATOR 		- 1 Enquire
18 191079
LH VAPOUR SEPARATOR 		- 1 Enquire
19 232649
CLIP 		- 2 Enquire
20 181024
SLEEVE 		- 2 Enquire
21 196949
RING - FUEL TANK
ARRIVING SOON 		- 1 Enquire
22 186172
CLIP 		- 1 Enquire
23 224755
TANK CONNECTOR PIPE 		- 1 Enquire
24 180968
CLIP 		- 1 Enquire
25 180969
CLIP 		- 1 Enquire
26 177437
RUBBER SHIM 		- 6 Enquire
27 241179
RUBBER PIPE 		- 2 Enquire
28 180957
SCREW COLLAR 		- 4 Enquire
29 213294
TRAY-TO-3-WAY TUBE 		- 1 Enquire
30 177553
CLAMP 		- 1 Enquire
31 195439
THREE-WAY UNION 		- 1 Enquire
32 262111
JUBILEE CLAMP 		- 2 Enquire
33 213295
3-WAY-TO-REAR TUBE 		- 1 Enquire
34 13432070
HOSE COLLAR 		- 1 Enquire
35 180968
CLIP 		- 1 Enquire
36 180969
CLIP 		- 1 Enquire
37 181929
SHUT-OFF VALVE
Applicable up to Ass. No. 82484; Applicable until depletion 		- 1 Enquire
37 237407
ANTI SPIT-BACK VALVE
Applicable from Ass. No. 82485; Applicable after depletion of 181929 		- 1 Enquire
38 181930
CLIP
Applicable up to Ass. No. 82484; Applicable until depletion 		- 1 Enquire
