Ferrari 430 Scuderia Spider 16M - CRANKSHAFT - CONNECTING RODS AND PISTONS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
196460 CRANKSHAFT $9,677.15 To Order
Photo Part No Description Price (each) Stock
286834 UPPER HALF-BEARING $24.05 To Order
286833 UPPER HALF-BEARING $25.79 To Order
286832 UPPER MAIN HALF BEARING BLUE $25.66 To Order
Photo Part No Description Price (each) Stock
200194 Lower Main Half Bearing Blue $30.47 To Order
286838 LOWER HALF-BEARING $22.45 To Order
286837 LOWER HALF-BEARING $24.05 To Order
Photo Part No Description Price (each) Stock
222874 SHIM RING $33.68 To Order
Photo Part No Description Price (each) Stock
196649 LOWER SHIM RING $369.04 To Order
Photo Part No Description Price (each) Stock
212322 TORSION DAMPER $745.46 To Order
Photo Part No Description Price (each) Stock
263683 WASHER $52.89 To Order
Photo Part No Description Price (each) Stock
196216 SCREW $75.92 To Order
Photo Part No Description Price (each) Stock
103877 BEARING $33.28 To Order
Photo Part No Description Price (each) Stock
186201 TAB $1.00 To Order
Photo Part No Description Price (each) Stock
244887 COMPL. CONNECTING ROD AND CAP $1,014.41 To Order
244887 COMPL. CONNECTING ROD AND CAP $1,014.41 To Order
Photo Part No Description Price (each) Stock
237780 RH. CYLINDER BANK PISTON COMPLETE WITH RINGS $529.50 To Order
237781 LH. CYLINDER BANK PISTON COMPLETE WITH RINGS $529.50 To Order
Photo Part No Description Price (each) Stock
236497 SEAL RING Enquire To Order
Photo Part No Description Price (each) Stock
226260 SEAL RING Enquire To Order
Photo Part No Description Price (each) Stock
175614 OIL SCRAPER RING $79.16 To Order
Photo Part No Description Price (each) Stock
178890 STOP RING $3.24 To Order
Photo Part No Description Price (each) Stock
175367 GUDGEON PIN $75.40 To Order
Photo Part No Description Price (each) Stock
234861 BUSHING $7.03 To Order
Photo Part No Description Price (each) Stock
208095 CON. ROD FASTENER SCREW $75.40 To Order
244907 CON. ROD FASTENER SCREW $78.61 To Order
215530 CON. ROD FASTENER SCREW $186.15 To Order
Photo Part No Description Price (each) Stock
204292 CONNECTING ROD HALF-BEARING $9.29 To Order
204290 Connecting Rod Half Bearing Red $9.29 To Order
204291 CONNECTING ROD HALF-BEARING BLUE $9.29 To Order
Photo Part No Description Price (each) Stock
240375 COMPLETE PISTON RING SET $336.95 To Order
Photo Part No Description Price (each) Stock
163528 THREADED PLUG $4.30 To Order
View All

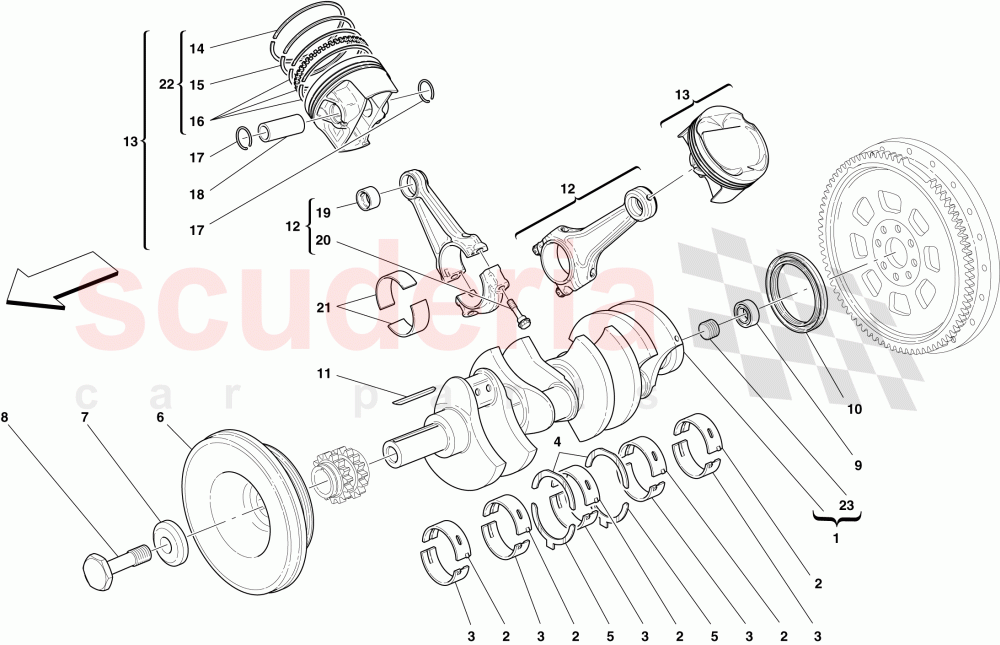

CRANKSHAFT - CONNECTING RODS AND PISTONS of Ferrari Ferrari 430 Scuderia Spider 16M Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 196460
CRANKSHAFT 		$9,677.15 1
2 286834
UPPER HALF-BEARING
Green 		$24.05 5
2 286833
UPPER HALF-BEARING
Yellow 		$25.79 5
2 286832
UPPER MAIN HALF BEARING BLUE
Blue; Standard 		$25.66 5
3 200194
Lower Main Half Bearing Blue
Blue; Standard 		$30.47 5
3 286838
LOWER HALF-BEARING
Green 		$22.45 5
3 286837
LOWER HALF-BEARING
Yellow 		$24.05 5
4 222874
SHIM RING 		$33.68 2
5 196649
LOWER SHIM RING 		$369.04 2
6 212322
TORSION DAMPER 		$745.46 1
7 263683
WASHER 		$52.89 1
8 196216
SCREW 		$75.92 1
9 103877
BEARING 		$33.28 1
11 186201
TAB 		$1.00 1
12 244887
COMPL. CONNECTING ROD AND CAP 		$1,014.41 8
12 244887
COMPL. CONNECTING ROD AND CAP
Applicable with phosphatised screw; Applicable up to Ass. No. 76458 		$1,014.41 8
13 237780
RH. CYLINDER BANK PISTON COMPLETE WITH RINGS 		$529.50 4
13 237781
LH. CYLINDER BANK PISTON COMPLETE WITH RINGS 		$529.50 4
14 236497
SEAL RING
1st groove; Not available as spare part; With complete piston ring set ref. 22 		- 8 Enquire
15 226260
SEAL RING
2nd groove; Not available as spare part; With complete piston ring set ref. 22 		- 8 Enquire
16 175614
OIL SCRAPER RING
3rd groove; Not available as spare part; With complete piston ring set ref. 22 		$79.16 8
17 178890
STOP RING
Applicable until depletion 		$3.24 16
18 175367
GUDGEON PIN
Applicable until depletion 		$75.40 8
19 234861
BUSHING 		$7.03 8
20 208095
CON. ROD FASTENER SCREW
Applicable from Ass. No. 76459; No longer supplied; Replaced by 244907 		$75.40 16
20 244907
CON. ROD FASTENER SCREW 		$78.61 16
20 215530
CON. ROD FASTENER SCREW
Phosphatised; Applicable up to Ass. No. 76458 		$186.15 16
21 204292
CONNECTING ROD HALF-BEARING
Black 		$9.29 16
21 204290
Connecting Rod Half Bearing Red
Red; Standard 		$9.29 16
21 204291
CONNECTING ROD HALF-BEARING BLUE
Blue 		$9.29 (62.6% off) 16
22 240375
COMPLETE PISTON RING SET 		$336.95 8
23 163528
THREADED PLUG 		$4.30 1
