Name: OIL / WATER PUMP
Rating: 5.0 (1 reviews)

OIL / WATER PUMP of Ferrari Ferrari 430 Scuderia Spider 16M

View All

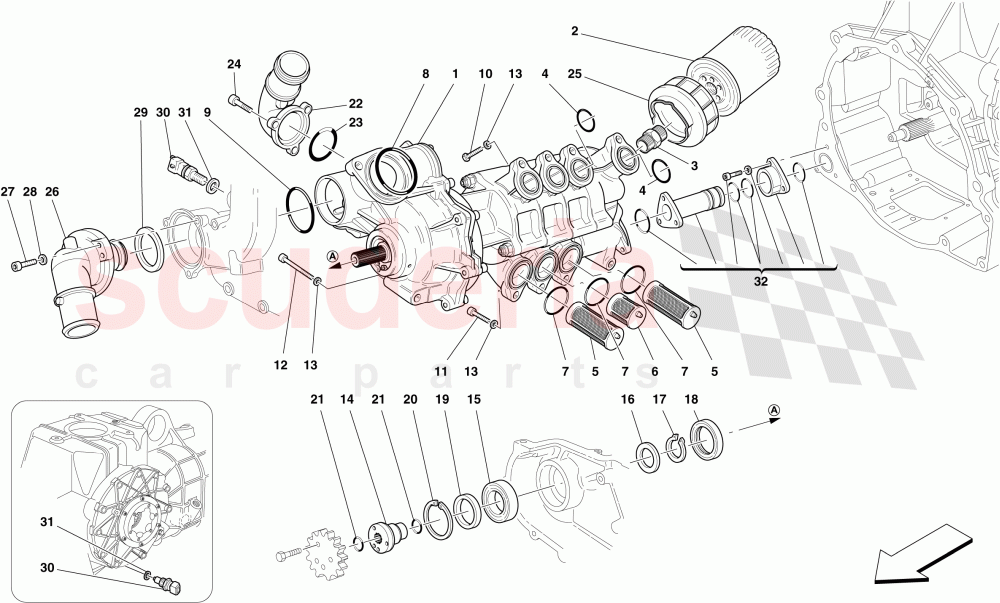

Ferrari 430 Scuderia Spider 16M - OIL / WATER PUMP

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	217628	WATER/OIL PUMP	$2,626.71	To Order

Photo	Part No	Description	Price (each)	Stock
	234742	Oil Filter	$63.05	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	177604	THREADED CONNECTOR	$15.66	To Order

Photo	Part No	Description	Price (each)	Stock
	133938	O-RING	$0.60	To Order

Photo	Part No	Description	Price (each)	Stock
	187051	LATERAL OIL RECOVERY FILTER	$19.64	To Order

Photo	Part No	Description	Price (each)	Stock
	187162	CENTRAL ENGINE OIL FILTER	$33.70	To Order

Photo	Part No	Description	Price (each)	Stock
	140071	O-Ring	$0.60	To Order

Photo	Part No	Description	Price (each)	Stock
	132829	O-RING	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	141250	O-Ring	$0.19	To Order

Photo	Part No	Description	Price (each)	Stock
	185345	SCREW	$2.74	To Order

Photo	Part No	Description	Price (each)	Stock
	84317700	SCREW 8 X 30	$25.30	To Order
	231629	SCREW	$0.65	To Order

Photo	Part No	Description	Price (each)	Stock
	231630	SCREW	$1.02	To Order

Photo	Part No	Description	Price (each)	Stock
	986899	WASHER	$6.26	To Order

Photo	Part No	Description	Price (each)	Stock
	189778	JOINT	$33.68	To Order

Photo	Part No	Description	Price (each)	Stock
	155996	BEARING	$13.16	To Order

Photo	Part No	Description	Price (each)	Stock
	177597	COMPENSATOR RING	$3.99	To Order

Photo	Part No	Description	Price (each)	Stock
	11067276	SEEGER RING	$0.21	To Order

Photo	Part No	Description	Price (each)	Stock
	236418	GASKET	$24.05	To Order

Photo	Part No	Description	Price (each)	Stock
	177596	COMPENSATOR RING	$1.05	To Order

Photo	Part No	Description	Price (each)	Stock
	11381076	SEEGER RING	$1.78	To Order

Photo	Part No	Description	Price (each)	Stock
	186272	O-RING	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	241609	WATER INLET COVER	$802.72	To Order

Photo	Part No	Description	Price (each)	Stock
	154191	GASKET	$1.47	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.31	To Order
	231625	SCREW	$0.65	To Order

Photo	Part No	Description	Price (each)	Stock
	231414	RUBBER COVER	$75.95	To Order

Photo	Part No	Description	Price (each)	Stock
	230887	Thermostat Cover	$192.54	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	137873	O-Ring	$5.28	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	180137	TEMPERATURE SENSOR	$30.23	To Order

Photo	Part No	Description	Price (each)	Stock
	10298460	GASKET	$0.15	To Order

Photo	Part No	Description	Price (each)	Stock
	240169	Oil Intake/Flange Kit	$529.50	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	217628	WATER/OIL PUMP	217628 WATER/OIL PUMP	$2,626.71 MSRP: ~~3,442.36~~ (23.7% off)	1
2	234742	Oil Filter ARRIVING SOON	234742 Oil Filter ARRIVING SOON	$63.05	1
3	177604	THREADED CONNECTOR	177604 THREADED CONNECTOR	$15.66	1
4	133938	O-RING	133938 O-RING	$0.60 MSRP: ~~1.20~~ (50% off)	4
5	187051	LATERAL OIL RECOVERY FILTER	187051 LATERAL OIL RECOVERY FILTER	$19.64	2
6	187162	CENTRAL ENGINE OIL FILTER	187162 CENTRAL ENGINE OIL FILTER	$33.70	1
7	140071	O-Ring	140071 O-Ring	$0.60 MSRP: ~~2.95~~ (79.7% off)	3
8	132829	O-RING	132829 O-RING	$1.51 MSRP: ~~1.95~~ (22.6% off)	1
9	141250	O-Ring	141250 O-Ring	$0.19 MSRP: ~~0.50~~ (62% off)	1
10	185345	SCREW	185345 SCREW M8 X 25	$2.74	4
11	84317700	SCREW 8 X 30	84317700 SCREW 8 X 30 M8 X 25	$25.30	3
11	231629	SCREW	231629 SCREW M8 X 30	$0.65 MSRP: ~~0.95~~ (31.6% off)	1
12	231630	SCREW	231630 SCREW M8 X 65	$1.02	2
13	986899	WASHER	986899 WASHER	$6.26	10
14	189778	JOINT	189778 JOINT	$33.68	1
15	155996	BEARING	155996 BEARING	$13.16	1
16	177597	COMPENSATOR RING	177597 COMPENSATOR RING	$3.99	1
17	11067276	SEEGER RING	11067276 SEEGER RING	$0.21	1
18	236418	GASKET	236418 GASKET	$24.05 MSRP: ~~39.50~~ (39.1% off)	1
19	177596	COMPENSATOR RING	177596 COMPENSATOR RING	$1.05	1
20	11381076	SEEGER RING	11381076 SEEGER RING	$1.78	1
21	186272	O-RING	186272 O-RING	$0.31 MSRP: ~~0.75~~ (58.7% off)	2
22	241609	WATER INLET COVER	241609 WATER INLET COVER	$802.72	1
23	154191	GASKET	154191 GASKET	$1.47 MSRP: ~~2.52~~ (41.7% off)	1
24	231619	SCREW	231619 SCREW M6 X 22	$0.31	1
24	231625	SCREW	231625 SCREW	$0.65	2
25	231414	RUBBER COVER	231414 RUBBER COVER	$75.95	1
26	230887	Thermostat Cover	230887 Thermostat Cover	$192.54 MSRP: ~~226.69~~ (15.1% off)	1
27	231619	SCREW	231619 SCREW	$0.31	3
28	11197774	WASHER	11197774 WASHER	$0.06 MSRP: ~~0.30~~ (80% off)	3
29	137873	O-Ring ARRIVING SOON	137873 O-Ring ARRIVING SOON	$5.28 MSRP: ~~7.55~~ (30.1% off)	1
30	180137	TEMPERATURE SENSOR	180137 TEMPERATURE SENSOR	$30.23 MSRP: ~~32.99~~ (8.4% off)	2
31	10298460	GASKET	10298460 GASKET	$0.15 MSRP: ~~1.25~~ (88% off)	2
32	240169	Oil Intake/Flange Kit	240169 Oil Intake/Flange Kit	$529.50	1
