Power Steering Pump And Reservoir

Ferrari 430 Scuderia Spider 16M

Find Your Part

Ferrari 430 Scuderia Spider 16M - POWER STEERING PUMP AND RESERVOIR

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
235957 COMPLETE HYDRAULIC PUMP $936.91 To Order
Photo Part No Description Price (each) Stock
198519 SCREW $5.71 To Order
Photo Part No Description Price (each) Stock
180604 SCREW $2.97 To Order
Photo Part No Description Price (each) Stock
11193874 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
170877 POWER STEERING FLUID RESERVOIR $80.21 To Order
Photo Part No Description Price (each) Stock
179301 RUBBER RING $16.84 To Order
Photo Part No Description Price (each) Stock
236802 UPPER BRACKET $56.14 To Order
Photo Part No Description Price (each) Stock
81591700 SCREW $2.24 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
124034 BRACKET WITH SHEATH $2.50 To Order
Photo Part No Description Price (each) Stock
10902524 SCREW $0.15 IN STOCK
Photo Part No Description Price (each) Stock
10441390 BRACKET WITH SHEATH $0.57 IN STOCK
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
812273 CABLE GROMMET $1.67 To Order
Photo Part No Description Price (each) Stock
149707 SPACER $1.10 IN STOCK
Photo Part No Description Price (each) Stock
81591700 SCREW $2.24 To Order
Photo Part No Description Price (each) Stock
14488624 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
196892 PIPE FROM TANK TO PUMP $41.70 To Order
Photo Part No Description Price (each) Stock
262111 JUBILEE CLAMP $1.64 IN STOCK
Photo Part No Description Price (each) Stock
211916 DELIVERY PIPE FROM PUMP TO UNDERBODY JUNCTION $146.00 IN STOCK
Photo Part No Description Price (each) Stock
262111 JUBILEE CLAMP $1.64 IN STOCK
Photo Part No Description Price (each) Stock
214668 DELIVERY PIPE FROM PUMP TO UNDERBODY PIPE $369.04 To Order
Photo Part No Description Price (each) Stock
211536 JUNCTION TO LH STEERING BOX DELIVERY PIPE $385.09 To Order
Photo Part No Description Price (each) Stock
202552 UNDERBODY RETURN PIPE $336.95 To Order
Photo Part No Description Price (each) Stock
262111 JUBILEE CLAMP $1.64 IN STOCK
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.43 IN STOCK
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
View All

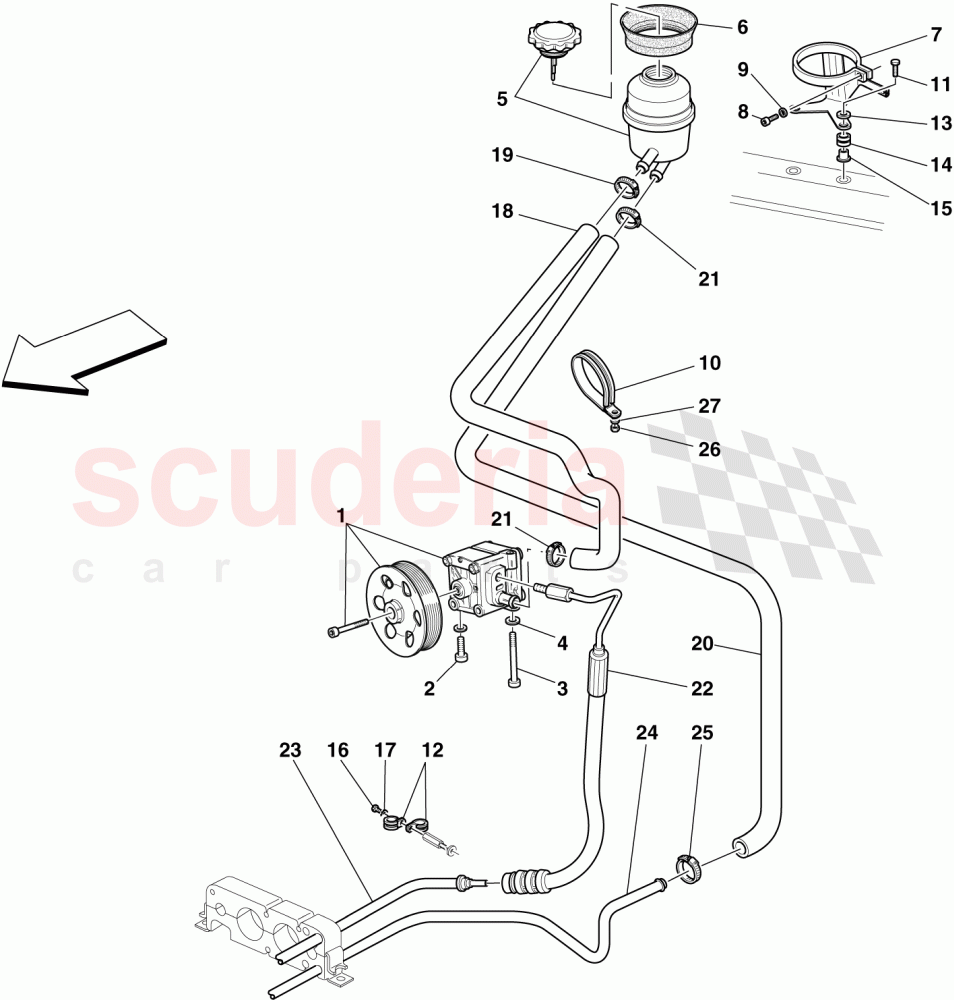

POWER STEERING PUMP AND RESERVOIR of Ferrari Ferrari 430 Scuderia Spider 16M Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 235957
COMPLETE HYDRAULIC PUMP 		$936.91 1
2 198519
SCREW 		$5.71 1
3 180604
SCREW 		$2.97 1
4 11193874
WASHER
IN STOCK 		$0.06 2
5 170877
POWER STEERING FLUID RESERVOIR 		$80.21 1
6 179301
RUBBER RING 		$16.84 1
7 236802
UPPER BRACKET 		$56.14 1
8 81591700
SCREW 		$2.24 1
9 11197774
WASHER
IN STOCK 		$0.06 (80% off) 1
10 124034
BRACKET WITH SHEATH 		$2.50 1
11 10902524
SCREW
IN STOCK 		$0.15 2
12 10441390
BRACKET WITH SHEATH
IN STOCK 		$0.57 2
13 12643724
WASHER
IN STOCK 		$0.06 (88% off) 2
14 812273
CABLE GROMMET 		$1.67 2
15 149707
SPACER
IN STOCK 		$1.10 (37.1% off) 2
16 81591700
SCREW 		$2.24 1
17 14488624
WASHER 		$0.06 1
18 196892
PIPE FROM TANK TO PUMP 		$41.70 (25.5% off) 1
19 262111
JUBILEE CLAMP
IN STOCK 		$1.64 1
20 211916
DELIVERY PIPE FROM PUMP TO UNDERBODY JUNCTION
IN STOCK 		$146.00 1
21 262111
JUBILEE CLAMP
IN STOCK 		$1.64 2
22 214668
DELIVERY PIPE FROM PUMP TO UNDERBODY PIPE 		$369.04 (26.6% off) 1
23 211536
JUNCTION TO LH STEERING BOX DELIVERY PIPE 		$385.09 (25.1% off) 1
24 202552
UNDERBODY RETURN PIPE 		$336.95 1
25 262111
JUBILEE CLAMP
IN STOCK 		$1.64 1
26 14059290
FLANGED NUT M6
IN STOCK 		$1.43 1
27 12643724
WASHER
IN STOCK 		$0.06 (88% off) 1
