TIMING SYSTEM - TAPPETS of Ferrari Ferrari 430 Scuderia

View All

Ferrari 430 Scuderia - TIMING SYSTEM - TAPPETS

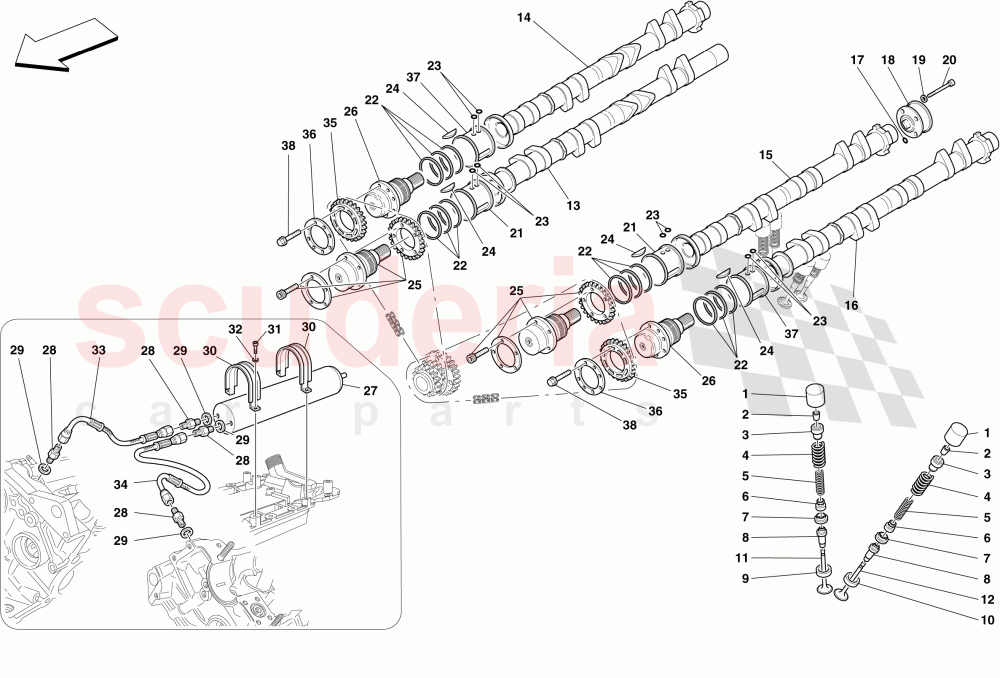

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	247480	HYDRAULIC TAPPET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	179763	VALVE SPRING SEMI-CONE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	237390	UPPER STOP CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	197900	EXTERNAL VALVE RETURN SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	197901	INTERNAL VALVE RETURN SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	221473	OIL SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	242574	LOWER STOP CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6213498	VALVE GUIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6222847	INTAKE VALVE SEAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6222848	EXHAUST VALVE SEAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	198581	INTAKE VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	238485	EXHAUST VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	200144	RH INTAKE CAMSHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	200146	RH EXHAUST CAMSHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	200145	LH INTAKE CAMSHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	200147	LH EXHAUST CAMSHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	134701	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	197558	VARIABLE VALVE TIMING ADJUSTER OIL PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184731	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	252305	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	206804	MOUNTING BUSHING FOR INTAKE VARIABLE VALVE TIMING ADJUSTER	Enquire	To Order
	218735	MOUNTING BUSHING FOR INTAKE VARIABLE VALVE TIMING ADJUSTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	214742	RING	Enquire	To Order
	228497	RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	134701	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10618120	TAB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	193779	VARIABLE VALVE TIMING ADJUSTER FOR INTAKE CAMSHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	199438	VARIABLE VALVE TIMING ADJUSTER FOR EXHAUST CAMSHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	197062	OIL ACCUMULATOR FOR VARIABLE VALVE TIMING ADJUSTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	195056	THREADED CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10261060	GASKET COPPER 12 - 16 X 1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	197151	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	198463	ACCUMULATOR TO RH HEAD CYLINDERS TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	198464	PIPE FROM ACCUMULATOR TO LH CYLINDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	194192	GEAR WHEEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	195649	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	218734	MOUNTING BUSHING FOR EXHAUST VARIABLE VALVE TIMING ADJUSTER	Enquire	To Order
	206805	MOUNTING BUSHING FOR EXHAUST VARIABLE VALVE TIMING ADJUSTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	194977	SCREW	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	247480	HYDRAULIC TAPPET	247480 HYDRAULIC TAPPET	-	32	Enquire
2	179763	VALVE SPRING SEMI-CONE	179763 VALVE SPRING SEMI-CONE	-	64	Enquire
3	237390	UPPER STOP CAP	237390 UPPER STOP CAP	-	32	Enquire
4	197900	EXTERNAL VALVE RETURN SPRING	197900 EXTERNAL VALVE RETURN SPRING	-	32	Enquire
5	197901	INTERNAL VALVE RETURN SPRING	197901 INTERNAL VALVE RETURN SPRING	-	32	Enquire
6	221473	OIL SEAL	221473 OIL SEAL	-	32	Enquire
7	242574	LOWER STOP CAP	242574 LOWER STOP CAP	-	32	Enquire
8	6213498	VALVE GUIDE	6213498 VALVE GUIDE	-	32	Enquire
9	6222847	INTAKE VALVE SEAT	6222847 INTAKE VALVE SEAT	-	16	Enquire
10	6222848	EXHAUST VALVE SEAT	6222848 EXHAUST VALVE SEAT	-	16	Enquire
11	198581	INTAKE VALVE	198581 INTAKE VALVE	-	16	Enquire
12	238485	EXHAUST VALVE	238485 EXHAUST VALVE	-	16	Enquire
13	200144	RH INTAKE CAMSHAFT	200144 RH INTAKE CAMSHAFT	-	1	Enquire
14	200146	RH EXHAUST CAMSHAFT	200146 RH EXHAUST CAMSHAFT	-	1	Enquire
15	200145	LH INTAKE CAMSHAFT	200145 LH INTAKE CAMSHAFT	-	1	Enquire
16	200147	LH EXHAUST CAMSHAFT	200147 LH EXHAUST CAMSHAFT	-	1	Enquire
17	134701	O-RING	134701 O-RING	-	2	Enquire
18	197558	VARIABLE VALVE TIMING ADJUSTER OIL PUMP	197558 VARIABLE VALVE TIMING ADJUSTER OIL PUMP	-	1	Enquire
19	184731	WASHER	184731 WASHER	-	4	Enquire
20	252305	SCREW	252305 SCREW	-	4	Enquire
21	206804	MOUNTING BUSHING FOR INTAKE VARIABLE VALVE TIMING ADJUSTER	206804 MOUNTING BUSHING FOR INTAKE VARIABLE VALVE TIMING ADJUSTER Applicable up to engine No. 149741; Applicable until depletion	-	2	Enquire
21	218735	MOUNTING BUSHING FOR INTAKE VARIABLE VALVE TIMING ADJUSTER	218735 MOUNTING BUSHING FOR INTAKE VARIABLE VALVE TIMING ADJUSTER For vehicles up to engine No. 91154, also order piston ring 218734 ref. 22 and bush 228497 ref. 37; Applicable from engine No. 149742; Applicable after depletion of 206804	-	2	Enquire
22	214742	RING	214742 RING Applicable up to engine No. 149741; Applicable until depletion	-	12	Enquire
22	228497	RING	228497 RING For vehicles up to engine No. 91154, also order bush 218735 ref. 21 and bush 218734 ref. 37; Applicable from engine No. 149742; Applicable after depletion of 179926	-	12	Enquire
23	134701	O-RING	134701 O-RING	-	4	Enquire
24	10618120	TAB	10618120 TAB	-	4	Enquire
25	193779	VARIABLE VALVE TIMING ADJUSTER FOR INTAKE CAMSHAFT	193779 VARIABLE VALVE TIMING ADJUSTER FOR INTAKE CAMSHAFT	-	2	Enquire
26	199438	VARIABLE VALVE TIMING ADJUSTER FOR EXHAUST CAMSHAFT	199438 VARIABLE VALVE TIMING ADJUSTER FOR EXHAUST CAMSHAFT	-	2	Enquire
27	197062	OIL ACCUMULATOR FOR VARIABLE VALVE TIMING ADJUSTER	197062 OIL ACCUMULATOR FOR VARIABLE VALVE TIMING ADJUSTER	-	1	Enquire
28	195056	THREADED CONNECTOR	195056 THREADED CONNECTOR	-	4	Enquire
29	10261060	GASKET COPPER 12 - 16 X 1.5	10261060 GASKET COPPER 12 - 16 X 1.5	-	4	Enquire
30	197151	BRACKET	197151 BRACKET	-	2	Enquire
31	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM	-	4	Enquire
32	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	4	Enquire
33	198463	ACCUMULATOR TO RH HEAD CYLINDERS TUBE	198463 ACCUMULATOR TO RH HEAD CYLINDERS TUBE	-	1	Enquire
34	198464	PIPE FROM ACCUMULATOR TO LH CYLINDER	198464 PIPE FROM ACCUMULATOR TO LH CYLINDER	-	1	Enquire
35	194192	GEAR WHEEL	194192 GEAR WHEEL	-	2	Enquire
36	195649	WASHER	195649 WASHER	-	2	Enquire
37	218734	MOUNTING BUSHING FOR EXHAUST VARIABLE VALVE TIMING ADJUSTER	218734 MOUNTING BUSHING FOR EXHAUST VARIABLE VALVE TIMING ADJUSTER For vehicles up to engine No. 91154, also order bush 218735 ref. 21 and piston ring 228497 ref. 22; Applicable from engine No. 149742; Applicable after depletion of 206805	-	2	Enquire
37	206805	MOUNTING BUSHING FOR EXHAUST VARIABLE VALVE TIMING ADJUSTER	206805 MOUNTING BUSHING FOR EXHAUST VARIABLE VALVE TIMING ADJUSTER Applicable up to engine No. 149741; Applicable until depletion	-	2	Enquire
38	194977	SCREW	194977 SCREW	-	16	Enquire
