Racing Exhaust System

Ferrari 430 Scuderia

Find Your Part

Ferrari 430 Scuderia - RACING EXHAUST SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
238706 LH. EXHAUST MANIFOLD Enquire To Order
238705 RH. EXHAUST MANIFOLD Enquire To Order
Photo Part No Description Price (each) Stock
185408 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
175856 CONNECTOR FASTENER BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
10298460 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
110860 THREADED PLUG Enquire To Order
Photo Part No Description Price (each) Stock
211404 GASKET EXHAUST MANIFOLD Enquire To Order
Photo Part No Description Price (each) Stock
307964 NUT Enquire To Order
Photo Part No Description Price (each) Stock
212191 NUT Enquire To Order
Photo Part No Description Price (each) Stock
154985 Exhaust Gasket Enquire To Order
Photo Part No Description Price (each) Stock
237816 RH. CATALYTIC CONVERTER Enquire To Order
Photo Part No Description Price (each) Stock
237817 LH. CATALYTIC CONVERTER Enquire To Order
Photo Part No Description Price (each) Stock
16044524 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
263276 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
114749 Spacer D8. 10 x 23 Enquire To Order
Photo Part No Description Price (each) Stock
111743 EXHAUST BRACKET SPRING Enquire To Order
Photo Part No Description Price (each) Stock
182837 Front Lambda Sensor Enquire To Order
Photo Part No Description Price (each) Stock
180915 Rear Lambda Sensor Enquire To Order
Photo Part No Description Price (each) Stock
236529 TAILPIPE Enquire To Order
Photo Part No Description Price (each) Stock
200934 EXHAUST GAS TEMPERATURE SENSOR Enquire To Order
Photo Part No Description Price (each) Stock
80697400 RH. CATALYTIC CONVERTER SHIELD Enquire To Order
80697500 LH. CATALYTIC CONVERTER SHIELD Enquire To Order
Photo Part No Description Price (each) Stock
16297024 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
12643724 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
238269 COMPLETE EXHAUST SILENCER Enquire To Order
Photo Part No Description Price (each) Stock
177612 Exhaust Gasket Enquire To Order
Photo Part No Description Price (each) Stock
240068 EXHAUST SIDE SILENCER MOUNTING Enquire To Order
Photo Part No Description Price (each) Stock
16043324 SCREW M8 X 18 Enquire To Order
Photo Part No Description Price (each) Stock
127496 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
14040711 NUT M8 FLANGED Enquire To Order
Photo Part No Description Price (each) Stock
212691 GEARBOX SIDE SILENCER MOUNTING Enquire To Order
Photo Part No Description Price (each) Stock
16043434 HEX HEAD SCREW M8 X 20 Enquire To Order
Photo Part No Description Price (each) Stock
14040711 NUT M8 FLANGED Enquire To Order
Photo Part No Description Price (each) Stock
238811 LH. REAR SHIELD Enquire To Order
238760 RH. REAR SHIELD Enquire To Order
Photo Part No Description Price (each) Stock
12643724 WASHER Enquire To Order
12625224 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
10902424 SCREW Enquire To Order
16043324 SCREW M8 X 18 Enquire To Order
Photo Part No Description Price (each) Stock
16043534 SCREW M8 X 22 Enquire To Order
Photo Part No Description Price (each) Stock
263276 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
127496 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
14059311 NUT Enquire To Order
Photo Part No Description Price (each) Stock
210892 RH BRACKET Enquire To Order
210893 LH BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
12643778 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
10977824 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
221909 REINFORCEMENT Enquire To Order
Photo Part No Description Price (each) Stock
16043324 SCREW M8 X 18 Enquire To Order
Photo Part No Description Price (each) Stock
84653800 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
12601374 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
14040711 NUT M8 FLANGED Enquire To Order
Photo Part No Description Price (each) Stock
80425400 RH. HEAT SHIELD Enquire To Order
80503000 LH HEAT SHIELD Enquire To Order
Photo Part No Description Price (each) Stock
70001588 BYPASS VALVE ACTUATOR KIT Enquire To Order
View All

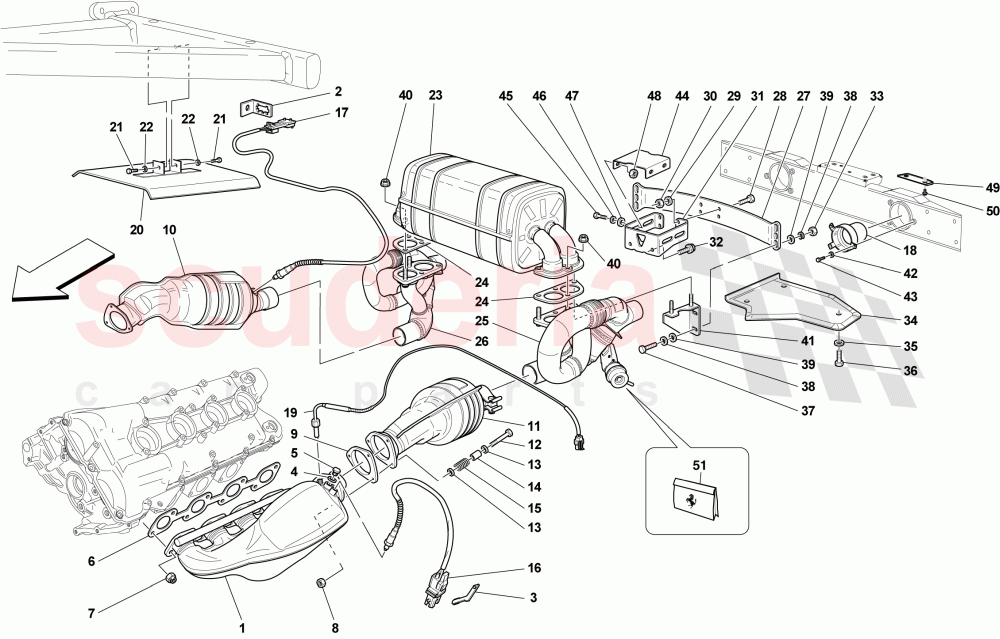

RACING EXHAUST SYSTEM of Ferrari Ferrari 430 Scuderia Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 238706
LH. EXHAUST MANIFOLD 		- 1 Enquire
1 238705
RH. EXHAUST MANIFOLD 		- 1 Enquire
2 185408
BRACKET 		- 2 Enquire
3 175856
CONNECTOR FASTENER BRACKET 		- 2 Enquire
4 10298460
GASKET 		- 2 Enquire
5 110860
THREADED PLUG 		- 2 Enquire
6 211404
GASKET EXHAUST MANIFOLD 		- 2 Enquire
7 307964
NUT 		- 16 Enquire
8 212191
NUT 		- 6 Enquire
9 154985
Exhaust Gasket 		- 2 Enquire
10 237816
RH. CATALYTIC CONVERTER 		- 1 Enquire
11 237817
LH. CATALYTIC CONVERTER 		- 1 Enquire
12 16044524
SCREW 		- 6 Enquire
13 263276
WASHER 		- 12 Enquire
14 114749
Spacer D8. 10 x 23 		- 6 Enquire
15 111743
EXHAUST BRACKET SPRING 		- 6 Enquire
16 182837
Front Lambda Sensor 		- 2 Enquire
17 180915
Rear Lambda Sensor 		- 2 Enquire
18 236529
TAILPIPE 		- 2 Enquire
19 200934
EXHAUST GAS TEMPERATURE SENSOR 		- 2 Enquire
20 80697400
RH. CATALYTIC CONVERTER SHIELD 		- 1 Enquire
20 80697500
LH. CATALYTIC CONVERTER SHIELD 		- 1 Enquire
21 16297024
SCREW 		- 4 Enquire
22 12643724
WASHER 		- 4 Enquire
23 238269
COMPLETE EXHAUST SILENCER 		- 1 Enquire
24 177612
Exhaust Gasket 		- 2 Enquire
27 240068
EXHAUST SIDE SILENCER MOUNTING 		- 1 Enquire
28 16043324
SCREW M8 X 18
M8 X 18 		- 4 Enquire
29 127496
WASHER 		- 4 Enquire
30 14040711
NUT M8 FLANGED 		- 4 Enquire
31 212691
GEARBOX SIDE SILENCER MOUNTING 		- 1 Enquire
32 16043434
HEX HEAD SCREW M8 X 20 		- 4 Enquire
33 14040711
NUT M8 FLANGED 		- 4 Enquire
34 238811
LH. REAR SHIELD
No longer supplied 		- 1 Enquire
34 238760
RH. REAR SHIELD 		- 1 Enquire
35 12643724
WASHER 		- 2 Enquire
35 12625224
WASHER 		- 4 Enquire
36 10902424
SCREW
M6 X 18 		- 2 Enquire
36 16043324
SCREW M8 X 18
M8 X 18 		- 4 Enquire
37 16043534
SCREW M8 X 22 		- 4 Enquire
38 263276
WASHER 		- 8 Enquire
39 127496
WASHER 		- 8 Enquire
40 14059311
NUT 		- 8 Enquire
41 210892
RH BRACKET 		- 1 Enquire
41 210893
LH BRACKET 		- 1 Enquire
42 12643778
WASHER 		- 6 Enquire
43 10977824
SCREW 		- 6 Enquire
44 221909
REINFORCEMENT 		- 1 Enquire
45 16043324
SCREW M8 X 18
M8 X 18 		- 4 Enquire
46 84653800
WASHER 		- 4 Enquire
47 12601374
WASHER 		- 4 Enquire
48 14040711
NUT M8 FLANGED 		- 4 Enquire
49 80425400
RH. HEAT SHIELD 		- 1 Enquire
49 80503000
LH HEAT SHIELD 		- 1 Enquire
50 16082870
SCREW 		- 4 Enquire
51 70001588
BYPASS VALVE ACTUATOR KIT 		- 1 Enquire
