FUEL TANKS AND FILLER NECK -Not for Spider 16M- of Ferrari Ferrari 430 Scuderia

View All

Ferrari 430 Scuderia - FUEL TANKS AND FILLER NECK -Not for Spider 16M-

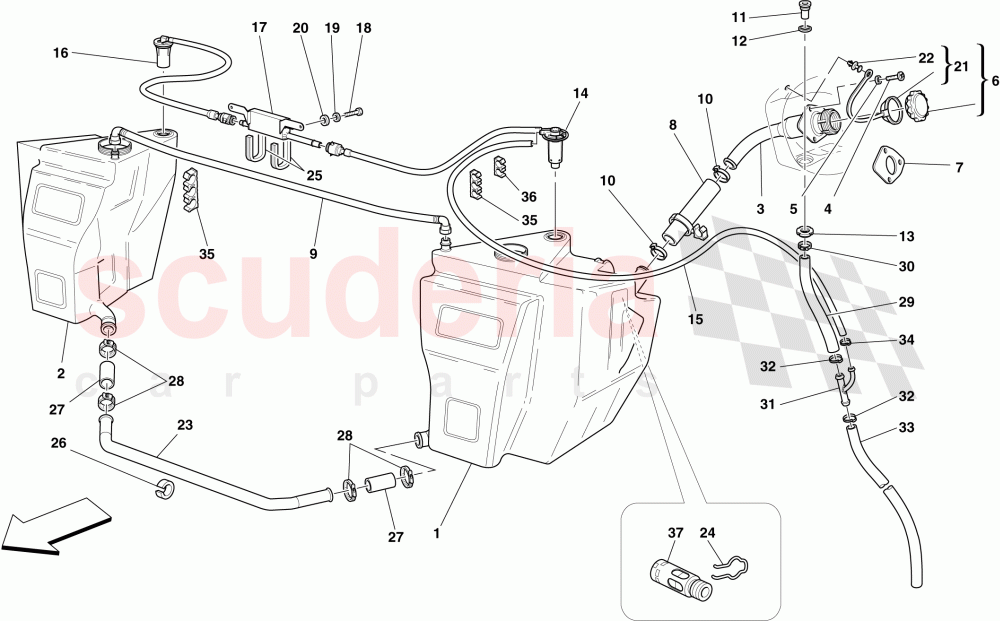

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	231404	RH FUEL TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231930	PIPE UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64686900	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	190469	TANK CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	235256	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	232567	FUEL FILLER NECK CONNECTOR PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11449470	COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64872000	PIPE CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65064500	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104919	RING LOCK NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	208895	VALVE WITH LH PIPE	Enquire	To Order
	243907	VALVE WITH LH PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	211283	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	208894	VALVE WITH RH PIPE	Enquire	To Order
	243908	VALVE WITH RH PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	244882	VAPOUR SEPARATOR	Enquire	To Order
	209010	VAPOUR SEPARATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62940900	Allen Head Screw M6 x 15	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	860172	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	196949	RING - FUEL TANK	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	186172	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	224755	TANK CONNECTOR PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	181930	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69101300	VIBRATION DAMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177437	RUBBER SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	241179	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180957	SCREW COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	213294	TRAY-TO-3-WAY TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177553	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	195439	THREE-WAY UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13433570	HOSE COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	213295	3-WAY-TO-REAR TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13432270	HOSE COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183098	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	140727	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	181929	SHUT-OFF VALVE	Enquire	To Order
	237407	ANTI SPIT-BACK VALVE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
2	231404	RH FUEL TANK	231404 RH FUEL TANK	-	1	Enquire
3	231930	PIPE UNION	231930 PIPE UNION	-	1	Enquire
4	64686900	SCREW	64686900 SCREW	-	3	Enquire
5	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	3	Enquire
6	190469	TANK CAP	190469 TANK CAP	-	1	Enquire
7	235256	GASKET	235256 GASKET	-	1	Enquire
8	232567	FUEL FILLER NECK CONNECTOR PIPE	232567 FUEL FILLER NECK CONNECTOR PIPE	-	1	Enquire
10	11449470	COLLAR	11449470 COLLAR	-	2	Enquire
11	64872000	PIPE CONNECTOR	64872000 PIPE CONNECTOR	-	1	Enquire
12	65064500	GASKET	65064500 GASKET	-	1	Enquire
13	104919	RING LOCK NUT	104919 RING LOCK NUT	-	1	Enquire
14	208895	VALVE WITH LH PIPE	208895 VALVE WITH LH PIPE Applicable up to Ass. No. 78239	-	1	Enquire
14	243907	VALVE WITH LH PIPE	243907 VALVE WITH LH PIPE Applicable from Ass. No. 78240	-	1	Enquire
15	211283	RUBBER PIPE	211283 RUBBER PIPE	-	1	Enquire
16	208894	VALVE WITH RH PIPE	208894 VALVE WITH RH PIPE Applicable up to Ass. No. 78239	-	1	Enquire
16	243908	VALVE WITH RH PIPE	243908 VALVE WITH RH PIPE Applicable from Ass. No. 78240	-	1	Enquire
17	244882	VAPOUR SEPARATOR	244882 VAPOUR SEPARATOR Applicable from Ass. No. 78240	-	1	Enquire
17	209010	VAPOUR SEPARATOR	209010 VAPOUR SEPARATOR Applicable up to Ass. No. 78239	-	1	Enquire
18	62940900	Allen Head Screw M6 x 15	62940900 Allen Head Screw M6 x 15	-	2	Enquire
19	127494	WASHER	127494 WASHER	-	2	Enquire
20	860172	WASHER	860172 WASHER	-	2	Enquire
21	196949	RING - FUEL TANK ARRIVING SOON	196949 RING - FUEL TANK ARRIVING SOON	-	1	Enquire
22	186172	CLIP	186172 CLIP	-	1	Enquire
23	224755	TANK CONNECTOR PIPE	224755 TANK CONNECTOR PIPE	-	1	Enquire
24	181930	CLIP	181930 CLIP Applicable up to Ass. No. 82484; Applicable until depletion	-	1	Enquire
25	69101300	VIBRATION DAMPER	69101300 VIBRATION DAMPER	-	2	Enquire
26	177437	RUBBER SHIM	177437 RUBBER SHIM	-	6	Enquire
27	241179	RUBBER PIPE	241179 RUBBER PIPE	-	2	Enquire
28	180957	SCREW COLLAR	180957 SCREW COLLAR	-	4	Enquire
29	213294	TRAY-TO-3-WAY TUBE	213294 TRAY-TO-3-WAY TUBE	-	1	Enquire
30	177553	CLAMP	177553 CLAMP	-	1	Enquire
31	195439	THREE-WAY UNION	195439 THREE-WAY UNION	-	1	Enquire
32	13433570	HOSE COLLAR	13433570 HOSE COLLAR	-	2	Enquire
33	213295	3-WAY-TO-REAR TUBE	213295 3-WAY-TO-REAR TUBE	-	1	Enquire
34	13432270	HOSE COLLAR	13432270 HOSE COLLAR	-	1	Enquire
35	183098	CLIP	183098 CLIP	-	1	Enquire
36	140727	CLIP	140727 CLIP	-	2	Enquire
37	181929	SHUT-OFF VALVE	181929 SHUT-OFF VALVE Applicable up to Ass. No. 82484; Applicable until depletion	-	1	Enquire
37	237407	ANTI SPIT-BACK VALVE	237407 ANTI SPIT-BACK VALVE Applicable from Ass. No. 82485; Applicable after depletion of 181929	-	1	Enquire
