LEFT HAND CYLINDER HEAD of Ferrari Ferrari 430 Scuderia

View All

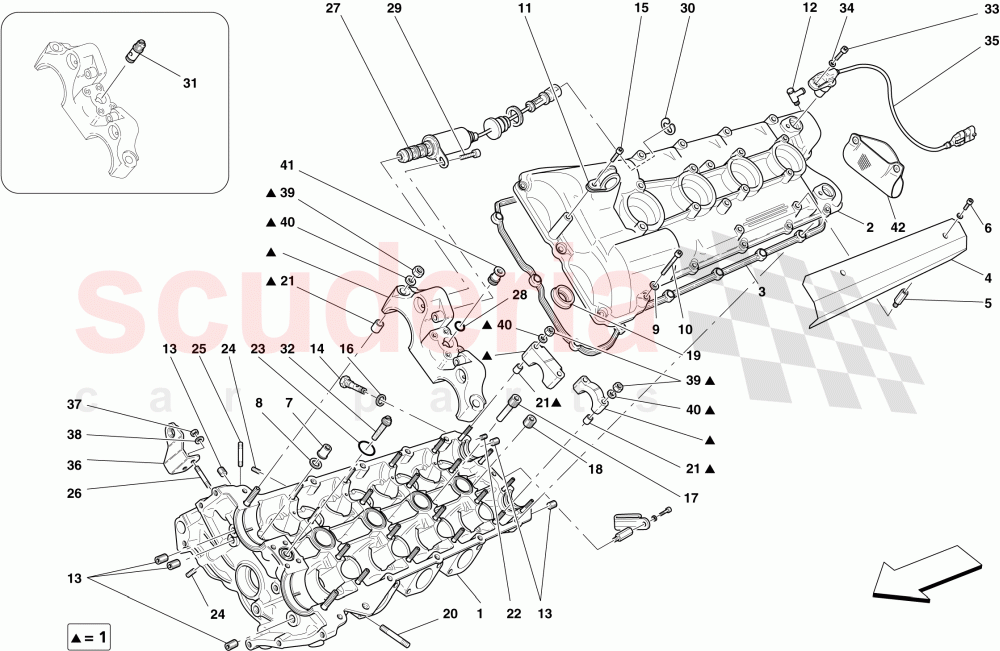

Ferrari 430 Scuderia - LEFT HAND CYLINDER HEAD

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	227614	LH HEAD COMPLETE WITH GUIDES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	221341	LH CYLINDER HEAD COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	198928	LH Head Cover Gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	229163	HEAT SHIELD	Enquire	To Order
	240635	HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	212466	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	321187	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	151117	WASHER 11.25-22X2.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	156834	Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10441290	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	124342	THREADED CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	282755	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180267	OIL NON RETURN VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10261060	GASKET COPPER 12 - 16 X 1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127635	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	164400	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	223982	SPARK PLUG TUBE SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	211641	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	102725	CENTERING DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14326101	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	134233	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	199760	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13541224	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13516624	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	250646	Variable Valve Timing Adjuster Solenoid Valve	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	220245	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11087376	3-POINT CIRCLIP D.12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184681	OIL PRESSURE REGULATOR VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	241406	OIL FILTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	235484	INTAKE CAMSHAFT SENSOR	Enquire	To Order
	235485	OUTPUT CAMSHAFT SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	207422	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT M8 FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11193874	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	220239	CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231492	HEAT GUARD	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	227614	LH HEAD COMPLETE WITH GUIDES	227614 LH HEAD COMPLETE WITH GUIDES	-	1	Enquire
2	221341	LH CYLINDER HEAD COVER	221341 LH CYLINDER HEAD COVER	-	1	Enquire
3	198928	LH Head Cover Gasket	198928 LH Head Cover Gasket	-	1	Enquire
4	229163	HEAT SHIELD	229163 HEAT SHIELD Applicable up to Ass. No. 73778	-	1	Enquire
4	240635	HEAT SHIELD	240635 HEAT SHIELD Applicable from Ass. No. 73779	-	1	Enquire
5	212466	STUD BOLT	212466 STUD BOLT	-	1	Enquire
6	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM	-	1	Enquire
7	321187	NUT	321187 NUT	-	10	Enquire
8	151117	WASHER 11.25-22X2.5	151117 WASHER 11.25-22X2.5	-	10	Enquire
9	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	14	Enquire
10	156834	Screw	156834 Screw	-	14	Enquire
11	10441290	BRACKET WITH SHEATH	10441290 BRACKET WITH SHEATH	-	2	Enquire
12	124342	THREADED CONNECTOR	124342 THREADED CONNECTOR	-	1	Enquire
13	282755	THREADED PLUG	282755 THREADED PLUG	-	6	Enquire
14	180267	OIL NON RETURN VALVE	180267 OIL NON RETURN VALVE	-	1	Enquire
15	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM	-	1	Enquire
16	10261060	GASKET COPPER 12 - 16 X 1.5	10261060 GASKET COPPER 12 - 16 X 1.5	-	1	Enquire
17	127635	THREADED PLUG	127635 THREADED PLUG	-	4	Enquire
18	164400	THREADED PLUG	164400 THREADED PLUG	-	1	Enquire
19	223982	SPARK PLUG TUBE SEAL	223982 SPARK PLUG TUBE SEAL	-	4	Enquire
20	211641	STUD BOLT	211641 STUD BOLT	-	8	Enquire
21	102725	CENTERING DOWEL	102725 CENTERING DOWEL	-	22	Enquire
22	14326101	THREADED PLUG	14326101 THREADED PLUG	-	1	Enquire
23	134233	O-RING	134233 O-RING	-	1	Enquire
24	199760	THREADED PLUG	199760 THREADED PLUG	-	4	Enquire
25	13541224	STUD BOLT	13541224 STUD BOLT	-	8	Enquire
26	13516624	STUD BOLT	13516624 STUD BOLT	-	2	Enquire
27	250646	Variable Valve Timing Adjuster Solenoid Valve ARRIVING SOON	250646 Variable Valve Timing Adjuster Solenoid Valve ARRIVING SOON	-	2	Enquire
28	220245	GASKET	220245 GASKET No longer supplied	-	1	Enquire
29	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER	-	1	Enquire
30	11087376	3-POINT CIRCLIP D.12	11087376 3-POINT CIRCLIP D.12	-	1	Enquire
31	184681	OIL PRESSURE REGULATOR VALVE	184681 OIL PRESSURE REGULATOR VALVE	-	1	Enquire
32	241406	OIL FILTER	241406 OIL FILTER	-	1	Enquire
33	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER	-	1	Enquire
34	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	1	Enquire
35	235484	INTAKE CAMSHAFT SENSOR	235484 INTAKE CAMSHAFT SENSOR	-	1	Enquire
35	235485	OUTPUT CAMSHAFT SENSOR	235485 OUTPUT CAMSHAFT SENSOR	-	1	Enquire
36	207422	BRACKET	207422 BRACKET	-	1	Enquire
37	14040711	NUT M8 FLANGED	14040711 NUT M8 FLANGED	-	2	Enquire
38	11193874	WASHER	11193874 WASHER	-	2	Enquire
39	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	22	Enquire
40	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	22	Enquire
41	220239	CAP	220239 CAP No longer supplied	-	1	Enquire
42	231492	HEAT GUARD	231492 HEAT GUARD	-	1	Enquire
