HEADER TANK of Ferrari Ferrari 430 Scuderia

View All

Ferrari 430 Scuderia - HEADER TANK

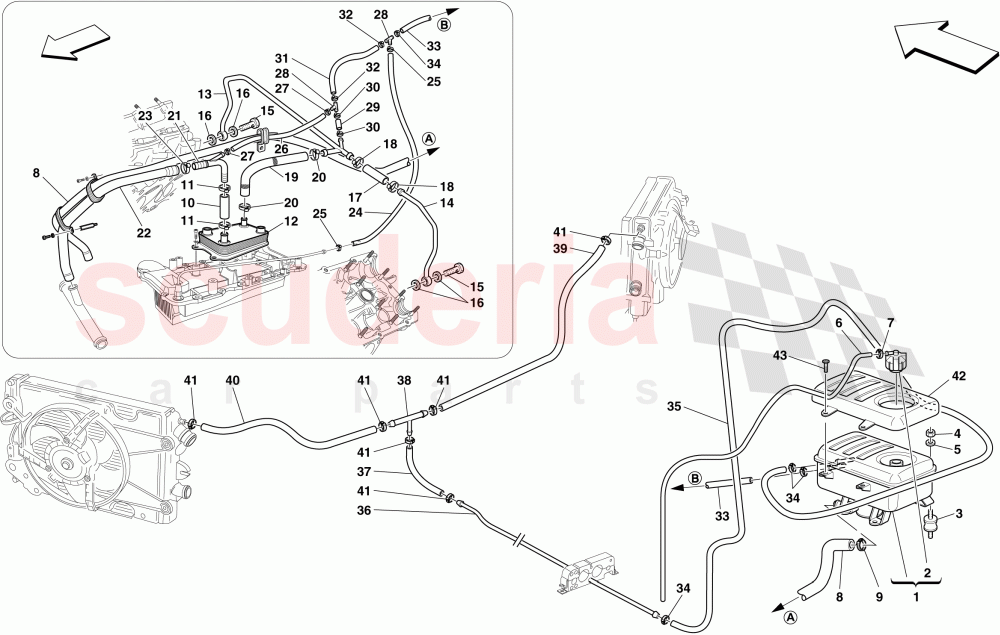

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	235126	HEADER TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	329417	CAP WITH BREATHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	285553	VIBRATION DAMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	179280	VENT PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183919	Collar Clamp	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	241536	COMPLETE PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13126370	COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	235080	RUBBER SLEEVE - D.14,5 x 26,5 75-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13433370	Screw Collar	Enquire	To Order
	13126370	COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	200161	HEAT EXCHANGER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	240326	RH. WATER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	240325	LH. WATER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	203787	PIPE UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10259960	Copper Washer 18 - 24 x 1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	235080	RUBBER SLEEVE - D.14,5 x 26,5 75-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13433370	Screw Collar	Enquire	To Order
	262111	JUBILEE CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	242641	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	241883	METALLIC PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	241540	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	241348	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177995	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	242144	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177995	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	201440	MULTIPLE CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	242145	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177995	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	242143	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177995	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	220935	PIPE FROM HEAT EXCHANGER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177995	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	229968	RUBBER TUBE FROM HEADER TANK TO UNDERBODY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	209401	UNDERBODY PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	229986	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	181272	THREE-WAY UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	205089	RH RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	205088	LH RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177995	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	235048	SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88822200	SCREW TORX HEAD M4 X 10MM	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	235126	HEADER TANK	235126 HEADER TANK	-	1	Enquire
2	329417	CAP WITH BREATHER	329417 CAP WITH BREATHER	-	1	Enquire
3	285553	VIBRATION DAMPER	285553 VIBRATION DAMPER	-	4	Enquire
4	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	4	Enquire
5	12643724	WASHER	12643724 WASHER	-	4	Enquire
6	179280	VENT PIPE	179280 VENT PIPE	-	1	Enquire
7	183919	Collar Clamp	183919 Collar Clamp	-	1	Enquire
8	241536	COMPLETE PIPE	241536 COMPLETE PIPE	-	1	Enquire
9	13126370	COLLAR	13126370 COLLAR	-	1	Enquire
10	235080	RUBBER SLEEVE - D.14,5 x 26,5 75-	235080 RUBBER SLEEVE - D.14,5 x 26,5 75-	-	1	Enquire
11	13433370	Screw Collar	13433370 Screw Collar No longer supplied; Replaced by 183126	-	2	Enquire
11	13126370	COLLAR	13126370 COLLAR	-	2	Enquire
12	200161	HEAT EXCHANGER	200161 HEAT EXCHANGER	-	1	Enquire
13	240326	RH. WATER PIPE	240326 RH. WATER PIPE	-	1	Enquire
14	240325	LH. WATER PIPE	240325 LH. WATER PIPE	-	1	Enquire
15	203787	PIPE UNION	203787 PIPE UNION	-	2	Enquire
16	10259960	Copper Washer 18 - 24 x 1.5	10259960 Copper Washer 18 - 24 x 1.5	-	4	Enquire
17	235080	RUBBER SLEEVE - D.14,5 x 26,5 75-	235080 RUBBER SLEEVE - D.14,5 x 26,5 75-	-	1	Enquire
18	13433370	Screw Collar	13433370 Screw Collar	-	2	Enquire
18	262111	JUBILEE CLAMP	262111 JUBILEE CLAMP No longer supplied; Replaced by 13433370	-	2	Enquire
19	242641	RUBBER PIPE	242641 RUBBER PIPE	-	1	Enquire
20	262111	JUBILEE CLAMP	262111 JUBILEE CLAMP	-	2	Enquire
21	241883	METALLIC PIPE	241883 METALLIC PIPE	-	1	Enquire
22	241540	RUBBER PIPE	241540 RUBBER PIPE	-	1	Enquire
23	262111	JUBILEE CLAMP	262111 JUBILEE CLAMP	-	1	Enquire
24	241348	RUBBER PIPE	241348 RUBBER PIPE	-	1	Enquire
25	177995	CLAMP	177995 CLAMP	-	2	Enquire
26	242144	RUBBER PIPE	242144 RUBBER PIPE	-	1	Enquire
27	177995	CLAMP	177995 CLAMP	-	2	Enquire
28	201440	MULTIPLE CONNECTOR	201440 MULTIPLE CONNECTOR	-	2	Enquire
29	242145	RUBBER PIPE	242145 RUBBER PIPE	-	1	Enquire
30	177995	CLAMP	177995 CLAMP	-	2	Enquire
31	242143	RUBBER PIPE	242143 RUBBER PIPE	-	1	Enquire
32	177995	CLAMP	177995 CLAMP	-	2	Enquire
33	220935	PIPE FROM HEAT EXCHANGER	220935 PIPE FROM HEAT EXCHANGER	-	1	Enquire
34	177995	CLAMP	177995 CLAMP	-	4	Enquire
35	229968	RUBBER TUBE FROM HEADER TANK TO UNDERBODY	229968 RUBBER TUBE FROM HEADER TANK TO UNDERBODY	-	1	Enquire
36	209401	UNDERBODY PIPE	209401 UNDERBODY PIPE	-	1	Enquire
37	229986	RUBBER PIPE	229986 RUBBER PIPE	-	1	Enquire
38	181272	THREE-WAY UNION	181272 THREE-WAY UNION	-	1	Enquire
39	205089	RH RUBBER PIPE	205089 RH RUBBER PIPE	-	1	Enquire
40	205088	LH RUBBER PIPE	205088 LH RUBBER PIPE	-	1	Enquire
41	177995	CLAMP	177995 CLAMP	-	6	Enquire
42	235048	SHIELD	235048 SHIELD	-	1	Enquire
43	88822200	SCREW TORX HEAD M4 X 10MM	88822200 SCREW TORX HEAD M4 X 10MM	-	4	Enquire
