Ferrari 430 Scuderia - LUBRICATION SYSTEM - TANK - HEAT EXCHANGER

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
197150 HEAT EXCHANGER Enquire To Order
Photo Part No Description Price (each) Stock
322664 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
210388 CONNECTORS MOUNTING BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
149707 SPACER Enquire To Order
Photo Part No Description Price (each) Stock
177576 CABLE GROMMET Enquire To Order
Photo Part No Description Price (each) Stock
231620 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
231620 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
231622 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
Photo Part No Description Price (each) Stock
202251 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
248334 SCREW M6 X 14MM Enquire To Order
Photo Part No Description Price (each) Stock
10440990 BRACKET WITH SHEATH Enquire To Order
Photo Part No Description Price (each) Stock
192327 CONNECTOR Enquire To Order
Photo Part No Description Price (each) Stock
127497 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
211844 VENT PIPE Enquire To Order
Photo Part No Description Price (each) Stock
225937 OIL PIPE FROM ENGINE TO SEPARATOR Enquire To Order
Photo Part No Description Price (each) Stock
236831 WATER-OIL SEPARATOR Enquire To Order
236843 WATER-OIL SEPARATOR Enquire To Order
Photo Part No Description Price (each) Stock
254573 TANK CAP Enquire To Order
Photo Part No Description Price (each) Stock
211634 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
176388 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
13517124 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
147985 NUT Enquire To Order
Photo Part No Description Price (each) Stock
12601374 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
236801 VENT PIPE Enquire To Order
Photo Part No Description Price (each) Stock
236836 SOLENOID VALVE Enquire To Order
Photo Part No Description Price (each) Stock
262111 JUBILEE CLAMP Enquire To Order
Photo Part No Description Price (each) Stock
262111 JUBILEE CLAMP Enquire To Order
Photo Part No Description Price (each) Stock
236846 VENT PIPE Enquire To Order
Photo Part No Description Price (each) Stock
216068 RH VAPOUR INTAKE PIPE Enquire To Order
216063 RH VAPOUR INTAKE PIPE Enquire To Order
Photo Part No Description Price (each) Stock
216064 LH VAPOUR INTAKE PIPE Enquire To Order
216069 LH VAPOUR INTAKE PIPE Enquire To Order
Photo Part No Description Price (each) Stock
235904 VENT PIPE Enquire To Order
Photo Part No Description Price (each) Stock
294255 CHECK VALVE Enquire To Order
Photo Part No Description Price (each) Stock
13127070 COLLAR Enquire To Order
Photo Part No Description Price (each) Stock
195330 RUBBER PIPE Enquire To Order
Photo Part No Description Price (each) Stock
258855 3-WAY CONNECTOR Enquire To Order
Photo Part No Description Price (each) Stock
159539 RUBBER PIPE Enquire To Order
Photo Part No Description Price (each) Stock
210313 OIL PIPE MOUNTING BRACKET Enquire To Order
239441 OIL PIPE MOUNTING BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
13432070 HOSE COLLAR Enquire To Order
View All

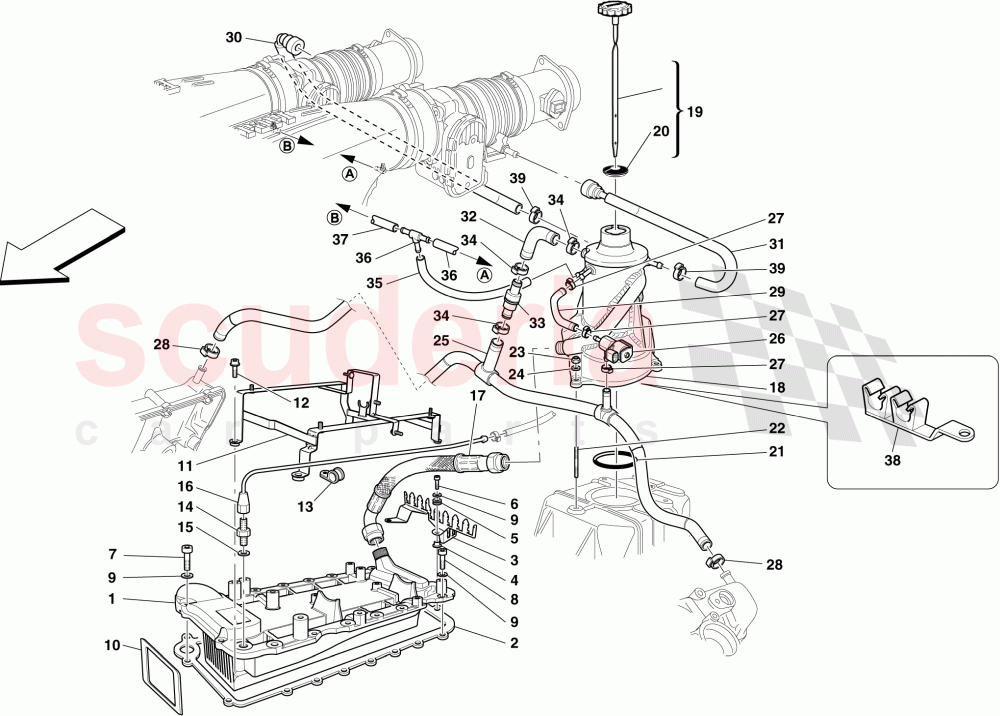

LUBRICATION SYSTEM - TANK - HEAT EXCHANGER of Ferrari Ferrari 430 Scuderia Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 197150
HEAT EXCHANGER 		- 1 Enquire
2 322664
GASKET 		- 1 Enquire
3 210388
CONNECTORS MOUNTING BRACKET 		- 1 Enquire
4 149707
SPACER 		- 2 Enquire
5 177576
CABLE GROMMET 		- 2 Enquire
6 231620
SCREW 		- 2 Enquire
7 231620
SCREW 		- 2 Enquire
8 231622
SCREW 		- 15 Enquire
9 11197774
WAVY WASHER D.6.4 X 12 X 1.2 		- 19 Enquire
11 202251
BRACKET 		- 1 Enquire
12 248334
SCREW M6 X 14MM 		- 4 Enquire
13 10440990
BRACKET WITH SHEATH 		- 1 Enquire
14 192327
CONNECTOR 		- 1 Enquire
15 127497
WASHER 		- 1 Enquire
16 211844
VENT PIPE 		- 1 Enquire
17 225937
OIL PIPE FROM ENGINE TO SEPARATOR 		- 1 Enquire
18 236831
WATER-OIL SEPARATOR
Not for Taiwan; Not for USA, CDN 		- 1 Enquire
18 236843
WATER-OIL SEPARATOR
Applicable for Taiwan; Applicable for USA, CDN 		- 1 Enquire
19 254573
TANK CAP 		- 1 Enquire
20 211634
GASKET 		- 1 Enquire
21 176388
O-RING 		- 1 Enquire
22 13517124
STUD BOLT 		- 3 Enquire
23 147985
NUT 		- 3 Enquire
24 12601374
WASHER 		- 3 Enquire
25 236801
VENT PIPE 		- 1 Enquire
26 236836
SOLENOID VALVE 		- 1 Enquire
27 262111
JUBILEE CLAMP 		- 3 Enquire
28 262111
JUBILEE CLAMP 		- 2 Enquire
29 236846
VENT PIPE 		- 1 Enquire
30 216068
RH VAPOUR INTAKE PIPE
Applicable for USA, CDN 		- 1 Enquire
30 216063
RH VAPOUR INTAKE PIPE
Not for USA, CDN 		- 1 Enquire
31 216064
LH VAPOUR INTAKE PIPE
Not for USA, CDN 		- 1 Enquire
31 216069
LH VAPOUR INTAKE PIPE
Applicable for USA, CDN 		- 1 Enquire
32 235904
VENT PIPE 		- 1 Enquire
33 294255
CHECK VALVE 		- 1 Enquire
34 13127070
COLLAR 		- 3 Enquire
35 195330
RUBBER PIPE 		- 1 Enquire
36 258855
3-WAY CONNECTOR 		- 1 Enquire
37 159539
RUBBER PIPE 		- 2 Enquire
38 210313
OIL PIPE MOUNTING BRACKET
Applicable for Taiwan; Applicable for USA, CDN 		- 1 Enquire
38 239441
OIL PIPE MOUNTING BRACKET
Not for Taiwan; Not for USA, CDN 		- 1 Enquire
39 13432070
HOSE COLLAR 		- 2 Enquire
