FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

Find Your Part

Ferrari 430 Coupe - FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
213396 Front Shock Absorber $3,942.48 To Order
Photo Part No Description Price (each) Stock
216381 Front Spring $641.82 To Order
Photo Part No Description Price (each) Stock
245623 UPPER SPACER $48.12 To Order
Photo Part No Description Price (each) Stock
181408 LOWER SPACER $52.94 To Order
Photo Part No Description Price (each) Stock
157630 SHOCK ABSORBER BUSH $118.72 ARRIVING SOON
Photo Part No Description Price (each) Stock
193492 SCREW SPACER $40.10 To Order
Photo Part No Description Price (each) Stock
174727 UPPER SPRING RETENTION CAP $295.68 To Order
Photo Part No Description Price (each) Stock
174728 SHOCK ABSORBER BUSHING $128.35 To Order
Photo Part No Description Price (each) Stock
174725 RING NUT, SHOCK ABSORBER $125.14 To Order
Photo Part No Description Price (each) Stock
174726 THREADED RING NUT $72.29 To Order
Photo Part No Description Price (each) Stock
10460287 RUBBER RING $1.54 To Order
Photo Part No Description Price (each) Stock
230083 SCREW $1.43 To Order
10977524 SCREW $0.15 To Order
Photo Part No Description Price (each) Stock
162606 CLIP $1.36 To Order
Photo Part No Description Price (each) Stock
127494 WASHER $0.08 To Order
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
212948 SILENT BLOCK BUSH FOR SHOCK ABSORBER $176.49 ARRIVING SOON
Photo Part No Description Price (each) Stock
11306934 SCREW $0.57 To Order
Photo Part No Description Price (each) Stock
160092 WASHER $0.28 To Order
Photo Part No Description Price (each) Stock
204977 SCREW $64.65 To Order
Photo Part No Description Price (each) Stock
255271 NUT $1.41 To Order
Photo Part No Description Price (each) Stock
155002 Washer $15.66 To Order
Photo Part No Description Price (each) Stock
259573 RH SPHERICAL TIE-ROD Enquire To Order
Photo Part No Description Price (each) Stock
160092 WASHER $0.28 To Order
Photo Part No Description Price (each) Stock
170715 FRONT STABILISER BAR $770.19 To Order
Photo Part No Description Price (each) Stock
203607 STABILISER BAR MOUNTING $240.67 To Order
Photo Part No Description Price (each) Stock
170588 Stabiliser Bar Bush $48.12 To Order
Photo Part No Description Price (each) Stock
194134 Hub Bearing $755.98 To Order
Photo Part No Description Price (each) Stock
209184 NUT $11.52 To Order
Photo Part No Description Price (each) Stock
240531 FRONT BRAKE DISC $4,016.05 To Order
213484 Brake Disc $527.98 To Order
Photo Part No Description Price (each) Stock
14306924 SCREW $0.75 To Order
Photo Part No Description Price (each) Stock
127496 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
104370 SCREW $10.11 To Order
Photo Part No Description Price (each) Stock
180591 SCREW $2.48 To Order
Photo Part No Description Price (each) Stock
160092 WASHER $0.28 To Order
Photo Part No Description Price (each) Stock
10732414 WASHER $8.22 To Order
Photo Part No Description Price (each) Stock
180542 BEARING FASTENING PIN $593.69 To Order
Photo Part No Description Price (each) Stock
196940 LH STUB AXLE COVER $501.69 To Order
196939 RH STUB AXLE COVER $501.69 To Order
Photo Part No Description Price (each) Stock
250657 SCREW $7.60 To Order
Photo Part No Description Price (each) Stock
14306924 SCREW $0.75 To Order
Photo Part No Description Price (each) Stock
178341 WASHER $0.65 To Order
Photo Part No Description Price (each) Stock
12638524 WASHER $0.06 To Order
View All

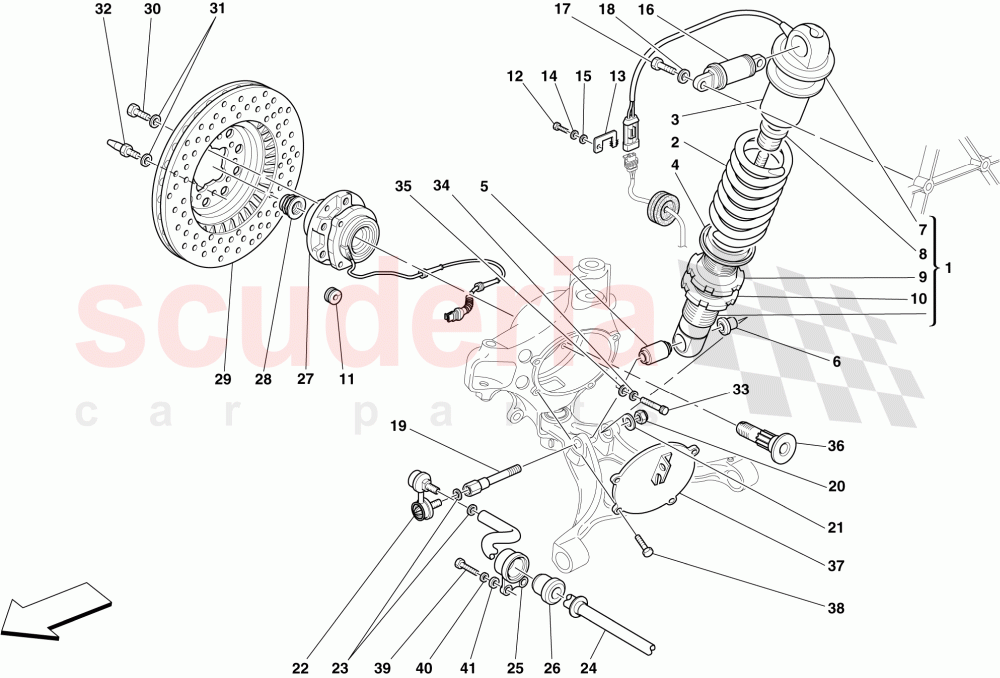

FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC of Ferrari Ferrari 430 Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 213396
Front Shock Absorber 		$3,942.48 2
2 216381
Front Spring 		$641.82 2
3 245623
UPPER SPACER 		$48.12 2
4 181408
LOWER SPACER 		$52.94 (25.8% off) 2
5 157630
SHOCK ABSORBER BUSH
ARRIVING SOON 		$118.72 (22% off) 2
6 193492
SCREW SPACER 		$40.10 2
7 174727
UPPER SPRING RETENTION CAP 		$295.68 2
8 174728
SHOCK ABSORBER BUSHING 		$128.35 (25.5% off) 2
9 174725
RING NUT, SHOCK ABSORBER 		$125.14 2
10 174726
THREADED RING NUT 		$72.29 2
11 10460287
RUBBER RING 		$1.54 2
12 230083
SCREW 		$1.43 2
12 10977524
SCREW
No longer supplied; Replaced by 230083 		$0.15 2
13 162606
CLIP 		$1.36 (7.5% off) 2
14 127494
WASHER 		$0.08 (88.2% off) 2
15 12643724
WASHER 		$0.06 (88% off) 2
16 212948
SILENT BLOCK BUSH FOR SHOCK ABSORBER
ARRIVING SOON 		$176.49 (20.9% off) 2
17 11306934
SCREW 		$0.57 (62% off) 4
18 160092
WASHER 		$0.28 (53.3% off) 4
19 204977
SCREW 		$64.65 2
20 255271
NUT 		$1.41 (2.8% off) 2
21 155002
Washer 		$15.66 2
22 259573
RH SPHERICAL TIE-ROD 		- 1 Enquire
23 160092
WASHER 		$0.28 (53.3% off) 4
24 170715
FRONT STABILISER BAR 		$770.19 1
25 203607
STABILISER BAR MOUNTING 		$240.67 2
26 170588
Stabiliser Bar Bush 		$48.12 (26.1% off) 2
27 194134
Hub Bearing 		$755.98 (6.7% off) 2
28 209184
NUT 		$11.52 (85.9% off) 2
29 240531
FRONT BRAKE DISC
Version with CCM brakes; Replace as a pair; Applicable from Ass. No. 64741 		$4,016.05 2
29 213484
Brake Disc
Cast iron version 		$527.98 (4.4% off) 2
30 14306924
SCREW 		$0.75 2
31 127496
WASHER 		$0.06 (80% off) 4
32 104370
SCREW 		$10.11 2
33 180591
SCREW 		$2.48 (37.2% off) 8
34 160092
WASHER 		$0.28 (53.3% off) 8
35 10732414
WASHER 		$8.22 (13.5% off) 8
36 180542
BEARING FASTENING PIN 		$593.69 2
37 196940
LH STUB AXLE COVER 		$501.69 1
37 196939
RH STUB AXLE COVER 		$501.69 1
38 250657
SCREW 		$7.60 8
39 14306924
SCREW 		$0.75 4
40 178341
WASHER 		$0.65 4
41 12638524
WASHER 		$0.06 (76% off) 4
