FRONT SUSPENSION - ARMS

Find Your Part

Ferrari 430 Coupe - FRONT SUSPENSION - ARMS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
200945 Upper Suspension Lever $770.19 To Order
Photo Part No Description Price (each) Stock
179555 COMPENSATOR RING BUSHING $5.61 To Order
Photo Part No Description Price (each) Stock
171848 Rubber Boot and Clip $134.77 To Order
Photo Part No Description Price (each) Stock
181598 SCREW $78.61 To Order
Photo Part No Description Price (each) Stock

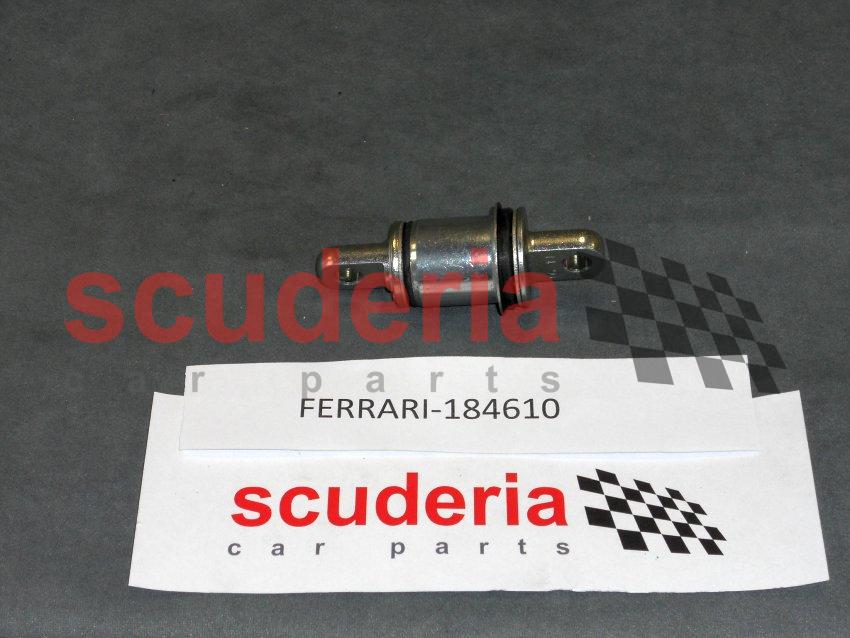

184610 Flanbloc $288.81 To Order
Photo Part No Description Price (each) Stock
170155 THREADED ROD $17.62 To Order
Photo Part No Description Price (each) Stock
104030 NUT $0.26 To Order
Photo Part No Description Price (each) Stock
14496524 WASHER $0.11 To Order
Photo Part No Description Price (each) Stock
12628904 WASHER $0.21 To Order
Photo Part No Description Price (each) Stock
179556 SCREW $56.68 To Order
Photo Part No Description Price (each) Stock
179330 RH REAR STUB AXLE $1,139.25 To Order
179328 LH REAR STUB AXLE $1,139.25 To Order
Photo Part No Description Price (each) Stock
192492 LEVA SOSPENSIONE INF ANT DX $387.03 To Order
Photo Part No Description Price (each) Stock
178940 ADJUSTMENT PLATE $19.58 To Order
178853 ADJUSTMENT PLATE $17.62 To Order
186944 ADJUSTMENT PLATE $4.39 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
171847 Rubber Boot And Clip $128.35 To Order
Photo Part No Description Price (each) Stock
179554 COMPENSATOR RING $5.92 To Order
Photo Part No Description Price (each) Stock

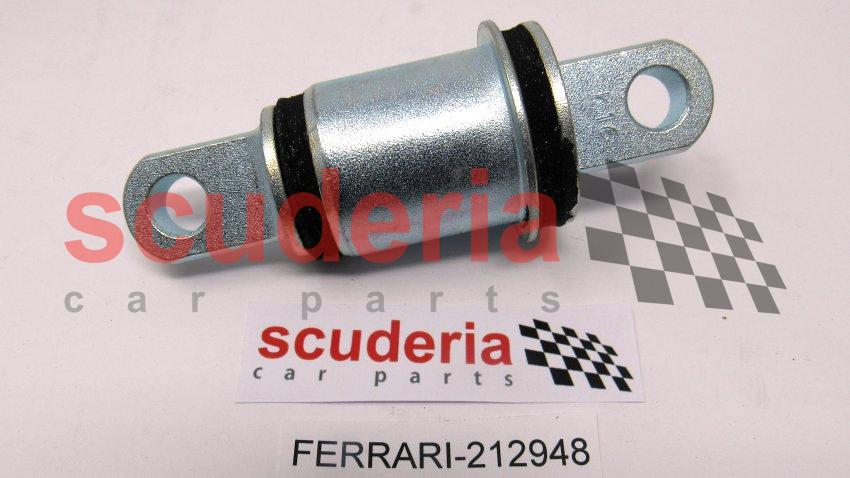

212948 SILENT BLOCK BUSH FOR SHOCK ABSORBER $176.49 ARRIVING SOON
Photo Part No Description Price (each) Stock
241298 THREADED ROD $95.03 To Order
Photo Part No Description Price (each) Stock
12574521 Nyloc Nut $0.92 To Order
Photo Part No Description Price (each) Stock
126648 WASHER D.10.5-21 X 2 $1.91 To Order
Photo Part No Description Price (each) Stock
13582271 INSERT $8.02 To Order
Photo Part No Description Price (each) Stock
13582310 THREADED INSERT $13.70 To Order
Photo Part No Description Price (each) Stock
203633 Upper Ball Joint $263.79 To Order
Photo Part No Description Price (each) Stock
203632 Lower Ball Joint $339.17 To Order
View All
FRONT SUSPENSION - ARMS of Ferrari Ferrari 430 Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 200945
Upper Suspension Lever 		$770.19 (39.4% off) 2
2 179555
COMPENSATOR RING BUSHING 		$5.61 (11.9% off) 2
3 171848
Rubber Boot and Clip 		$134.77 (22.6% off) 4
4 181598
SCREW 		$78.61 2
5 184610
Flanbloc 		$288.81 (20.7% off) 4
6 170155
THREADED ROD 		$17.62 8
7 104030
NUT 		$0.26 (74% off) 8
8 14496524
WASHER 		$0.11 (92.7% off) 8
9 12628904
WASHER 		$0.21 8
10 179556
SCREW 		$56.68 2
11 179330
RH REAR STUB AXLE 		$1,139.25 1
11 179328
LH REAR STUB AXLE 		$1,139.25 (20.6% off) 1
12 192492
LEVA SOSPENSIONE INF ANT DX 		$387.03 2
13 178940
ADJUSTMENT PLATE
Th. 4 mm; Installed if necessary 		$19.58 4
13 178853
ADJUSTMENT PLATE
Th. 3 mm; Installed if necessary 		$17.62 4
13 186944
ADJUSTMENT PLATE
Th. 2.5 mm; Installed if necessary 		$4.39 4
13 178852
ADJUSTMENT PLATE
Th. 2 mm; Installed if necessary 		$16.65 4
13 186943
ADJUSTMENT PLATE
Th. 1.5 mm; Installed if necessary 		$8.14 4
13 178851
ADJUSTMENT PLATE
Th. 1 mm; Installed if necessary 		$14.68 (48.3% off) 4
14 171847
Rubber Boot And Clip 		$128.35 (26.3% off) 4
15 179554
COMPENSATOR RING 		$5.92 (11.4% off) 2
16 212948
SILENT BLOCK BUSH FOR SHOCK ABSORBER
ARRIVING SOON 		$176.49 (20.9% off) 4
17 241298
THREADED ROD 		$95.03 8
18 12574521
Nyloc Nut 		$0.92 (54% off) 8
19 126648
WASHER D.10.5-21 X 2 		$1.91 8
20 13582271
INSERT 		$8.02 (21% off) 8
21 13582310
THREADED INSERT 		$13.70 8
22 203633
Upper Ball Joint 		$263.79 2
23 203632
Lower Ball Joint 		$339.17 2
