STEERING CONTROL of Ferrari Ferrari 430 Coupe

View All

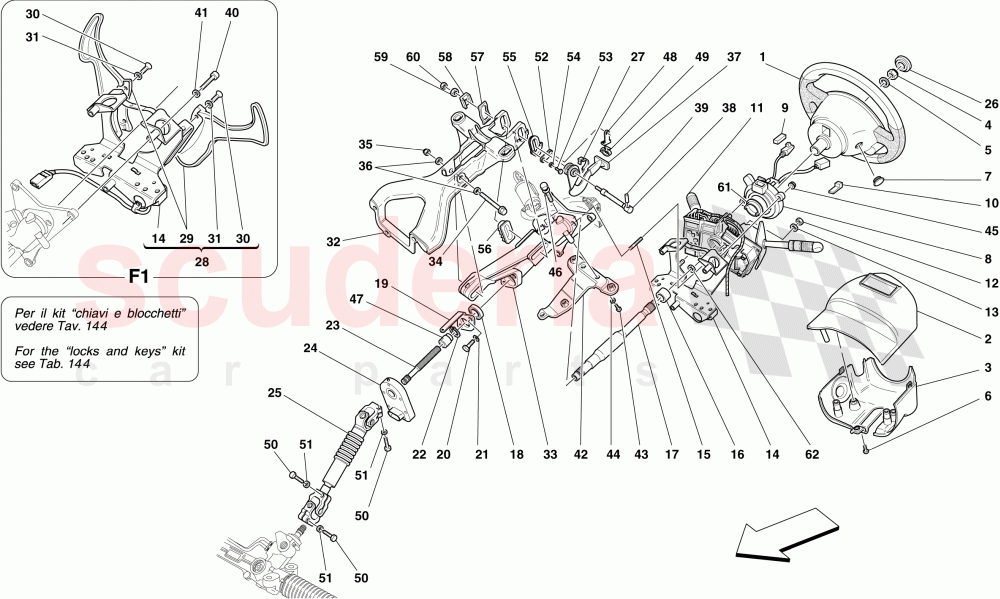

Ferrari 430 Coupe - STEERING CONTROL

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	80898100	COMPL. STEERING WHEEL WITH AIRBAG	Enquire	To Order
	69394900	COMPL. STEERING WHEEL WITH AIRBAG	Enquire	To Order
	80898200	COMPL. STEERING WHEEL WITH AIRBAG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68098200	UPPER TRIM	Enquire	To Order
	68097900	UPPER TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68097800	LOWER TRIM	Enquire	To Order
	68161600	LOWER COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	299557	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	152034	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15960507	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185486	CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	213671	CLOCK SPRING CONTACT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	163816	CLOCK SPRING CONNECTOR RESISTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	135355	CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177585	STEERING COLUMN SWITCH ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15896470	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12604178	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	204155	CLOCKSPRING CONNECTOR MOUNTING BRACKET	Enquire	To Order
	203317	GEAR SHIFT BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11001424	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	199094	ROLLER BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	197701	UPPER SHAFT STEERING COLUMN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171540	BALL BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	201016	COMPLETE STEERING SENSOR MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10902224	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11181874	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11067376	SEEGER RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183993	LOWER COLUMN AXLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	195590	STEERING ANGLE SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171528	STEERING CARDAN SHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	299558	NUT CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171531	PIN RETENTION SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	226099	COMPLETE SHIFT F1 PADDLE ASSEMBLY	Enquire	To Order
	226101	COMPLETE SHIFT F1 PADDLE ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13308977	SCREW	Enquire	To Order
	226092	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12606673	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	197702	STEERING COLUMN MOUNTING BRACKET	Enquire	To Order
	209191	STEERING COLUMN MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	197700	COLUMN MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180632	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104030	NYLOC NUT M8 X 1.25 X 9.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12625224	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171535	TRIMMED LEVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171503	ARM PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10336630	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13274611	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12604178	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65164200	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13273977	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61002200	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	172563	ANTI-THEFT SYSTEM FASTENER SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	200970	RING NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177977	PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	178430	FASTENER CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	192229	HEXAGONAL SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	192230	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171523	PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10977724	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11181574	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171544	ARM SIDE SLIPPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171501	SPLINED FIXED SLIPPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171502	SLIPPER SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171529	MOBILE SPLINED SLIPPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171542	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	147985	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	199784	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	203213	WASHER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	80898100	COMPL. STEERING WHEEL WITH AIRBAG	80898100 COMPL. STEERING WHEEL WITH AIRBAG Without airbag module; Standard	-	1	Enquire
1	69394900	COMPL. STEERING WHEEL WITH AIRBAG	69394900 COMPL. STEERING WHEEL WITH AIRBAG Without airbag module; Optional; Carbon trimmed plate	-	1	Enquire
1	80898200	COMPL. STEERING WHEEL WITH AIRBAG	80898200 COMPL. STEERING WHEEL WITH AIRBAG Without airbag module; Optional; Steering wheel hub and panel trimmed in carbon	-	1	Enquire
2	68098200	UPPER TRIM	68098200 UPPER TRIM Not for F1 gearbox	-	1	Enquire
2	68097900	UPPER TRIM	68097900 UPPER TRIM Applicable for F1 gearbox	-	1	Enquire
3	68097800	LOWER TRIM	68097800 LOWER TRIM Not for F1 gearbox	-	1	Enquire
3	68161600	LOWER COVER	68161600 LOWER COVER Applicable for F1 gearbox	-	1	Enquire
4	299557	NUT	299557 NUT	-	1	Enquire
5	152034	WASHER	152034 WASHER	-	1	Enquire
6	15960507	SCREW	15960507 SCREW	-	5	Enquire
7	185486	CAP	185486 CAP	-	2	Enquire
8	213671	CLOCK SPRING CONTACT	213671 CLOCK SPRING CONTACT	-	1	Enquire
9	163816	CLOCK SPRING CONNECTOR RESISTOR	163816 CLOCK SPRING CONNECTOR RESISTOR	-	1	Enquire
10	135355	CONNECTOR	135355 CONNECTOR	-	1	Enquire
11	177585	STEERING COLUMN SWITCH ASSEMBLY	177585 STEERING COLUMN SWITCH ASSEMBLY	-	1	Enquire
12	15896470	NUT	15896470 NUT	-	2	Enquire
13	12604178	Washer	12604178 Washer	-	2	Enquire
14	204155	CLOCKSPRING CONNECTOR MOUNTING BRACKET	204155 CLOCKSPRING CONNECTOR MOUNTING BRACKET Not for F1 gearbox	-	1	Enquire
14	203317	GEAR SHIFT BRACKET	203317 GEAR SHIFT BRACKET Applicable for F1 gearbox; No longer supplied	-	1	Enquire
15	11001424	STUD BOLT	11001424 STUD BOLT	-	2	Enquire
16	199094	ROLLER BEARING	199094 ROLLER BEARING	-	1	Enquire
17	197701	UPPER SHAFT STEERING COLUMN	197701 UPPER SHAFT STEERING COLUMN	-	1	Enquire
18	171540	BALL BEARING	171540 BALL BEARING	-	1	Enquire
19	201016	COMPLETE STEERING SENSOR MOUNTING BRACKET	201016 COMPLETE STEERING SENSOR MOUNTING BRACKET	-	1	Enquire
20	10902224	SCREW	10902224 SCREW	-	2	Enquire
21	11181874	WASHER	11181874 WASHER	-	2	Enquire
22	11067376	SEEGER RING	11067376 SEEGER RING	-	1	Enquire
23	183993	LOWER COLUMN AXLE	183993 LOWER COLUMN AXLE	-	1	Enquire
24	195590	STEERING ANGLE SENSOR	195590 STEERING ANGLE SENSOR	-	1	Enquire
25	171528	STEERING CARDAN SHAFT	171528 STEERING CARDAN SHAFT	-	1	Enquire
26	299558	NUT CAP	299558 NUT CAP	-	1	Enquire
27	171531	PIN RETENTION SPRING	171531 PIN RETENTION SPRING	-	1	Enquire
29	226099	COMPLETE SHIFT F1 PADDLE ASSEMBLY	226099 COMPLETE SHIFT F1 PADDLE ASSEMBLY Standard; Applicable for F1 gearbox	-	1	Enquire
29	226101	COMPLETE SHIFT F1 PADDLE ASSEMBLY	226101 COMPLETE SHIFT F1 PADDLE ASSEMBLY Carbon; Optional; Applicable for F1 gearbox	-	1	Enquire
30	13308977	SCREW	13308977 SCREW Applicable for arm assemblies 201682 and 218518 ref. 28; Applicable for F1 gearbox	-	4	Enquire
30	226092	SCREW	226092 SCREW Applicable for arm assemblies 226099 and 226101 ref. 28; Applicable for F1 gearbox	-	4	Enquire
31	12606673	WASHER	12606673 WASHER Applicable for arm assemblies 201682 and 218518 ref. 28; Applicable for F1 gearbox	-	4	Enquire
32	197702	STEERING COLUMN MOUNTING BRACKET	197702 STEERING COLUMN MOUNTING BRACKET Not for GD	-	1	Enquire
32	209191	STEERING COLUMN MOUNTING BRACKET	209191 STEERING COLUMN MOUNTING BRACKET Applicable for GD	-	1	Enquire
33	197700	COLUMN MOUNTING	197700 COLUMN MOUNTING	-	1	Enquire
34	180632	SCREW	180632 SCREW	-	1	Enquire
35	104030	NYLOC NUT M8 X 1.25 X 9.5	104030 NYLOC NUT M8 X 1.25 X 9.5	-	1	Enquire
36	12625224	WASHER	12625224 WASHER	-	2	Enquire
37	171535	TRIMMED LEVER	171535 TRIMMED LEVER	-	1	Enquire
38	171503	ARM PIN	171503 ARM PIN	-	1	Enquire
39	10336630	PIN	10336630 PIN	-	1	Enquire
40	13274611	SCREW	13274611 SCREW Applicable for F1 gearbox	-	3	Enquire
41	12604178	Washer	12604178 Washer Applicable for F1 gearbox	-	3	Enquire
42	65164200	BRACKET	65164200 BRACKET	-	1	Enquire
43	13273977	SCREW	13273977 SCREW	-	3	Enquire
44	62769800	WASHER	62769800 WASHER	-	3	Enquire
45	61002200	NUT	61002200 NUT	-	2	Enquire
46	172563	ANTI-THEFT SYSTEM FASTENER SCREW	172563 ANTI-THEFT SYSTEM FASTENER SCREW	-	1	Enquire
47	200970	RING NUT	200970 RING NUT	-	1	Enquire
48	177977	PLATE	177977 PLATE	-	1	Enquire
49	178430	FASTENER CLIP	178430 FASTENER CLIP	-	1	Enquire
50	192229	HEXAGONAL SCREW	192229 HEXAGONAL SCREW	-	3	Enquire
51	192230	WASHER	192230 WASHER	-	3	Enquire
52	171523	PLATE	171523 PLATE	-	1	Enquire
53	10977724	SCREW	10977724 SCREW	-	2	Enquire
54	11181574	WASHER	11181574 WASHER	-	2	Enquire
55	171544	ARM SIDE SLIPPER	171544 ARM SIDE SLIPPER	-	1	Enquire
56	171501	SPLINED FIXED SLIPPER	171501 SPLINED FIXED SLIPPER	-	1	Enquire
57	171502	SLIPPER SPRING	171502 SLIPPER SPRING	-	1	Enquire
58	171529	MOBILE SPLINED SLIPPER	171529 MOBILE SPLINED SLIPPER	-	1	Enquire
59	171542	NUT	171542 NUT	-	1	Enquire
60	147985	NUT	147985 NUT	-	1	Enquire
61	199784	BUSHING	199784 BUSHING	-	1	Enquire
62	203213	WASHER	203213 WASHER	-	1	Enquire
