REAR SUSPENSION - ARMS

Find Your Part

Ferrari 430 Coupe - REAR SUSPENSION - ARMS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
200946 Rear Upper Suspension Lever $706.01 To Order
Photo Part No Description Price (each) Stock
179555 COMPENSATOR RING BUSHING $5.61 To Order
Photo Part No Description Price (each) Stock
171848 Rubber Boot and Clip $134.77 To Order
Photo Part No Description Price (each) Stock
175910 ADJUSTMENT PLATE $8.22 To Order
175911 ADJUSTMENT PLATE $10.76 To Order
175912 ADJUSTMENT PLATE $2.61 To Order
...and 9 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
184610 Flanbloc $288.81 To Order
Photo Part No Description Price (each) Stock
104030 NUT $0.26 To Order
Photo Part No Description Price (each) Stock
14496524 WASHER $0.11 To Order
Photo Part No Description Price (each) Stock
12628904 WASHER $0.21 To Order
Photo Part No Description Price (each) Stock
170155 THREADED ROD $17.62 To Order
Photo Part No Description Price (each) Stock
179556 SCREW $56.68 To Order
Photo Part No Description Price (each) Stock
179330 RH REAR STUB AXLE $1,139.25 To Order
179328 LH REAR STUB AXLE $1,139.25 To Order
Photo Part No Description Price (each) Stock
200941 RH Rear Lower Suspension Lever $706.01 To Order
200942 LH LOWER ARM $706.01 To Order
Photo Part No Description Price (each) Stock
179555 COMPENSATOR RING BUSHING $5.61 To Order
Photo Part No Description Price (each) Stock
171847 Rubber Boot And Clip $128.35 To Order
Photo Part No Description Price (each) Stock
179554 COMPENSATOR RING $5.92 To Order
Photo Part No Description Price (each) Stock
212948 SILENT BLOCK BUSH FOR SHOCK ABSORBER $176.49 ARRIVING SOON
Photo Part No Description Price (each) Stock
182215 SCREW $6.37 To Order
Photo Part No Description Price (each) Stock
12574521 Nyloc Nut $0.92 To Order
Photo Part No Description Price (each) Stock
126648 WASHER D.10.5-21 X 2 $1.91 To Order
Photo Part No Description Price (each) Stock
181598 SCREW $78.61 To Order
Photo Part No Description Price (each) Stock
194791 Complete - Tie Rod $3,886.08 To Order
194791 Complete - Tie Rod $3,886.08 To Order
Photo Part No Description Price (each) Stock
86768100 SCREW $0.50 To Order
Photo Part No Description Price (each) Stock
84653800 WASHER $5.75 To Order
Photo Part No Description Price (each) Stock
179556 SCREW $56.68 To Order
Photo Part No Description Price (each) Stock
13582271 INSERT $8.02 To Order
Photo Part No Description Price (each) Stock
204248 NUT $39.17 To Order
Photo Part No Description Price (each) Stock
181882 BALL TIE ROD $786.24 To Order
194794 ROD END FOR TIE-ROD $449.27 ARRIVING SOON
Photo Part No Description Price (each) Stock
203633 Upper Ball Joint $263.79 To Order
Photo Part No Description Price (each) Stock
203632 Lower Ball Joint $339.17 To Order
View All

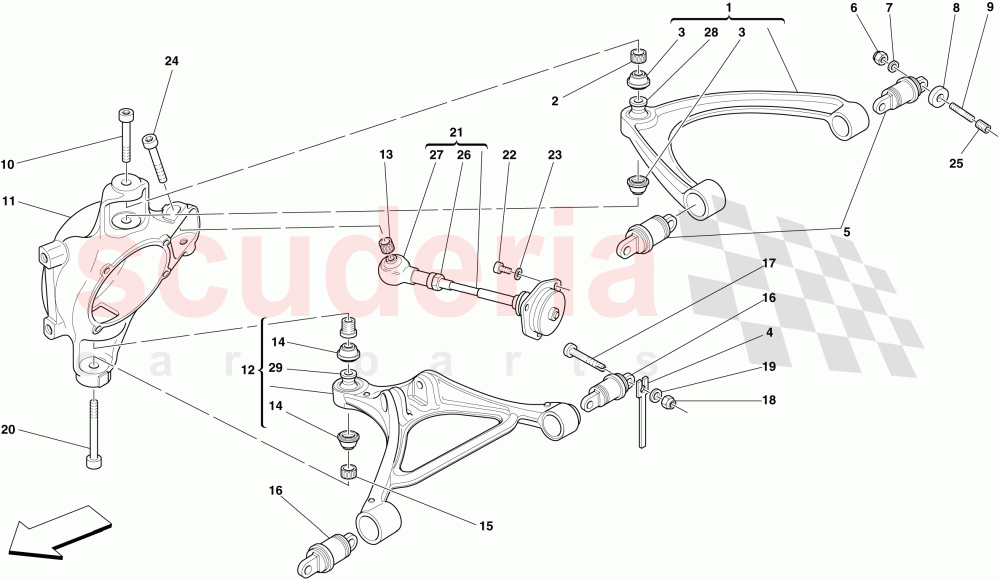

REAR SUSPENSION - ARMS of Ferrari Ferrari 430 Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 200946
Rear Upper Suspension Lever 		$706.01 2
2 179555
COMPENSATOR RING BUSHING 		$5.61 (11.9% off) 2
3 171848
Rubber Boot and Clip 		$134.77 (22.6% off) 4
4 175910
ADJUSTMENT PLATE
Th. 1 mm; Installed if necessary 		$8.22 6
4 175911
ADJUSTMENT PLATE
Th. 2 mm; Installed if necessary 		$10.76 6
4 175912
ADJUSTMENT PLATE
Th. 3 mm; Installed if necessary 		$2.61 (50.8% off) 6
4 178953
Adjustment plate
Th. 4 mm; Installed if necessary 		$2.97 (34% off) 6
4 215549
ADJUSTMENT PLATE
Th. 5 mm; Installed if necessary 		$3.52 6
4 178942
ADJUSTMENT PLATE
Th. 1 mm; Installed if necessary 		$19.04 2
4 178943
ADJUSTMENT PLATE
Th. 2 mm; Installed if necessary 		$15.66 2
4 178944
ADJUSTMENT PLATE
Th. 3 mm; Installed if necessary 		$2.01 2
4 178954
ADJUSTMENT PLATE
Th. 4 mm; Installed if necessary 		$22.51 2
4 215621
ADJUSTMENT PLATE
Th. 0.5 mm; Installed if necessary 		$3.03 (39.4% off) 2
4 234287
ADJUSTMENT PLATE
Th. 2.5 mm; Installed if necessary 		$3.03 2
4 234292
ADJUSTMENT PLATE
Th. 2.5 mm; Installed if necessary 		$30.47 2
5 184610
Flanbloc 		$288.81 (20.7% off) 4
6 104030
NUT 		$0.26 (74% off) 8
7 14496524
WASHER 		$0.11 (92.7% off) 8
8 12628904
WASHER 		$0.21 8
9 170155
THREADED ROD 		$17.62 8
10 179556
SCREW 		$56.68 2
11 179330
RH REAR STUB AXLE 		$1,139.25 1
11 179328
LH REAR STUB AXLE 		$1,139.25 (20.6% off) 1
12 200941
RH Rear Lower Suspension Lever 		$706.01 (28.4% off) 1
12 200942
LH LOWER ARM 		$706.01 (40.1% off) 1
13 179555
COMPENSATOR RING BUSHING 		$5.61 (11.9% off) 2
14 171847
Rubber Boot And Clip 		$128.35 (26.3% off) 4
15 179554
COMPENSATOR RING 		$5.92 (11.4% off) 2
16 212948
SILENT BLOCK BUSH FOR SHOCK ABSORBER
ARRIVING SOON 		$176.49 (20.9% off) 4
17 182215
SCREW 		$6.37 8
18 12574521
Nyloc Nut 		$0.92 (54% off) 8
19 126648
WASHER D.10.5-21 X 2 		$1.91 8
20 181598
SCREW 		$78.61 2
21 194791
Complete - Tie Rod
Applicable up to Ass. No. 55578 		$3,886.08 2
21 194791
Complete - Tie Rod
Applicable from Ass. No. 55579 		$3,886.08 2
22 86768100
SCREW 		$0.50 6
23 84653800
WASHER 		$5.75 6
24 179556
SCREW 		$56.68 2
25 13582271
INSERT 		$8.02 (21% off) 8
26 204248
NUT 		$39.17 2
27 181882
BALL TIE ROD
Applicable up to Ass. No. 55578 		$786.24 (22% off) 2
27 194794
ROD END FOR TIE-ROD
Applicable from Ass. No. 55579
ARRIVING SOON 		$449.27 (17.8% off) 2
28 203633
Upper Ball Joint 		$263.79 2
29 203632
Lower Ball Joint 		$339.17 2
