BRAKE SYSTEM -Not applicable for GD- of Ferrari Ferrari 430 Coupe

View All

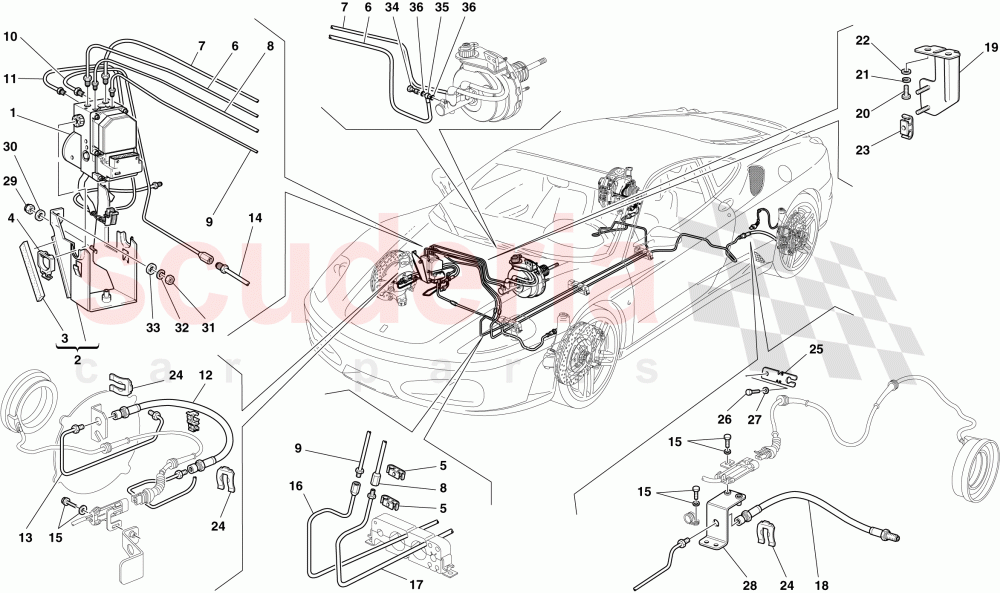

Ferrari 430 Coupe - BRAKE SYSTEM -Not applicable for GD-

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	221252	ABS/ASR HYDRAULIC UNIT/ECU	Enquire	To Order
	194608	ABS/ASR HYDRAULIC UNIT/ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	203603	ECU MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	197149	VIBRATION DAMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	193877	FASTENER CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	212645	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	209904	BRAKE PIPE FROM FRONT BRAKE PUMP TO HYDRAULIC UNIT	Enquire	To Order
	194602	BRAKE PIPE FROM FRONT BRAKE PUMP TO HYDRAULIC UNIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	209906	BRAKE PIPE FROM REAR BRAKE PUMP TO HYDRAULIC UNIT	Enquire	To Order
	194601	BRAKE PIPE FROM REAR BRAKE PUMP TO HYDRAULIC UNIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	194603	PIPE FROM ECU TO LH INTERMEDIATE PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	194604	PIPE FROM ECU TO RH INTERMEDIATE PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	194605	PIPE FROM ECU TO INTERMEDIATE PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	194606	PIPE FROM ECU TO RH FRONT BRAKE PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	271771	PIPE	Enquire	To Order
	268658	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	200325	FRONT LH BRAKE PIPE	Enquire	To Order
	173806	FRONT RH BRAKE PIPE	Enquire	To Order
	173805	FRONT LH BRAKE PIPE	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	205295	INTERMEDIATE PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	250657	SCREW M6 X 14	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	205093	PIPE TO REAR RH HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	205094	TUBE TO REAR LH HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	207278	BRAKE PIPE MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10902424	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13577724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	212645	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	116374	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	216383	RH CABLE RETAINER	Enquire	To Order
	216382	LH CABLE RETAINER	Enquire	To Order
	178938	CABLE MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10977524	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185283	REAR MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	147985	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12638524	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT M8 FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127496	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	Enquire	To Order
	12638524	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10107225	PIPE UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	249656	CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10261060	GASKET COPPER 12 - 16 X 1.5	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	221252	ABS/ASR HYDRAULIC UNIT/ECU	221252 ABS/ASR HYDRAULIC UNIT/ECU Not for GD; Applicable from Ass. No. 61537	-	1	Enquire
1	194608	ABS/ASR HYDRAULIC UNIT/ECU	194608 ABS/ASR HYDRAULIC UNIT/ECU Not for GD; Applicable up to Ass. No. 61536	-	1	Enquire
2	203603	ECU MOUNTING BRACKET	203603 ECU MOUNTING BRACKET Not for GD	-	1	Enquire
3	197149	VIBRATION DAMPER	197149 VIBRATION DAMPER Not for GD	-	1	Enquire
4	193877	FASTENER CLIP	193877 FASTENER CLIP Not for GD	-	2	Enquire
5	212645	CLIP	212645 CLIP Not for GD	-	4	Enquire
6	209904	BRAKE PIPE FROM FRONT BRAKE PUMP TO HYDRAULIC UNIT	209904 BRAKE PIPE FROM FRONT BRAKE PUMP TO HYDRAULIC UNIT Version with CCM brakes; Not for GD	-	1	Enquire
6	194602	BRAKE PIPE FROM FRONT BRAKE PUMP TO HYDRAULIC UNIT	194602 BRAKE PIPE FROM FRONT BRAKE PUMP TO HYDRAULIC UNIT Standard; Cast iron version; Not for GD	-	1	Enquire
7	209906	BRAKE PIPE FROM REAR BRAKE PUMP TO HYDRAULIC UNIT	209906 BRAKE PIPE FROM REAR BRAKE PUMP TO HYDRAULIC UNIT Version with CCM brakes; Not for GD	-	1	Enquire
7	194601	BRAKE PIPE FROM REAR BRAKE PUMP TO HYDRAULIC UNIT	194601 BRAKE PIPE FROM REAR BRAKE PUMP TO HYDRAULIC UNIT Standard; Cast iron version; Not for GD	-	1	Enquire
8	194603	PIPE FROM ECU TO LH INTERMEDIATE PIPE	194603 PIPE FROM ECU TO LH INTERMEDIATE PIPE Not for GD	-	1	Enquire
9	194604	PIPE FROM ECU TO RH INTERMEDIATE PIPE	194604 PIPE FROM ECU TO RH INTERMEDIATE PIPE Not for GD	-	1	Enquire
10	194605	PIPE FROM ECU TO INTERMEDIATE PIPE	194605 PIPE FROM ECU TO INTERMEDIATE PIPE Not for GD	-	1	Enquire
11	194606	PIPE FROM ECU TO RH FRONT BRAKE PIPE	194606 PIPE FROM ECU TO RH FRONT BRAKE PIPE Not for GD	-	1	Enquire
12	271771	PIPE	271771 PIPE Not for GD; Applicable after depletion of 116373	-	2	Enquire
12	268658	RUBBER PIPE	268658 RUBBER PIPE Not for GD; Applicable until depletion	-	2	Enquire
13	200325	FRONT LH BRAKE PIPE	200325 FRONT LH BRAKE PIPE Version with CCM brakes; Not for GD	-	1	Enquire
13	173806	FRONT RH BRAKE PIPE	173806 FRONT RH BRAKE PIPE Not for GD	-	1	Enquire
13	173805	FRONT LH BRAKE PIPE	173805 FRONT LH BRAKE PIPE Not for GD	-	1	Enquire
13	200324	FRONT RH BRAKE PIPE	200324 FRONT RH BRAKE PIPE Version with CCM brakes; Not for GD	-	1	Enquire
14	205295	INTERMEDIATE PIPE	205295 INTERMEDIATE PIPE Not for GD	-	1	Enquire
15	250657	SCREW M6 X 14	250657 SCREW M6 X 14 Not for GD	-	6	Enquire
16	205093	PIPE TO REAR RH HOSE	205093 PIPE TO REAR RH HOSE Not for GD	-	1	Enquire
17	205094	TUBE TO REAR LH HOSE	205094 TUBE TO REAR LH HOSE Not for GD	-	1	Enquire
19	207278	BRAKE PIPE MOUNTING BRACKET	207278 BRAKE PIPE MOUNTING BRACKET Not for GD	-	1	Enquire
20	10902424	SCREW	10902424 SCREW Not for GD	-	2	Enquire
21	127494	WASHER	127494 WASHER Not for GD	-	2	Enquire
22	13577724	WASHER	13577724 WASHER Not for GD	-	2	Enquire
23	212645	CLIP	212645 CLIP Not for GD	-	1	Enquire
24	116374	CLIP	116374 CLIP Not for GD	-	8	Enquire
25	216383	RH CABLE RETAINER	216383 RH CABLE RETAINER Version with CCM brakes; Not for GD	-	1	Enquire
25	216382	LH CABLE RETAINER	216382 LH CABLE RETAINER Version with CCM brakes; Not for GD	-	1	Enquire
25	178938	CABLE MOUNTING	178938 CABLE MOUNTING Standard; Cast iron version; Not for GD	-	2	Enquire
26	10977524	SCREW	10977524 SCREW Not for GD	-	2	Enquire
28	185283	REAR MOUNTING	185283 REAR MOUNTING Not for GD	-	2	Enquire
29	147985	NUT	147985 NUT Not for GD	-	1	Enquire
30	12638524	WASHER	12638524 WASHER Not for GD	-	1	Enquire
31	14040711	NUT M8 FLANGED	14040711 NUT M8 FLANGED Not for GD	-	1	Enquire
32	127496	WASHER	127496 WASHER Not for GD	-	1	Enquire
33	84653800	WASHER	84653800 WASHER Not for GD	-	1	Enquire
33	12638524	WASHER	12638524 WASHER Not for GD; No longer supplied; Replaced by 12646724	-	1	Enquire
34	10107225	PIPE UNION	10107225 PIPE UNION Not for GD	-	1	Enquire
35	249656	CONNECTOR	249656 CONNECTOR Not for GD	-	1	Enquire
36	10261060	GASKET COPPER 12 - 16 X 1.5	10261060 GASKET COPPER 12 - 16 X 1.5 Not for GD	-	2	Enquire
