Ferrari 430 Coupe - BATTERY

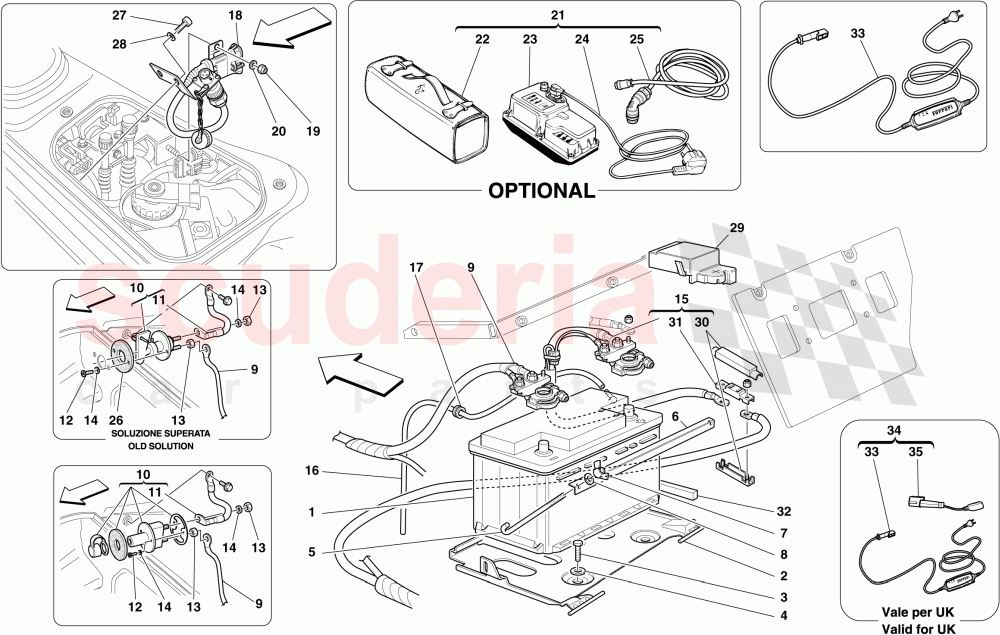

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	67943100	BATTERY MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81591700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12648925	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	188272	TIE-ROD	Enquire	To Order
	68138000	TIE-ROD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69836200	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	250760	DASHBOARD CONNECTOR CABLES	Enquire	To Order
	250758	DASHBOARD CONNECTOR CABLES	Enquire	To Order
	240643	DASHBOARD CONNECTOR CABLES	Enquire	To Order

...and 32 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	240470	BATTERY MASTER SWITCH ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	196451	GROUND BRAID	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14304324	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10721911	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12638124	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	181056	BATTERY BREATHER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10396280	CABLE GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	200857	BATTERY CHARGER CONNECTOR WIRING HARNESS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	70002820	BATTERY CHARGER KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65699200	BATTERY CHARGER CASE CONTAINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177791	BATTERY CHARGER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177794	POWER CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	178676	CABLE COMPLETE WITH CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	198207	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10902224	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13577724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185418	PROTECTIVE COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	198703	MEGA FUSE HOLDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	198704	MEGA FUSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	217351	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	803883	BATTERY CHARGER KIT	Enquire	To Order
	803880	BATTERY CHARGER KIT	Enquire	To Order
	70002820	BATTERY CHARGER KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	95998029	WALL ADAPTER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
2	67943100	BATTERY MOUNTING	67943100 BATTERY MOUNTING	-	1	Enquire
3	81591700	SCREW	81591700 SCREW L. 14 mm	-	3	Enquire
4	12648925	WASHER	12648925 WASHER	-	3	Enquire
5	188272	TIE-ROD	188272 TIE-ROD Applicable for battery Part No. 214466 ref. 1	-	2	Enquire
5	68138000	TIE-ROD	68138000 TIE-ROD Applicable for battery Part No. 168852 ref. 1	-	2	Enquire
6	69836200	BRACKET	69836200 BRACKET	-	1	Enquire
7	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
8	12643724	WASHER	12643724 WASHER	-	2	Enquire
9	250760	DASHBOARD CONNECTOR CABLES	250760 DASHBOARD CONNECTOR CABLES Full house; Bose Hi-Fi system; Applicable from MY 08; Not for GD; Applicable from Ass. No. 81812	-	1	Enquire
9	250758	DASHBOARD CONNECTOR CABLES	250758 DASHBOARD CONNECTOR CABLES Navtrak; Full house; Not for GD; Applicable from Ass. No. 81812	-	1	Enquire
9	240643	DASHBOARD CONNECTOR CABLES	240643 DASHBOARD CONNECTOR CABLES Navtrak; Full house; Not for GD; Applicable from Ass. No. 71979 up to Ass. No. 81811	-	1	Enquire
9	232677	DASHBOARD CONNECTOR CABLES	232677 DASHBOARD CONNECTOR CABLES Navtrak; Full house; Not for GD; Applicable from Ass. No. 71568 up to Ass. No. 71978	-	1	Enquire
9	231519	DASHBOARD CONNECTOR CABLES	231519 DASHBOARD CONNECTOR CABLES Navtrak; Full house; Not for GD; Applicable from Ass. No. 67218 up to Ass. No. 71567	-	1	Enquire
9	227584	DASHBOARD CONNECTOR CABLES	227584 DASHBOARD CONNECTOR CABLES Navtrak; Full house; Not for GD; Applicable from Ass. No. 65971 up to Ass. No. 67217	-	1	Enquire
9	220461	DASHBOARD CONNECTOR CABLES	220461 DASHBOARD CONNECTOR CABLES Full house; Not for GD; Applicable from Ass. No. 61555 up to Ass. No. 65970	-	1	Enquire
9	233837	FRONT CABLES	233837 FRONT CABLES Standard; Applicable for USA, CDN; Not for GD; Applicable from Ass. No. 71979	-	1	Enquire
9	232679	DASHBOARD CONNECTOR CABLES	232679 DASHBOARD CONNECTOR CABLES Standard; Applicable for USA, CDN; Not for GD; Applicable from Ass. No. 71568 up to Ass. No. 71978	-	1	Enquire
9	231520	DASHBOARD CONNECTOR CABLES	231520 DASHBOARD CONNECTOR CABLES Standard; Applicable for USA, CDN; Applicable from Ass. No. 67218 up to Ass. No. 71567	-	1	Enquire
9	231520	DASHBOARD CONNECTOR CABLES	231520 DASHBOARD CONNECTOR CABLES Standard; Not for GD; Applicable up to Ass. No. 71567	-	1	Enquire
9	250757	DASHBOARD CONNECTOR CABLES	250757 DASHBOARD CONNECTOR CABLES Standard; Not for GD; Applicable from Ass. No. 81812	-	1	Enquire
9	240642	DASHBOARD CONNECTOR CABLES	240642 DASHBOARD CONNECTOR CABLES Standard; Not for GD; Applicable from Ass. No. 71979 up to Ass. No. 81811	-	1	Enquire
9	232674	DASHBOARD CONNECTOR CABLES	232674 DASHBOARD CONNECTOR CABLES Standard; Not for GD; Applicable from Ass. No. 71568 up to Ass. No. 71978	-	1	Enquire
9	231520	DASHBOARD CONNECTOR CABLES	231520 DASHBOARD CONNECTOR CABLES Standard; Applicable for USA, CDN; Applicable from Ass. No. 61555 up to Ass. No. 67217	-	1	Enquire
9	231520	DASHBOARD CONNECTOR CABLES	231520 DASHBOARD CONNECTOR CABLES Standard; Not for GD; Applicable from Ass. No. 61555 up to Ass. No. 71567	-	1	Enquire
9	218503	DASHBOARD CONNECTOR CABLES	218503 DASHBOARD CONNECTOR CABLES Full house; Not for GD; Applicable up to Ass. No. 61554	-	1	Enquire
9	218384	DASHBOARD CONNECTOR CABLES	218384 DASHBOARD CONNECTOR CABLES Standard; Not for GD; Applicable up to Ass. No. 61554	-	1	Enquire
9	250760	DASHBOARD CONNECTOR CABLES	250760 DASHBOARD CONNECTOR CABLES Applicable for high power Bose Hi-Fi; Not for GD; Applicable from Ass. No. 81812	-	1	Enquire
9	240646	DASHBOARD CONNECTOR CABLES	240646 DASHBOARD CONNECTOR CABLES Applicable for high power Bose Hi-Fi; Not for GD; Applicable up to Ass. No. 81811	-	1	Enquire
9	240229	DASHBOARD CONNECTOR CABLES	240229 DASHBOARD CONNECTOR CABLES Applicable for high power Bose Hi-Fi; Not for GD	-	1	Enquire
9	240231	DASHBOARD CONNECTOR CABLES	240231 DASHBOARD CONNECTOR CABLES Applicable for radio amplifier; Not for High power Bose Hi-Fi; Applicable for GD	-	1	Enquire
9	240230	DASHBOARD CONNECTOR CABLES	240230 DASHBOARD CONNECTOR CABLES Not for radio amplifier; Not for High power Bose Hi-Fi; Applicable for GD	-	1	Enquire
9	240232	DASHBOARD CONNECTOR CABLES	240232 DASHBOARD CONNECTOR CABLES Applicable for high power Bose Hi-Fi; Not for radio amplifier; Applicable for GD	-	1	Enquire
9	241954	DASHBOARD CONNECTOR CABLES	241954 DASHBOARD CONNECTOR CABLES Navtrak; Standard; Applicable for GD; Applicable from Ass. No. 71979	-	1	Enquire
9	232683	DASHBOARD CONNECTOR CABLES	232683 DASHBOARD CONNECTOR CABLES Navtrak; Standard; Applicable for GD; Applicable from Ass. No. 71568 up to Ass. No. 71978	-	1	Enquire
9	228204	DASHBOARD CONNECTOR CABLES	228204 DASHBOARD CONNECTOR CABLES Navtrak; Standard; Applicable for GD; Applicable from Ass. No. 65449 up to Ass. No. 71567	-	1	Enquire
9	241956	DASHBOARD CONNECTOR CABLES	241956 DASHBOARD CONNECTOR CABLES Full house; Bose Hi-Fi system; Applicable from MY 08; Applicable for GD; Applicable from Ass. No. 74557	-	1	Enquire
9	241955	DASHBOARD CONNECTOR CABLES	241955 DASHBOARD CONNECTOR CABLES Navtrak; Full house; Applicable up to MY 08; Applicable for GD; Applicable from Ass. No. 71979 up to Ass. No. 74556	-	1	Enquire
9	232682	DASHBOARD CONNECTOR CABLES	232682 DASHBOARD CONNECTOR CABLES Navtrak; Full house; Applicable for GD; Applicable from Ass. No. 71568 up to Ass. No. 71978	-	1	Enquire
9	227585	DASHBOARD CONNECTOR CABLES	227585 DASHBOARD CONNECTOR CABLES Navtrak; Full house; Applicable for GD; Applicable from Ass. No. 65449 up to Ass. No. 71567	-	1	Enquire
9	220462	DASHBOARD CONNECTOR CABLES	220462 DASHBOARD CONNECTOR CABLES Applicable for GD; Applicable from Ass. No. 61555 up to Ass. No. 65448	-	1	Enquire
9	218507	DASHBOARD CONNECTOR CABLES	218507 DASHBOARD CONNECTOR CABLES Applicable for GD; Applicable up to Ass. No. 61554	-	1	Enquire
9	250759	DASHBOARD CONNECTOR CABLES	250759 DASHBOARD CONNECTOR CABLES Navtrak; Optional; Not for GD; Applicable from Ass. No. 81812	-	1	Enquire
9	240644	DASHBOARD CONNECTOR CABLES	240644 DASHBOARD CONNECTOR CABLES Navtrak; Optional; Not for GD; Applicable from Ass. No. 71979 up to Ass. No. 81811	-	1	Enquire
10	240470	BATTERY MASTER SWITCH ASSEMBLY	240470 BATTERY MASTER SWITCH ASSEMBLY	-	1	Enquire
11	196451	GROUND BRAID	196451 GROUND BRAID	-	1	Enquire
12	14304324	SCREW	14304324 SCREW	-	2	Enquire
13	10721911	NUT	10721911 NUT	-	2	Enquire
14	12638124	WASHER	12638124 WASHER	-	4	Enquire
16	181056	BATTERY BREATHER PIPE	181056 BATTERY BREATHER PIPE	-	1	Enquire
17	10396280	CABLE GROMMET	10396280 CABLE GROMMET	-	1	Enquire
18	200857	BATTERY CHARGER CONNECTOR WIRING HARNESS	200857 BATTERY CHARGER CONNECTOR WIRING HARNESS Optional	-	1	Enquire
19	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6 Optional	-	1	Enquire
20	10519424	WASHER	10519424 WASHER Optional	-	1	Enquire
21	70002820	BATTERY CHARGER KIT	70002820 BATTERY CHARGER KIT Optional	-	1	Enquire
22	65699200	BATTERY CHARGER CASE CONTAINER	65699200 BATTERY CHARGER CASE CONTAINER Optional	-	1	Enquire
23	177791	BATTERY CHARGER	177791 BATTERY CHARGER 230 V; Optional	-	1	Enquire
24	177794	POWER CABLE	177794 POWER CABLE Optional	-	1	Enquire
25	178676	CABLE COMPLETE WITH CONNECTOR	178676 CABLE COMPLETE WITH CONNECTOR Optional	-	1	Enquire
26	198207	GASKET	198207 GASKET	-	1	Enquire
27	10902224	SCREW	10902224 SCREW	-	1	Enquire
28	13577724	WASHER	13577724 WASHER	-	1	Enquire
29	185418	PROTECTIVE COVER	185418 PROTECTIVE COVER	-	1	Enquire
30	198703	MEGA FUSE HOLDER	198703 MEGA FUSE HOLDER	-	1	Enquire
31	198704	MEGA FUSE	198704 MEGA FUSE	-	1	Enquire
32	217351	GASKET	217351 GASKET	-	1	Enquire
33	803883	BATTERY CHARGER KIT	803883 BATTERY CHARGER KIT Optional; Applicable for J	-	1	Enquire
33	803880	BATTERY CHARGER KIT	803880 BATTERY CHARGER KIT Optional; Applicable for USA, CDN, USA LIGHT	-	1	Enquire
33	70002820	BATTERY CHARGER KIT	70002820 BATTERY CHARGER KIT Optional; Not for AUS, USA, CDN, J, USA LIGHT	-	1	Enquire
35	95998029	WALL ADAPTER	95998029 WALL ADAPTER Optional; Applicable for UK	-	1	Enquire
