PNEUMATIC ACTUATOR SYSTEM of Ferrari Ferrari 430 Coupe

View All

Ferrari 430 Coupe - PNEUMATIC ACTUATOR SYSTEM

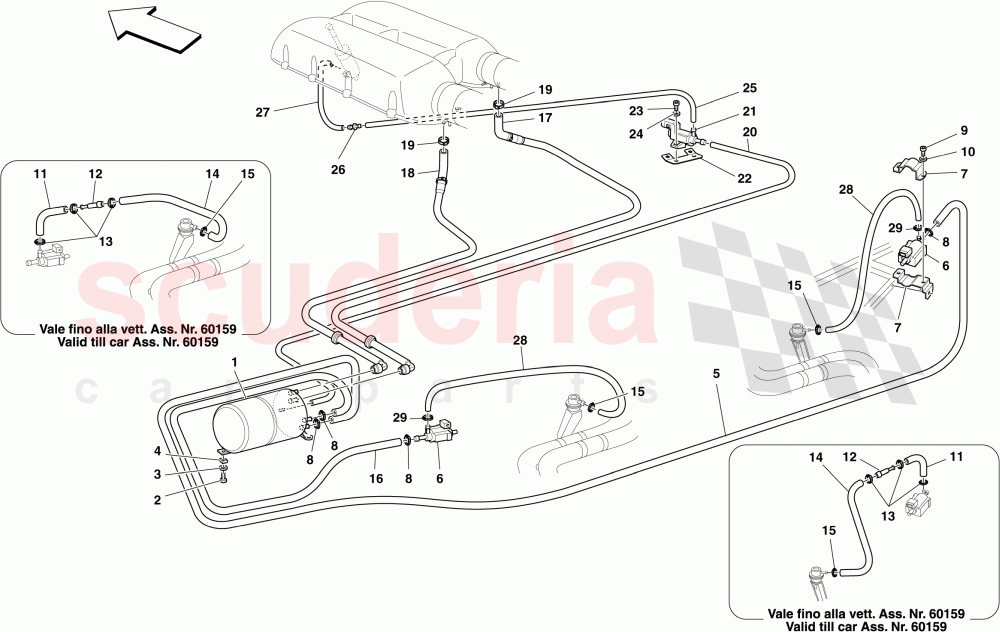

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	207624	VACUUM ACCUMULATOR TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10902224	SCREW	Enquire	To Order
	10902424	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12639724	WASHER	Enquire	To Order
	13577724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	210352	PIPE FROM TANK TO RH SOLENOID VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	178309	SOLENOID VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	178515	SOLENOID VALVE MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13432170	COLLAR FOR HOSE UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88822200	SCREW TORX HEAD M4 X 10MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127492	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	178552	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	178369	CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13432270	HOSE COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	147121	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	241986	COLLAR FOR HOSE UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	210351	PIPE FROM TANK TO LH SOLENOID VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	222112	COMPLETE RH VACUUM PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	222114	COMPLETE LH VACUUM PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13432070	HOSE COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	124406	PIPE FROM TANK TO CONNECTOR	Enquire	To Order
	169692	PIPE FROM TANK TO SOLENOID VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	200111	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14304124	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12544179	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	122126	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	178491	CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	168248	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	198275	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13432270	HOSE COLLAR	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	207624	VACUUM ACCUMULATOR TANK	207624 VACUUM ACCUMULATOR TANK	-	1	Enquire
2	10902224	SCREW	10902224 SCREW No longer supplied; Replaced by 10902424	-	3	Enquire
2	10902424	SCREW	10902424 SCREW	-	3	Enquire
3	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	3	Enquire
4	12639724	WASHER	12639724 WASHER No longer supplied; Replaced by 12644424	-	3	Enquire
4	13577724	WASHER	13577724 WASHER	-	3	Enquire
5	210352	PIPE FROM TANK TO RH SOLENOID VALVE	210352 PIPE FROM TANK TO RH SOLENOID VALVE	-	1	Enquire
6	178309	SOLENOID VALVE	178309 SOLENOID VALVE	-	2	Enquire
7	178515	SOLENOID VALVE MOUNTING	178515 SOLENOID VALVE MOUNTING	-	2	Enquire
8	13432170	COLLAR FOR HOSE UNION	13432170 COLLAR FOR HOSE UNION	-	4	Enquire
9	88822200	SCREW TORX HEAD M4 X 10MM	88822200 SCREW TORX HEAD M4 X 10MM	-	4	Enquire
10	127492	WASHER	127492 WASHER	-	4	Enquire
11	178552	RUBBER PIPE	178552 RUBBER PIPE Applicable up to Ass. No. 60159	-	2	Enquire
12	178369	CONNECTOR	178369 CONNECTOR Applicable up to Ass. No. 60159	-	2	Enquire
13	13432270	HOSE COLLAR	13432270 HOSE COLLAR Applicable up to Ass. No. 60159	-	6	Enquire
14	147121	RUBBER PIPE	147121 RUBBER PIPE Applicable up to Ass. No. 60159	-	2	Enquire
15	241986	COLLAR FOR HOSE UNION	241986 COLLAR FOR HOSE UNION	-	2	Enquire
16	210351	PIPE FROM TANK TO LH SOLENOID VALVE	210351 PIPE FROM TANK TO LH SOLENOID VALVE	-	1	Enquire
17	222112	COMPLETE RH VACUUM PIPE	222112 COMPLETE RH VACUUM PIPE	-	1	Enquire
18	222114	COMPLETE LH VACUUM PIPE	222114 COMPLETE LH VACUUM PIPE	-	1	Enquire
19	13432070	HOSE COLLAR	13432070 HOSE COLLAR	-	2	Enquire
20	124406	PIPE FROM TANK TO CONNECTOR	124406 PIPE FROM TANK TO CONNECTOR No longer supplied; Replaced by 169692	-	1	Enquire
20	169692	PIPE FROM TANK TO SOLENOID VALVE	169692 PIPE FROM TANK TO SOLENOID VALVE	-	1	Enquire
22	200111	BRACKET	200111 BRACKET	-	1	Enquire
23	14304124	SCREW	14304124 SCREW	-	2	Enquire
24	12544179	Washer	12544179 Washer	-	2	Enquire
25	122126	RUBBER PIPE	122126 RUBBER PIPE	-	1	Enquire
26	178491	CONNECTOR	178491 CONNECTOR	-	1	Enquire
27	168248	RUBBER PIPE	168248 RUBBER PIPE	-	1	Enquire
28	198275	RUBBER PIPE	198275 RUBBER PIPE Applicable from Ass. No. 60160	-	2	Enquire
29	13432270	HOSE COLLAR	13432270 HOSE COLLAR Applicable from Ass. No. 60160	-	2	Enquire
