REAR PASSENGER COMPARTMENT ECUs of Ferrari Ferrari 430 Coupe

View All

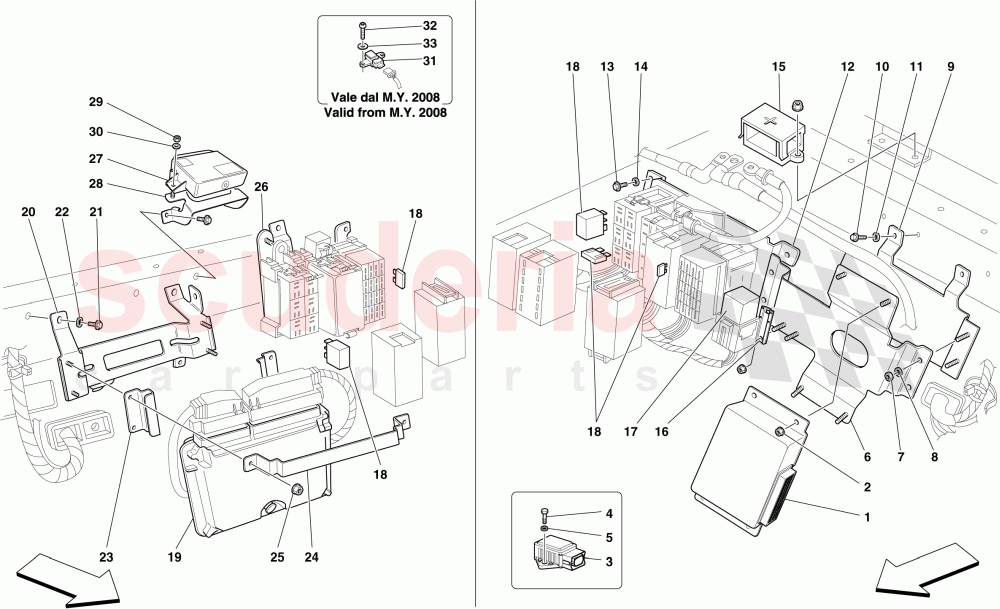

Ferrari 430 Coupe - REAR PASSENGER COMPARTMENT ECUs

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	199174	DIFFERENTIAL ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	319201	FUEL FILLER PIPE ASSEMBLY	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	188172	YAW SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10902424	SCREW	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	81036000	LH UPPER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	67420900	LH LOWER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16296934	SCREW 6 X 14MM	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	81035600	LH. SIDE ECU FASTENING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16296934	SCREW 6 X 14MM	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	170114	TERMINAL BLOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	155184	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	194909	RELAY 50A	Enquire	To Order
	233100	FUSE 12V 50A	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	172882	30 A MICRO RELAY	Enquire	To Order
	183662	IMMOBILIZER/DIAGNOSTIC RELAY	Enquire	To Order
	161590	20 A MICRO RELAY	Enquire	To Order

...and 9 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	196228	F1 GEARBOX CONTROL ECU	Enquire	To Order
	222812	F1 GEARBOX CONTROL ECU	Enquire	To Order
	230462	F1 GEARBOX CONTROL ECU	Enquire	To Order

...and 9 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	81035800	RH LOWER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16296934	SCREW 6 X 14MM	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	81034700	UPPER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68277800	ECU FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	81035900	RH BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	227934	PARKING SENSOR ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68813500	ECU FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	319201	FUEL FILLER PIPE ASSEMBLY	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12604178	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	206071	ACCELERATION SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62940900	Allen Head Screw M6 x 15	Enquire	IN STOCK
	10902424	SCREW	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12644478	WASHER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	199174	DIFFERENTIAL ECU	199174 DIFFERENTIAL ECU	-	1	Enquire
2	319201	FUEL FILLER PIPE ASSEMBLY IN STOCK	319201 FUEL FILLER PIPE ASSEMBLY IN STOCK	-	4	Enquire
3	188172	YAW SENSOR	188172 YAW SENSOR	-	1	Enquire
4	10902424	SCREW IN STOCK	10902424 SCREW IN STOCK	-	2	Enquire
5	11197774	WAVY WASHER D.6.4 X 12 X 1.2 IN STOCK	11197774 WAVY WASHER D.6.4 X 12 X 1.2 IN STOCK	-	2	Enquire
6	81036000	LH UPPER BRACKET	81036000 LH UPPER BRACKET	-	1	Enquire
7	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	-	4	Enquire
8	12643724	WASHER IN STOCK	12643724 WASHER IN STOCK	-	4	Enquire
9	67420900	LH LOWER BRACKET	67420900 LH LOWER BRACKET	-	1	Enquire
10	16296934	SCREW 6 X 14MM IN STOCK	16296934 SCREW 6 X 14MM IN STOCK	-	3	Enquire
11	12643724	WASHER IN STOCK	12643724 WASHER IN STOCK	-	3	Enquire
12	81035600	LH. SIDE ECU FASTENING BRACKET	81035600 LH. SIDE ECU FASTENING BRACKET	-	1	Enquire
13	16296934	SCREW 6 X 14MM IN STOCK	16296934 SCREW 6 X 14MM IN STOCK	-	6	Enquire
14	12643724	WASHER IN STOCK	12643724 WASHER IN STOCK	-	6	Enquire
15	170114	TERMINAL BLOCK	170114 TERMINAL BLOCK Also supplied with battery positive cable 198700	-	1	Enquire
16	155184	BRACKET	155184 BRACKET	-	1	Enquire
17	194909	RELAY 50A	194909 RELAY 50A Applicable until depletion	-	2	Enquire
17	233100	FUSE 12V 50A IN STOCK	233100 FUSE 12V 50A Applicable after depletion of 194909 IN STOCK	-	2	Enquire
18	172882	30 A MICRO RELAY	172882 30 A MICRO RELAY Applicable until depletion	-	4	Enquire
18	183662	IMMOBILIZER/DIAGNOSTIC RELAY	183662 IMMOBILIZER/DIAGNOSTIC RELAY Applicable until depletion	-	1	Enquire
18	161590	20 A MICRO RELAY	161590 20 A MICRO RELAY Applicable until depletion	-	11	Enquire
18	172875	5 A MINI FUSE IN STOCK	172875 5 A MINI FUSE IN STOCK	-	4	Enquire
18	172876	7.5 A MINI FUSE	172876 7.5 A MINI FUSE	-	5	Enquire
18	172877	10 A MINI FUSE	172877 10 A MINI FUSE	-	11	Enquire
18	172878	15 A MINI FUSE IN STOCK	172878 15 A MINI FUSE IN STOCK	-	16	Enquire
18	172879	20 A MINI FUSE	172879 20 A MINI FUSE	-	2	Enquire
18	172881	30 A MINI FUSE	172881 30 A MINI FUSE	-	7	Enquire
18	170093	30 A MAXI FUSE IN STOCK	170093 30 A MAXI FUSE IN STOCK	-	2	Enquire
18	170061	50 A MAXI FUSE IN STOCK	170061 50 A MAXI FUSE IN STOCK	-	1	Enquire
18	172871	60 A MAXI FUSE	172871 60 A MAXI FUSE	-	2	Enquire
19	196228	F1 GEARBOX CONTROL ECU	196228 F1 GEARBOX CONTROL ECU Not for Taiwan; Not for USA, CDN; Applicable for F1 gearbox; Applicable up to gearbox No. 3269	-	1	Enquire
19	222812	F1 GEARBOX CONTROL ECU	222812 F1 GEARBOX CONTROL ECU Not for Taiwan; Not for USA, CDN; Applicable for F1 gearbox; Applicable from gearbox No. 3270 up to gearbox No. 3780	-	1	Enquire
19	230462	F1 GEARBOX CONTROL ECU	230462 F1 GEARBOX CONTROL ECU Not for Taiwan; Applicable for sound kit; Applicable up to MY 08; Not for USA, CDN; Applicable up to Ass. No. 74556; Applicable for F1 gearbox; Applicable from gearbox No. 3781	-	1	Enquire
19	227028	F1 GEARBOX CONTROL ECU	227028 F1 GEARBOX CONTROL ECU Not for Taiwan; Not applicable for sound kit; Applicable up to MY 08; Not for USA, CDN; Applicable up to Ass. No. 74556; Applicable for F1 gearbox	-	1	Enquire
19	257044	F1 GEARBOX CONTROL ECU	257044 F1 GEARBOX CONTROL ECU Not for Taiwan; Not for USA, CDN, J; Applicable for F1 gearbox; Applicable up to gearbox No. 1908	-	1	Enquire
19	257044	F1 GEARBOX CONTROL ECU	257044 F1 GEARBOX CONTROL ECU Not for Taiwan; Not for USA, CDN, J; Applicable for F1 gearbox; Applicable from gearbox No. 1909	-	1	Enquire
19	217781	F1 GEARBOX CONTROL ECU	217781 F1 GEARBOX CONTROL ECU Applicable up to MY 06; Applicable for USA, CDN; Applicable for F1 gearbox	-	1	Enquire
19	222813	F1 GEARBOX CONTROL ECU	222813 F1 GEARBOX CONTROL ECU Applicable from MY 06; Applicable for USA, CDN; Applicable for F1 gearbox; Applicable up to gearbox No. 3780	-	1	Enquire
19	227029	F1 GEARBOX CONTROL ECU	227029 F1 GEARBOX CONTROL ECU Applicable from MY 06; Applicable up to MY 08; Applicable for USA, CDN; Applicable up to Ass. No. 74556; Applicable for F1 gearbox; Applicable from gearbox No. 3781	-	1	Enquire
19	257041	F1 GEARBOX CONTROL ECU IN STOCK	257041 F1 GEARBOX CONTROL ECU Not for launch control and easy exit; Applicable for USA, CDN; Applicable for F1 gearbox IN STOCK	-	1	Enquire
19	224668	F1 GEARBOX CONTROL ECU	224668 F1 GEARBOX CONTROL ECU Applicable for Taiwan; Applicable for F1 gearbox	-	1	Enquire
19	257043	F1 GEARBOX CONTROL ECU	257043 F1 GEARBOX CONTROL ECU Applicable for J; Applicable for F1 gearbox	-	1	Enquire
20	81035800	RH LOWER BRACKET	81035800 RH LOWER BRACKET	-	1	Enquire
21	16296934	SCREW 6 X 14MM IN STOCK	16296934 SCREW 6 X 14MM IN STOCK	-	4	Enquire
22	12643724	WASHER IN STOCK	12643724 WASHER IN STOCK	-	4	Enquire
23	81034700	UPPER BRACKET	81034700 UPPER BRACKET	-	2	Enquire
24	68277800	ECU FASTENER BRACKET	68277800 ECU FASTENER BRACKET Applicable for F1 gearbox	-	1	Enquire
25	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	-	4	Enquire
26	81035900	RH BRACKET	81035900 RH BRACKET	-	1	Enquire
27	227934	PARKING SENSOR ECU	227934 PARKING SENSOR ECU Parking sensors; Optional	-	1	Enquire
28	68813500	ECU FASTENER BRACKET	68813500 ECU FASTENER BRACKET Parking sensors; Optional	-	1	Enquire
29	319201	FUEL FILLER PIPE ASSEMBLY IN STOCK	319201 FUEL FILLER PIPE ASSEMBLY Parking sensors; Optional IN STOCK	-	2	Enquire
30	12604178	Washer	12604178 Washer Parking sensors; Optional	-	2	Enquire
31	206071	ACCELERATION SENSOR	206071 ACCELERATION SENSOR Applicable from MY 08; Applicable from Ass. No. 74557	-	1	Enquire
32	62940900	Allen Head Screw M6 x 15 IN STOCK	62940900 Allen Head Screw M6 x 15 Applicable from MY 08; Applicable from Ass. No. 74557; No longer supplied; Replaced by 10902424 IN STOCK	-	2	Enquire
32	10902424	SCREW IN STOCK	10902424 SCREW IN STOCK	-	2	Enquire
33	12644478	WASHER	12644478 WASHER Applicable from MY 08; Applicable from Ass. No. 74557	-	2	Enquire
34	251453	DIODE	251453 DIODE Imagine not available	-	1	Enquire
