ELECTRICAL SYSTEM of Ferrari Ferrari 360 Modena

View All

Ferrari 360 Modena - ELECTRICAL SYSTEM

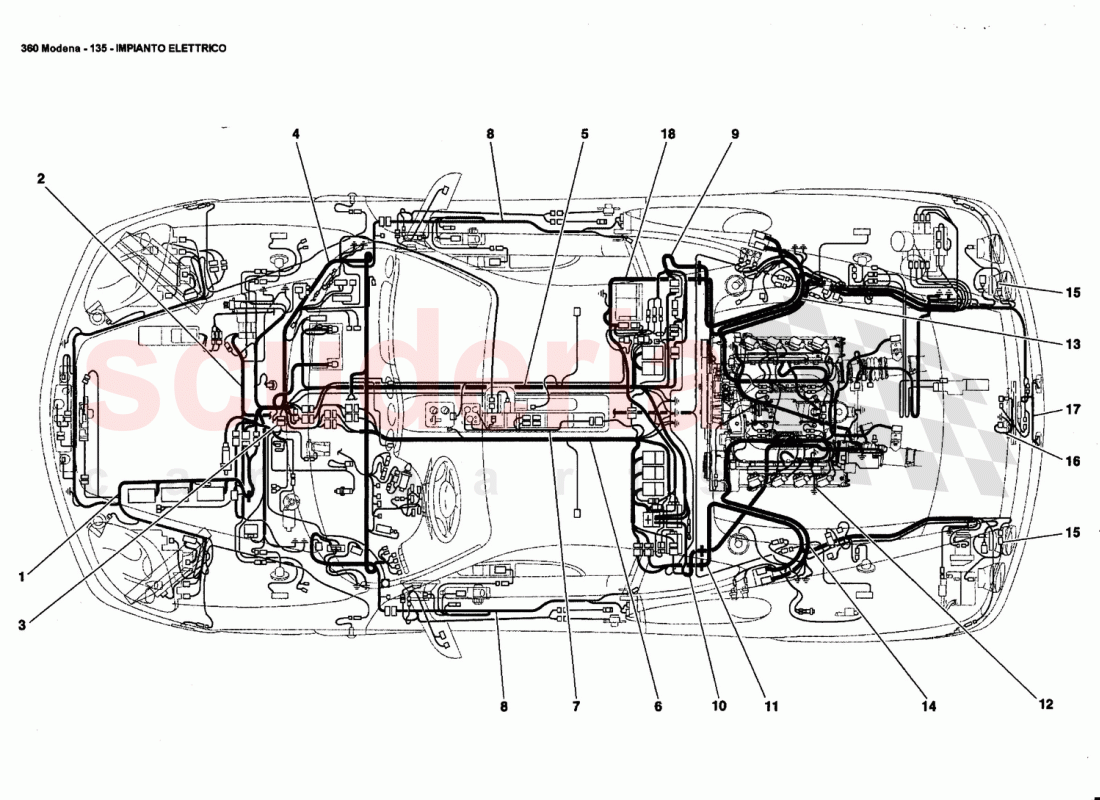

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	200828	FRONT PART CONNECTING CABLES	Enquire	To Order
	178346	FRONT PART CONNECTING CABLES	Enquire	To Order
	183347	FRONT PART CONNECTING CABLES	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	200827	ABS/ASR INSTALLATION CONNECTING CABLES	Enquire	To Order
	200826	ABS/ASR INSTALLATION CONNECTING CABLES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	200838	PEDAL DEVICE CONNECTING CABLES -Not for GD-	Enquire	To Order
	172887	PEDAL DEVICE CONNECTING CABLES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	198553	DASHBOARD CONNECTION CABLES	Enquire	To Order
	186522	DASHBOARD CONNECTION CABLES	Enquire	To Order
	198552	DASHBOARD CONNECTION CABLES	Enquire	To Order

...and 6 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	198555	CABLES FOR R.H. REAR TUNNEL CONNECTION	Enquire	To Order
	198554	CABLES FOR R.H. REAR TUNNEL CONNECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	200847	CABLES FOR LH REAR TUNNEL CONNECTION	Enquire	To Order
	177914	CABLES FOR LH REAR TUNNEL CONNECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	200832	CABLES FOR TUNNEL CONNECTION	Enquire	To Order
	200830	CABLES FOR TUNNEL CONNECTION	Enquire	To Order
	178835	CABLES FOR TUNNEL CONNECTION	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	198209	DOOR CONNECTOR CABLES	Enquire	To Order
	178709	DOOR CONNECTION CABLES	Enquire	To Order
	201104	DOOR CONNECTION CABLES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	200844	CONNECTION CABLES FOR RH ENGINE COMPARTMENT	Enquire	To Order
	205659	CONNECTION CABLES FOR RH ENGINE COMPARTMENT	Enquire	To Order
	177912	CONNECTION CABLES FOR RH ENGINE COMPARTMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	213155	COMPLETE CONNECTION CABLES FOR MOTOR UTILITIES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	200843	CONNECTION CABLES FOR LH ENGINE COMPARTMENT	Enquire	To Order
	200840	CONNECTION CABLES FOR LH ENGINE COMPARTMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	155073	CABLE FOR ENGINE-FRAME EARTH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	199875	R.H. SIDE ENGINE INJECTION CABLES	Enquire	To Order
	199873	R.H. SIDE ENGINE INJECTION CABLES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	199876	L.H. SIDE ENGINE INJECTION CABLES	Enquire	To Order
	199874	L.H. SIDE ENGINE INJECTION CABLES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	200837	REAR LIGHTS CONNECTING CABLES	Enquire	To Order
	173430	REAR LIGHTS CONNECTING CABLES	Enquire	To Order
	200836	REAR LIGHTS CONNECTING CABLES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	241766	STOP-LAMP CONNECTION CABLES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	182985	PLATE LIGHT CABLES	Enquire	To Order
	164823	CABLES FOR NUMBER PLATE LIGHTS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	207330	COMPLETE CABLES F1 TRANSMISSION CONNECTION	Enquire	To Order
	207330	COMPLETE CABLES F1 TRANSMISSION CONNECTION	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	200828	FRONT PART CONNECTING CABLES	200828 FRONT PART CONNECTING CABLES CABLES / Valid from Ass. Nr. 46968	-	1	Enquire
1	178346	FRONT PART CONNECTING CABLES	178346 FRONT PART CONNECTING CABLES CABLES / Valid till Ass. Nr. 37238	-	1	Enquire
1	183347	FRONT PART CONNECTING CABLES	183347 FRONT PART CONNECTING CABLES CABLES / Valid from Ass. Nr. 37239 and / till Ass. Nr. 43231	-	1	Enquire
1	200828	FRONT PART CONNECTING CABLES	200828 FRONT PART CONNECTING CABLES CABLES / Valid from Ass. Nr. 43232 till Ass. Nr. 46967	-	1	Enquire
2	200827	ABS/ASR INSTALLATION CONNECTING CABLES	200827 ABS/ASR INSTALLATION CONNECTING CABLES CONNECTING CABLES / Not for GD	-	1	Enquire
2	200826	ABS/ASR INSTALLATION CONNECTING CABLES	200826 ABS/ASR INSTALLATION CONNECTING CABLES CONNECTING CABLES / Valid for GD	-	1	Enquire
3	200838	PEDAL DEVICE CONNECTING CABLES -Not for GD-	200838 PEDAL DEVICE CONNECTING CABLES -Not for GD- Valid for USA MY 2000,2001,2002,2003,2004 and CDN / MY 2000,2001,2002,2003,2004- -Not for USA MY 2000, / / Ass. Nr. 38396 not for F1 and from Ass. Nr. 36995 for F1 /	-	1	Enquire
3	172887	PEDAL DEVICE CONNECTING CABLES	172887 PEDAL DEVICE CONNECTING CABLES Not for GD- -Not for USA MY 2000,2001,2002,2003,2004 / and CDN MY 2000,2001,2002,2003,2004 / Valid till Ass. Nr. 38395 not for F1 / Valid till Ass. Nr. 36994 for F1 /	-	1	Enquire
4	198553	DASHBOARD CONNECTION CABLES	198553 DASHBOARD CONNECTION CABLES Not for GD	-	1	Enquire
4	186522	DASHBOARD CONNECTION CABLES	186522 DASHBOARD CONNECTION CABLES Valid from Ass. Nr. 40325 and / till Ass. Nr. 41709 / Valid for GD	-	1	Enquire
4	198552	DASHBOARD CONNECTION CABLES	198552 DASHBOARD CONNECTION CABLES Not for GD	-	1	Enquire
4	180207	DASHBOARD CONNECTION CABLES	180207 DASHBOARD CONNECTION CABLES Valid till Ass. Nr. 36945 / Valid for GD	-	1	Enquire
4	181323	DASHBOARD CONNECTION CABLES	181323 DASHBOARD CONNECTION CABLES Valid from Ass. Nr. 36946 and / till Ass. Nr. 40324 / Valid for GD	-	1	Enquire
4	198552	DASHBOARD CONNECTION CABLES	198552 DASHBOARD CONNECTION CABLES Valid from Ass. Nr. 41814 till Ass. Nr. 46967 / Not for GD / Valid for USA MY 2000,2001,2002,2003,2004 / and CDN MY 2000, 2001,2002,2003,2004	-	1	Enquire
4	179194	DASHBOARD CONNECTION CABLES	179194 DASHBOARD CONNECTION CABLES Valid from Ass. Nr. 36995 and / till Ass. Nr. 41813- -Not for GD / Valid for USA MY 2000,2001,2002,2003,2004 / and CDN MY 2000,2001,2002,2003,2004	-	1	Enquire
4	177911	DASHBOARD CONNECTION CABLES	177911 DASHBOARD CONNECTION CABLES Valid till Ass. Nr. 34124 / Not for GD / Not for USA MY 2000,2001,2002,2003,2004 / and CDN MY 2000,2001,2002,2003,2004	-	1	Enquire
4	180206	DASHBOARD CONNECTION CABLES	180206 DASHBOARD CONNECTION CABLES Valid from Ass. Nr. 34125 and / till Ass. Nr. 36994- -Not for GD / Not for USA MY 2000,2001,2002,2003,2004 / and CDN MY 2000,2001,2002,2003,2004	-	1	Enquire
5	198555	CABLES FOR R.H. REAR TUNNEL CONNECTION	198555 CABLES FOR R.H. REAR TUNNEL CONNECTION Valid for USA MY 2000,2001,2002,2003,2004 / and CDN MY 2000,2001,2002,2003,2004	-	1	Enquire
5	198554	CABLES FOR R.H. REAR TUNNEL CONNECTION	198554 CABLES FOR R.H. REAR TUNNEL CONNECTION Not for USA MY 2000,2001,2002,2003,2004 / and CDN MY 2000,2001,2002,2003,2004	-	1	Enquire
6	200847	CABLES FOR LH REAR TUNNEL CONNECTION	200847 CABLES FOR LH REAR TUNNEL CONNECTION CONNECTION / Valid from Ass. Nr. 41816	-	1	Enquire
6	177914	CABLES FOR LH REAR TUNNEL CONNECTION	177914 CABLES FOR LH REAR TUNNEL CONNECTION CONNECTION / Valid till Ass. Nr. 41815	-	1	Enquire
7	200832	CABLES FOR TUNNEL CONNECTION	200832 CABLES FOR TUNNEL CONNECTION CONNECTION / Valid from Ass. Nr. 35381 / Valid for AUS	-	1	Enquire
7	200830	CABLES FOR TUNNEL CONNECTION	200830 CABLES FOR TUNNEL CONNECTION CONNECTION / Valid from Ass. Nr. 35381 / Not for AUS	-	1	Enquire
7	178835	CABLES FOR TUNNEL CONNECTION	178835 CABLES FOR TUNNEL CONNECTION CONNECTION / Valid till Ass. Nr. 35380 / Valid for AUS	-	1	Enquire
7	164814	CABLES FOR TUNNEL CONNECTION	164814 CABLES FOR TUNNEL CONNECTION CONNECTION / Valid till Ass. Nr. 35380 / Not for AUS	-	1	Enquire
8	198209	DOOR CONNECTOR CABLES	198209 DOOR CONNECTOR CABLES Valid from Ass. Nr. 52140	-	2	Enquire
8	178709	DOOR CONNECTION CABLES	178709 DOOR CONNECTION CABLES Valid till Ass. Nr. 35720	-	2	Enquire
8	201104	DOOR CONNECTION CABLES	201104 DOOR CONNECTION CABLES Valid from Ass. Nr. 35721 till Ass. Nr.52139	-	2	Enquire
9	200844	CONNECTION CABLES FOR RH ENGINE COMPARTMENT	200844 CONNECTION CABLES FOR RH ENGINE COMPARTMENT R.H. ENGINE COMPARTMENT / Valid for USA MY 2000,2001, 2002,2003,2004 / and CDN MY 2000,2001,2002,2003,2004	-	1	Enquire
9	205659	CONNECTION CABLES FOR RH ENGINE COMPARTMENT	205659 CONNECTION CABLES FOR RH ENGINE COMPARTMENT R.H. ENGINE COMPARTMENT / Valid for USA, CDN and AUS / Not for USA MY 2000, 2001,2002,2003,2004 / and CDN MY 2000, 2001,2002,2003,2004 / Valid till stock exhaustion	-	1	Enquire
9	177912	CONNECTION CABLES FOR RH ENGINE COMPARTMENT	177912 CONNECTION CABLES FOR RH ENGINE COMPARTMENT R.H. ENGINE COMPARTMENT / Not for USA, CDN and AUS / Valid till stock exhaustion	-	1	Enquire
10	213155	COMPLETE CONNECTION CABLES FOR MOTOR UTILITIES	213155 COMPLETE CONNECTION CABLES FOR MOTOR UTILITIES CABLES FOR MOTOR UTILITIES	-	1	Enquire
11	200843	CONNECTION CABLES FOR LH ENGINE COMPARTMENT	200843 CONNECTION CABLES FOR LH ENGINE COMPARTMENT L.H. ENGINE COMPARTMENT / Valid for USA MY 2000,2001,2002,2003,2004 / and CDN MY 2000,2001,2002,2003,2004	-	1	Enquire
11	200840	CONNECTION CABLES FOR LH ENGINE COMPARTMENT	200840 CONNECTION CABLES FOR LH ENGINE COMPARTMENT L.H. ENGINE COMPARTMENT / Not for USA MY 2000,2001,2002,2003,2004 / and CDN MY 2000,2001,2002,2003,2004	-	1	Enquire
12	155073	CABLE FOR ENGINE-FRAME EARTH	155073 CABLE FOR ENGINE-FRAME EARTH	-	1	Enquire
13	199875	R.H. SIDE ENGINE INJECTION CABLES	199875 R.H. SIDE ENGINE INJECTION CABLES Valid for USA MY 2000,2001,2002,2003,2004 / and CDN MY 2000, 2001,2002,2003,2004 / Valid till Ass. Nr. 44103 / Valid till stock exhaustion	-	1	Enquire
13	199873	R.H. SIDE ENGINE INJECTION CABLES	199873 R.H. SIDE ENGINE INJECTION CABLES Not for USA MY 2000,2001,2002,2003,2004 / and CDN MY 2000,2001,2002,2003,2004 / Valid till Ass. Nr. 44103 / Valid till stock exhaustion	-	1	Enquire
14	199876	L.H. SIDE ENGINE INJECTION CABLES	199876 L.H. SIDE ENGINE INJECTION CABLES Valid for USA MY 2000,2001,2002,2003,2004 / and CDN MY 2000,2001,2002,2003,2004 / Validtill Ass. Nr. 44103 / Valid till stock exhaustion	-	1	Enquire
14	199874	L.H. SIDE ENGINE INJECTION CABLES	199874 L.H. SIDE ENGINE INJECTION CABLES Not for USA MY 2000,2001,2002,2003,2004 / and CDN MY 2000,2001,2002,2003,2004 / Valid till Ass. Nr. 44103 / Valid till stock exhaustion	-	1	Enquire
15	200837	REAR LIGHTS CONNECTING CABLES	200837 REAR LIGHTS CONNECTING CABLES CABLES / Valid for USA MY 2000,2001,2002,2003,2004 / and CDN MY 2000,2001,2002,2003,2004	-	2	Enquire
15	173430	REAR LIGHTS CONNECTING CABLES	173430 REAR LIGHTS CONNECTING CABLES CABLES / Valid for USA and CDN / Not for USA MY 2000,2001,2002,2003,2004 / and CDN MY 2000,2001,2002,2003,2004	-	2	Enquire
15	200836	REAR LIGHTS CONNECTING CABLES	200836 REAR LIGHTS CONNECTING CABLES CABLES / Not for USA and CDN	-	2	Enquire
16	241766	STOP-LAMP CONNECTION CABLES	241766 STOP-LAMP CONNECTION CABLES	-	1	Enquire
17	182985	PLATE LIGHT CABLES	182985 PLATE LIGHT CABLES LIGHTS / Valid from Ass. Nr. 36337	-	1	Enquire
17	164823	CABLES FOR NUMBER PLATE LIGHTS	164823 CABLES FOR NUMBER PLATE LIGHTS LIGHTS / Valid till Ass. Nr. 36336	-	1	Enquire
18	207330	COMPLETE CABLES F1 TRANSMISSION CONNECTION	207330 COMPLETE CABLES F1 TRANSMISSION CONNECTION TRANSMISSION CONNECTION / Valid for F1 / Valid till stock exhaustion	-	1	Enquire
18	207330	COMPLETE CABLES F1 TRANSMISSION CONNECTION	207330 COMPLETE CABLES F1 TRANSMISSION CONNECTION TRANSMISSION CONNECTION / Valid for F1 / Included relay 194909 Tab. 138 / Ref. 16	-	1	Enquire
