DOORS - POWER WINDOW AND REARVIEW MIRROR of Ferrari Ferrari 360 Modena

View All

Ferrari 360 Modena - DOORS - POWER WINDOW AND REARVIEW MIRROR

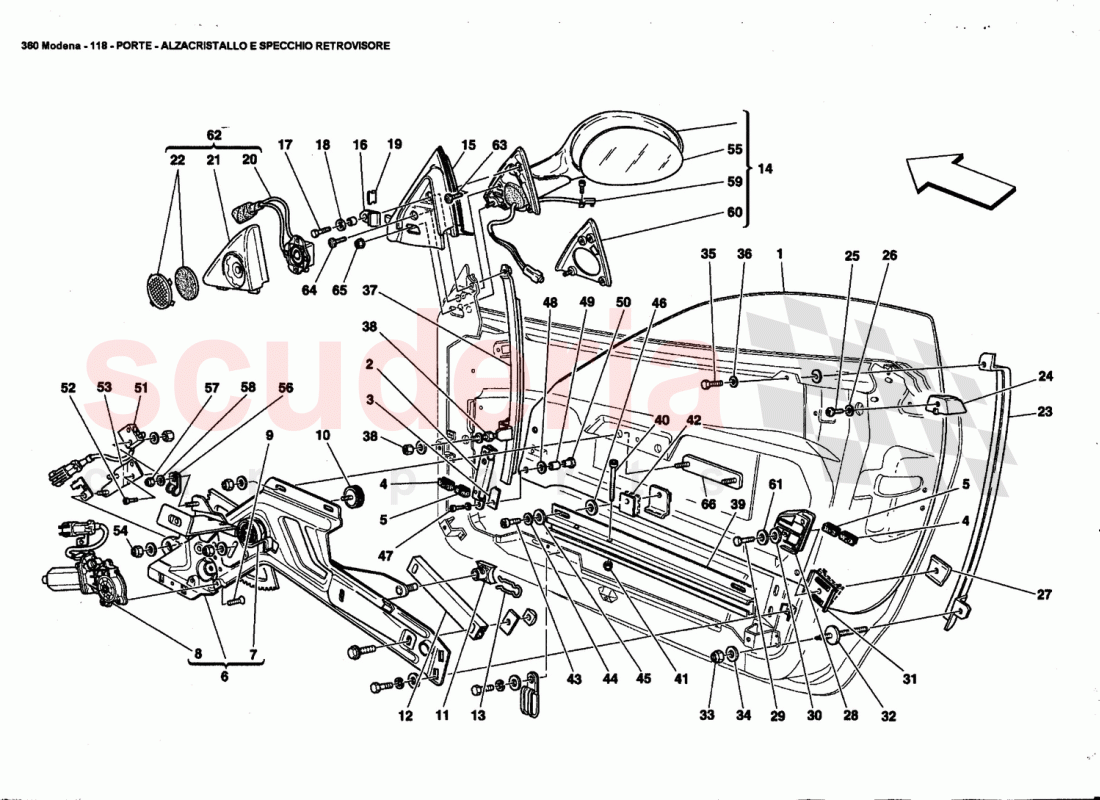

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	65949200	RH DOOR WINDOW	Enquire	To Order
	65949300	LH DOOR WINDOW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63768100	RH SLIPPER	Enquire	To Order
	63768200	LH SLIPPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63486900	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63767900	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63890100	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65819500	COMPLETE LH DEVICE FOR GLASS LIFT	Enquire	To Order
	69919900	LH POWER WINDOW WINDER	Enquire	To Order
	69920000	RH POWER WINDOW WINDER	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	65826900	HELICAL SPRING	Enquire	To Order
	63896300	HELICOIDAL SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63211900	L.H. GLASS LIFTING MOTOR	Enquire	To Order
	65819700	LH POWER WINDOW MOTOR	Enquire	To Order
	63211800	R.H. GLASS LIFTING MOTOR	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	15917904	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65827200	STOP BUSHING	Enquire	To Order
	65100400	STOP BUFFER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64081100	SMALL BLOCK FOR GLASS GUIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65816700	GUIDE	Enquire	To Order
	63205200	GUIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64081100	SMALL BLOCK FOR GLASS GUIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65732110	COMPLETE RH OUTER REAR VIEW MIRROR	Enquire	To Order
	65731810	COMPLETE LH OUTER REAR VIEW MIRROR	Enquire	To Order
	65732210	COMPLETE LH OUTER REAR VIEW MIRROR	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	65226000	EXTERNAL RH MIRROR GASKET	Enquire	To Order
	65226100	LH EXTERNAL MIRROR GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65065700	CLIP BODY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10902224	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14184374	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65062100	REAR RH WINDOW GUIDE	Enquire	To Order
	65062200	REAR LH WINDOW GUIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65310700	RH VIBRATION DAMPER	Enquire	To Order
	65310800	LH VIBRATION DAMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62797600	Allen Bolt Countersunk M6 x 20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12638124	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65997500	RH PLATE	Enquire	To Order
	65997700	LH PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63853600	RH MOVING GUIDE	Enquire	To Order
	63853700	LH MOBILE GUIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10903224	SCREW	Enquire	To Order
	10903024	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13577724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63168800	PRE-LOAD REGULATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64854600	PIN ADJUSTMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13836721	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65061900	FRONT RH WINDOW GUIDE	Enquire	To Order
	65062000	FRONT LH WINDOW GUIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14039714	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65828200	RH SLIDING GUIDE	Enquire	To Order
	65970800	L.H. SLIDING GUIDE	Enquire	To Order
	65828300	LH SLIDING GUIDE	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	14303724	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62790300	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65807300	COLUMN GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14498801	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13297377	SCREW M4 X 10	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62798000	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62932800	SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62932900	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	168617	MICROSWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15643975	SCREW	Enquire	To Order
	15687975	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64749300	R.H. MICROSWITCH BRACKET	Enquire	To Order
	65907400	RH MOBILE BRACKET	Enquire	To Order
	64749400	L.H. MICROSWITCH BRACKET	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	808769	CAP NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66213200	RH OUTER REAR VIEW MIRROR GLASS	Enquire	To Order
	66213600	RH OUTER REAR VIEW MIRROR GLASS	Enquire	To Order
	66213400	RH OUTER REAR VIEW MIRROR GLASS	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	10418601	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13577724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65889400	EXTERNAL TEMPERATURE SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66481900	LH REAR VIEW OUTER PLATE	Enquire	To Order
	66481800	RH REAR VIEW OUTER PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66694200	COMPLETE RH INTERNAL SURROUND	Enquire	To Order
	69835300	COMPLETE LH INTERNAL SURROUND	Enquire	To Order
	66694300	COMPLETE LH INTERNAL SURROUND	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	65713200	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13831801	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66075200	BRACKET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	65949200	RH DOOR WINDOW	65949200 RH DOOR WINDOW	-	1	Enquire
1	65949300	LH DOOR WINDOW	65949300 LH DOOR WINDOW	-	1	Enquire
2	63768100	RH SLIPPER	63768100 RH SLIPPER	-	1	Enquire
2	63768200	LH SLIPPER	63768200 LH SLIPPER	-	1	Enquire
3	63486900	GASKET	63486900 GASKET	-	2	Enquire
4	63767900	CLIP	63767900 CLIP	-	8	Enquire
5	63890100	GASKET	63890100 GASKET	-	8	Enquire
6	65819500	COMPLETE LH DEVICE FOR GLASS LIFT	65819500 COMPLETE LH DEVICE FOR GLASS LIFT GLASS LIFT / Valid from Ass. Nr. 35721 till Ass. Nr.52139	-	1	Enquire
6	69919900	LH POWER WINDOW WINDER	69919900 LH POWER WINDOW WINDER GLASS LIFT / Valid from Ass. Nr. 52140	-	1	Enquire
6	69920000	RH POWER WINDOW WINDER	69920000 RH POWER WINDOW WINDER GLASS LIFT / Valid from Ass. Nr. 52140	-	1	Enquire
6	65133300	COMPLETE LH DEVICE FOR GLASS LIFT	65133300 COMPLETE LH DEVICE FOR GLASS LIFT GLASS LIFT / Valid till Ass. Nr. 35720	-	1	Enquire
6	65133200	COMPLETE RH DEVICE FOR GLASS LIFT	65133200 COMPLETE RH DEVICE FOR GLASS LIFT GLASS LIFT / Valid till Ass. Nr. 35720	-	1	Enquire

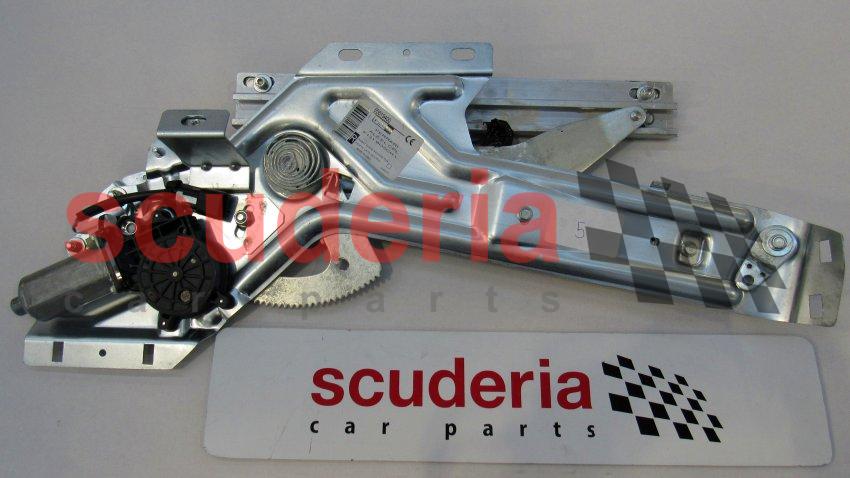

6	65819400	Complete RH Device For Glass Lift	65819400 Complete RH Device For Glass Lift GLASS LIFT / Valid from Ass. Nr. 35721 till Ass. Nr.52139	-	1	Enquire
7	65826900	HELICAL SPRING	65826900 HELICAL SPRING Valid from Ass. Nr. 35721	-	2	Enquire
7	63896300	HELICOIDAL SPRING	63896300 HELICOIDAL SPRING Valid till Ass. Nr. 35720	-	2	Enquire
8	63211900	L.H. GLASS LIFTING MOTOR	63211900 L.H. GLASS LIFTING MOTOR Valid till Ass. Nr. 35720	-	1	Enquire
8	65819700	LH POWER WINDOW MOTOR	65819700 LH POWER WINDOW MOTOR Valid from Ass. Nr. 35721	-	1	Enquire
8	63211800	R.H. GLASS LIFTING MOTOR	63211800 R.H. GLASS LIFTING MOTOR Valid till Ass. Nr. 35720	-	1	Enquire
8	65819600	RH POWER WINDOW MOTOR	65819600 RH POWER WINDOW MOTOR Valid from Ass. Nr. 35721	-	1	Enquire
9	15917904	SCREW	15917904 SCREW	-	8	Enquire
10	65827200	STOP BUSHING	65827200 STOP BUSHING Valid from Ass. Nr. 35721	-	2	Enquire
10	65100400	STOP BUFFER	65100400 STOP BUFFER Valid till Ass. Nr. 35720	-	2	Enquire
11	64081100	SMALL BLOCK FOR GLASS GUIDE	64081100 SMALL BLOCK FOR GLASS GUIDE	-	6	Enquire
12	65816700	GUIDE	65816700 GUIDE Valid from Ass. Nr. 35721	-	2	Enquire
12	63205200	GUIDE	63205200 GUIDE Valid till Ass. Nr. 35720	-	2	Enquire
13	64081100	SMALL BLOCK FOR GLASS GUIDE	64081100 SMALL BLOCK FOR GLASS GUIDE	-	6	Enquire
14	65732110	COMPLETE RH OUTER REAR VIEW MIRROR	65732110 COMPLETE RH OUTER REAR VIEW MIRROR VIEW MIRROR / Valid for GD	-	1	Enquire
14	65731810	COMPLETE LH OUTER REAR VIEW MIRROR	65731810 COMPLETE LH OUTER REAR VIEW MIRROR VIEW MIRROR / Not for GD	-	1	Enquire
14	65732210	COMPLETE LH OUTER REAR VIEW MIRROR	65732210 COMPLETE LH OUTER REAR VIEW MIRROR VIEW MIRROR / Valid for GD	-	1	Enquire
14	65731910	COMPLETE RH OUTER REAR VIEW MIRROR	65731910 COMPLETE RH OUTER REAR VIEW MIRROR VIEW MIRROR / Not for USA, CDN and GD	-	1	Enquire
14	65732010	COMPLETE RH OUTER REAR VIEW MIRROR	65732010 COMPLETE RH OUTER REAR VIEW MIRROR VIEW MIRROR / Valid for USA and CDN	-	1	Enquire
15	65226000	EXTERNAL RH MIRROR GASKET	65226000 EXTERNAL RH MIRROR GASKET GASKET	-	1	Enquire
15	65226100	LH EXTERNAL MIRROR GASKET	65226100 LH EXTERNAL MIRROR GASKET GASKET	-	1	Enquire
16	65065700	CLIP BODY	65065700 CLIP BODY	-	2	Enquire
17	10902224	SCREW	10902224 SCREW	-	2	Enquire
18	12643724	WASHER	12643724 WASHER	-	2	Enquire
19	14184374	CLIP	14184374 CLIP	-	2	Enquire
23	65062100	REAR RH WINDOW GUIDE	65062100 REAR RH WINDOW GUIDE	-	1	Enquire
23	65062200	REAR LH WINDOW GUIDE	65062200 REAR LH WINDOW GUIDE	-	1	Enquire
24	65310700	RH VIBRATION DAMPER	65310700 RH VIBRATION DAMPER	-	1	Enquire
24	65310800	LH VIBRATION DAMPER	65310800 LH VIBRATION DAMPER	-	1	Enquire
25	62797600	Allen Bolt Countersunk M6 x 20	62797600 Allen Bolt Countersunk M6 x 20	-	2	Enquire
26	12638124	WASHER	12638124 WASHER	-	2	Enquire
27	65997500	RH PLATE	65997500 RH PLATE	-	1	Enquire
27	65997700	LH PLATE	65997700 LH PLATE	-	1	Enquire
28	63853600	RH MOVING GUIDE	63853600 RH MOVING GUIDE	-	1	Enquire
28	63853700	LH MOBILE GUIDE	63853700 LH MOBILE GUIDE	-	1	Enquire
29	10903224	SCREW	10903224 SCREW Not as spare part / Replaced by 10903024 + 127494	-	2	Enquire
29	10903024	SCREW	10903024 SCREW	-	2	Enquire
30	13577724	WASHER	13577724 WASHER	-	2	Enquire
31	63168800	PRE-LOAD REGULATOR	63168800 PRE-LOAD REGULATOR	-	2	Enquire
32	64854600	PIN ADJUSTMENT	64854600 PIN ADJUSTMENT	-	2	Enquire
33	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
34	12643724	WASHER	12643724 WASHER	-	2	Enquire
35	13836721	SCREW	13836721 SCREW	-	2	Enquire
36	12643724	WASHER	12643724 WASHER	-	2	Enquire
37	65061900	FRONT RH WINDOW GUIDE	65061900 FRONT RH WINDOW GUIDE	-	1	Enquire
37	65062000	FRONT LH WINDOW GUIDE	65062000 FRONT LH WINDOW GUIDE	-	1	Enquire
38	14039714	NUT	14039714 NUT	-	4	Enquire
39	65828200	RH SLIDING GUIDE	65828200 RH SLIDING GUIDE Valid from Ass. Nr. 35721	-	1	Enquire
39	65970800	L.H. SLIDING GUIDE	65970800 L.H. SLIDING GUIDE Valid till Ass. Nr. 35720	-	1	Enquire
39	65828300	LH SLIDING GUIDE	65828300 LH SLIDING GUIDE Valid from Ass. Nr. 35721	-	1	Enquire
39	65970700	R.H. SLIDING GUIDE	65970700 R.H. SLIDING GUIDE Valid till Ass. Nr. 35720	-	1	Enquire
40	14303724	SCREW	14303724 SCREW	-	4	Enquire
41	62790300	NUT	62790300 NUT	-	4	Enquire
42	65807300	COLUMN GASKET	65807300 COLUMN GASKET	-	4	Enquire
43	231620	SCREW	231620 SCREW	-	4	Enquire
44	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	4	Enquire
45	12643724	WASHER	12643724 WASHER	-	4	Enquire
46	14498801	WASHER	14498801 WASHER	-	4	Enquire
47	13297377	SCREW M4 X 10	13297377 SCREW M4 X 10	-	4	Enquire
48	62798000	WASHER	62798000 WASHER	-	4	Enquire
49	62932800	SHIM	62932800 SHIM	-	4	Enquire
50	62932900	BUSHING	62932900 BUSHING	-	4	Enquire
51	168617	MICROSWITCH	168617 MICROSWITCH	-	2	Enquire
52	15643975	SCREW	15643975 SCREW Not as spare part / Replaced by 15687975	-	4	Enquire
52	15687975	SCREW	15687975 SCREW	-	4	Enquire
53	64749300	R.H. MICROSWITCH BRACKET	64749300 R.H. MICROSWITCH BRACKET Valid till Ass. Nr. 35720	-	1	Enquire
53	65907400	RH MOBILE BRACKET	65907400 RH MOBILE BRACKET Valid from Ass. Nr. 35721	-	1	Enquire
53	64749400	L.H. MICROSWITCH BRACKET	64749400 L.H. MICROSWITCH BRACKET Valid till Ass. Nr. 35720	-	1	Enquire
53	65907500	LH MOBILE BRACKET	65907500 LH MOBILE BRACKET Valid from Ass. Nr. 35721	-	1	Enquire
54	808769	CAP NUT	808769 CAP NUT	-	4	Enquire
55	66213200	RH OUTER REAR VIEW MIRROR GLASS	66213200 RH OUTER REAR VIEW MIRROR GLASS MIRROR GLASS / Not for USA, CDN and GD	-	1	Enquire
55	66213600	RH OUTER REAR VIEW MIRROR GLASS	66213600 RH OUTER REAR VIEW MIRROR GLASS MIRROR GLASS / Valid for USA and CDN	-	1	Enquire
55	66213400	RH OUTER REAR VIEW MIRROR GLASS	66213400 RH OUTER REAR VIEW MIRROR GLASS MIRROR GLASS / Valid for GD	-	1	Enquire
55	66213300	LH OUTER REAR VIEW MIRROR GLASS	66213300 LH OUTER REAR VIEW MIRROR GLASS MIRROR GLASS / Not for GD	-	1	Enquire
55	66213500	LH OUTER REAR VIEW MIRROR GLASS	66213500 LH OUTER REAR VIEW MIRROR GLASS MIRROR GLASS / Valid for GD	-	1	Enquire
56	10418601	BRACKET WITH SHEATH	10418601 BRACKET WITH SHEATH	-	2	Enquire
57	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
58	13577724	WASHER	13577724 WASHER	-	2	Enquire
59	65889400	EXTERNAL TEMPERATURE SENSOR	65889400 EXTERNAL TEMPERATURE SENSOR	-	1	Enquire
60	66481900	LH REAR VIEW OUTER PLATE	66481900 LH REAR VIEW OUTER PLATE OUTER PLATE	-	1	Enquire
60	66481800	RH REAR VIEW OUTER PLATE	66481800 RH REAR VIEW OUTER PLATE OUTER PLATE	-	1	Enquire
61	127494	WASHER	127494 WASHER	-	2	Enquire
62	66694200	COMPLETE RH INTERNAL SURROUND	66694200 COMPLETE RH INTERNAL SURROUND Valid for cars with radio amplifier	-	1	Enquire
62	69835300	COMPLETE LH INTERNAL SURROUND	69835300 COMPLETE LH INTERNAL SURROUND Not for cars with radio amplifier / Valid till stock exhaustion	-	1	Enquire
62	66694300	COMPLETE LH INTERNAL SURROUND	66694300 COMPLETE LH INTERNAL SURROUND Valid for cars with radio amplifier	-	1	Enquire
62	69835400	COMPLETE RH INTERNAL SURROUND	69835400 COMPLETE RH INTERNAL SURROUND Not for cars with radio amplifier / Valid till stock exhaustion	-	1	Enquire
63	65713200	SCREW	65713200 SCREW	-	2	Enquire
64	85833700	SCREW	85833700 SCREW	-	2	Enquire
65	13831801	NUT	13831801 NUT	-	4	Enquire
66	66075200	BRACKET	66075200 BRACKET	-	2	Enquire
