Ferrari 360 Modena - AIR-BAGS

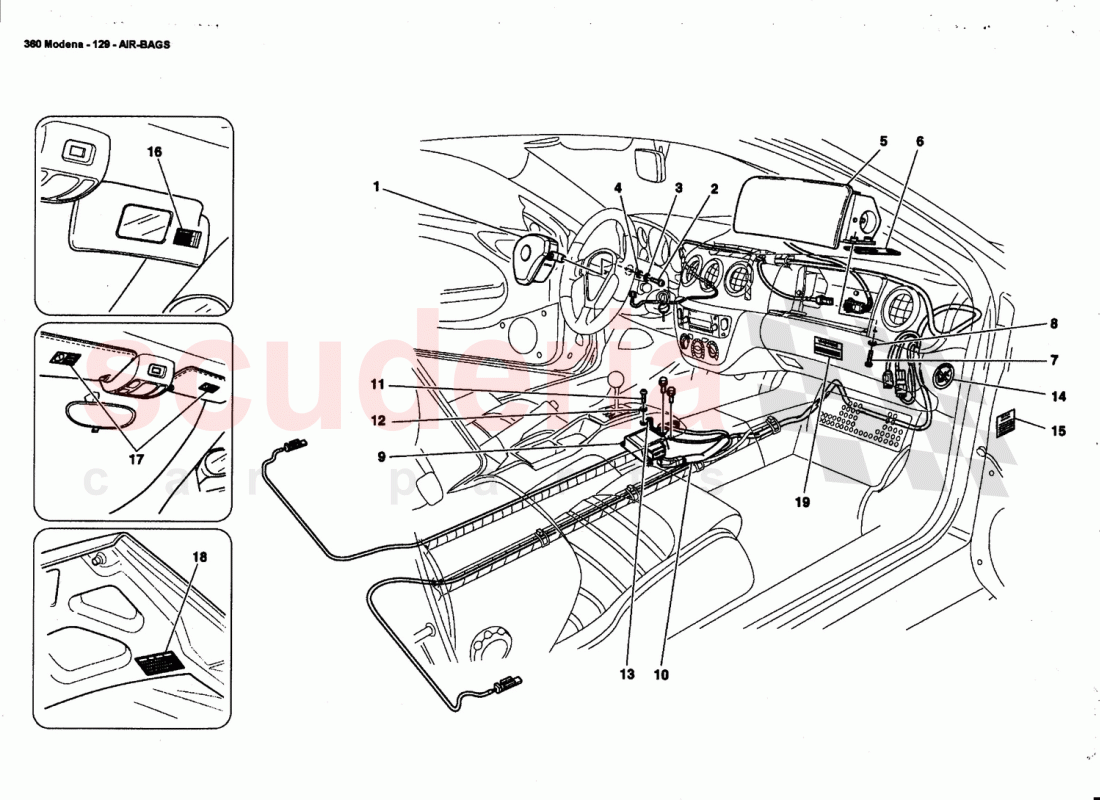

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	662040	DRIVER SIDE AIR-BAG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	651489	PASSENGER SIDE AIR BAG	Enquire	To Order
	655825	PASSENGER SIDE AIR BAG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65133000	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16132624	SCREW	Enquire	To Order
	14305324	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER	Enquire	To Order
	12648925	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	179793	AIR-BAG CONTROL UNIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	201888	CABLES FOR AR-BAG CONNECTION	Enquire	To Order
	201889	CABLES FOR AR-BAG CONNECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	160855	GROUND CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69969300	'AIRBAG NOT COMPATIBLE WITH CHILD SEAT' WARNING SYMBOL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69233100	AIRBAG MAINTENANCE LABEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11178190	ADHESIVE AIRBAG MAINTENANCE LABEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64764500	ADHESIVE AIRBAG LABEL	Enquire	To Order
	65423800	ADHESIVE AIRBAG LABEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12856780	'VEHICLE WITH AIRBAGS' WARNING LABEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65424000	AIR-BAG SYSTEM PRESENCE PLATE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	662040	DRIVER SIDE AIR-BAG	662040 DRIVER SIDE AIR-BAG	-	1	Enquire
2	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	2	Enquire
3	127494	WASHER	127494 WASHER	-	2	Enquire
4	12643724	WASHER	12643724 WASHER	-	2	Enquire
5	651489	PASSENGER SIDE AIR BAG	651489 PASSENGER SIDE AIR BAG Not for GD	-	1	Enquire
5	655825	PASSENGER SIDE AIR BAG	655825 PASSENGER SIDE AIR BAG Valid for GD	-	1	Enquire
6	65133000	SPACER	65133000 SPACER	-	4	Enquire
7	16132624	SCREW	16132624 SCREW Not as spare part / Replaced by 16132721	-	4	Enquire
7	14305324	SCREW	14305324 SCREW	-	4	Enquire
8	10519424	WASHER	10519424 WASHER Not as spare part / Replaced by 12640624	-	1	Enquire
8	12648925	WASHER	12648925 WASHER	-	1	Enquire
9	179793	AIR-BAG CONTROL UNIT	179793 AIR-BAG CONTROL UNIT	-	1	Enquire
10	201888	CABLES FOR AR-BAG CONNECTION	201888 CABLES FOR AR-BAG CONNECTION CONNECTION	-	1	Enquire
10	201889	CABLES FOR AR-BAG CONNECTION	201889 CABLES FOR AR-BAG CONNECTION CONNECTION EXTENSION / Valid for GD	-	1	Enquire
11	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	3	Enquire
12	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	3	Enquire
13	160855	GROUND CABLE	160855 GROUND CABLE	-	1	Enquire
14	69969300	'AIRBAG NOT COMPATIBLE WITH CHILD SEAT' WARNING SYMBOL	69969300 'AIRBAG NOT COMPATIBLE WITH CHILD SEAT' WARNING SYMBOL INCOMPATIBILITY PLATE / Not for USA, CDN and AUS	-	1	Enquire
15	69233100	AIRBAG MAINTENANCE LABEL	69233100 AIRBAG MAINTENANCE LABEL PLATE / Valid for USA, CDN and AUS	-	1	Enquire
16	11178190	ADHESIVE AIRBAG MAINTENANCE LABEL	11178190 ADHESIVE AIRBAG MAINTENANCE LABEL PLATE / Not for USA, CDN and AUS	-	1	Enquire
17	64764500	ADHESIVE AIRBAG LABEL	64764500 ADHESIVE AIRBAG LABEL Not for USA, CDN and AUS	-	2	Enquire
17	65423800	ADHESIVE AIRBAG LABEL	65423800 ADHESIVE AIRBAG LABEL Valid for USA, CDN and AUS	-	2	Enquire
18	12856780	'VEHICLE WITH AIRBAGS' WARNING LABEL	12856780 'VEHICLE WITH AIRBAGS' WARNING LABEL	-	1	Enquire
19	65424000	AIR-BAG SYSTEM PRESENCE PLATE	65424000 AIR-BAG SYSTEM PRESENCE PLATE PLATE / Valid for USA, / Fax or E-m@il,	-	1	Enquire
