Name: EVAPORATOR UNIT
Rating: 4.6 (1 reviews)

EVAPORATOR UNIT of Ferrari Ferrari 360 Modena

View All

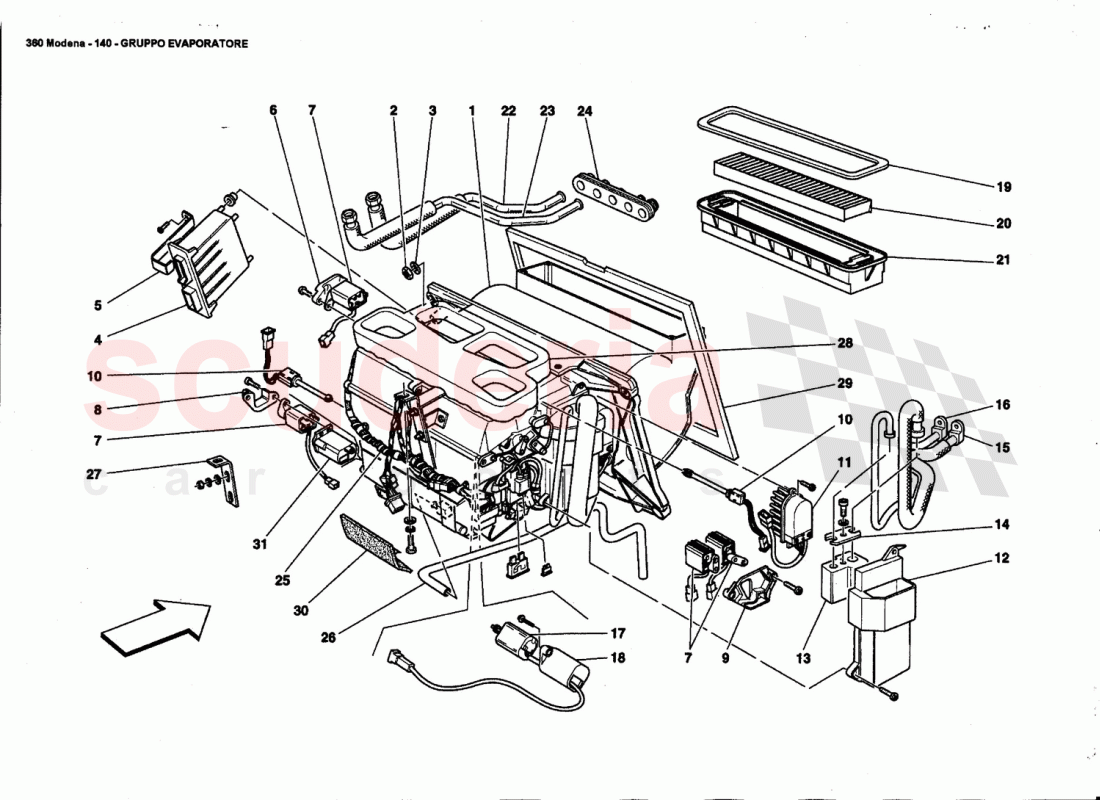

Ferrari 360 Modena - EVAPORATOR UNIT

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	68070600	COMPLETE EVAPORATOR GROUP	$5,436.43	To Order
	68070700	COMPLETE EVAPORATOR GROUP	$5,436.43	To Order

Photo	Part No	Description	Price (each)	Stock
	147985	NUT	$0.15	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	$5.53	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	204068	Air Conditioning ECU	$2,161.99	To Order

Photo	Part No	Description	Price (each)	Stock
	66159300	ECU FASTENING BRACKET	$38.49	To Order

Photo	Part No	Description	Price (each)	Stock
	66207600	FRONT COMPARTMENT LID ACTUATOR FASTENER	$2.14	To Order

Photo	Part No	Description	Price (each)	Stock
	66207300	BULHER ACTUATOR	$103.68	To Order

Photo	Part No	Description	Price (each)	Stock
	66207400	FLOOR HATCH ACTUATOR FASTENER	$2.14	To Order

Photo	Part No	Description	Price (each)	Stock
	66159100	FROST PROTECTION COMPARTMENT LID ACTUATOR FASTENING	$1.10	To Order

Photo	Part No	Description	Price (each)	Stock
	68154200	PROCESSED AIR TEMPERATURE SENSOR	$48.28	To Order

Photo	Part No	Description	Price (each)	Stock
	64280200	Solenoid Valve Regulator	$287.01	To Order

Photo	Part No	Description	Price (each)	Stock
	66158300	EVAPORATOR BATTERY COVER	$40.10	To Order

Photo	Part No	Description	Price (each)	Stock
	63960100	EXPANSION VALVE	$175.65	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	64281500	UPPER FLANGE	$4.30	To Order

Photo	Part No	Description	Price (each)	Stock
	66157900	AC UNIT PIPE	$176.49	To Order

Photo	Part No	Description	Price (each)	Stock
	65229300	EVAPORATOR PIPE	$481.36	To Order

Photo	Part No	Description	Price (each)	Stock
	64280900	RECIRCULATION ELECTRIC MOTOR	$99.96	To Order

Photo	Part No	Description	Price (each)	Stock
	66159000	ACTUATOR MOUNTING	$5.71	To Order

Photo	Part No	Description	Price (each)	Stock
	65258600	GASKET	$16.01	To Order

Photo	Part No	Description	Price (each)	Stock
	65384300	Pollen Filter	$80.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	65629700	MOBILE AC UNIT DUCT	$118.72	To Order

Photo	Part No	Description	Price (each)	Stock
	65229100	WATER INLET PIPE	$240.67	To Order
	66218700	WATER INLET PIPE	$57.75	To Order

Photo	Part No	Description	Price (each)	Stock
	66218800	WATER DRAIN PIPE	$57.75	To Order
	65229200	WATER DRAIN PIPE	$54.54	To Order

Photo	Part No	Description	Price (each)	Stock
	65374100	TUBE GUIDE RUBBER PAD	$4.99	To Order

Photo	Part No	Description	Price (each)	Stock
	65229900	AC UNIT ELECTRIC SYSTEM	$497.41	To Order

Photo	Part No	Description	Price (each)	Stock
	65230200	DRAIN PIPE HOSE UNION	$44.85	To Order

Photo	Part No	Description	Price (each)	Stock
	66159200	EVAPORATOR MOUNTING BRACKET	$5.71	To Order

Photo	Part No	Description	Price (each)	Stock
	65930900	EVAPORATOR UPPER GASKET	$58.72	To Order

Photo	Part No	Description	Price (each)	Stock
	66207500	AC UNIT GASKET SET	$6.42	To Order

Photo	Part No	Description	Price (each)	Stock
	159147	RUBBER SHIM	$0.86	To Order

Photo	Part No	Description	Price (each)	Stock
	67014700	ACTUATOR MOUNTING	$3.68	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	68070600	COMPLETE EVAPORATOR GROUP	68070600 COMPLETE EVAPORATOR GROUP Not for GD	$5,436.43	1
1	68070700	COMPLETE EVAPORATOR GROUP	68070700 COMPLETE EVAPORATOR GROUP Valid for GD	$5,436.43	1
2	147985	NUT IN STOCK	147985 NUT IN STOCK	$0.15 MSRP: ~~0.50~~ (70% off)	4
3	84653800	WASHER IN STOCK	84653800 WASHER IN STOCK	$5.53	4
4	204068	Air Conditioning ECU	204068 Air Conditioning ECU STATION	$2,161.99 MSRP: ~~2,212.14~~ (2.3% off)	1
5	66159300	ECU FASTENING BRACKET	66159300 ECU FASTENING BRACKET	$38.49	1
6	66207600	FRONT COMPARTMENT LID ACTUATOR FASTENER	66207600 FRONT COMPARTMENT LID ACTUATOR FASTENER FIXING	$2.14	1
7	66207300	BULHER ACTUATOR	66207300 BULHER ACTUATOR	$103.68	4
8	66207400	FLOOR HATCH ACTUATOR FASTENER	66207400 FLOOR HATCH ACTUATOR FASTENER FIXING	$2.14	1
9	66159100	FROST PROTECTION COMPARTMENT LID ACTUATOR FASTENING	66159100 FROST PROTECTION COMPARTMENT LID ACTUATOR FASTENING FIXING	$1.10	1
10	68154200	PROCESSED AIR TEMPERATURE SENSOR	68154200 PROCESSED AIR TEMPERATURE SENSOR	$48.28	2
11	64280200	Solenoid Valve Regulator	64280200 Solenoid Valve Regulator	$287.01 MSRP: ~~836.88~~ (65.7% off)	1
12	66158300	EVAPORATOR BATTERY COVER	66158300 EVAPORATOR BATTERY COVER COVER	$40.10	1
13	63960100	EXPANSION VALVE IN STOCK	63960100 EXPANSION VALVE IN STOCK	$175.65 MSRP: ~~235.00~~ (25.3% off)	1
14	64281500	UPPER FLANGE	64281500 UPPER FLANGE	$4.30	1
15	66157900	AC UNIT PIPE	66157900 AC UNIT PIPE	$176.49	1
16	65229300	EVAPORATOR PIPE	65229300 EVAPORATOR PIPE	$481.36	1
17	64280900	RECIRCULATION ELECTRIC MOTOR	64280900 RECIRCULATION ELECTRIC MOTOR	$99.96 MSRP: ~~135.08~~ (26% off)	1
18	66159000	ACTUATOR MOUNTING	66159000 ACTUATOR MOUNTING	$5.71	1
19	65258600	GASKET	65258600 GASKET	$16.01	1
20	65384300	Pollen Filter IN STOCK	65384300 Pollen Filter IN STOCK	$80.31 MSRP: ~~96.00~~ (16.3% off)	1
21	65629700	MOBILE AC UNIT DUCT	65629700 MOBILE AC UNIT DUCT	$118.72	1
22	65229100	WATER INLET PIPE	65229100 WATER INLET PIPE Not for GD	$240.67	1
22	66218700	WATER INLET PIPE	66218700 WATER INLET PIPE Valid for GD	$57.75	1
23	66218800	WATER DRAIN PIPE	66218800 WATER DRAIN PIPE Valid for GD	$57.75	1
23	65229200	WATER DRAIN PIPE	65229200 WATER DRAIN PIPE Not for GD	$54.54	1
24	65374100	TUBE GUIDE RUBBER PAD	65374100 TUBE GUIDE RUBBER PAD	$4.99	1
25	65229900	AC UNIT ELECTRIC SYSTEM	65229900 AC UNIT ELECTRIC SYSTEM	$497.41	1
26	65230200	DRAIN PIPE HOSE UNION	65230200 DRAIN PIPE HOSE UNION	$44.85	1
27	66159200	EVAPORATOR MOUNTING BRACKET	66159200 EVAPORATOR MOUNTING BRACKET	$5.71	1
28	65930900	EVAPORATOR UPPER GASKET	65930900 EVAPORATOR UPPER GASKET GASKET	$58.72	1
29	66207500	AC UNIT GASKET SET	66207500 AC UNIT GASKET SET	$6.42	1
30	159147	RUBBER SHIM	159147 RUBBER SHIM	$0.86	1
31	67014700	ACTUATOR MOUNTING	67014700 ACTUATOR MOUNTING	$3.68	1

Evaporator Unit

Ferrari 360 Modena

Ferrari 360 Modena - EVAPORATOR UNIT
