AIR CONDITIONING SYSTEM of Ferrari Ferrari 360 Modena

View All

Ferrari 360 Modena - AIR CONDITIONING SYSTEM

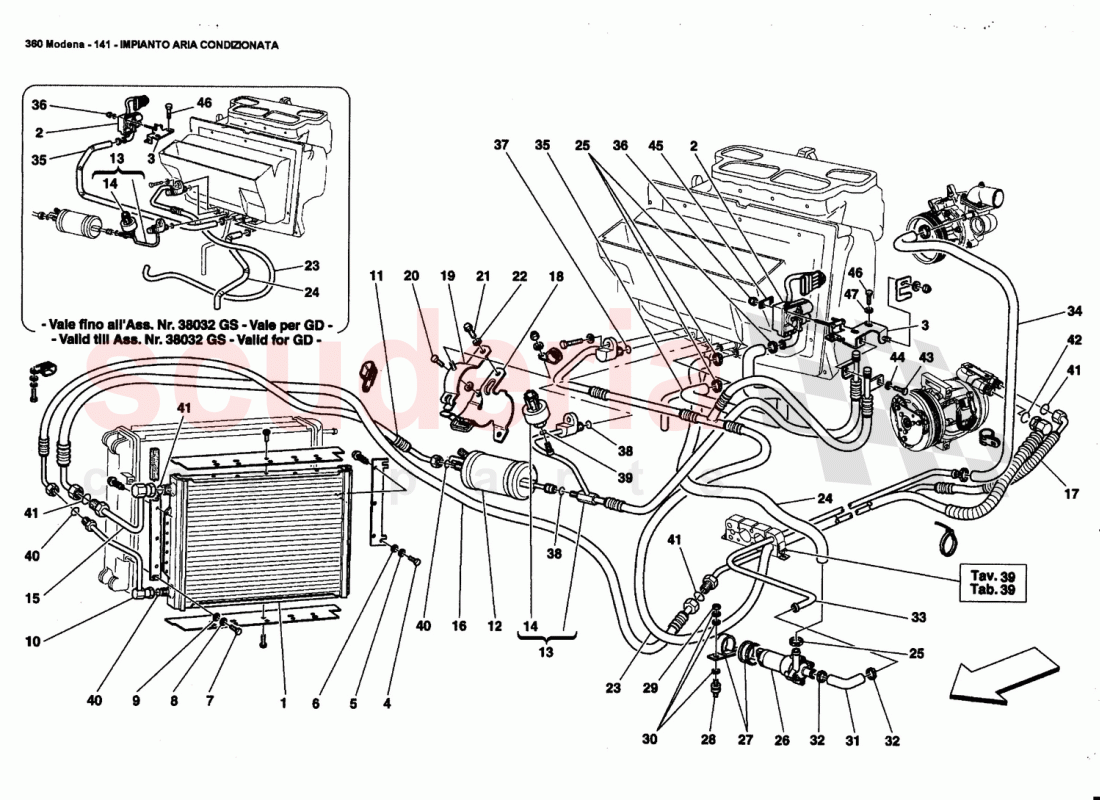

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock

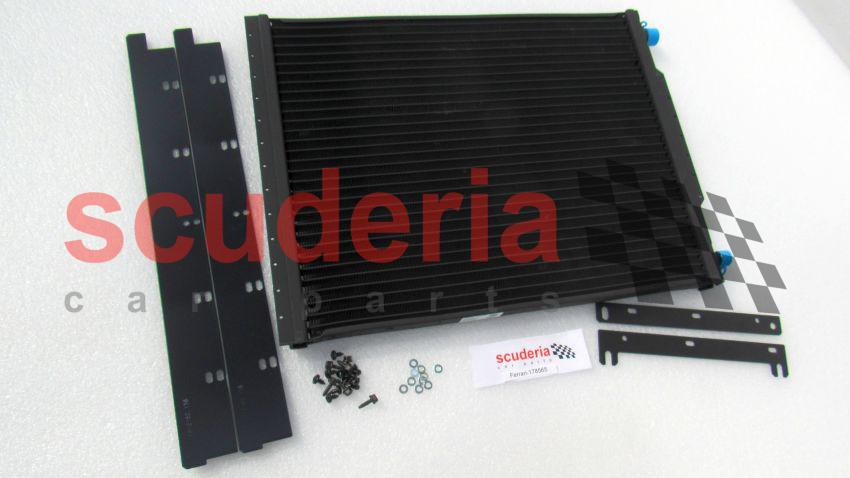

	178565	CONDENSER	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	65066400	TGK VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65848400	BRACKET FOR VALVE FIXING	Enquire	To Order
	66150300	VALVE FASTENER BRACKET	Enquire	To Order
	65882200	BRACKET FOR VALVE FIXING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81591700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	60909500	ALLEN HEAD SCREW M6 X 15	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65830900	DELIVERY METAL PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65830700	HOSE FROM CONDENSER TO FILTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

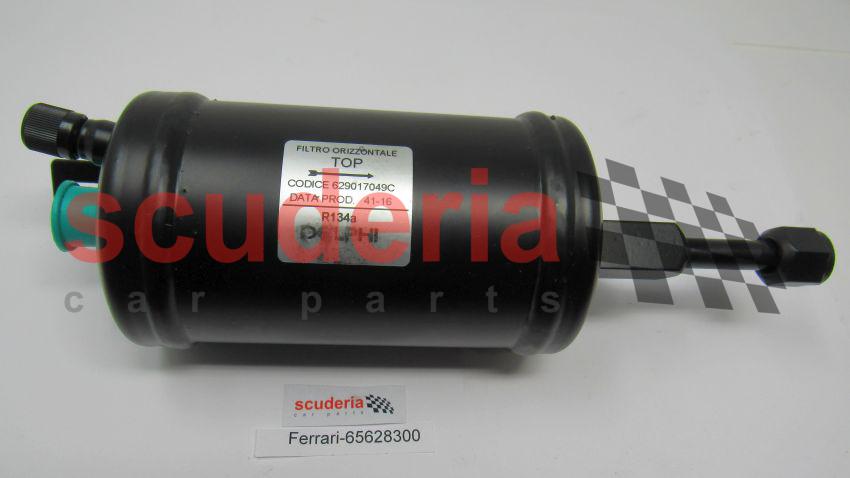

	65628300	Dehydrating Filter	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66147900	PIPE FROM FILTER TO A.C. SYSTEM	Enquire	To Order
	66090200	PIPE FROM FILTER TO A.C. SYSTEM	Enquire	To Order
	65898700	PIPE FROM FILTER TO A.C. SYSTEM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65628200	AIR CONDITIONING PRESSURE SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65830800	INLET METAL PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65830600	PIPE FROM UNDERFLOOR PIPE TO CONDENSER	Enquire	To Order
	65744300	PIPE FROM UNDERFLOOR PIPE TO CONDENSER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65230500	UNDERFLOOR DELIVERY TUBE FROM COMPRESSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65539400	FILTER SUPPORT	Enquire	To Order
	65880700	FILTER SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65547700	BRACKET	Enquire	To Order
	65880900	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10902224	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13840511	SCREW	Enquire	To Order
	68721400	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13577724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66148000	PIPE FROM A.C. SYSTEM TO COMPRESSOR	Enquire	To Order
	65921100	PIPE FROM A.C. SYSTEM TO COMPRESSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65744600	PIPE FROM MINIMUM PUMP TO A.C. SYSTEM	Enquire	To Order
	65460800	PIPE FROM MINIMUM PUMP TO A.C. SYSTEM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65460300	COMPLETE WATER PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63994900	BRACKET FOR PUMP -Not as spare part- -Replaced by 69966100-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	285553	VIBRATION DAMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65460700	PIPE FROM UNDERBODY PIPE TO MINIMUM PRESSURE PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65231400	WATER PIPE UNDERFLOOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65831500	PIPE FROM WATER PUMP TO UNDRFLOOR PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65231700	PIPE FROM AC HEATER TO TGK VALVE	Enquire	To Order
	65744700	PIPE FROM A.C. HEATER TO TGK VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62790300	NUT	Enquire	To Order
	14078010	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66309800	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66309700	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66309600	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66309300	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66309400	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66309500	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10977524	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11188079	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65929400	PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11193274	WASHER	Enquire	To Order
	15210624	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11193274	WASHER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	178565	CONDENSER ARRIVING SOON	178565 CONDENSER ARRIVING SOON	-	1	Enquire
2	65066400	TGK VALVE	65066400 TGK VALVE	-	1	Enquire
3	65848400	BRACKET FOR VALVE FIXING	65848400 BRACKET FOR VALVE FIXING Valid till Ass. Nr. 38032 / Not for GD	-	1	Enquire
3	66150300	VALVE FASTENER BRACKET	66150300 VALVE FASTENER BRACKET Valid from Ass. Nr. 38033 / Not for GD	-	1	Enquire
3	65882200	BRACKET FOR VALVE FIXING	65882200 BRACKET FOR VALVE FIXING Valid for GD	-	1	Enquire
4	81591700	SCREW	81591700 SCREW	-	3	Enquire
5	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	3	Enquire
6	10519424	WASHER	10519424 WASHER	-	3	Enquire
7	60909500	ALLEN HEAD SCREW M6 X 15	60909500 ALLEN HEAD SCREW M6 X 15	-	1	Enquire
8	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	1	Enquire
9	12643724	WASHER	12643724 WASHER	-	1	Enquire
10	65830900	DELIVERY METAL PIPE	65830900 DELIVERY METAL PIPE	-	1	Enquire
11	65830700	HOSE FROM CONDENSER TO FILTER	65830700 HOSE FROM CONDENSER TO FILTER	-	1	Enquire
12	65628300	Dehydrating Filter	65628300 Dehydrating Filter	-	1	Enquire
13	66147900	PIPE FROM FILTER TO A.C. SYSTEM	66147900 PIPE FROM FILTER TO A.C. SYSTEM Valid from Ass. Nr. 38033 / Not for GD	-	1	Enquire
13	66090200	PIPE FROM FILTER TO A.C. SYSTEM	66090200 PIPE FROM FILTER TO A.C. SYSTEM Valid for GD	-	1	Enquire
13	65898700	PIPE FROM FILTER TO A.C. SYSTEM	65898700 PIPE FROM FILTER TO A.C. SYSTEM Valid till Ass. Nr. 38032 / Not for GD	-	1	Enquire
14	65628200	AIR CONDITIONING PRESSURE SWITCH	65628200 AIR CONDITIONING PRESSURE SWITCH	-	1	Enquire
15	65830800	INLET METAL PIPE	65830800 INLET METAL PIPE	-	1	Enquire
16	65830600	PIPE FROM UNDERFLOOR PIPE TO CONDENSER	65830600 PIPE FROM UNDERFLOOR PIPE TO CONDENSER TO CONDENSER / Not for GD	-	1	Enquire
16	65744300	PIPE FROM UNDERFLOOR PIPE TO CONDENSER	65744300 PIPE FROM UNDERFLOOR PIPE TO CONDENSER TO CONDENSER / Valid for GD	-	1	Enquire
17	65230500	UNDERFLOOR DELIVERY TUBE FROM COMPRESSOR	65230500 UNDERFLOOR DELIVERY TUBE FROM COMPRESSOR FROM COMPRESSOR	-	1	Enquire
18	65539400	FILTER SUPPORT	65539400 FILTER SUPPORT Not for GD	-	1	Enquire
18	65880700	FILTER SUPPORT	65880700 FILTER SUPPORT Valid for GD	-	1	Enquire
19	65547700	BRACKET	65547700 BRACKET Not for GD	-	1	Enquire
19	65880900	BRACKET	65880900 BRACKET Valid for GD	-	1	Enquire
20	10902224	SCREW	10902224 SCREW	-	2	Enquire
21	13840511	SCREW	13840511 SCREW Not as spare part / Replaced by 68721400	-	1	Enquire
21	68721400	SCREW	68721400 SCREW	-	1	Enquire
22	13577724	WASHER	13577724 WASHER	-	2	Enquire
23	66148000	PIPE FROM A.C. SYSTEM TO COMPRESSOR	66148000 PIPE FROM A.C. SYSTEM TO COMPRESSOR TO COMPRESSOR / Valid from Ass. Nr. 38033 GS / Not for GD	-	1	Enquire
23	65921100	PIPE FROM A.C. SYSTEM TO COMPRESSOR	65921100 PIPE FROM A.C. SYSTEM TO COMPRESSOR TO COMPRESSOR / Valid till Ass. Nr. 38032 GS / Valid for GD	-	1	Enquire
24	65744600	PIPE FROM MINIMUM PUMP TO A.C. SYSTEM	65744600 PIPE FROM MINIMUM PUMP TO A.C. SYSTEM TO A.C. SYSTEM / Valid for GD	-	1	Enquire
24	65460800	PIPE FROM MINIMUM PUMP TO A.C. SYSTEM	65460800 PIPE FROM MINIMUM PUMP TO A.C. SYSTEM TO A.C. SYSTEM / Not for GD	-	1	Enquire
25	262111	JUBILEE CLAMP	262111 JUBILEE CLAMP	-	4	Enquire
26	65460300	COMPLETE WATER PUMP	65460300 COMPLETE WATER PUMP	-	1	Enquire
27	63994900	BRACKET FOR PUMP -Not as spare part- -Replaced by 69966100-	63994900 BRACKET FOR PUMP -Not as spare part- -Replaced by 69966100-	-	1	Enquire
28	285553	VIBRATION DAMPER	285553 VIBRATION DAMPER	-	2	Enquire
29	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
30	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	2	Enquire
31	65460700	PIPE FROM UNDERBODY PIPE TO MINIMUM PRESSURE PUMP	65460700 PIPE FROM UNDERBODY PIPE TO MINIMUM PRESSURE PUMP TO MINIMUM PUMP	-	1	Enquire
32	262111	JUBILEE CLAMP	262111 JUBILEE CLAMP	-	2	Enquire
33	65231400	WATER PIPE UNDERFLOOR	65231400 WATER PIPE UNDERFLOOR	-	1	Enquire
34	65831500	PIPE FROM WATER PUMP TO UNDRFLOOR PIPE	65831500 PIPE FROM WATER PUMP TO UNDRFLOOR PIPE UNDRFLOOR PIPE	-	1	Enquire
35	65231700	PIPE FROM AC HEATER TO TGK VALVE	65231700 PIPE FROM AC HEATER TO TGK VALVE TO TGK VALVE / Not for GD	-	1	Enquire
35	65744700	PIPE FROM A.C. HEATER TO TGK VALVE	65744700 PIPE FROM A.C. HEATER TO TGK VALVE TO TGK VALVE / Valid for GD	-	1	Enquire
36	62790300	NUT	62790300 NUT Valid from Ass. Nr. 38033 GS / Not for GD	-	2	Enquire
36	14078010	NUT	14078010 NUT Valid till Ass. Nr. 38032 GS / Valid for GD	-	2	Enquire
37	66309800	O-RING	66309800 O-RING	-	1	Enquire
38	66309700	O-RING	66309700 O-RING	-	2	Enquire
39	66309600	O-RING	66309600 O-RING	-	1	Enquire
40	66309300	O-RING	66309300 O-RING	-	2	Enquire
41	66309400	O-RING	66309400 O-RING	-	4	Enquire
42	66309500	O-RING	66309500 O-RING	-	1	Enquire
43	10977524	SCREW	10977524 SCREW Valid from Ass. Nr. 38033 / Not for GD	-	1	Enquire
44	11188079	WASHER	11188079 WASHER Valid from Ass. Nr. 38033 / Not for GD	-	1	Enquire
45	65929400	PLATE	65929400 PLATE Valid from Ass. Nr. 38033 / Not for GD	-	1	Enquire
46	11193274	WASHER	11193274 WASHER Valid from Ass. Nr. 38033 GS / Not for GD	-	2	Enquire
46	15210624	SCREW	15210624 SCREW Valid till Ass. Nr. 38032 GS / Valid for GD	-	2	Enquire
47	11193274	WASHER	11193274 WASHER Valid from Ass. Nr. 38033 GS / Not for GD	-	2	Enquire
