WINDSHIELD, GLASS WASHER AND HORNS of Ferrari Ferrari 360 Modena

View All

Ferrari 360 Modena - WINDSHIELD, GLASS WASHER AND HORNS

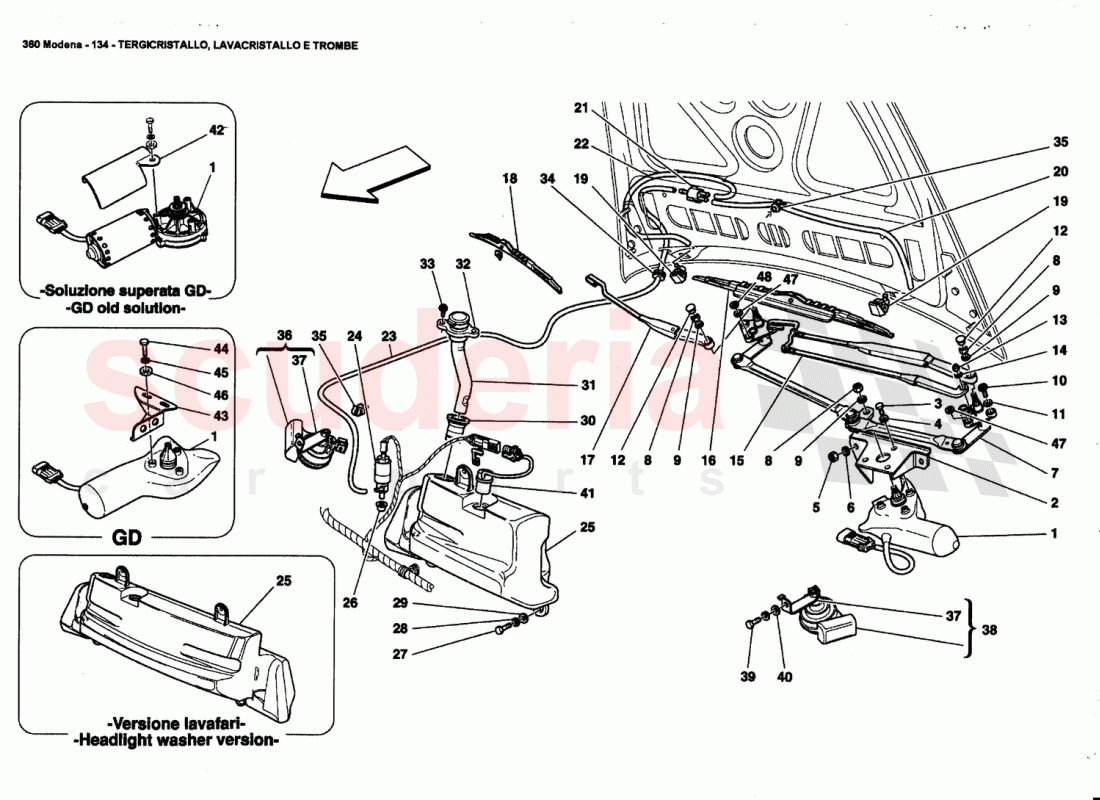

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	63780200	WINDSCREEN WIPER MOTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	173416	WINDSCREEN WIPER MOTOR FASTENER BRACKET	Enquire	To Order
	65397500	WINDSCREEN WIPER MOTOR FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10902224	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104030	NYLOC NUT M8 X 1.25 X 9.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14496524	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65409100	COMPLETE WINDSCREEN WIPER LINKAGE	Enquire	To Order
	65849300	COMPLETE WINDSCREEN WIPER LINKAGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT M8 FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12644477	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15811787	PROTECTIVE CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15896472	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12604178	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65409200	DRIVER SIDE WINDSCREEN WIPER ARM	Enquire	To Order
	65849400	DRIVER SIDE WINDSCREEN WIPER ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63776100A	Driver Side Windscreen Wiper Blade	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65409300	PASSENGER SIDE WINDSCREEN WIPER ARM	Enquire	To Order
	65849500	PASSENGER SIDE WINDSCREEN WIPER ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65409400	Passenger Side Windscreen Wiper Blade RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65191000	SPRAY NOZZLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65362600	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81061000	COMPLETE WINDSCREEN WASHER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65362500	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65362400	RUBBER PIPE FROM PUMP TO VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65358700	WINDSCREEN WASHER PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65809300	WINDSHIELD WIPER CONTAINER	Enquire	To Order
	65581500	WINDSHIELD WIPER AND HEADLIGHT WASHER CONTAINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65775100	GASKET FOR WASHER PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10902424	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	860172	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65581700	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65695200	PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65374000	CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62940900	Allen Head Screw M6 x 15	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10396280	CABLE GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65714300	FIXING CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	199231	COMPLETE RH HORN	Enquire	To Order
	199231	COMPLETE RH HORN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	179075	SUPPORT BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	199232	COMPLETE LH HORN	Enquire	To Order
	199232	COMPLETE LH HORN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10902424	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	190048	FLUID SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65899000	PROTECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66078400	INTERMEDIATE BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10902224	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65546300	BEVEL WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12646604	WASHER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	63780200	WINDSCREEN WIPER MOTOR	63780200 WINDSCREEN WIPER MOTOR	-	1	Enquire
2	173416	WINDSCREEN WIPER MOTOR FASTENER BRACKET	173416 WINDSCREEN WIPER MOTOR FASTENER BRACKET FASTENING BRACKET / Not for GD	-	1	Enquire
2	65397500	WINDSCREEN WIPER MOTOR FASTENER BRACKET	65397500 WINDSCREEN WIPER MOTOR FASTENER BRACKET FASTENING BRACKET / Valid for GD	-	1	Enquire
3	10902224	SCREW	10902224 SCREW	-	3	Enquire
4	127494	WASHER	127494 WASHER	-	3	Enquire
5	104030	NYLOC NUT M8 X 1.25 X 9.5	104030 NYLOC NUT M8 X 1.25 X 9.5 Not for GD	-	3	Enquire
6	14496524	WASHER	14496524 WASHER Not for GD	-	3	Enquire
7	65409100	COMPLETE WINDSCREEN WIPER LINKAGE	65409100 COMPLETE WINDSCREEN WIPER LINKAGE LEVERAGE / Not for GD	-	1	Enquire
7	65849300	COMPLETE WINDSCREEN WIPER LINKAGE	65849300 COMPLETE WINDSCREEN WIPER LINKAGE LEVERAGE / Valid for GD	-	1	Enquire
8	14040711	NUT M8 FLANGED	14040711 NUT M8 FLANGED	-	3	Enquire
9	12601374	WASHER	12601374 WASHER	-	3	Enquire
10	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	6	Enquire
11	12644477	WASHER	12644477 WASHER	-	6	Enquire
12	15811787	PROTECTIVE CAP	15811787 PROTECTIVE CAP	-	2	Enquire
13	15896472	NUT	15896472 NUT	-	1	Enquire
14	12604178	Washer	12604178 Washer	-	1	Enquire
15	65409200	DRIVER SIDE WINDSCREEN WIPER ARM	65409200 DRIVER SIDE WINDSCREEN WIPER ARM WIPER ARM / Not for GD	-	1	Enquire
15	65849400	DRIVER SIDE WINDSCREEN WIPER ARM	65849400 DRIVER SIDE WINDSCREEN WIPER ARM WIPER ARM / Valid for GD	-	1	Enquire
16	63776100A	Driver Side Windscreen Wiper Blade	63776100A Driver Side Windscreen Wiper Blade	-	1	Enquire
17	65409300	PASSENGER SIDE WINDSCREEN WIPER ARM	65409300 PASSENGER SIDE WINDSCREEN WIPER ARM WIPER ARM / Not for GD	-	1	Enquire
17	65849500	PASSENGER SIDE WINDSCREEN WIPER ARM	65849500 PASSENGER SIDE WINDSCREEN WIPER ARM WIPER ARM / Valid for GD	-	1	Enquire
18	65409400	Passenger Side Windscreen Wiper Blade RHD	65409400 Passenger Side Windscreen Wiper Blade RHD BRUSH	-	1	Enquire
19	65191000	SPRAY NOZZLE	65191000 SPRAY NOZZLE	-	2	Enquire
20	65362600	RUBBER PIPE	65362600 RUBBER PIPE	-	1	Enquire
21	81061000	COMPLETE WINDSCREEN WASHER PIPE	81061000 COMPLETE WINDSCREEN WASHER PIPE	-	1	Enquire
22	65362500	RUBBER PIPE	65362500 RUBBER PIPE	-	1	Enquire
23	65362400	RUBBER PIPE FROM PUMP TO VALVE	65362400 RUBBER PIPE FROM PUMP TO VALVE VALVE	-	1	Enquire
24	65358700	WINDSCREEN WASHER PUMP	65358700 WINDSCREEN WASHER PUMP	-	1	Enquire
25	65809300	WINDSHIELD WIPER CONTAINER	65809300 WINDSHIELD WIPER CONTAINER	-	1	Enquire
25	65581500	WINDSHIELD WIPER AND HEADLIGHT WASHER CONTAINER	65581500 WINDSHIELD WIPER AND HEADLIGHT WASHER CONTAINER HEADLIGHT WASHER CONTAINER	-	1	Enquire
26	65775100	GASKET FOR WASHER PUMP	65775100 GASKET FOR WASHER PUMP	-	1	Enquire
27	10902424	SCREW	10902424 SCREW For container 65581500 q.ty 4	-	3	Enquire
28	12601374	WASHER	12601374 WASHER For container 65581500 q.ty 4	-	3	Enquire
29	860172	WASHER	860172 WASHER For container 65581500 q.ty 4	-	3	Enquire
30	65581700	GASKET	65581700 GASKET	-	1	Enquire
31	65695200	PIPE	65695200 PIPE	-	1	Enquire
32	65374000	CAP	65374000 CAP	-	1	Enquire
33	62940900	Allen Head Screw M6 x 15	62940900 Allen Head Screw M6 x 15	-	2	Enquire
34	10396280	CABLE GROMMET	10396280 CABLE GROMMET	-	2	Enquire
35	65714300	FIXING CLIP	65714300 FIXING CLIP	-	2	Enquire
36	199231	COMPLETE RH HORN	199231 COMPLETE RH HORN Valid till stock exhaustion / Replace the couple /	-	1	Enquire
36	199231	COMPLETE RH HORN	199231 COMPLETE RH HORN Replace the couple /	-	1	Enquire
37	179075	SUPPORT BRACKET	179075 SUPPORT BRACKET Valid for r.h. horn 176517 ref. 36 / and l.h. horn 176518 ref. 38	-	2	Enquire
38	199232	COMPLETE LH HORN	199232 COMPLETE LH HORN Valid till stock exhaustion / Replace the couple /	-	1	Enquire
38	199232	COMPLETE LH HORN	199232 COMPLETE LH HORN Replace the couple /	-	1	Enquire
39	10902424	SCREW	10902424 SCREW	-	2	Enquire
40	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	2	Enquire
41	190048	FLUID SENSOR	190048 FLUID SENSOR	-	1	Enquire
42	65899000	PROTECTION	65899000 PROTECTION Valid for GD / Not as spare part	-	1	Enquire
43	66078400	INTERMEDIATE BRACKET	66078400 INTERMEDIATE BRACKET Valid for GD	-	1	Enquire
44	10902224	SCREW	10902224 SCREW Valid for GD	-	2	Enquire
45	12643724	WASHER	12643724 WASHER Valid for GD	-	2	Enquire
46	127494	WASHER	127494 WASHER Valid for GD	-	2	Enquire
47	65546300	BEVEL WASHER	65546300 BEVEL WASHER	-	2	Enquire
48	12646604	WASHER	12646604 WASHER	-	1	Enquire
