THROTTLE HOLDERS ANO CONTROLS of Ferrari Ferrari 355 (2.7 Motronic)

View All

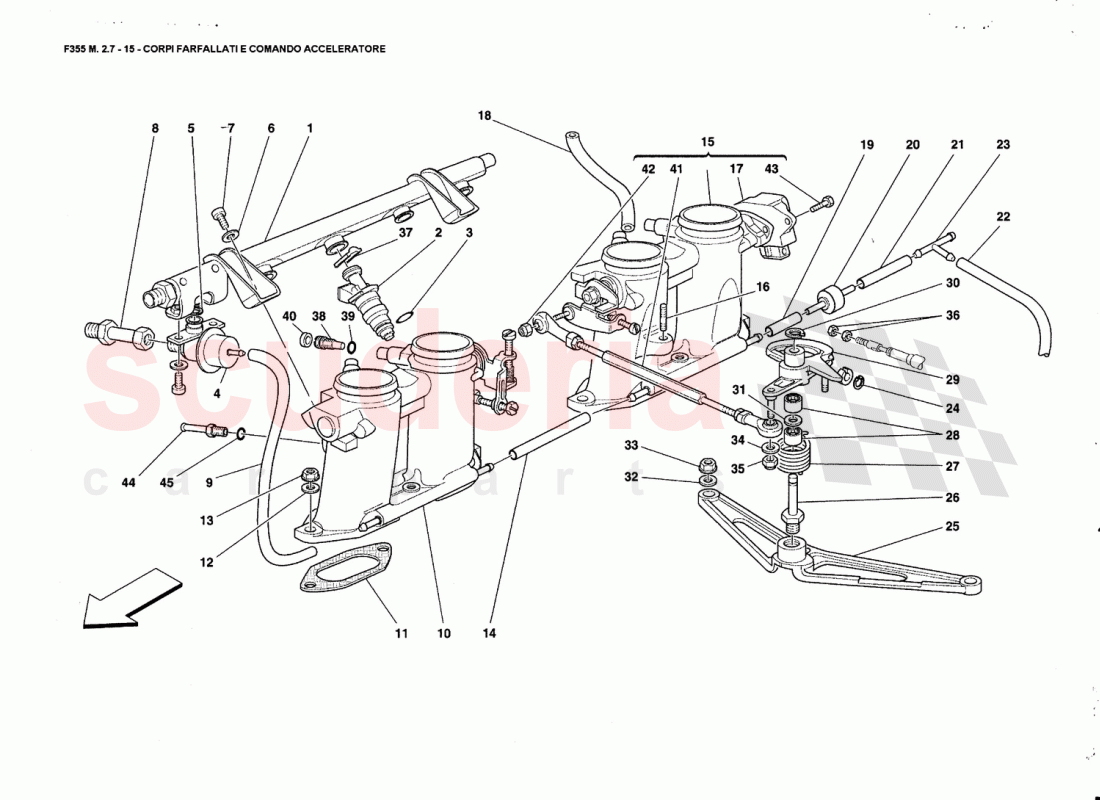

Ferrari 355 (2.7 Motronic) - THROTTLE HOLDERS ANO CONTROLS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	171807	R.H.INJECTOR FUEL DELIVERY PIPE.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	149316	ELECTRO-INJECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	133902	O-Ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	167321	PRESSURE REGULATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	152211	SEAL RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86768100	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177787	R.H. EXTENSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	159539	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	150526	RH FRONT SUCTION MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

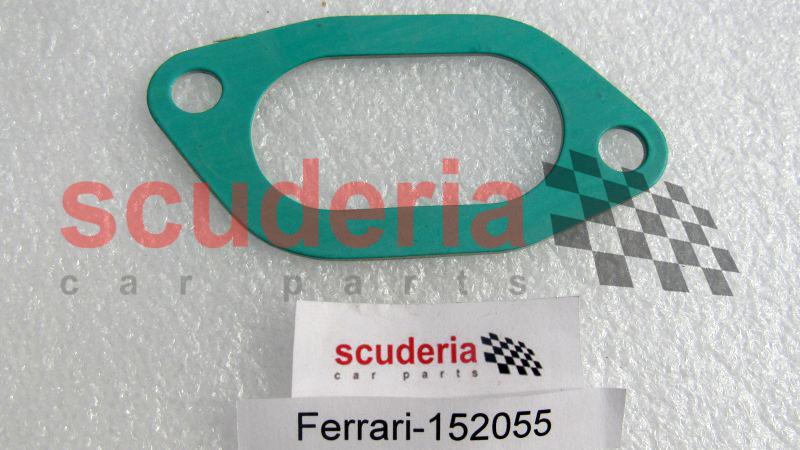

	152055	INLET MANIFOLD GASKET	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT M8 FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	159540	PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	150528	COMPLETE RH REAR SUCTION MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13516824	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	158170	POTENTIOMETER FOR THROTTLE VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	116767	PIPE FROM CENTRAL FUEL TANK TO DISAREATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	159541	UNION-R.H. VALVE CONNECTING PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	253896	NON-RETURN VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	159541	UNION-R.H. VALVE CONNECTING PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	159542	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	121793	3-WAY UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11087974	SNAP RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	157171	SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	160462	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	160535	SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	132873	ROLLER BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	175234	ACCELERATOR CONTROL TRANSMISSION LEVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11065676	Seeger Ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	136880	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	147985	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10519304	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	319201	FUEL FILLER PIPE ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10725011	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	144763	INJECTOR RETAINING SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	162700	ADJUSTMENT SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

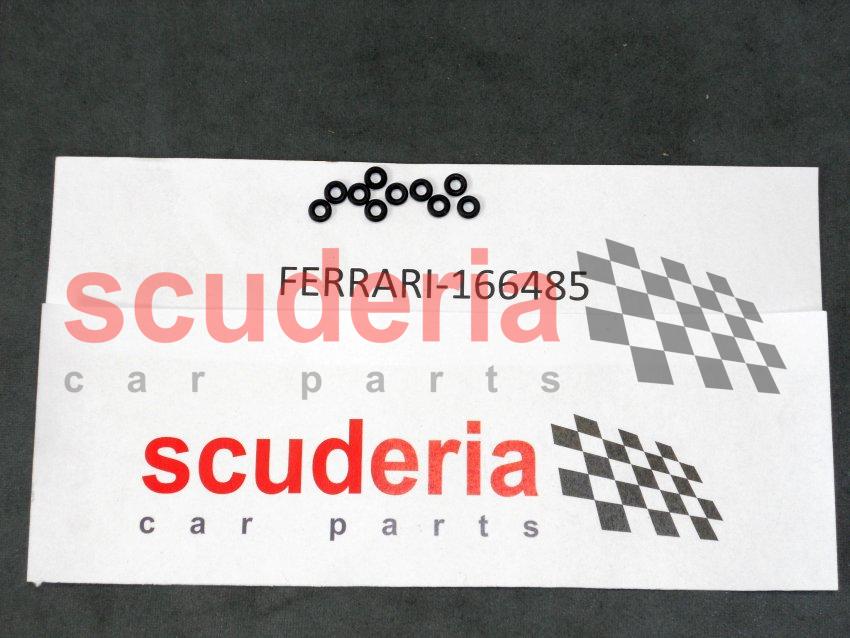

	166485	OR-Ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	166486	SAFETY PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	166488	COMPLETE TIE ROD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	162731	TIE ROD FIXING NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	162722	POTENTIOMETER FIXING SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	168100	UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	168105	O.R. GASKET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	116767	PIPE FROM CENTRAL FUEL TANK TO DISAREATOR	116767 PIPE FROM CENTRAL FUEL TANK TO DISAREATOR Valid after stock exhaustion of 159538 /	-	8	Enquire
-	150529	COMPLETE LH REAR SUCTION MANIFOLD	150529 COMPLETE LH REAR SUCTION MANIFOLD MANIFOLD	-	1	Enquire
-	150527	LH FRONT SUCTION MANIFOLD	150527 LH FRONT SUCTION MANIFOLD MANIFOLD	-	1	Enquire
-	178592	L.H. FLEXIBLE EXTENSION	178592 L.H. FLEXIBLE EXTENSION Valid for cars with double fuel pump	-	1	Enquire
-	177787	R.H. EXTENSION	177787 R.H. EXTENSION Valid for cars with double fuel pump / Valid after stock exhaustion of 160522	-	1	Enquire
-	167321	PRESSURE REGULATOR	167321 PRESSURE REGULATOR Valid after stock exhaustion of 148254	-	2	Enquire
-	171808	L.H.INJETOR FUEL DELIVERY PIPE.	171808 L.H.INJETOR FUEL DELIVERY PIPE. Valid from engine Nr.42569	-	1	Enquire
-	171796	R.H. TUBE FOR INJECTORS	171796 R.H. TUBE FOR INJECTORS Valid from engine Nr.42569	-	1	Enquire
1	171807	R.H.INJECTOR FUEL DELIVERY PIPE.	171807 R.H.INJECTOR FUEL DELIVERY PIPE. For F355 not as spare part / Till engine Nr.42568 replace / with 171796	-	1	Enquire
2	149316	ELECTRO-INJECTOR	149316 ELECTRO-INJECTOR	-	8	Enquire
3	133902	O-Ring	133902 O-Ring	-	8	Enquire
4	167321	PRESSURE REGULATOR	167321 PRESSURE REGULATOR	-	2	Enquire
5	152211	SEAL RING	152211 SEAL RING	-	2	Enquire
6	12601374	WASHER	12601374 WASHER	-	4	Enquire
7	86768100	SCREW	86768100 SCREW	-	4	Enquire
8	177787	R.H. EXTENSION	177787 R.H. EXTENSION Valid for cars with double fuel pump / Valid till stock exhaustion	-	1	Enquire
9	159539	RUBBER PIPE	159539 RUBBER PIPE	-	2	Enquire
10	150526	RH FRONT SUCTION MANIFOLD	150526 RH FRONT SUCTION MANIFOLD MANIFOLD	-	1	Enquire
11	152055	INLET MANIFOLD GASKET ARRIVING SOON	152055 INLET MANIFOLD GASKET ARRIVING SOON	-	8	Enquire
12	12601374	WASHER	12601374 WASHER	-	16	Enquire
13	14040711	NUT M8 FLANGED	14040711 NUT M8 FLANGED	-	16	Enquire
14	159540	PIPE	159540 PIPE	-	2	Enquire
15	150528	COMPLETE RH REAR SUCTION MANIFOLD	150528 COMPLETE RH REAR SUCTION MANIFOLD MANIFOLD	-	1	Enquire
16	13516824	STUD BOLT	13516824 STUD BOLT	-	2	Enquire
17	158170	POTENTIOMETER FOR THROTTLE VALVE	158170 POTENTIOMETER FOR THROTTLE VALVE THROTTLE VALVE	-	2	Enquire
18	116767	PIPE FROM CENTRAL FUEL TANK TO DISAREATOR	116767 PIPE FROM CENTRAL FUEL TANK TO DISAREATOR Valid till stock exhaustion /	-	8	Enquire
19	159541	UNION-R.H. VALVE CONNECTING PIPE	159541 UNION-R.H. VALVE CONNECTING PIPE	-	2	Enquire
20	253896	NON-RETURN VALVE	253896 NON-RETURN VALVE	-	2	Enquire
21	159541	UNION-R.H. VALVE CONNECTING PIPE	159541 UNION-R.H. VALVE CONNECTING PIPE	-	1	Enquire
22	159542	RUBBER PIPE	159542 RUBBER PIPE	-	1	Enquire
23	121793	3-WAY UNION	121793 3-WAY UNION	-	1	Enquire
24	11087974	SNAP RING	11087974 SNAP RING	-	1	Enquire
25	157171	SUPPORT	157171 SUPPORT	-	1	Enquire
26	160462	PIN	160462 PIN	-	1	Enquire
27	160535	SPRING	160535 SPRING	-	1	Enquire
28	132873	ROLLER BEARING	132873 ROLLER BEARING	-	2	Enquire
29	175234	ACCELERATOR CONTROL TRANSMISSION LEVER	175234 ACCELERATOR CONTROL TRANSMISSION LEVER TRANSMISSION LEVER	-	1	Enquire
30	11065676	Seeger Ring	11065676 Seeger Ring	-	1	Enquire
31	136880	SPACER	136880 SPACER	-	1	Enquire
32	12601374	WASHER	12601374 WASHER	-	2	Enquire
33	147985	NUT	147985 NUT	-	2	Enquire
34	10519304	WASHER	10519304 WASHER	-	2	Enquire
35	319201	FUEL FILLER PIPE ASSEMBLY	319201 FUEL FILLER PIPE ASSEMBLY	-	2	Enquire
36	10725011	NUT	10725011 NUT	-	2	Enquire
37	144763	INJECTOR RETAINING SPRING	144763 INJECTOR RETAINING SPRING	-	8	Enquire
38	162700	ADJUSTMENT SCREW	162700 ADJUSTMENT SCREW	-	8	Enquire
39	166485	OR-Ring	166485 OR-Ring	-	8	Enquire
40	166486	SAFETY PLUG	166486 SAFETY PLUG	-	8	Enquire
41	166488	COMPLETE TIE ROD	166488 COMPLETE TIE ROD	-	2	Enquire
42	162731	TIE ROD FIXING NUT	162731 TIE ROD FIXING NUT	-	2	Enquire
43	162722	POTENTIOMETER FIXING SCREW	162722 POTENTIOMETER FIXING SCREW	-	4	Enquire
44	168100	UNION	168100 UNION	-	8	Enquire
45	168105	O.R. GASKET	168105 O.R. GASKET	-	8	Enquire
