LUBRICATION SYSTEM of Ferrari Ferrari 355 (2.7 Motronic)

View All

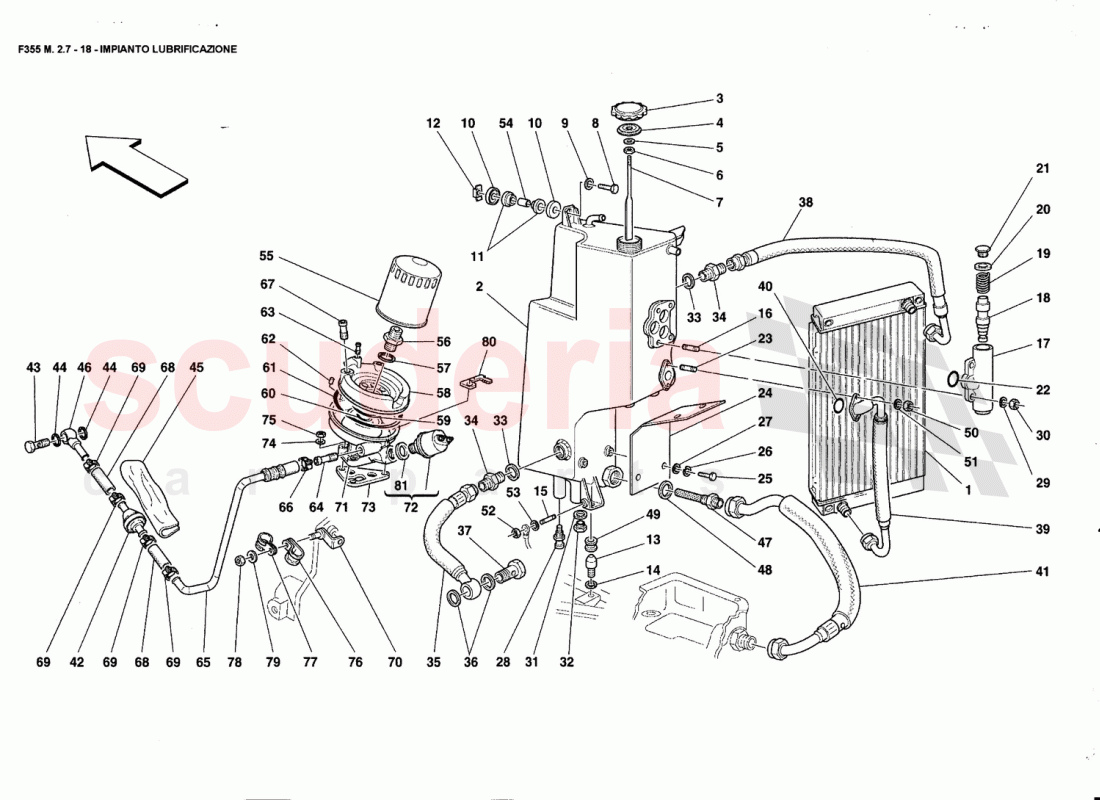

Ferrari 355 (2.7 Motronic) - LUBRICATION SYSTEM

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	152733	OIL RADIATOR	$1,995.55	To Order

Photo	Part No	Description	Price (each)	Stock
	178345	OIL TANK	$1,018.48	To Order

Photo	Part No	Description	Price (each)	Stock
	145623	TANK PLUG	$272.77	To Order

Photo	Part No	Description	Price (each)	Stock
	180585	Oil Tank Cap Gasket	$94.66	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	145112	OIL LEVEL ROD	$304.06	To Order

Photo	Part No	Description	Price (each)	Stock
	231629	SCREW	$0.65	To Order

Photo	Part No	Description	Price (each)	Stock
	127496	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	107979	STOP CAP	$11.67	To Order

Photo	Part No	Description	Price (each)	Stock
	107978	VIBRATION DAMPER	$14.31	To Order

Photo	Part No	Description	Price (each)	Stock
	141530	NUT WITH CAGE	$0.45	To Order

Photo	Part No	Description	Price (each)	Stock
	125708	SUPPORT PIN	$13.55	To Order

Photo	Part No	Description	Price (each)	Stock
	108242	WASHER	$1.28	To Order

Photo	Part No	Description	Price (each)	Stock
	11000824	Stud -Q.ty 4 for USA-	$7.25	To Order

Photo	Part No	Description	Price (each)	Stock
	13541024	STUD BOLT	$0.32	To Order

Photo	Part No	Description	Price (each)	Stock
	160760	VALVE BODY -Valid from Ass. Nr.	$626.88	To Order

Photo	Part No	Description	Price (each)	Stock
	235648	COMPLETE THERMOSTAT VALVE	$818.33	To Order

Photo	Part No	Description	Price (each)	Stock
	136867	SPRING	$19.24	To Order

Photo	Part No	Description	Price (each)	Stock
	10303460	Gasket	$1.70	To Order

Photo	Part No	Description	Price (each)	Stock
	136868	CAP	$61.96	To Order

Photo	Part No	Description	Price (each)	Stock
	139934	O-RING	$0.94	To Order

Photo	Part No	Description	Price (each)	Stock
	13540824	STUD BOLT	$0.24	To Order

Photo	Part No	Description	Price (each)	Stock
	175450	ANTI-HEAT SHIELD	$246.87	To Order

Photo	Part No	Description	Price (each)	Stock
	10977524	SCREW	$0.15	To Order

Photo	Part No	Description	Price (each)	Stock
	127493	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	13550114	WASHER	$0.23	To Order

Photo	Part No	Description	Price (each)	Stock
	107576A	OIL THERMISTOR -Not for AUS-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER	$0.02	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	10261460	COPPER WASHER 16 X 24 X 1.5	$0.36	To Order

Photo	Part No	Description	Price (each)	Stock
	293107	THREADED PLUG	$90.10	To Order

Photo	Part No	Description	Price (each)	Stock
	898271	GASKET	$36.89	To Order

Photo	Part No	Description	Price (each)	Stock
	145085	CONNECTOR	$22.16	To Order

Photo	Part No	Description	Price (each)	Stock
	145040	HOSE FROM ENGINE TO RESERVOIR	$565.16	To Order

Photo	Part No	Description	Price (each)	Stock
	907923	DOWTY WASHER	$41.04	To Order

Photo	Part No	Description	Price (each)	Stock
	129809	UNION	$67.15	To Order

Photo	Part No	Description	Price (each)	Stock
	141820	HOSE FROM RESERVOIR TO RADIATOR	$567.49	To Order

Photo	Part No	Description	Price (each)	Stock
	145041	HOSE FROM RADIATOR TO RESERVOIR	$593.64	To Order

Photo	Part No	Description	Price (each)	Stock
	139934	O-RING	$0.94	To Order

Photo	Part No	Description	Price (each)	Stock
	145039	HOSE FROM RESERVOIR TO OIL PUMP	$942.08	To Order

Photo	Part No	Description	Price (each)	Stock
	164548	ONE-WAY VALVE	$25.98	To Order

Photo	Part No	Description	Price (each)	Stock
	184727	Banjo bolt For Union M16 x 1.5	$6.03	To Order

Photo	Part No	Description	Price (each)	Stock
	10261460	COPPER WASHER 16 X 24 X 1.5	$0.36	To Order

Photo	Part No	Description	Price (each)	Stock
	161353	PROTECTION	$97.86	To Order

Photo	Part No	Description	Price (each)	Stock
	161065	ORIENTABLE UNION	$70.59	To Order

Photo	Part No	Description	Price (each)	Stock
	145086	FILTER ASSEMBLY	$413.27	To Order

Photo	Part No	Description	Price (each)	Stock
	145191	GASKET	$94.27	To Order

Photo	Part No	Description	Price (each)	Stock
	10396480	CABLE GROMMET	$2.92	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER	$0.02	To Order

Photo	Part No	Description	Price (each)	Stock
	15896470	NUT	$7.33	To Order

Photo	Part No	Description	Price (each)	Stock
	107980	SHIM	$5.96	To Order

Photo	Part No	Description	Price (each)	Stock
	197654	Oil Filter	$54.36	To Order

Photo	Part No	Description	Price (each)	Stock
	157679	UNION	$14.28	To Order

Photo	Part No	Description	Price (each)	Stock
	10246160	GASKET	$0.89	To Order

Photo	Part No	Description	Price (each)	Stock
	157678	OIL FILTER COVER	$134.54	To Order

Photo	Part No	Description	Price (each)	Stock
	157869	O.R. GASKET	$13.70	To Order

Photo	Part No	Description	Price (each)	Stock
	157872	O.R. GASKET	$0.57	To Order

Photo	Part No	Description	Price (each)	Stock
	157870	O.R. GASKET	$2.61	To Order

Photo	Part No	Description	Price (each)	Stock
	109657	CENTERING DOWEL	$3.40	To Order

Photo	Part No	Description	Price (each)	Stock
	291502	CONNECTOR	$72.19	To Order

Photo	Part No	Description	Price (each)	Stock
	154525	THREADED UNION	$48.98	To Order

Photo	Part No	Description	Price (each)	Stock
	161061	OIL EXHAUST TUBE	$230.27	To Order

Photo	Part No	Description	Price (each)	Stock
	13432070	HOSE COLLAR	$0.57	To Order

Photo	Part No	Description	Price (each)	Stock
	157681	THREADED CONNECTOR	$6.18	To Order

Photo	Part No	Description	Price (each)	Stock
	161141	RUBBER HOSE	$3.79	To Order

Photo	Part No	Description	Price (each)	Stock
	13432070	HOSE COLLAR	$0.57	To Order

Photo	Part No	Description	Price (each)	Stock
	149694	PIPE FASTENER BRACKET	$6.42	To Order

Photo	Part No	Description	Price (each)	Stock
	157677	OIL FILTER BASE-PLATE	$1,261.42	To Order

Photo	Part No	Description	Price (each)	Stock
	135940	Transmitter Oil Pressure	$188.42	To Order

Photo	Part No	Description	Price (each)	Stock
	188052	Oil Filter Base Gasket	$9.13	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	$0.02	To Order

Photo	Part No	Description	Price (each)	Stock
	104030	NUT	$0.26	To Order

Photo	Part No	Description	Price (each)	Stock
	320600	CLIP	$2.25	To Order

Photo	Part No	Description	Price (each)	Stock
	10441390	BRACKET WITH SHEATH	$0.57	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	162606	CLIP	$1.36	To Order

Photo	Part No	Description	Price (each)	Stock
	10259960	Copper Washer 18 - 24 x 1.5	$0.32	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	164548	ONE-WAY VALVE	164548 ONE-WAY VALVE VALVE / Valid after stock exhaustion of 161138	$25.98 MSRP: ~~65.38~~ (60.3% off)	1
-	148676	OIL THERMISTOR -Valid for AUS-	148676 OIL THERMISTOR -Valid for AUS- Valid for AUS	$35.46 MSRP: ~~55.88~~ (36.5% off)	1
-	235648	COMPLETE THERMOSTAT VALVE	235648 COMPLETE THERMOSTAT VALVE Valid after stock exhaustion of 157413	$818.33	1
-	178345	OIL TANK	178345 OIL TANK Valid after stock exhaustion of 161485	$1,018.48 MSRP: ~~1,921.92~~ (47% off)	1
1	152733	OIL RADIATOR	152733 OIL RADIATOR	$1,995.55	1
2	178345	OIL TANK	178345 OIL TANK	$1,018.48 MSRP: ~~1,921.92~~ (47% off)	1
3	145623	TANK PLUG	145623 TANK PLUG	$272.77 MSRP: ~~358.36~~ (23.9% off)	1
4	180585	Oil Tank Cap Gasket	180585 Oil Tank Cap Gasket	$94.66 MSRP: ~~113.57~~ (16.7% off)	1
5	11197774	WASHER	11197774 WASHER	$0.06 MSRP: ~~0.30~~ (80% off)	1
6	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	1
7	145112	OIL LEVEL ROD	145112 OIL LEVEL ROD	$304.06	1
8	231629	SCREW	231629 SCREW	$0.65 MSRP: ~~0.95~~ (31.6% off)	2
9	127496	WASHER	127496 WASHER	$0.06 MSRP: ~~0.30~~ (80% off)	2
10	107979	STOP CAP	107979 STOP CAP	$11.67 MSRP: ~~11.98~~ (2.6% off)	4
11	107978	VIBRATION DAMPER	107978 VIBRATION DAMPER	$14.31	4
12	141530	NUT WITH CAGE	141530 NUT WITH CAGE	$0.45 MSRP: ~~1.75~~ (74.3% off)	2
13	125708	SUPPORT PIN	125708 SUPPORT PIN	$13.55 MSRP: ~~23.70~~ (42.8% off)	1
14	108242	WASHER	108242 WASHER	$1.28	1
15	11000824	Stud -Q.ty 4 for USA-	11000824 Stud -Q.ty 4 for USA-	$7.25	1
16	13541024	STUD BOLT	13541024 STUD BOLT	$0.32 MSRP: ~~0.60~~ (46.7% off)	4
17	160760	VALVE BODY -Valid from Ass. Nr.	160760 VALVE BODY -Valid from Ass. Nr.	$626.88	1
18	235648	COMPLETE THERMOSTAT VALVE	235648 COMPLETE THERMOSTAT VALVE	$818.33	1
19	136867	SPRING	136867 SPRING	$19.24	1
20	10303460	Gasket	10303460 Gasket	$1.70 MSRP: ~~2.10~~ (19% off)	1
21	136868	CAP	136868 CAP	$61.96	1
22	139934	O-RING	139934 O-RING	$0.94 MSRP: ~~2.25~~ (58.2% off)	3
23	13540824	STUD BOLT	13540824 STUD BOLT	$0.24	2
24	175450	ANTI-HEAT SHIELD	175450 ANTI-HEAT SHIELD	$246.87 MSRP: ~~326.95~~ (24.5% off)	1
25	10977524	SCREW	10977524 SCREW	$0.15	4
26	127493	WASHER	127493 WASHER	$0.06 MSRP: ~~0.30~~ (80% off)	4
27	13550114	WASHER	13550114 WASHER	$0.23	4
28	107576A	OIL THERMISTOR -Not for AUS-	107576A OIL THERMISTOR -Not for AUS-	-	1	Enquire
29	10519424	WASHER	10519424 WASHER	$0.02 MSRP: ~~0.25~~ (92% off)	4
30	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	4
31	10261460	COPPER WASHER 16 X 24 X 1.5	10261460 COPPER WASHER 16 X 24 X 1.5	$0.36 MSRP: ~~1.00~~ (64% off)	1
32	293107	THREADED PLUG	293107 THREADED PLUG	$90.10	1
33	898271	GASKET	898271 GASKET	$36.89	2
34	145085	CONNECTOR	145085 CONNECTOR	$22.16	2
35	145040	HOSE FROM ENGINE TO RESERVOIR	145040 HOSE FROM ENGINE TO RESERVOIR RESERVOIR	$565.16 MSRP: ~~755.00~~ (25.1% off)	1
36	907923	DOWTY WASHER	907923 DOWTY WASHER	$41.04	2
37	129809	UNION	129809 UNION	$67.15 MSRP: ~~185.41~~ (63.8% off)	1
38	141820	HOSE FROM RESERVOIR TO RADIATOR	141820 HOSE FROM RESERVOIR TO RADIATOR RADIATOR	$567.49	1
39	145041	HOSE FROM RADIATOR TO RESERVOIR	145041 HOSE FROM RADIATOR TO RESERVOIR RESERVOIR	$593.64	1
40	139934	O-RING	139934 O-RING	$0.94 MSRP: ~~2.25~~ (58.2% off)	1
41	145039	HOSE FROM RESERVOIR TO OIL PUMP	145039 HOSE FROM RESERVOIR TO OIL PUMP PUMP	$942.08	1
42	164548	ONE-WAY VALVE	164548 ONE-WAY VALVE VALVE / Valid till stock exhaustion	$25.98 MSRP: ~~65.38~~ (60.3% off)	1
43	184727	Banjo bolt For Union M16 x 1.5	184727 Banjo bolt For Union M16 x 1.5	$6.03	1
44	10261460	COPPER WASHER 16 X 24 X 1.5	10261460 COPPER WASHER 16 X 24 X 1.5	$0.36 MSRP: ~~1.00~~ (64% off)	2
45	161353	PROTECTION	161353 PROTECTION	$97.86	1
46	161065	ORIENTABLE UNION	161065 ORIENTABLE UNION	$70.59	1
47	145086	FILTER ASSEMBLY	145086 FILTER ASSEMBLY	$413.27	1
48	145191	GASKET	145191 GASKET	$94.27 MSRP: ~~113.20~~ (16.7% off)	1
49	10396480	CABLE GROMMET	10396480 CABLE GROMMET	$2.92	1
50	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	2
51	10519424	WASHER	10519424 WASHER	$0.02 MSRP: ~~0.25~~ (92% off)	2
52	15896470	NUT	15896470 NUT	$7.33	1
53	149951	WASHER	149951 WASHER	$0.31	1
54	107980	SHIM	107980 SHIM	$5.96 MSRP: ~~6.25~~ (4.6% off)	2
55	197654	Oil Filter	197654 Oil Filter	$54.36	1
56	157679	UNION	157679 UNION	$14.28	1
57	10246160	GASKET	10246160 GASKET	$0.89 MSRP: ~~1.40~~ (36.4% off)	1
58	157678	OIL FILTER COVER	157678 OIL FILTER COVER	$134.54	1
59	157869	O.R. GASKET	157869 O.R. GASKET	$13.70	1
60	157872	O.R. GASKET	157872 O.R. GASKET	$0.57	1
61	157870	O.R. GASKET	157870 O.R. GASKET	$2.61 MSRP: ~~5.46~~ (52.2% off)	1
62	109657	CENTERING DOWEL	109657 CENTERING DOWEL	$3.40	1
63	291502	CONNECTOR	291502 CONNECTOR	$72.19	1
64	154525	THREADED UNION	154525 THREADED UNION	$48.98	1
65	161061	OIL EXHAUST TUBE	161061 OIL EXHAUST TUBE	$230.27	1
66	13432070	HOSE COLLAR	13432070 HOSE COLLAR	$0.57 MSRP: ~~1.07~~ (46.7% off)	1
67	157681	THREADED CONNECTOR	157681 THREADED CONNECTOR	$6.18	2
68	161141	RUBBER HOSE	161141 RUBBER HOSE	$3.79	2
69	13432070	HOSE COLLAR	13432070 HOSE COLLAR	$0.57 MSRP: ~~1.07~~ (46.7% off)	4
70	149694	PIPE FASTENER BRACKET	149694 PIPE FASTENER BRACKET	$6.42	1
71	157677	OIL FILTER BASE-PLATE	157677 OIL FILTER BASE-PLATE	$1,261.42	1
72	135940	Transmitter Oil Pressure	135940 Transmitter Oil Pressure TRANSMITTER	$188.42 MSRP: ~~216.84~~ (13.1% off)	1
73	188052	Oil Filter Base Gasket	188052 Oil Filter Base Gasket	$9.13 MSRP: ~~11.70~~ (22% off)	1
74	12601374	WASHER	12601374 WASHER	$0.02 MSRP: ~~0.25~~ (92% off)	3
75	104030	NUT	104030 NUT	$0.26 MSRP: ~~1.00~~ (74% off)	3
76	320600	CLIP	320600 CLIP	$2.25	1
77	10441390	BRACKET WITH SHEATH	10441390 BRACKET WITH SHEATH	$0.57	1
78	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	1
79	11197774	WASHER	11197774 WASHER	$0.06 MSRP: ~~0.30~~ (80% off)	1
80	162606	CLIP	162606 CLIP Valid from engine Nr. 38322	$1.36 MSRP: ~~1.47~~ (7.5% off)	1
81	10259960	Copper Washer 18 - 24 x 1.5	10259960 Copper Washer 18 - 24 x 1.5	$0.32 MSRP: ~~1.25~~ (74.4% off)	1
