Find Your Part

COOLING SYSTEM RADIATORS of Ferrari Ferrari 355 (2.7 Motronic)

View All

Ferrari 355 (2.7 Motronic) - COOLING SYSTEM RADIATORS

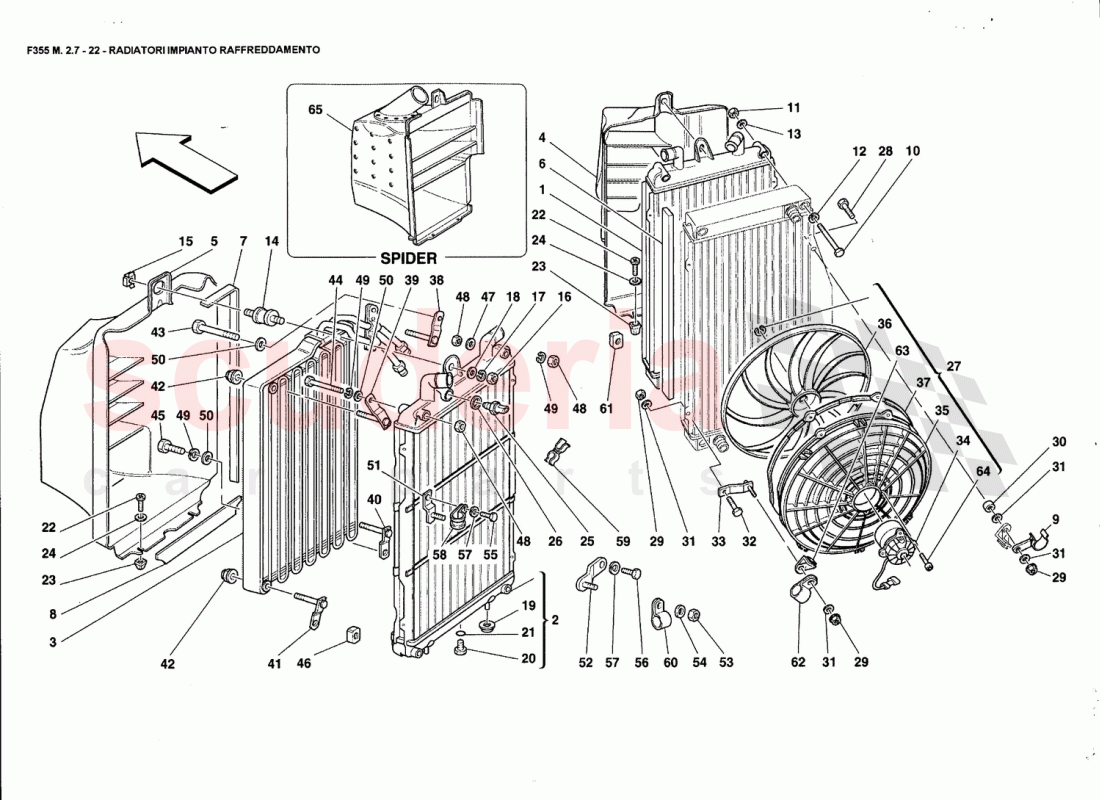

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	807927	WATER RH RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	807928	WATER L.H. RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62963600	A.C. CONDENSER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64243900	R.H. AIR INLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64244000	LH. AIR INLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	158243	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64244100	LATERAL GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63370900	LOWER GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	162751	FLEXIBLE CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16045624	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	133989	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127496	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14496524	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	157650	FASTENER BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14074890	NUT WITH CAGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	133989	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127496	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	219344	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	137624	Vibration-damping buffer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	159923	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	140150	O.R. GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15903970	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14202580	BLOCK -Valid for GD-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12638124	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	158655	TEMPERATURE SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	101508	Gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	163996	COMPLETE ELECTROFAN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	162424	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13577724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10977524	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	162422	SMALL PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	153174	ELECTRIC FAN MOTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	152920	R.H. AIR INLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	164096	BLOWER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	164097	RUBBER EDGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64303200	R.H. UPPER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64255200	L.H. UPPER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64306300	R.H. LOWER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64255600	L.H. LOWER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16044621	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16044424	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16043324	SCREW M8 X 18	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14095511	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64322200	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	133989	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127496	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14496524	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	162423	SMALL PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	162422	SMALL PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13577724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10977524	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81591700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10441290	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	164374	FLEXIBLE CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10418301	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14095511	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10418301	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	166548	SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	166550	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65513500	L.H. AIR INLET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	64525700	R.H. AIR INLET	64525700 R.H. AIR INLET Valid for Spider	-	1	Enquire
-	64530900	LATERAL GASKET	64530900 LATERAL GASKET L. mm. 600 / No more used	-	3	Enquire
1	807927	WATER RH RADIATOR	807927 WATER RH RADIATOR	-	1	Enquire
2	807928	WATER L.H. RADIATOR	807928 WATER L.H. RADIATOR	-	1	Enquire
3	62963600	A.C. CONDENSER	62963600 A.C. CONDENSER	-	1	Enquire
4	64243900	R.H. AIR INLET	64243900 R.H. AIR INLET Not for Spider	-	1	Enquire
5	64244000	LH. AIR INLET	64244000 LH. AIR INLET Not for Spider	-	1	Enquire
6	158243	GASKET	158243 GASKET	-	2	Enquire
7	64244100	LATERAL GASKET	64244100 LATERAL GASKET L. mm. 540 / No more used	-	1	Enquire
8	63370900	LOWER GASKET	63370900 LOWER GASKET No more used	-	2	Enquire
9	162751	FLEXIBLE CLIP	162751 FLEXIBLE CLIP	-	1	Enquire
10	16045624	SCREW	16045624 SCREW	-	4	Enquire
11	133989	NUT	133989 NUT	-	2	Enquire
12	127496	WASHER	127496 WASHER	-	4	Enquire
13	14496524	WASHER	14496524 WASHER	-	4	Enquire
14	157650	FASTENER BUSHING	157650 FASTENER BUSHING	-	2	Enquire
15	14074890	NUT WITH CAGE	14074890 NUT WITH CAGE	-	2	Enquire
16	133989	NUT	133989 NUT	-	2	Enquire
17	127496	WASHER	127496 WASHER	-	2	Enquire
18	219344	WASHER	219344 WASHER	-	2	Enquire
19	137624	Vibration-damping buffer	137624 Vibration-damping buffer	-	4	Enquire
20	159923	THREADED PLUG	159923 THREADED PLUG	-	2	Enquire
21	140150	O.R. GASKET	140150 O.R. GASKET	-	2	Enquire
22	15903970	SCREW	15903970 SCREW	-	10	Enquire
23	14202580	BLOCK -Valid for GD-	14202580 BLOCK -Valid for GD-	-	10	Enquire
24	12638124	WASHER	12638124 WASHER	-	10	Enquire
25	158655	TEMPERATURE SWITCH	158655 TEMPERATURE SWITCH	-	1	Enquire
26	101508	Gasket	101508 Gasket	-	1	Enquire
27	163996	COMPLETE ELECTROFAN	163996 COMPLETE ELECTROFAN	-	2	Enquire
28	231620	SCREW	231620 SCREW	-	2	Enquire
29	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	6	Enquire
30	162424	SPACER	162424 SPACER	-	2	Enquire
31	13577724	WASHER	13577724 WASHER	-	8	Enquire
32	10977524	SCREW	10977524 SCREW	-	2	Enquire
33	162422	SMALL PLATE	162422 SMALL PLATE	-	2	Enquire
34	153174	ELECTRIC FAN MOTOR	153174 ELECTRIC FAN MOTOR	-	2	Enquire
35	152920	R.H. AIR INLET	152920 R.H. AIR INLET	-	2	Enquire
36	164096	BLOWER	164096 BLOWER	-	2	Enquire
37	164097	RUBBER EDGE	164097 RUBBER EDGE	-	2	Enquire
38	64303200	R.H. UPPER BRACKET	64303200 R.H. UPPER BRACKET	-	1	Enquire
39	64255200	L.H. UPPER BRACKET	64255200 L.H. UPPER BRACKET	-	1	Enquire
40	64306300	R.H. LOWER BRACKET	64306300 R.H. LOWER BRACKET	-	1	Enquire
41	64255600	L.H. LOWER BRACKET	64255600 L.H. LOWER BRACKET	-	1	Enquire
42	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	4	Enquire
43	16044621	SCREW	16044621 SCREW	-	1	Enquire
44	16044424	SCREW	16044424 SCREW	-	1	Enquire
45	16043324	SCREW M8 X 18	16043324 SCREW M8 X 18	-	2	Enquire
46	14095511	NUT	14095511 NUT	-	2	Enquire
47	64322200	WASHER	64322200 WASHER	-	1	Enquire
48	133989	NUT	133989 NUT	-	3	Enquire
49	127496	WASHER	127496 WASHER	-	3	Enquire
50	14496524	WASHER	14496524 WASHER	-	4	Enquire
51	162423	SMALL PLATE	162423 SMALL PLATE	-	2	Enquire
52	162422	SMALL PLATE	162422 SMALL PLATE	-	2	Enquire
53	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	4	Enquire
54	13577724	WASHER	13577724 WASHER	-	4	Enquire
55	10977524	SCREW	10977524 SCREW	-	2	Enquire
56	81591700	SCREW	81591700 SCREW	-	2	Enquire
57	127494	WASHER	127494 WASHER	-	4	Enquire
58	10441290	BRACKET WITH SHEATH	10441290 BRACKET WITH SHEATH	-	2	Enquire
59	164374	FLEXIBLE CLIP	164374 FLEXIBLE CLIP	-	1	Enquire
60	10418301	BRACKET	10418301 BRACKET	-	1	Enquire
61	14095511	NUT	14095511 NUT	-	2	Enquire
62	10418301	BRACKET	10418301 BRACKET	-	1	Enquire
63	166548	SUPPORT	166548 SUPPORT	-	8	Enquire
64	166550	SCREW	166550 SCREW	-	8	Enquire
65	65513500	L.H. AIR INLET	65513500 L.H. AIR INLET Valid for Spider	-	1	Enquire
