WATER PUMP ANO OIL/WATER HEAT EXCHANGER of Ferrari Ferrari 355 (2.7 Motronic)

View All

Ferrari 355 (2.7 Motronic) - WATER PUMP ANO OIL/WATER HEAT EXCHANGER

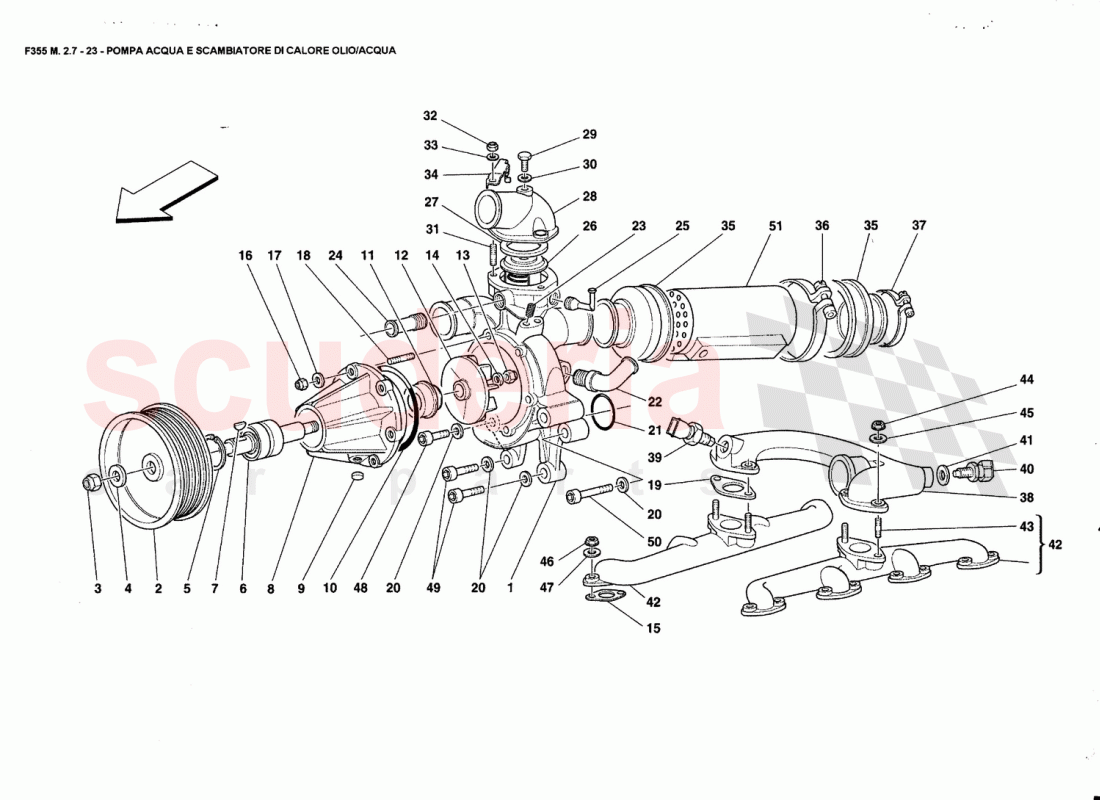

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	158001	WATER PUMP BODY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	158014	WATER PUMP CONTROL PULLEY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	102742	Nyloc Nut M10 x 1.25 x 10mm	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	12646821	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11059976	SEEGER RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	143742	BEARING WITH SHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10202320	Woodruff Key	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	176173	WATER PUMP COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9162535	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	137868	O-Ring	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	183759	Water Pump Seal	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	154542	Water Pump Impeller	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	100436	BLIND NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	141332	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13540924	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	152362	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	101044	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	122844	Fitting	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13525570	THREADED INSERT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	106227	Fitting	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	157400	UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	165473A	THERMOSTAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	105192	O-Ring for Thermostat	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	136571	THERMOSTATIC VALVE COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	132349	CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10297760	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13541024	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	163856	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	145015	SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	153430	CLAMP D.70-90MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	153429	CLAMP - D. 50 mm.-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	154445	WATER OUTLET MANIFOLD CONNECTION DUCT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	148677	Water Temperature Transmitter	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	125769	Water Temperature Transmitter	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10298460	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	154450	COMPLETE WATER OUTLET MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13516724	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT M8 FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14306424	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14306424	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14306624	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180846	Water-Oil Heat Exchanger	Enquire	ARRIVING SOON

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	285494	SCREW	285494 SCREW Valid for water pump body 163875	-	1	Enquire
-	14306624	SCREW	14306624 SCREW Valid for water pump body 163875	-	2	Enquire
-	165473A	THERMOSTAT	165473A THERMOSTAT Valid after stock exhaustion of 130346	-	1	Enquire
-	159584	WATER PUMP CONTROL PULLEY	159584 WATER PUMP CONTROL PULLEY PULLEY / Valid for mechanical steering / box cars	-	1	Enquire
-	163875	WATER PUMP BODY	163875 WATER PUMP BODY Valid from engine Nr. 37562	-	1	Enquire
1	158001	WATER PUMP BODY	158001 WATER PUMP BODY Valid till engine Nr. 37561 / Not as spare part / Replace with 163875 + proper / fixings Pos. 49 and 50 to assemble together	-	1	Enquire
2	158014	WATER PUMP CONTROL PULLEY	158014 WATER PUMP CONTROL PULLEY PULLEY / Valid for steering box with power / steering cars	-	1	Enquire
3	102742	Nyloc Nut M10 x 1.25 x 10mm ARRIVING SOON	102742 Nyloc Nut M10 x 1.25 x 10mm ARRIVING SOON	-	1	Enquire
4	12646821	WASHER	12646821 WASHER	-	1	Enquire
5	11059976	SEEGER RING	11059976 SEEGER RING	-	1	Enquire
6	143742	BEARING WITH SHAFT	143742 BEARING WITH SHAFT SHAFT	-	1	Enquire
7	10202320	Woodruff Key	10202320 Woodruff Key	-	1	Enquire
8	176173	WATER PUMP COVER	176173 WATER PUMP COVER	-	1	Enquire
9	9162535	THREADED PLUG	9162535 THREADED PLUG	-	1	Enquire
10	137868	O-Ring ARRIVING SOON	137868 O-Ring ARRIVING SOON	-	1	Enquire
11	183759	Water Pump Seal	183759 Water Pump Seal	-	1	Enquire
12	154542	Water Pump Impeller	154542 Water Pump Impeller	-	1	Enquire
13	100436	BLIND NUT	100436 BLIND NUT	-	1	Enquire
14	84653800	WASHER	84653800 WASHER	-	1	Enquire
15	141332	GASKET	141332 GASKET	-	8	Enquire
16	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	6	Enquire
17	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	6	Enquire
18	13540924	STUD BOLT	13540924 STUD BOLT	-	6	Enquire
19	152362	GASKET	152362 GASKET	-	2	Enquire
20	12601374	WASHER	12601374 WASHER	-	4	Enquire
21	101044	O-RING	101044 O-RING	-	1	Enquire
22	122844	Fitting	122844 Fitting	-	1	Enquire
23	13525570	THREADED INSERT	13525570 THREADED INSERT	-	2	Enquire
24	106227	Fitting	106227 Fitting	-	1	Enquire
25	157400	UNION	157400 UNION	-	1	Enquire
26	165473A	THERMOSTAT	165473A THERMOSTAT	-	1	Enquire
27	105192	O-Ring for Thermostat ARRIVING SOON	105192 O-Ring for Thermostat ARRIVING SOON	-	1	Enquire
28	136571	THERMOSTATIC VALVE COVER	136571 THERMOSTATIC VALVE COVER COVER	-	1	Enquire
29	132349	CONNECTOR	132349 CONNECTOR	-	1	Enquire
30	10297760	GASKET	10297760 GASKET	-	1	Enquire
31	13541024	STUD BOLT	13541024 STUD BOLT	-	3	Enquire
32	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	3	Enquire
33	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	3	Enquire
34	163856	BRACKET	163856 BRACKET	-	1	Enquire
35	145015	SLEEVE	145015 SLEEVE	-	2	Enquire
36	153430	CLAMP D.70-90MM	153430 CLAMP D.70-90MM	-	2	Enquire
37	153429	CLAMP - D. 50 mm.-	153429 CLAMP - D. 50 mm.-	-	2	Enquire
38	154445	WATER OUTLET MANIFOLD CONNECTION DUCT	154445 WATER OUTLET MANIFOLD CONNECTION DUCT CONNECTION DUCT	-	1	Enquire
39	148677	Water Temperature Transmitter	148677 Water Temperature Transmitter TRANSMITTER	-	1	Enquire
40	125769	Water Temperature Transmitter	125769 Water Temperature Transmitter SENSOR	-	2	Enquire
41	10298460	GASKET	10298460 GASKET	-	2	Enquire
42	154450	COMPLETE WATER OUTLET MANIFOLD	154450 COMPLETE WATER OUTLET MANIFOLD MANIFOLD	-	2	Enquire
43	13516724	STUD	13516724 STUD	-	4	Enquire
44	14040711	NUT M8 FLANGED	14040711 NUT M8 FLANGED	-	4	Enquire
45	12601374	WASHER	12601374 WASHER	-	4	Enquire
46	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	16	Enquire
47	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	16	Enquire
48	14306424	SCREW	14306424 SCREW	-	1	Enquire
49	14306424	SCREW	14306424 SCREW Valid for water pump body 158001	-	2	Enquire
50	14306624	SCREW	14306624 SCREW Valid for water pump body 158001	-	1	Enquire
51	180846	Water-Oil Heat Exchanger ARRIVING SOON	180846 Water-Oil Heat Exchanger EXCHANGER ARRIVING SOON	-	1	Enquire
