TIMING - TAPPETS ANO SHIELDS of Ferrari Ferrari 355 (2.7 Motronic)

View All

Ferrari 355 (2.7 Motronic) - TIMING - TAPPETS ANO SHIELDS

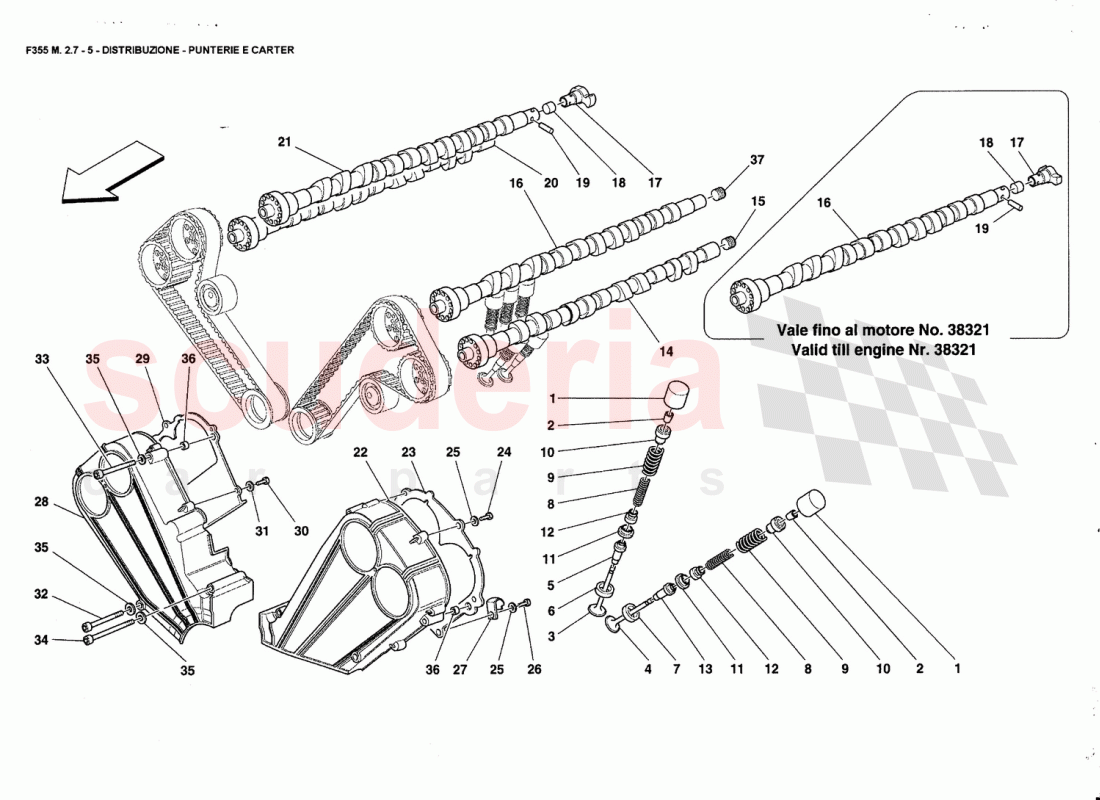

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	195017	TAPPET FOR VALVE CONTROL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	157986	COTTER FOR VALVE SPRING CUP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	160921	INTAKE VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	342320	EXHAUST VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	176437	INTAKE VALVE GUIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6148234	INTAKE VALVE SEAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6140702	EXHAUST VALVE SEAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180208	INNER SPRING FOR VALVE RETURN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180192	OUTER SPRING FOR VALVE RETURN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	157989	UPPER CUP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	172466	LOWER CUP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	221473	OIL SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	176438	EXHAUST VALVE GUIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	149093	COMPLETE LH EXHAUST CAM SHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10269550	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	158034	COMPLETE LH INDUCTION DISTRIBUTION SHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	151194	COUPLING ON THE CAM SHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10158501	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	149859	DOWEL BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	149376	COMPLETE RH EXHAUST CAM SHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	158035	COMPLETE RH INDUCTION DISTRIBUTION SHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	158007	L.H. GUARD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	158055	L.H. PROTECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10977724	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12604178	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10977824	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	159521	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	157895	R.H. GUARD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	158054	R.H. PROTECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10977724	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12604178	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	175732	SCREW -Valid from engine Nr. 81801-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	156830	ALLEN SCREW M6 X 40	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	156839	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104339	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10269550	THREADED PLUG	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	163849	R.H. PROTECTION	163849 R.H. PROTECTION Valid for R.H. Guard 163877	-	1	Enquire
-	163877	R.H. GUARD	163877 R.H. GUARD Valid for 5 fixing points R.H. Protection	-	1	Enquire
-	163876	L.H. GUARD	163876 L.H. GUARD Valid for 5 fixing points L.H. Protection	-	1	Enquire
-	163848	L.H. PROTECTION	163848 L.H. PROTECTION Valid for L.H. Guard 163876	-	1	Enquire
-	166661	COMPLETE RH INDUCTION DISTRIBUTION SHAFT	166661 COMPLETE RH INDUCTION DISTRIBUTION SHAFT DISTRIBUTION SHAFT / Valid from engine Nr. 38322 / Valid till stock exhaustion	-	1	Enquire
-	162759	RH COUPLING ON THE CAM SHAFT	162759 RH COUPLING ON THE CAM SHAFT SHAFT / Valid from engine Nr. 38322	-	1	Enquire
-	166660	COMPLETE LH INDUCTION DISTRIBUTION SHAFT	166660 COMPLETE LH INDUCTION DISTRIBUTION SHAFT DISTRIBUTION SHAFT / Valid from engine Nr. 38322 / Valid till stock exhaustion	-	1	Enquire
-	176484	EXHAUST VALVE GUIDE - OVERSIZED	176484 EXHAUST VALVE GUIDE - OVERSIZED OVERSIZED	-	16	Enquire
-	176483	INTAKE VALVE GUIDE - OVERSIZED	176483 INTAKE VALVE GUIDE - OVERSIZED OVERSIZED	-	24	Enquire
1	195017	TAPPET FOR VALVE CONTROL	195017 TAPPET FOR VALVE CONTROL	-	40	Enquire
2	157986	COTTER FOR VALVE SPRING CUP	157986 COTTER FOR VALVE SPRING CUP CUP	-	80	Enquire
3	160921	INTAKE VALVE	160921 INTAKE VALVE	-	24	Enquire
4	342320	EXHAUST VALVE	342320 EXHAUST VALVE	-	16	Enquire
5	176437	INTAKE VALVE GUIDE	176437 INTAKE VALVE GUIDE	-	24	Enquire
6	6148234	INTAKE VALVE SEAT	6148234 INTAKE VALVE SEAT SEAT	-	24	Enquire
7	6140702	EXHAUST VALVE SEAT	6140702 EXHAUST VALVE SEAT	-	16	Enquire
8	180208	INNER SPRING FOR VALVE RETURN	180208 INNER SPRING FOR VALVE RETURN RETURN	-	40	Enquire
9	180192	OUTER SPRING FOR VALVE RETURN	180192 OUTER SPRING FOR VALVE RETURN RETURN	-	40	Enquire
10	157989	UPPER CUP	157989 UPPER CUP	-	40	Enquire
11	172466	LOWER CUP	172466 LOWER CUP	-	40	Enquire
12	221473	OIL SEAL	221473 OIL SEAL GUIDE	-	40	Enquire
13	176438	EXHAUST VALVE GUIDE	176438 EXHAUST VALVE GUIDE	-	16	Enquire
14	149093	COMPLETE LH EXHAUST CAM SHAFT	149093 COMPLETE LH EXHAUST CAM SHAFT CAM SHAFT	-	1	Enquire
15	10269550	THREADED PLUG	10269550 THREADED PLUG	-	2	Enquire
16	158034	COMPLETE LH INDUCTION DISTRIBUTION SHAFT	158034 COMPLETE LH INDUCTION DISTRIBUTION SHAFT DISTRIBUTION SHAFT / Valid till engine Nr. 38321	-	1	Enquire
17	151194	COUPLING ON THE CAM SHAFT	151194 COUPLING ON THE CAM SHAFT SHAFT / Valid till engine Nr. 38321	-	2	Enquire
18	10158501	PLUG	10158501 PLUG Till engine Nr. 38321 q.ty 2	-	1	Enquire
19	149859	DOWEL BOLT	149859 DOWEL BOLT Till engine Nr. 38321 q.ty 4	-	2	Enquire
20	149376	COMPLETE RH EXHAUST CAM SHAFT	149376 COMPLETE RH EXHAUST CAM SHAFT CAM SHAFT	-	1	Enquire
21	158035	COMPLETE RH INDUCTION DISTRIBUTION SHAFT	158035 COMPLETE RH INDUCTION DISTRIBUTION SHAFT DISTRIBUTION SHAFT / Valid till engine Nr. 38321	-	1	Enquire
22	158007	L.H. GUARD	158007 L.H. GUARD Valid for 3 fixing points L.H. Protection / Valid till stock exhaustion / Replace with 163876 + 163848	-	1	Enquire
23	158055	L.H. PROTECTION	158055 L.H. PROTECTION Valid for L.H. Guard 158007	-	1	Enquire
24	10977724	SCREW	10977724 SCREW For L.H. Guard 158007 q.ty 2	-	4	Enquire
25	12604178	Washer	12604178 Washer For L.H. Guard 158007 q.ty 3	-	5	Enquire
26	10977824	SCREW	10977824 SCREW	-	1	Enquire
27	159521	CLIP	159521 CLIP	-	1	Enquire
28	157895	R.H. GUARD	157895 R.H. GUARD Valid for 3 fixing points R.H. Protection / Valid till stock exhaustion / Replace with 163877 + 163849	-	1	Enquire
29	158054	R.H. PROTECTION	158054 R.H. PROTECTION Valid for R.H. Guard 157895	-	1	Enquire
30	10977724	SCREW	10977724 SCREW For R.H. Guard 157895 q.ty 3	-	5	Enquire
31	12604178	Washer	12604178 Washer For R.H. Guard 157895 q.ty 3	-	5	Enquire
32	175732	SCREW -Valid from engine Nr. 81801-	175732 SCREW -Valid from engine Nr. 81801-	-	2	Enquire
33	156830	ALLEN SCREW M6 X 40	156830 ALLEN SCREW M6 X 40	-	4	Enquire
34	156839	SCREW	156839 SCREW	-	2	Enquire
35	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	8	Enquire
36	104339	SPACER	104339 SPACER	-	4	Enquire
37	10269550	THREADED PLUG	10269550 THREADED PLUG Valid from engine Nr. 38322	-	1	Enquire
