INVERTER COOLING

Find Your Part

Ferrari 296 GTB Europe - INVERTER COOLING

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
916353 COMPL. INVERTER COOLING WATER RADIATOR $1,060.74 To Order
Photo Part No Description Price (each) Stock
742233 RADIATOR BREATHER HOSE $50.15 To Order
Photo Part No Description Price (each) Stock
13126970 COLLAR $1.56 To Order
Photo Part No Description Price (each) Stock
746792 RADIATOR SIDE HOSE $18.62 To Order
Photo Part No Description Price (each) Stock
746585 RADIATOR BREATHER GASKET $5.15 To Order
Photo Part No Description Price (each) Stock
10441790 BRACKET WITH SHEATH $0.73 To Order
Photo Part No Description Price (each) Stock
742124 BREATHER HOSE MOUNTING BRACKET $24.34 To Order
Photo Part No Description Price (each) Stock
797724 SCREW $0.47 To Order
Photo Part No Description Price (each) Stock
746806 VALVE SIDE HOSE $27.21 To Order
Photo Part No Description Price (each) Stock
851664 BLEED SCREW $31.52 To Order
Photo Part No Description Price (each) Stock
14457285 SEAL Enquire To Order
784711 O-RING $14.55 To Order
Photo Part No Description Price (each) Stock
257273 CLIP $1.26 To Order
Photo Part No Description Price (each) Stock
773116 PIN Enquire To Order
Photo Part No Description Price (each) Stock
177576 CABLE GROMMET $2.33 To Order
Photo Part No Description Price (each) Stock
149707 SPACER $1.17 To Order
Photo Part No Description Price (each) Stock
797730 SCREW $0.58 To Order
Photo Part No Description Price (each) Stock
12647778 WASHER $0.42 To Order
Photo Part No Description Price (each) Stock
870715 HOSE FROM RADIATOR OUTLET TO PUMP $120.39 To Order
Photo Part No Description Price (each) Stock
262111 JUBILEE CLAMP $1.60 To Order
Photo Part No Description Price (each) Stock
908587 PUMP $1,057.66 To Order
Photo Part No Description Price (each) Stock
798517 U-BOLT FOR WATER PUMP $41.56 To Order
Photo Part No Description Price (each) Stock
960250 INVERTER PUMP MOUNTING BRACKET $31.52 To Order
Photo Part No Description Price (each) Stock
14304287 SCREW $0.36 To Order
Photo Part No Description Price (each) Stock
62769800 WASHER $0.23 To Order
Photo Part No Description Price (each) Stock
812273 CABLE GROMMET $1.65 To Order
Photo Part No Description Price (each) Stock
14305487 SCREW $0.89 To Order
Photo Part No Description Price (each) Stock
12643778 BLACK WASHER D.6.45-18X1.5 $0.28 To Order
Photo Part No Description Price (each) Stock
870714 HOSE FROM PUMP TO DISCONNECTOR $243.67 To Order
Photo Part No Description Price (each) Stock
248061 CLIP $2.22 To Order
Photo Part No Description Price (each) Stock
958817 HOSE $88.85 To Order
Photo Part No Description Price (each) Stock
292980 COLLAR $1.77 To Order
Photo Part No Description Price (each) Stock
798460 HOSE $186.33 To Order
Photo Part No Description Price (each) Stock
868787 COLLAR $3.03 To Order
Photo Part No Description Price (each) Stock
259508 CLIP $0.63 To Order
Photo Part No Description Price (each) Stock
828986 INVERTER COOLING TANK $200.67 To Order
Photo Part No Description Price (each) Stock
374030103 TANK PLUG Enquire To Order
Photo Part No Description Price (each) Stock
791804 RUBBER PIPE $48.72 To Order
Photo Part No Description Price (each) Stock
777874 INVERTER COOLING TANK SHIELD $104.62 To Order
Photo Part No Description Price (each) Stock
15689501 SCREW $0.28 To Order
Photo Part No Description Price (each) Stock
951756 INVERTER COOLING TANK MOUNTING BRACKET $133.30 To Order
Photo Part No Description Price (each) Stock
14303834 SCREW $1.65 To Order
Photo Part No Description Price (each) Stock
12644424 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
85833900 SCREW $0.36 ARRIVING SOON
Photo Part No Description Price (each) Stock
968516 RADIATOR INLET HOSE $387.02 To Order
Photo Part No Description Price (each) Stock
270085 CLIP $1.85 To Order
Photo Part No Description Price (each) Stock
928316 ALUMINIUM DELIVERY AND RETURN PIPES $487.36 To Order
Photo Part No Description Price (each) Stock
316986 SPACER $8.31 To Order
Photo Part No Description Price (each) Stock
14304387 SCREW $0.97 To Order
Photo Part No Description Price (each) Stock
958816 INVERTER OUTLET HOSE $123.26 To Order
Photo Part No Description Price (each) Stock
958821 INVERTER INLET HOSE $154.03 To Order
Photo Part No Description Price (each) Stock
180137 TEMPERATURE SENSOR $30.23 To Order
Photo Part No Description Price (each) Stock
788664 HOSE $84.56 To Order
Photo Part No Description Price (each) Stock
262111 JUBILEE CLAMP $1.60 To Order
Photo Part No Description Price (each) Stock
291225 P clip Bracket With Sheath $5.12 To Order
Photo Part No Description Price (each) Stock
799507 BLEED VALVE SCREW COMPL. WITH OR $15.66 To Order
Photo Part No Description Price (each) Stock
987355 CAP $2.24 To Order
View All

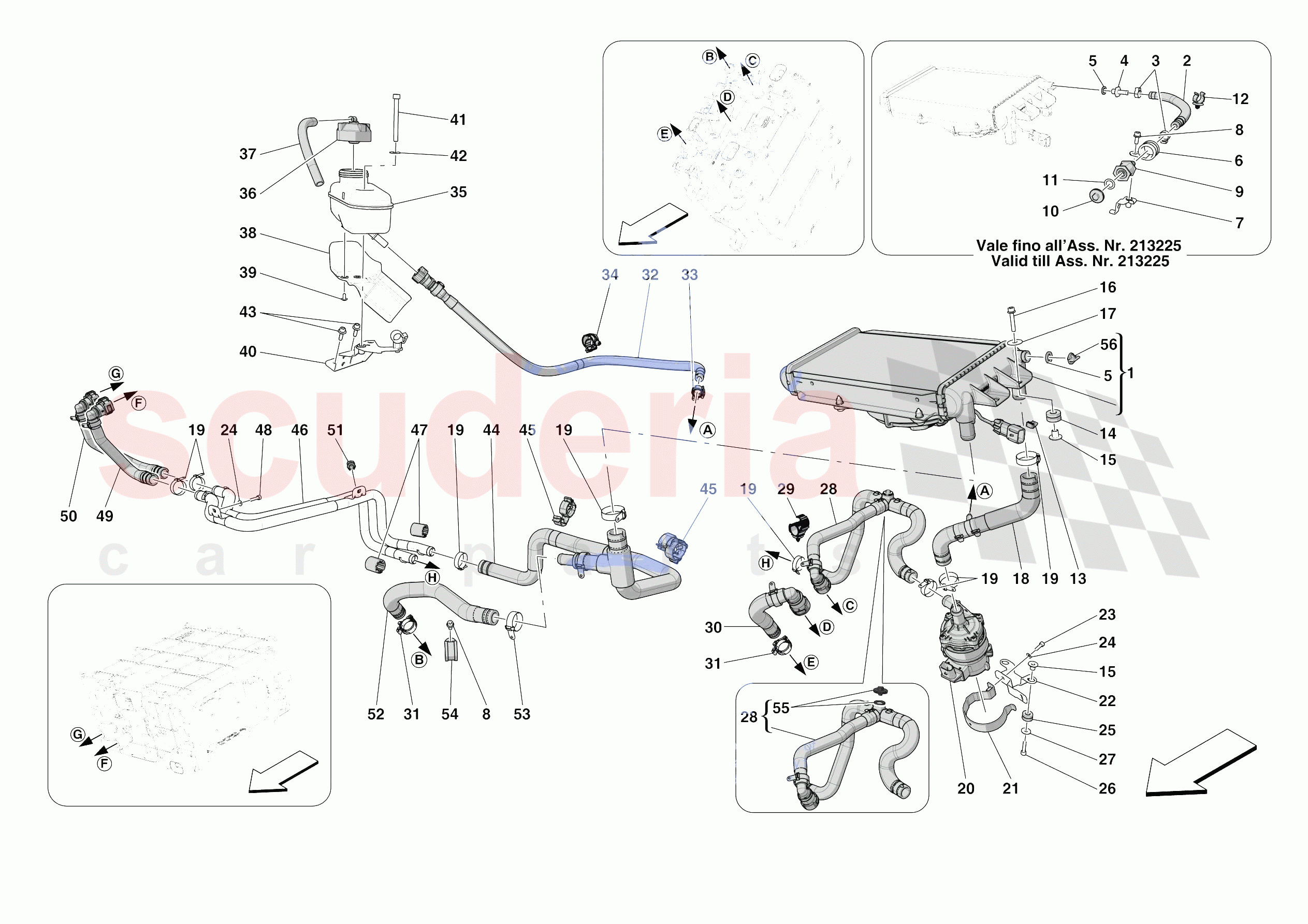

INVERTER COOLING of Ferrari Ferrari 296 GTB Europe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 916353
COMPL. INVERTER COOLING WATER RADIATOR 		$1,060.74 1
2 742233
RADIATOR BREATHER HOSE
After depletion, order cap 987355 ref. 56; Applies until depletion 		$50.15 1
3 13126970
COLLAR 		$1.56 2
4 746792
RADIATOR SIDE HOSE
After depletion, order cap 987355 ref. 56; Applies until depletion 		$18.62 1
5 746585
RADIATOR BREATHER GASKET 		$5.15 1
6 10441790
BRACKET WITH SHEATH 		$0.73 (78.8% off) 1
7 742124
BREATHER HOSE MOUNTING BRACKET
After depletion, order cap 987355 ref. 56; Applies until depletion 		$24.34 1
8 797724
SCREW
M5 X 14 		$0.47 2
9 746806
VALVE SIDE HOSE
After depletion, order cap 987355 ref. 56; Applies until depletion 		$27.21 1
10 851664
BLEED SCREW
After depletion, order cap 987355 ref. 56; Applies until depletion 		$31.52 1
11 14457285
SEAL
After depletion, order cap 987355 ref. 56; No longer supplied - Replaced by 784711 		- 1 Enquire
11 784711
O-RING
Applies until depletion 		$14.55 1
12 257273
CLIP 		$1.26 1
13 773116
PIN
No longer supplied 		- 1 Enquire
14 177576
CABLE GROMMET 		$2.33 3
15 149707
SPACER 		$1.17 (33.1% off) 5
16 797730
SCREW
M5 X 30 		$0.58 3
17 12647778
WASHER 		$0.42 (35.4% off) 3
18 870715
HOSE FROM RADIATOR OUTLET TO PUMP 		$120.39 1
19 262111
JUBILEE CLAMP 		$1.60 8
20 908587
PUMP 		$1,057.66 1
21 798517
U-BOLT FOR WATER PUMP 		$41.56 1
22 960250
INVERTER PUMP MOUNTING BRACKET 		$31.52 1
23 14304287
SCREW
M5 X 16 		$0.36 1
24 62769800
WASHER 		$0.23 (23.3% off) 3
25 812273
CABLE GROMMET 		$1.65 2
26 14305487
SCREW
M6 X 25 		$0.89 2
27 12643778
BLACK WASHER D.6.45-18X1.5
18 X 1.5 		$0.28 (44% off) 2
28 870714
HOSE FROM PUMP TO DISCONNECTOR 		$243.67 1
29 248061
CLIP 		$2.22 1
30 958817
HOSE 		$88.85 1
31 292980
COLLAR 		$1.77 2
32 798460
HOSE 		$186.33 1
33 868787
COLLAR 		$3.03 1
34 259508
CLIP
1 compartment- 		$0.63 1
35 828986
INVERTER COOLING TANK 		$200.67 1
36 374030103
TANK PLUG 		- 1 Enquire
37 791804
RUBBER PIPE 		$48.72 1
38 777874
INVERTER COOLING TANK SHIELD 		$104.62 1
39 15689501
SCREW 		$0.28 2
40 951756
INVERTER COOLING TANK MOUNTING BRACKET 		$133.30 1
41 14303834
SCREW
M6 X 60 		$1.65 1
42 12644424
WASHER 		$0.06 (85% off) 1
43 85833900
SCREW
M5 X 16
ARRIVING SOON 		$0.36 2
44 968516
RADIATOR INLET HOSE 		$387.02 1
45 270085
CLIP 		$1.85 4
46 928316
ALUMINIUM DELIVERY AND RETURN PIPES 		$487.36 1
47 316986
SPACER 		$8.31 2
48 14304387
SCREW
M5 X 20 		$0.97 2
49 958816
INVERTER OUTLET HOSE 		$123.26 1
50 958821
INVERTER INLET HOSE 		$154.03 1
51 180137
TEMPERATURE SENSOR 		$30.23 (8.4% off) 1
52 788664
HOSE 		$84.56 1
53 262111
JUBILEE CLAMP
D.17 - 25 		$1.60 1
54 291225
P clip Bracket With Sheath 		$5.12 1
55 799507
BLEED VALVE SCREW COMPL. WITH OR 		$15.66 1
56 987355
CAP
M10 X 15 		$2.24 1
